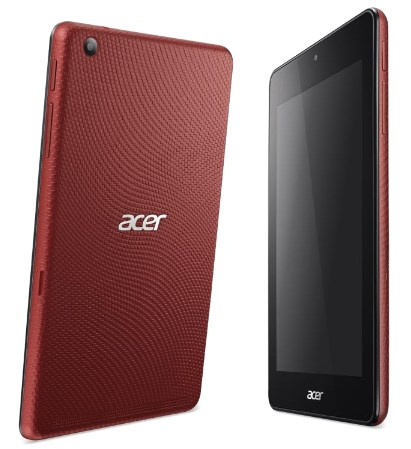

Acer Iconia B1-730-1983 Intel Atom®

8 GB 17.8 cm (7") 1 GB Wi-Fi 4 (802.11n) Android Black, Red

Model B1-730-1983Part no. NT.L4YAL.004

88 specifications Checked 3 days ago

Display17.8 cm (7")
ProcessorIntel Atom®
Memory1 GB
Storage8 GB
Camera2 MP
Battery3700 mAh

See all specifications

Overview

Display: 17.8 cm (7")
Processor: Intel Atom®
Memory: 1 GB
Storage: 8 GB
Camera: 2 MP
Battery: 3700 mAh

Brand: Acer
Category: Tablet
Model: B1-730-1983
Part number: NT.L4YAL.004
Also known as: Acer Iconia B1-730-1983 Intel Atom® 8 GB 17.8 cm (7") 1 GB Wi-Fi 4 (802.11n) Android Black, Red

Specifications

88 specifications in 18 groups

Display

Specification	Value
Display diagonal	17.8 cm (7")
Display technology	LCD
LED backlight	Yes
Touch technology	Multi-touch

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z2560
Processor cores	2
Processor threads	4
Processor boost frequency	1.6 GHz
Processor cache	1 MB
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Graphics & IMC lithography	32 nm
Processor code	SR145
Processor lithography	32 nm
Processor operating modes	32-bit
Processor package size	14 x 14 mm
Stepping	B1
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Tjunction	90 °C
UART	Yes

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	LPDDR2-SDRAM

Storage

Specification	Value
Internal storage capacity	8 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	2 MP
Video recording	Yes
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
Micro-USB 2.0 ports quantity	1
Mobile High-Definition Link (MHL)	No
Microphone in	No
Headphone out	Yes
Headphone connectivity	3.5 mm

Design

Specification	Value
Form factor	Slate
Product colour	Black, Red
Device type	Mobile tablet

Performance

Specification	Value
Position location	No
GPS (satellite)	No

Software

Specification	Value
Platform	Android
Operating system installed	Android
Operating system version	4.2

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Idle States	Yes
Intel Enhanced Halt State	Yes
Intel Smart Connect Technology	No
Intel Smart Idle Technology	Yes
Intel Smart Idle Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	3700 mAh
Number of battery cells	1

Power

Specification	Value
AC adapter power	10 W

Weight & dimensions

Specification	Value
Width	120 mm
Depth	9 mm
Height	197.5 mm
Weight	330 g

Packaging content

Specification	Value
Keyboard included	No

Certificates

Specification	Value
Compliance certificates	RoHS

Other features

Specification	Value
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor socket	FC-MB4760
Wi-Fi	Yes
Processor ARK ID	70101
