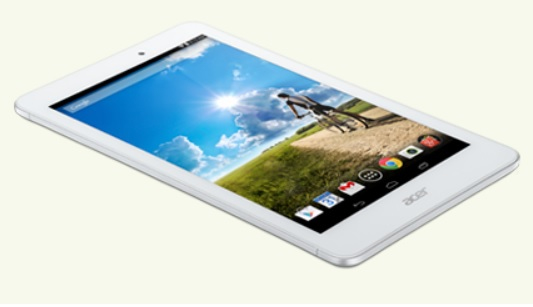

Acer Iconia A1-840FHD-16JZ Intel Atom®

16 GB 20.3 cm (8") 2 GB Wi-Fi 4 (802.11n) Android White

Model A1-840FHD-16JZPart no. NT.L4JEE.005EAN 887899557460

106 specifications Checked 3 days ago

Display20.3 cm (8")
Resolution1920 x 1200 pixels
ProcessorIntel Atom®
Memory2 GB
Storage16 GB
Camera5 MP

See all specifications

Overview

Display: 20.3 cm (8")
Resolution: 1920 x 1200 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 16 GB
Camera: 5 MP

Brand: Acer
Category: Tablet
Model: A1-840FHD-16JZ
Part number: NT.L4JEE.005
EAN / UPC: 887899557460, 4713147410354
Also known as: Acer Iconia A1-840FHD-16JZ Intel Atom® 16 GB 20.3 cm (8") 2 GB Wi-Fi 4 (802.11n) Android White

Specifications

106 specifications in 21 groups

Display

Specification	Value
Display diagonal	20.3 cm (8")
Display resolution	1920 x 1200 pixels
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3745
Processor cores	4
Processor threads	4
Processor boost frequency	1.86 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1SP
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2 W
Stepping	C0
Thermal Design Power (TDP)	2 W
Tjunction	90 °C

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	LPDDR3-SDRAM

Storage

Specification	Value
Internal storage capacity	16 GB
Storage media	eMMC
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	5 MP
Video recording	Yes
Video recording modes	1080p
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
Micro-USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Mini HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	0
Microphone in	No
SmartCard slot	No
Headphone out	Yes
Headphone connectivity	3.5 mm
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Form factor	Slate
Product colour	White
Device type	Mobile tablet

Performance

Specification	Value
Position location	Yes
GPS (satellite)	Yes

Security

Specification	Value
Fingerprint reader	No

Software

Specification	Value
Platform	Android
Operating system installed	Android
Operating system version	4.4

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Smart Connect Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	4600 mAh
Number of battery cells	1
Battery voltage	3.7 V
Battery life (max)	7.5 h

Power

Specification	Value
AC adapter power	10 W

Media formats

Specification	Value
Image formats supported	GIF, JPG, TIF

Weight & dimensions

Specification	Value
Width	215 mm
Depth	130 mm
Height	8.5 mm
Weight	360 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No
Cables included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	WEEE

Other features

Specification	Value
Docking connector	No
Processor socket	BGA 1380
Wi-Fi	Yes
Processor ARK ID	80270
