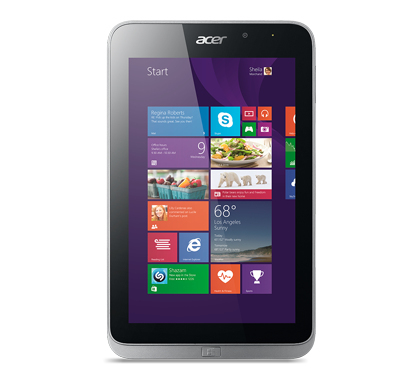

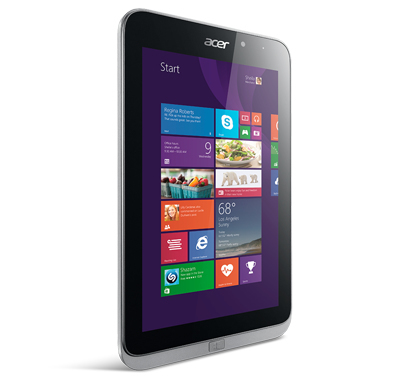

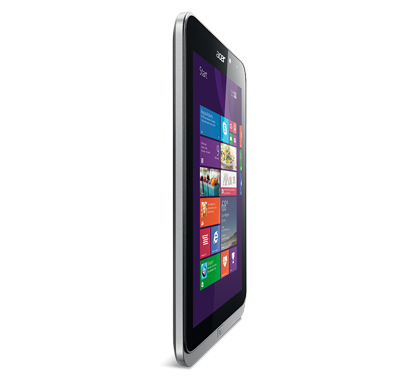

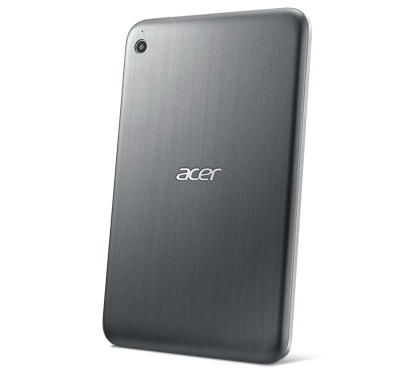

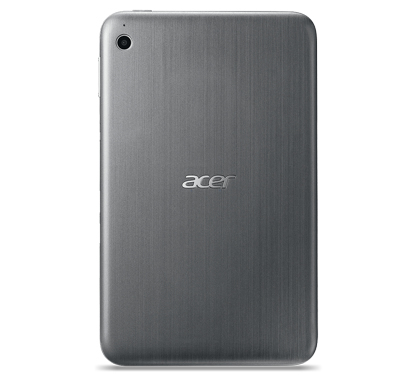

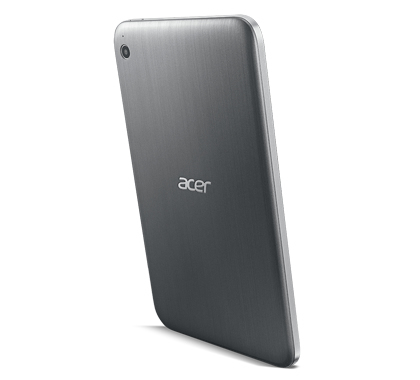

Acer Iconia 820-Z3742G03aii Intel Atom®

32 GB 20.3 cm (8") 2 GB Wi-Fi 4 (802.11n) Windows 8.1 Grey

Model 820-Z3742G03aiiPart no. NT.L31ED.007?AFFEAN 4713147068647

100 specifications Checked 3 days ago

Display20.3 cm (8")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
Camera5 MP

See all specifications

Overview

Display: 20.3 cm (8")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Camera: 5 MP

Brand: Acer
Category: Tablet
Model: 820-Z3742G03aii
Part numbers: NT.L31ED.007?AFF, NT.L31SP.001, NT.L31ED.007, NT.L31ED.007?FFE
EAN / UPC: 4713147068647, 7330381760556, 7330381443756
Also known as: Acer Iconia 820-Z3742G03aii Intel Atom® 32 GB 20.3 cm (8") 2 GB Wi-Fi 4 (802.11n) Windows 8.1 Grey

Specifications

100 specifications in 19 groups

Display

Specification	Value
Display diagonal	20.3 cm (8")
Panel type	IPS
Display resolution	1280 x 800 pixels
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3740
Processor cores	4
Processor threads	4
Processor boost frequency	1.86 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1M5
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2 W
Stepping	B2
Thermal Design Power (TDP)	2 W
Tjunction	90 °C

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Internal storage capacity	32 GB
Storage media	SSD
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDXC

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2
Audio system	High Deﬁnition (HD)

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	5 MP
Rear camera resolution	2592 x 1944 pixels
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	Wi-Fi 4 (802.11n)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
Micro-USB 2.0 ports quantity	1
HDMI ports quantity	0
Micro HDMI ports quantity	1
Microphone in	No
Headphone out	No
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Grey
Device type	Mobile tablet

Performance

Specification	Value
Position location	No
GPS (satellite)	No

Sensors

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Proximity sensor	Yes
Electronic compass	Yes

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 8.1
Operating system architecture	32-bit

Processor special features

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	18.6 Wh
Number of battery cells	2
Battery life (max)	10 h

Power

Specification	Value
AC adapter power	10 W
AC adapter input voltage	120 - 230 V
AC adapter frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width	218.9 mm
Depth	134.9 mm
Height	10.8 mm
Weight	415 g

Packaging content

Specification	Value
Keyboard included	No
Cables included	USB
Quick start guide	Yes

Other features

Specification	Value
Processor socket	BGA 1380
Wi-Fi	Yes
Processor ARK ID	76759
