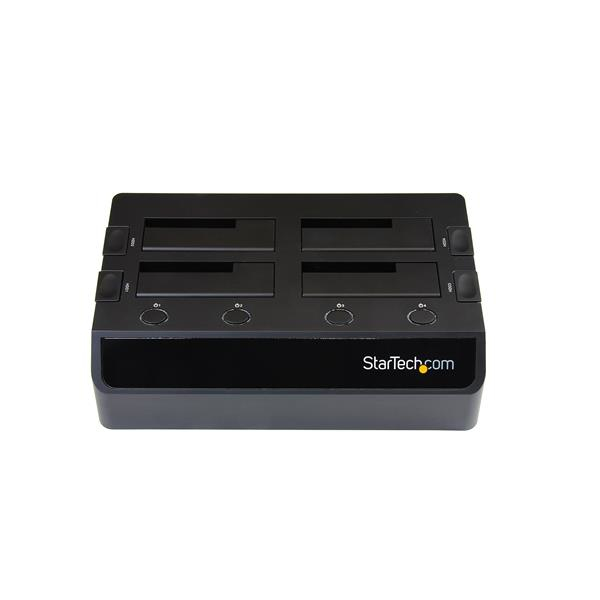

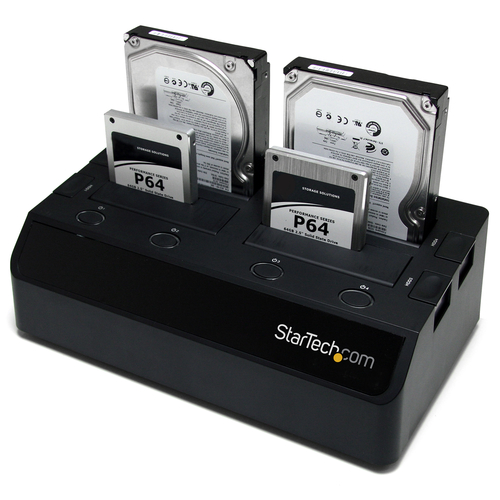

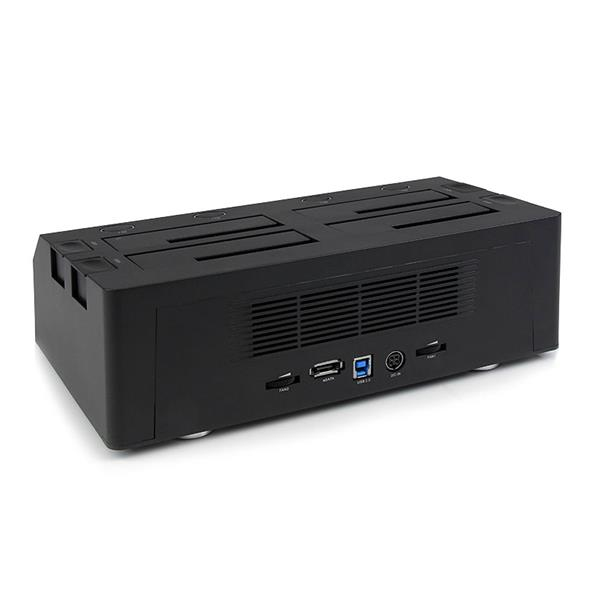

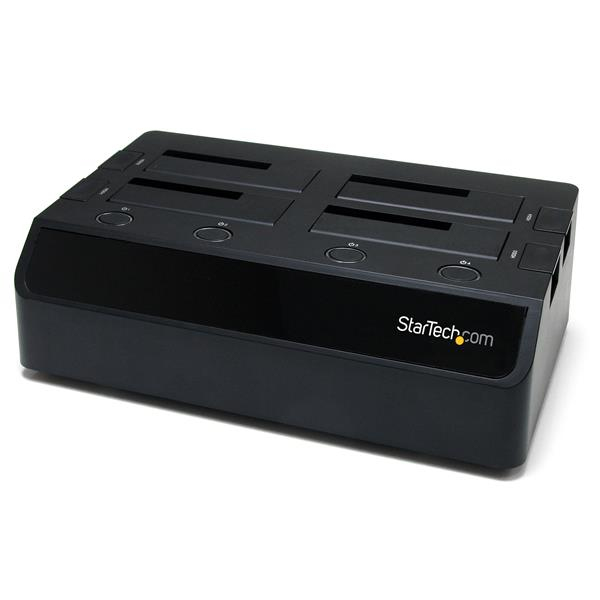

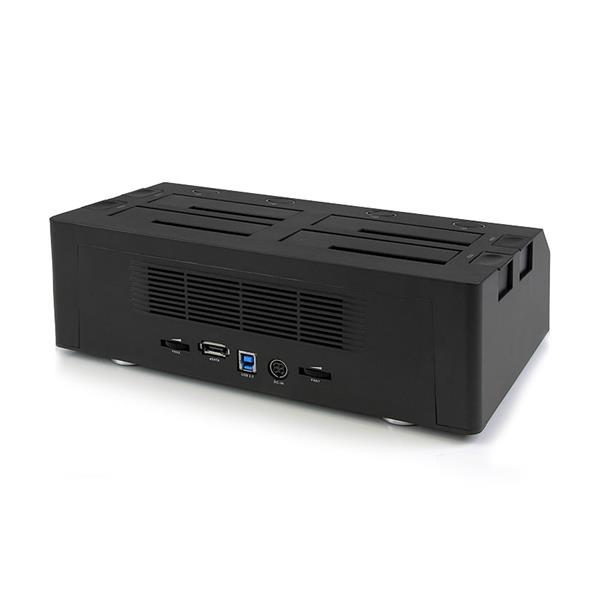

4 Bay eSATA USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD
Model SATDOCK4U3EEAN 806291858074
37 specifications
- Speed5 Gbit/s
- Weight966 g
- ColourBlack
- Storage media typeHDD, SSD
- Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
- Number of fans2 fan(s)
Overview
- Speed
- 5 Gbit/s
- Weight
- 966 g
- Colour
- Black
- Storage media type
- HDD, SSD
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- Number of fans
- 2 fan(s)
- Brand
- StarTech.com
- Category
- Storage Drive Docking Station
- Model
- SATDOCK4U3E
- Part number
- SATDOCK4U3E
- EAN / UPC
- 806291858074, 065030842488, 132017631523, 132017924199 +12 more
- Also known as
- StarTech.com 4 Bay eSATA USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD
Specifications
37 specifications in 10 groups
Hard drive
| Specification | Value |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 4 |
| Maximum storage capacity | 16 TB |

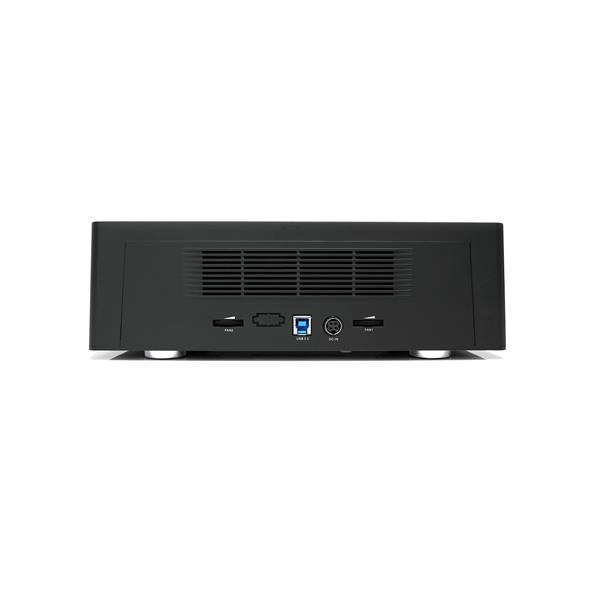

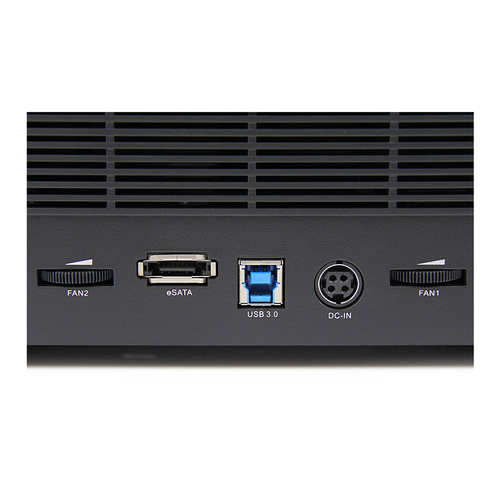

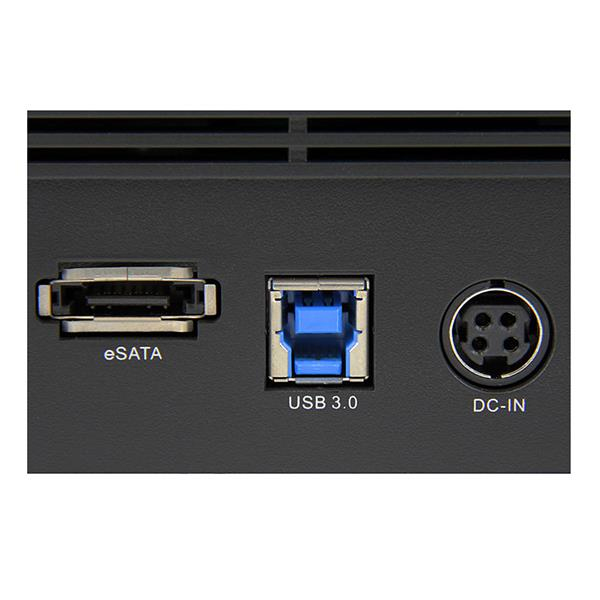

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Plastic |
| Maximum data transfer rate | 5 Gbit/s |
| Hot-swap | Yes |
| Plug and Play | Yes |
| LED indicators | Activity, Power |
| UASP support | No |
| Certification | CE, UL |
Cooling
| Specification | Value |
|---|---|
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110-240 V |
| Input current | 2.5 A |
| Output voltage | 12 V |
| Output current | 6.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172 mm |
| Depth | 290.5 mm |
| Height | 172.7 mm |
| Weight | 966 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 168 x 340 x 213 mm |
| Package weight | 1.6 kg |

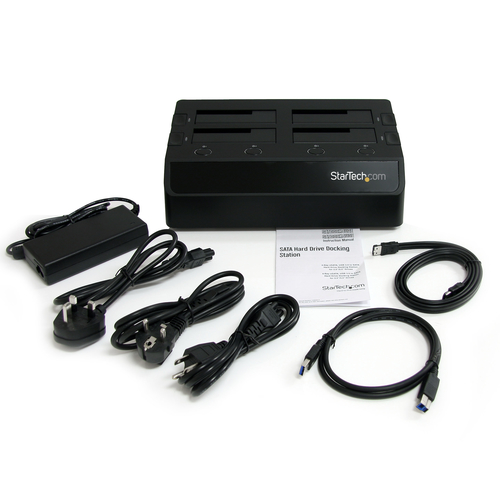

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB, eSATA |
| Manual | Yes |
| Included power plug types | EU, NA, UK |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 80 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
Other features
| Specification | Value |
|---|---|
| Chipset | Jmicron - JM321+JM539 |
| Compliance certificates | RoHS |
