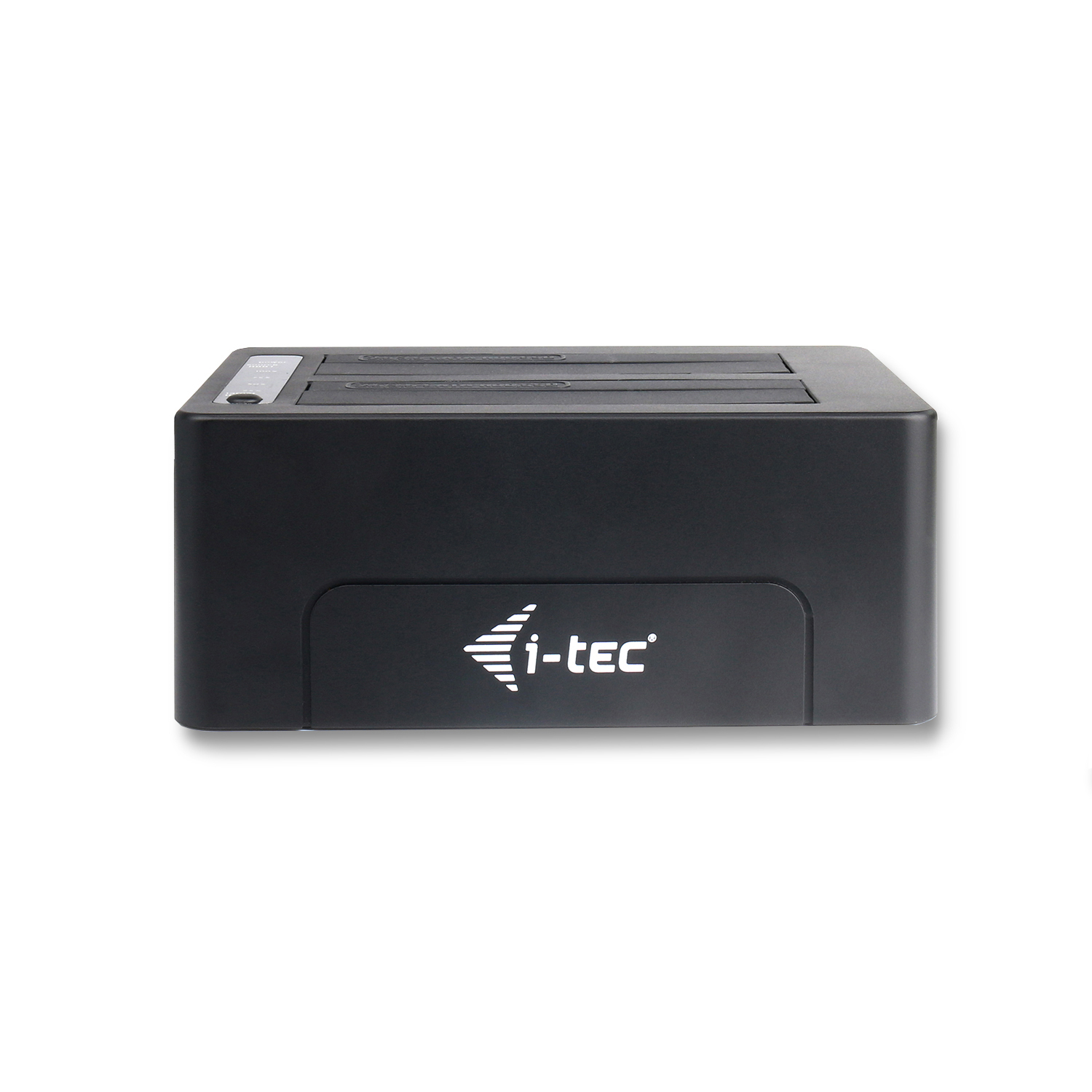

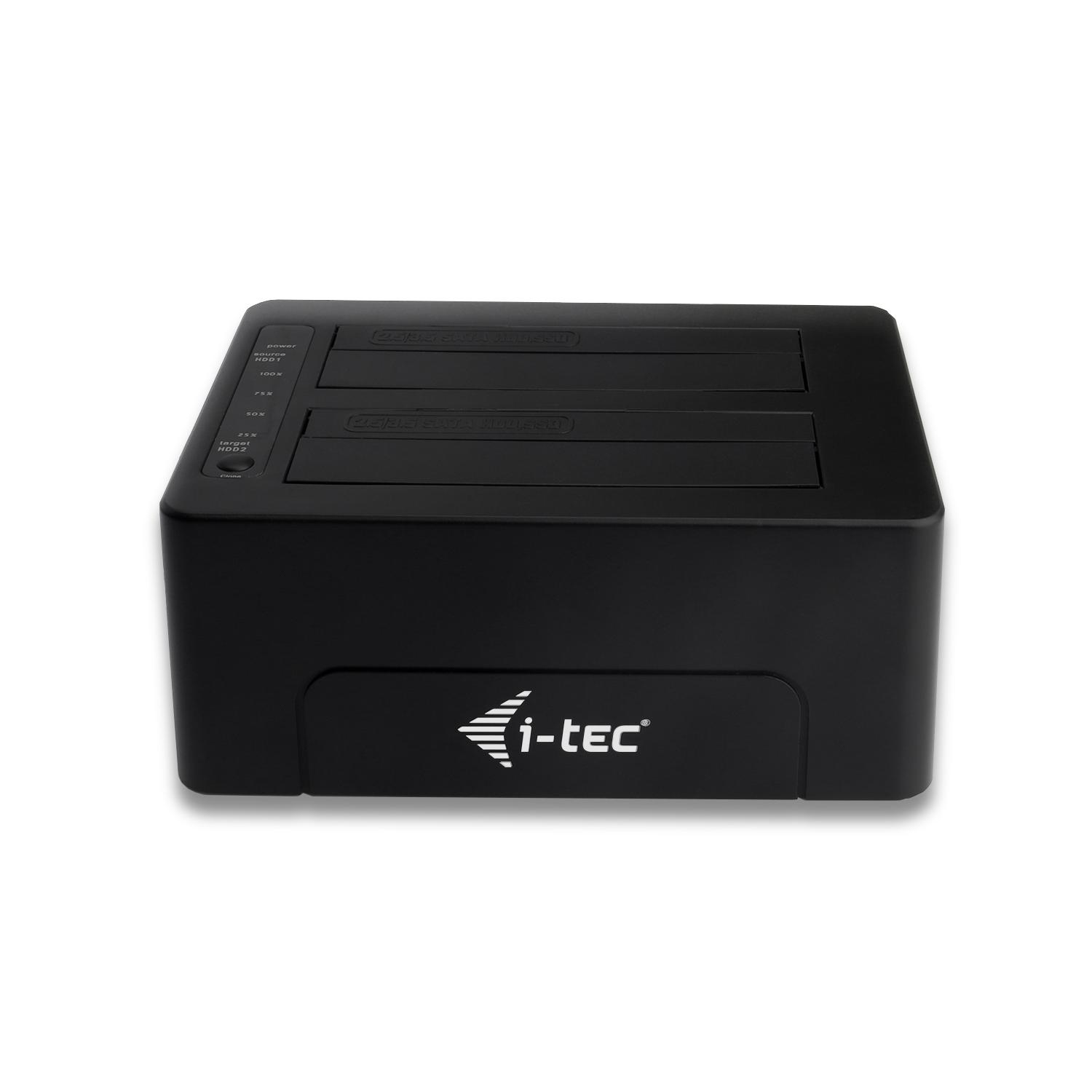

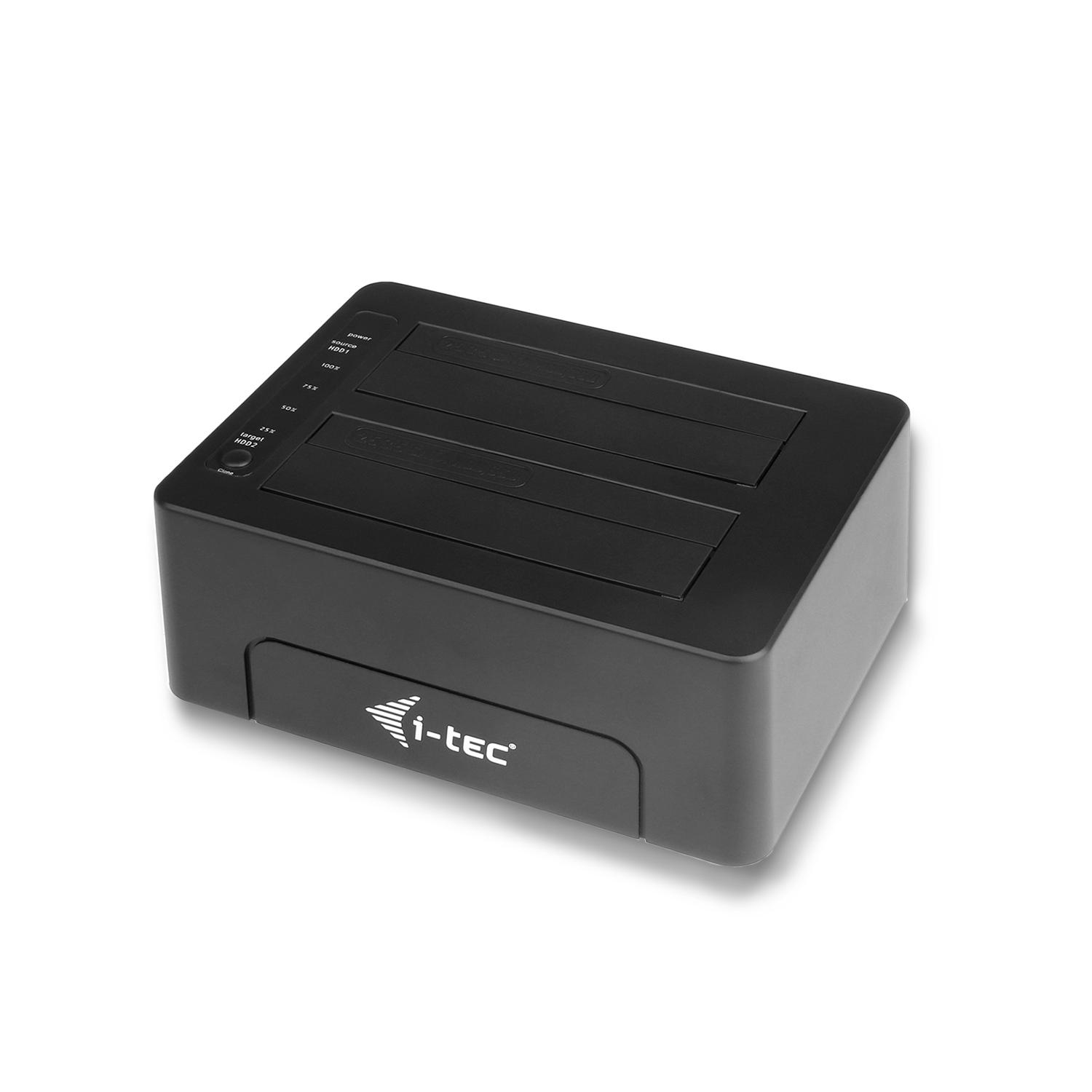

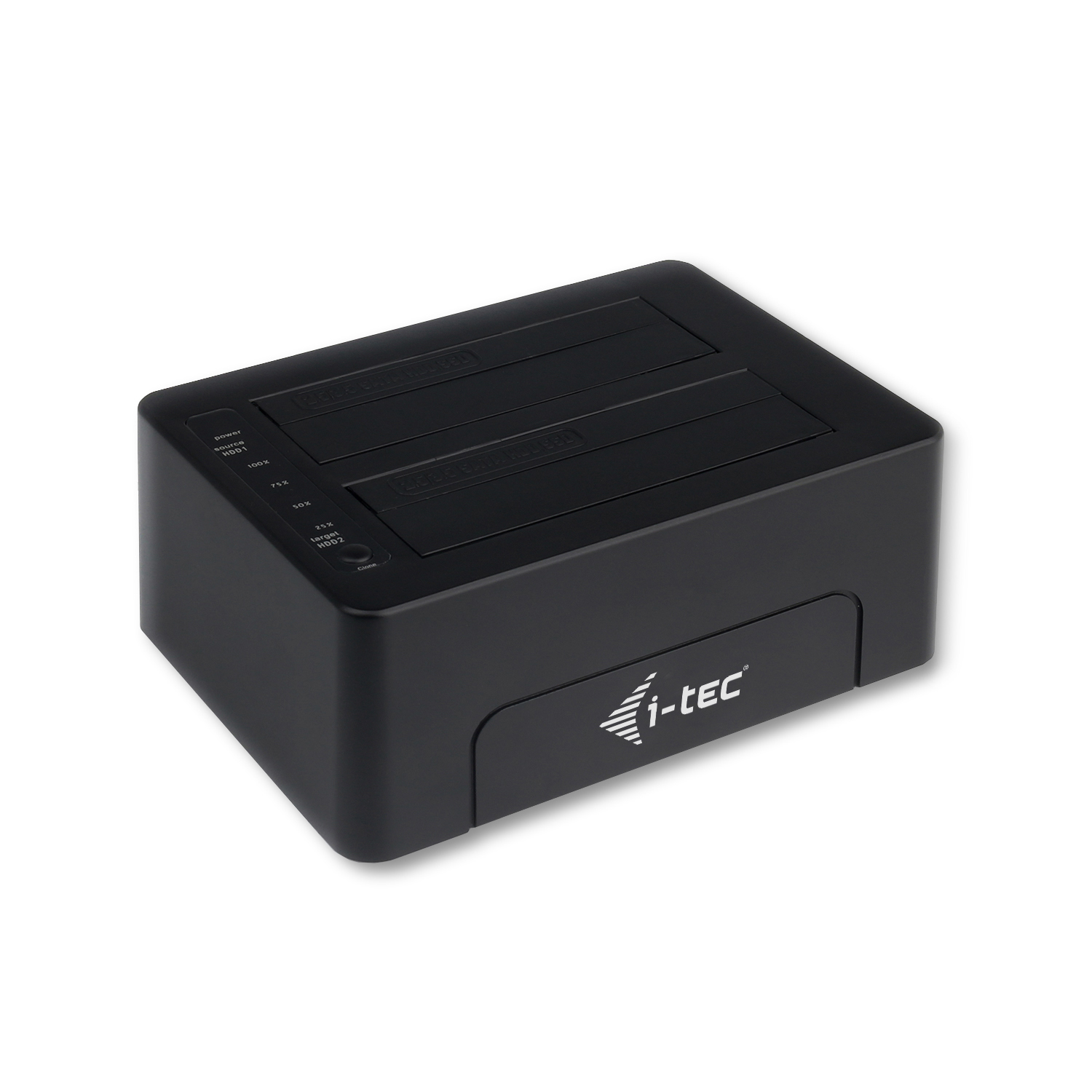

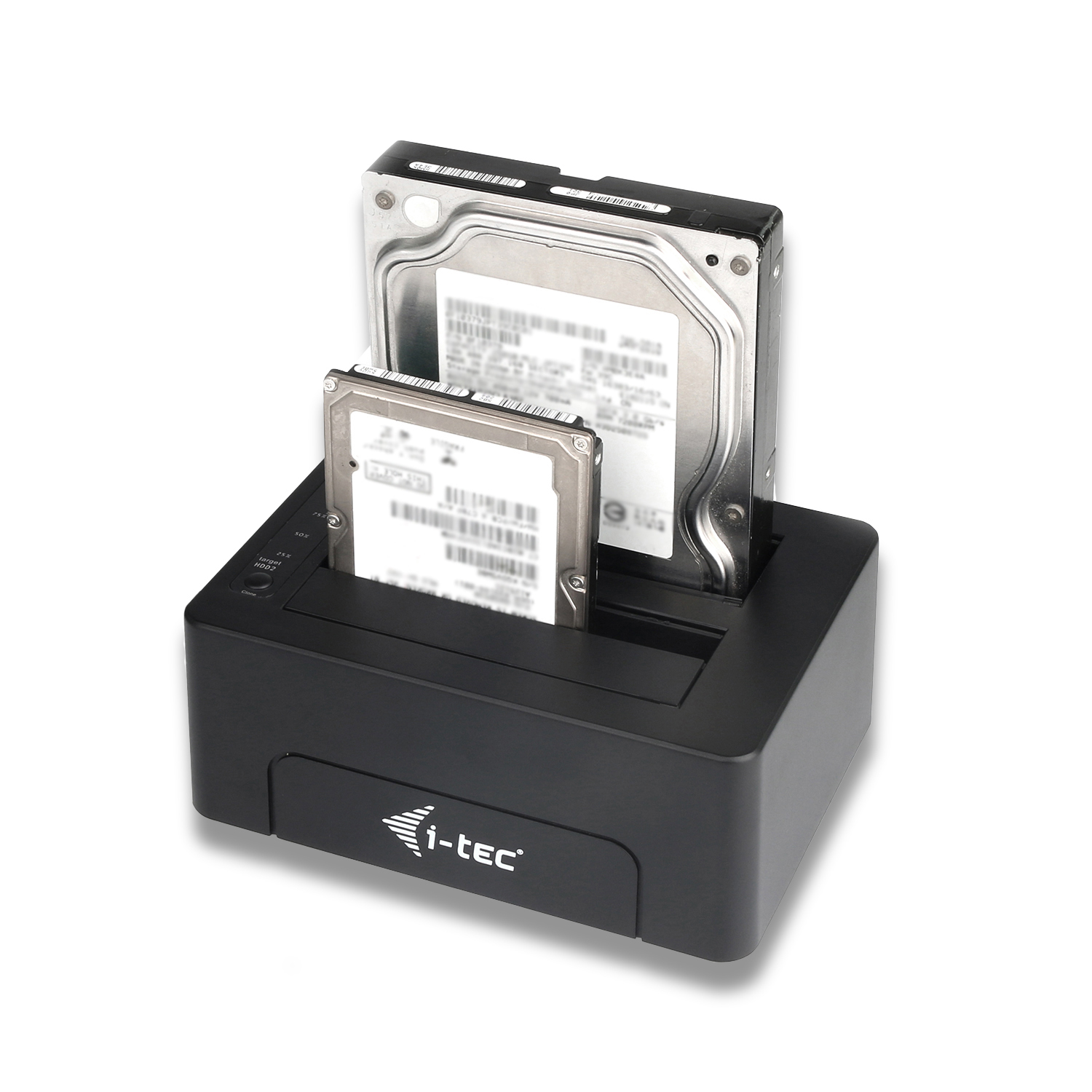

USB 3.0 docking station for
2.5"/3.5" SATA I/II/III HDD SSD
Model U3CLONEDOCKEAN 8595611701689
33 specifications
- Speed5 Gbit/s
- Weight390 g
- ColourBlack
- Storage media typeHDD, SSD
- Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
- AC input voltage100-230 V
Overview
- Speed
- 5 Gbit/s
- Weight
- 390 g
- Colour
- Black
- Storage media type
- HDD, SSD
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- AC input voltage
- 100-230 V
- Brand
- i-tec
- Category
- Storage Drive Docking Station
- Model
- U3CLONEDOCK
- Part number
- U3CLONEDOCK
- EAN / UPC
- 8595611701689
- Also known as
- i-tec USB 3.0 docking station for 2.5"/3.5" SATA I/II/III HDD SSD
Specifications
33 specifications in 10 groups
Hard drive
| Specification | Value |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 6 TB |

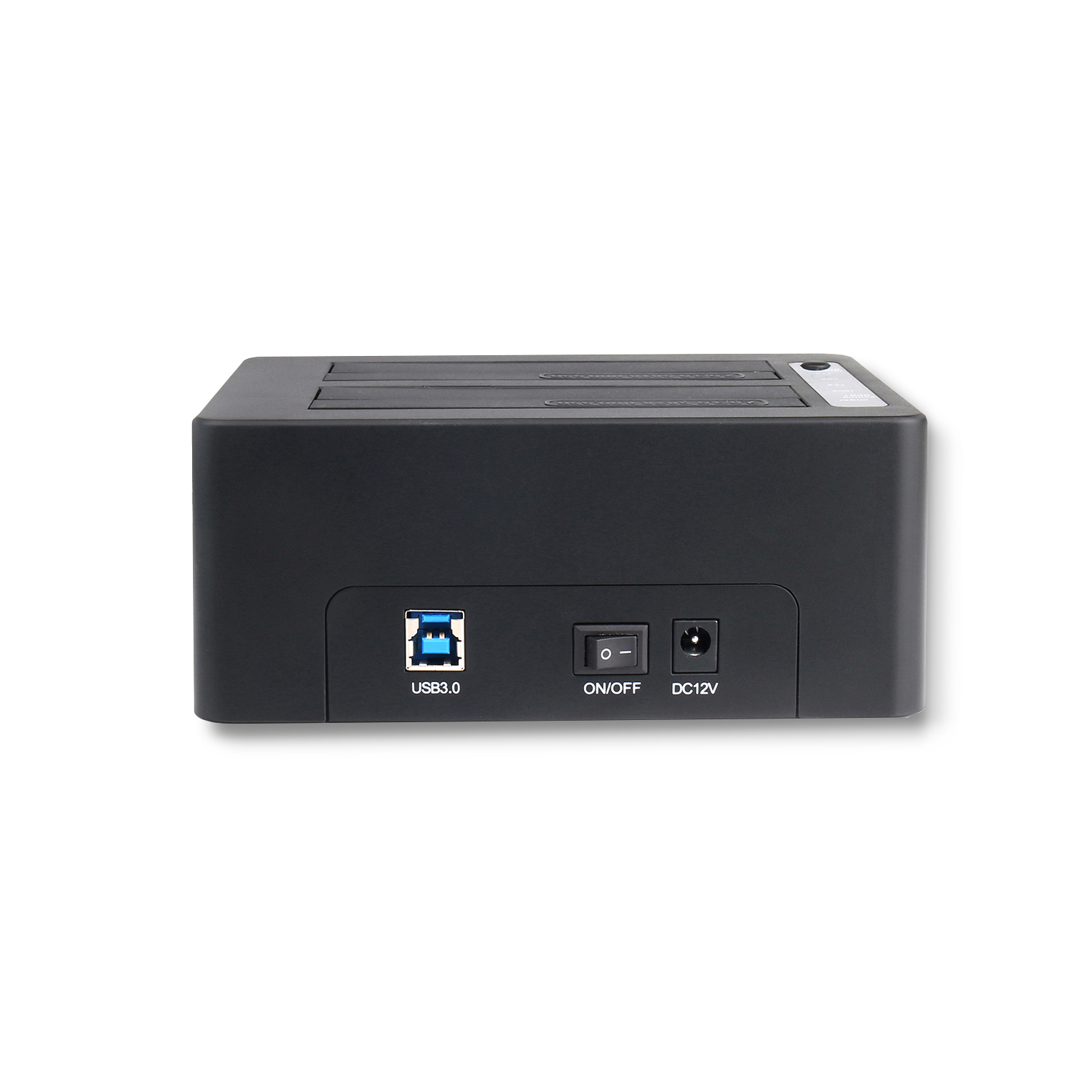

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum data transfer rate | 5 Gbit/s |
| Plug and Play | Yes |
| LED indicators | Activity, HDD, Power |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.2 A |
| Output voltage | 12 V |
| Output current | 3 A |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 153 mm |
| Depth | 111 mm |
| Height | 62 mm |
| Weight | 390 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 202 x 160 x 72 mm |
| Package type | Box |

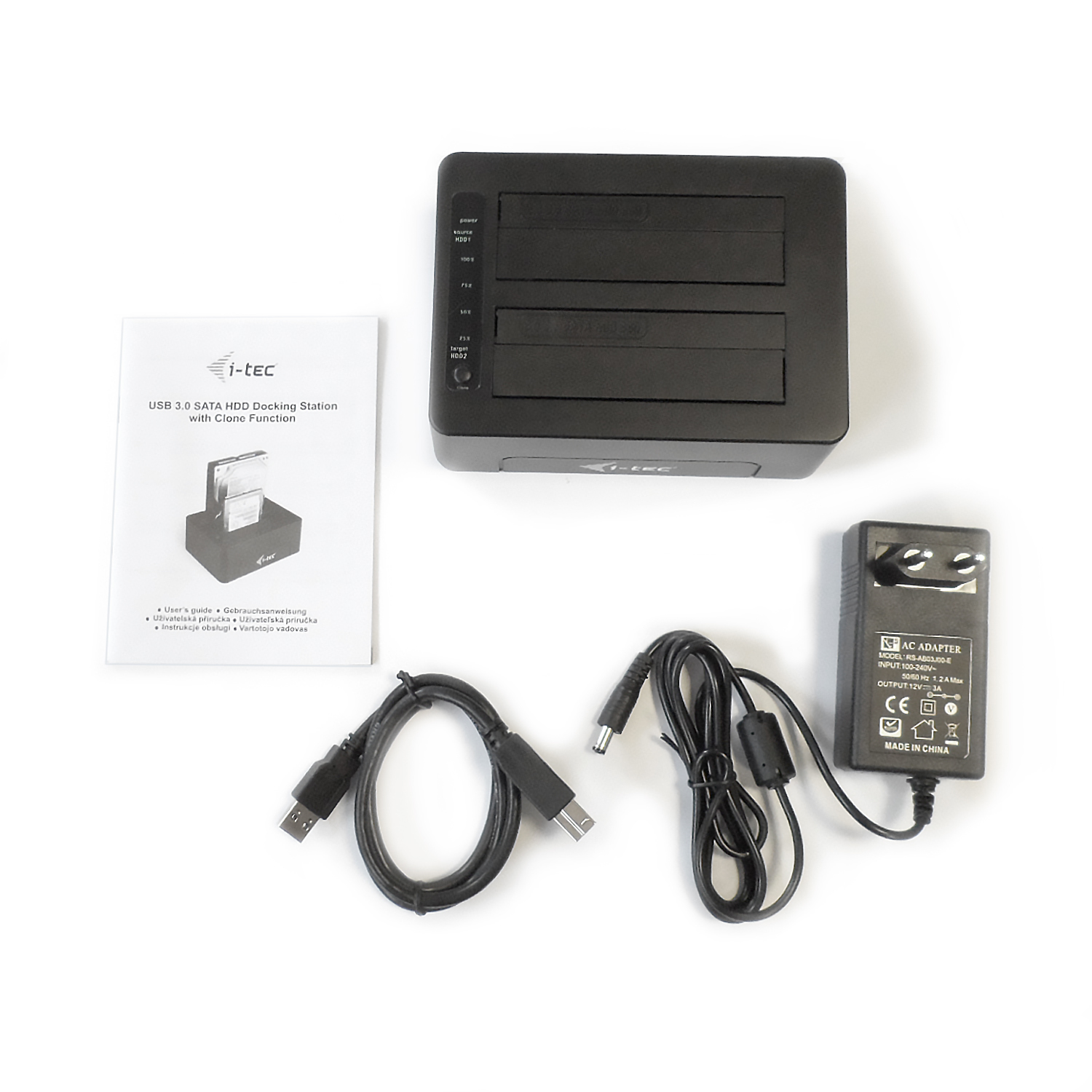

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
Other features
| Specification | Value |
|---|---|
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
