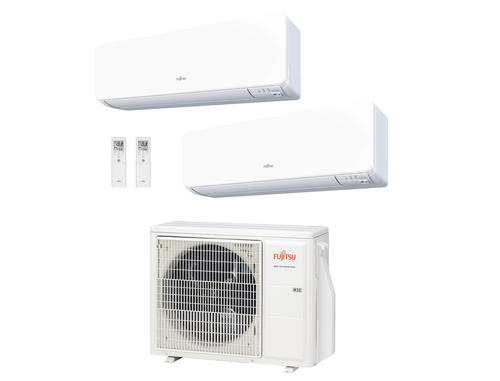

AOYG18KBTA2 + ASYG09KGTB + ASYG09KGTB

Model AOYG18KBTA2 + ASYG09KGTB + ASYG09KGTBPart no. KIT-DUAL18KG9+9

58 specifications

Overview

Brand: Fujitsu
Category: Split-System Air Conditioner
Model: AOYG18KBTA2 + ASYG09KGTB + ASYG09KGTB
Part number: KIT-DUAL18KG9+9
Also known as: Fujitsu AOYG18KBTA2 + ASYG09KGTB + ASYG09KGTB Split system White

58 specifications in 5 groups

Specification	Value
Type	Split system
Multi-split	Yes
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Seasonal efficiency rating (cooling) (SEER)	8.52
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	5.11
Cooling energy efficiency (EER, W/W)	4.5
Heating energy efficiency (COP, W/W)	5
Cooling capacity in watts (nominal)	2500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	3400 W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	5400 W
Cooling capacity (nominal)	9000 BTU/h
Heating capacity (nominal)	9000 BTU/h
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	675 g
Hose length (max)	30 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.3 l/h
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (cooling)	103 kWh
Annual energy consumption (heating) (Average heating season)	658 kWh
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	2.5 kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	36 dB
Indoor unit noise level (high speed)	42 dB
Indoor unit sound power level	57 dB
Cooling airflow (indoor unit)	700 m³/h
Heating airflow (indoor unit)	750 m³/h
Indoor units quantity	2
Indoor unit width	83.4 cm
Indoor unit depth	21.5 cm
Indoor unit height	27 cm
Indoor unit weight	10 kg

Specification	Value
Outdoor unit noise level	60 dB
Outdoor unit sound power level	62 dB
Cooling airflow (outdoor unit)	1960 m³/h
Heating airflow (outdoor unit)	2020 m³/h
Outdoor units quantity	1
Outdoor unit width	79.9 cm
Outdoor unit depth	29 cm
Outdoor unit height	63.5 cm
Outdoor unit weight	37 kg
