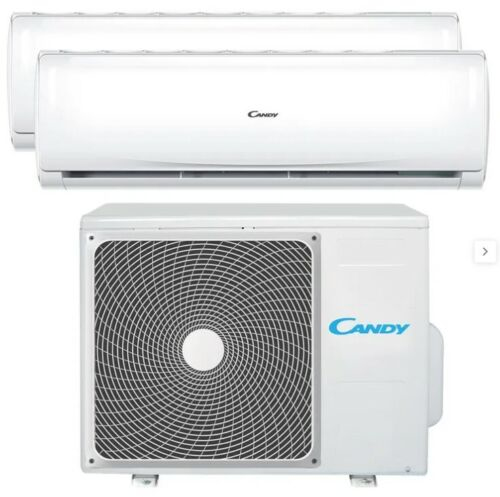

CY-09TAIN-M+CY-09TAIN-M+CY-2T14AOUT Split system White
Model CY-09TAIN-M+CY-09TAIN-M+CY-2T14AOUTPart no. CY-2T14OUT/CY-09TAIN-M
49 specifications
- Energy classA+
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
- Outdoor unit noise level52 dB
Overview
- Energy class
- A+
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 52 dB
- Brand
- Candy
- Category
- Split-System Air Conditioner
- Model
- CY-09TAIN-M+CY-09TAIN-M+CY-2T14AOUT
- Part number
- CY-2T14OUT/CY-09TAIN-M
- Also known as
- Candy CY-09TAIN-M+CY-09TAIN-M+CY-2T14AOUT Split system White
Specifications
49 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 6.2 |
| Cooling energy efficiency (EER, W/W) | 3.91 |
| Heating energy efficiency (COP, W/W) | 3.8 |
| Cooling capacity (nominal) | 13650 BTU/h |
| Heating capacity (nominal) | 15010 BTU/h |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 675 g |
| Compressor type | Twin Rotary |
| Hose length (max) | 20 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Operating temperature (cooling) (T-T) | -10 - 43 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Annual energy consumption (cooling) | 275 kWh |
| Annual energy consumption (heating) (Average heating season) | 1155 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Current | 1 A |
| Design load (cooling) | 4.5 kW |
| Design load (heating) (Average heating season) | 4.4 kW |
| Design load (heating) (Colder heating season) | 4.8 kW |
| Design load (heating) (Warmer heating season) | 1.5 kW |
| Energy efficiency scale | A+++ to D |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | No |

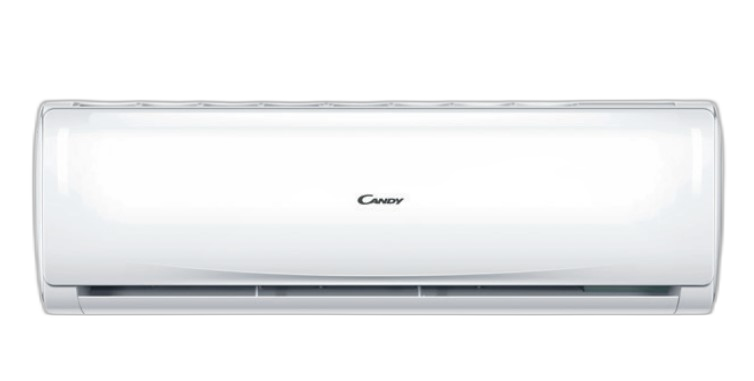

Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (high speed) | 54 dB |
| Indoor units quantity | 2 |

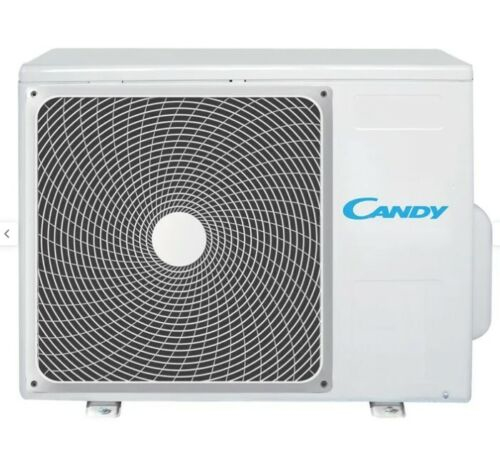

Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 52 dB |
| Outdoor unit sound power level | 62 dB |
| Cooling airflow (outdoor unit) | 2200 m³/h |
| Heating airflow (outdoor unit) | 2200 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 80 cm |
| Outdoor unit depth | 27.5 cm |
| Outdoor unit height | 55.3 cm |
| Outdoor unit weight | 34 kg |
| Outdoor unit package width | 90.8 cm |
| Outdoor unit package depth | 40.5 cm |
| Outdoor unit package height | 62.5 cm |
| Outdoor unit package weight | 37 kg |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4 |
