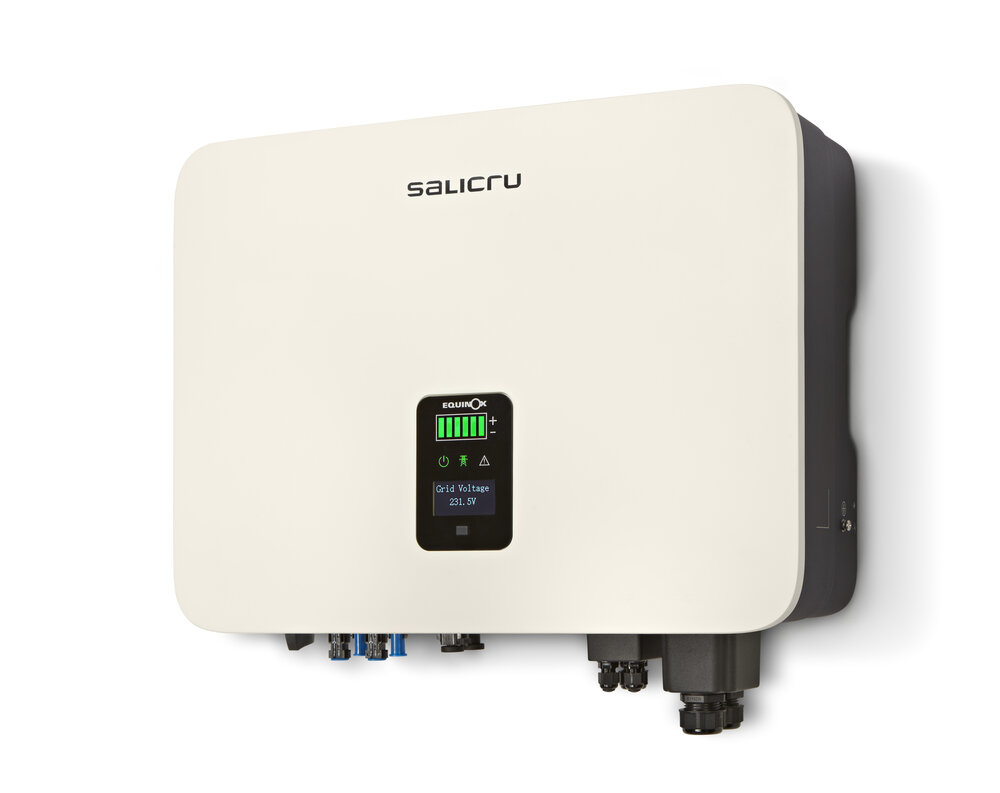

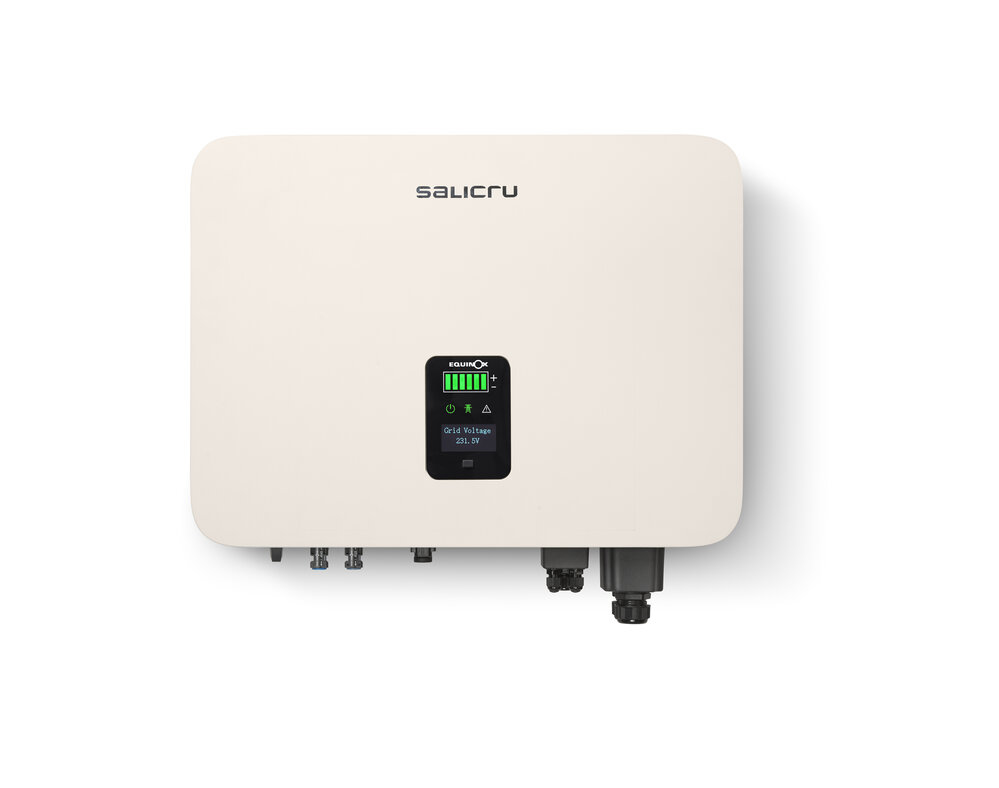

EQX2 6002-HSX
Model EQX2 6002-HSXPart no. 6B2AB000030EAN 8436584873617
48 specifications
- Power6000 W
- Noise25 dB
- TypeOn-grid inverter
- Weight26 kg
- ColourBlack, White
- Built-in displayYes
Overview
- Power
- 6000 W
- Noise
- 25 dB
- Type
- On-grid inverter
- Weight
- 26 kg
- Colour
- Black, White
- Built-in display
- Yes
- Brand
- Salicru
- Category
- Solar Inverter
- Model
- EQX2 6002-HSX
- Part number
- 6B2AB000030
- EAN / UPC
- 8436584873617
- Also known as
- Salicru EQX2 6002-HSX 6.6 kVA Black, White
Specifications
48 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | On-grid inverter |
| Output power capacity (max) | 6.6 kVA |
| Output operation voltage (min) | 195 V |
| Output operation voltage (max) | 253 V |
| Output frequency | 50/60 Hz |
| MPP voltage range | 100 - 550 V |
| Maximum input power (DC) | 9600 W |
| Maximum power | 6000 W |
| DC disconnector | Yes |
| DC input voltage | 600 V |
| Isolation type | Transformerless |
| Network voltage | 230 V |
| Number of power levels | 7 |
| Output current | 26.1 A |
| Pollution degree | 2/3 |
| Power consumption (idle) | 1 W |
| Short-circuit current per MPPT (max) | 20 A |
| Starting voltage | 80 V |
| Number of maximum power point tracking (MPPT) | 1 |
| Number of strings per MPPT | 1 |
| Maximum input current per MPPT | 15 A |
| Total Harmonic Distortion (THD) | 3% |
| Power factor | 0.8 |
| Noise level | 25 dB |
| Efficiency | 97.6% |
| Efficiency (EU) | 97% |
| Photovoltaic (PV) charging supported | Yes |
| Certification | EN 61000-6-2/3, IEC 62109-IEC EN UNE 616831/2 / EN 61000-6-2/3, IEC EN UNE 60068-1/2/14/30, UNE EN 62116:2014, IEC 61727:2004, UNE 217002:2020, UNE 217001:2020, ISO 9001, ISO 14001, ISO 45001 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| International Protection (IP) code | IP65 |
| Power protection features | Over voltage |
| Wall mountable | Yes |
| Easy to install | Yes |
| Suitable for indoor use | Yes |
| Suitable for outdoor use | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display technology | OLED |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 100% |
| Operating altitude | 0 - 4000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 550 mm |
| Depth | 175 mm |
| Height | 410 mm |
| Weight | 26 kg |
Charger
| Specification | Value |
|---|---|
| Charger type | MPPT |

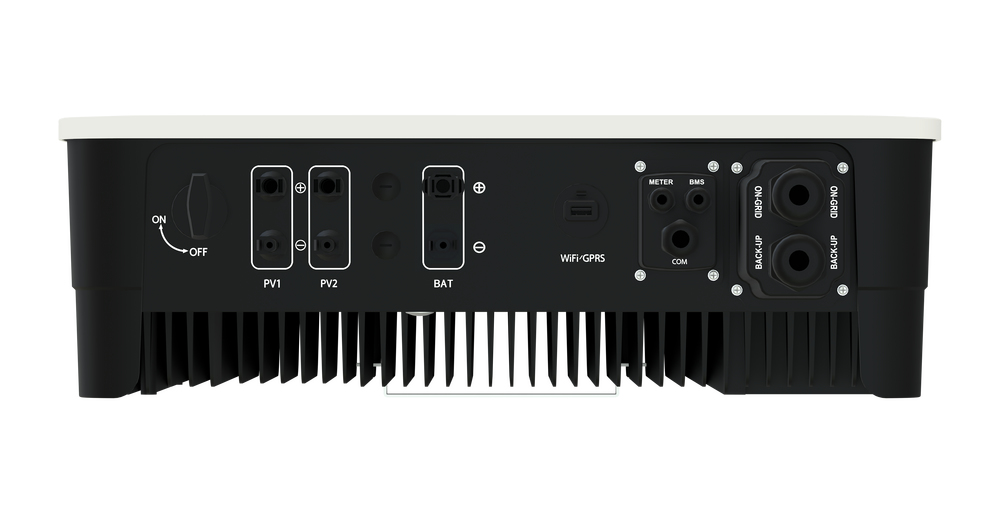

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | MC4 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
