EQX2 2001-S
Model EQX2 2001-SPart no. 6B2AB000001EAN 8436584872870
53 specifications
- Power2000 W
- Noise25 dB
- TypeOn-grid inverter
- Weight6.5 kg
- ColourBlack, White
- Built-in displayYes
Overview
- Power
- 2000 W
- Noise
- 25 dB
- Type
- On-grid inverter
- Weight
- 6.5 kg
- Colour
- Black, White
- Built-in display
- Yes
- Brand
- Salicru
- Category
- Solar Inverter
- Model
- EQX2 2001-S
- Part number
- 6B2AB000001
- EAN / UPC
- 8436584872870
- Also known as
- Salicru EQX2 2001-S 2.2 kVA Black, White
Specifications
53 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Product type | On-grid inverter |
| Output power capacity (max) | 2.2 kVA |
| Output operation voltage (min) | 195.5 V |
| Output operation voltage (max) | 253 V |
| Output frequency | 50/60 Hz |
| MPP voltage range | 80 - 450 V |
| Maximum input power (DC) | 2600 W |
| Maximum power | 2000 W |
| DC disconnector | Yes |
| DC input voltage | 500 V |
| Isolation type | Transformerless |
| Network voltage | 230 V |
| Number of power levels | 7 |
| Output current | 8.7 A |
| Pollution degree | 2/3 |
| Power consumption (idle) | 1 W |
| Short-circuit current per MPPT (max) | 15 A |
| Starting voltage | 60 V |
| Number of maximum power point tracking (MPPT) | 1 |
| Number of strings per MPPT | 1 |
| Maximum input current per MPPT | 12.5 A |
| Total Harmonic Distortion (THD) | 3% |
| Power factor | 0.8 |
| Noise level | 25 dB |
| Efficiency | 97.5% |
| Efficiency (EU) | 97% |
| Efficiency (MPPT) | 99.9% |
| Photovoltaic (PV) charging supported | Yes |
| Material | Silicon carbide (SiC) |
| Certification | Certificate EN 61000-6-2/3, IEC 62109-1/2 / EN 61000-6-2/3, IEC EN UNE 61683, IEC EN UNE 60068-2-1/2/14/30, UNE EN 62116:2014, IEC 61727:2004, UNE 217002:2020, UNE 217001:2020, ISO 9001, ISO 14001, ISO 45001 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Housing material | Aluminium |
| Cooling type | Passive |
| International Protection (IP) code | IP65 |
| Power protection features | Over voltage |
| Overvoltage category | CAT II |
| Wall mountable | Yes |
| Easy to install | Yes |
| Suitable for indoor use | Yes |
| Suitable for outdoor use | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display technology | OLED |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 100% |
| Operating altitude | 0 - 4000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 327 mm |
| Depth | 114 mm |
| Height | 297 mm |
| Weight | 6.5 kg |
Charger
| Specification | Value |
|---|---|
| Charger type | MPPT |

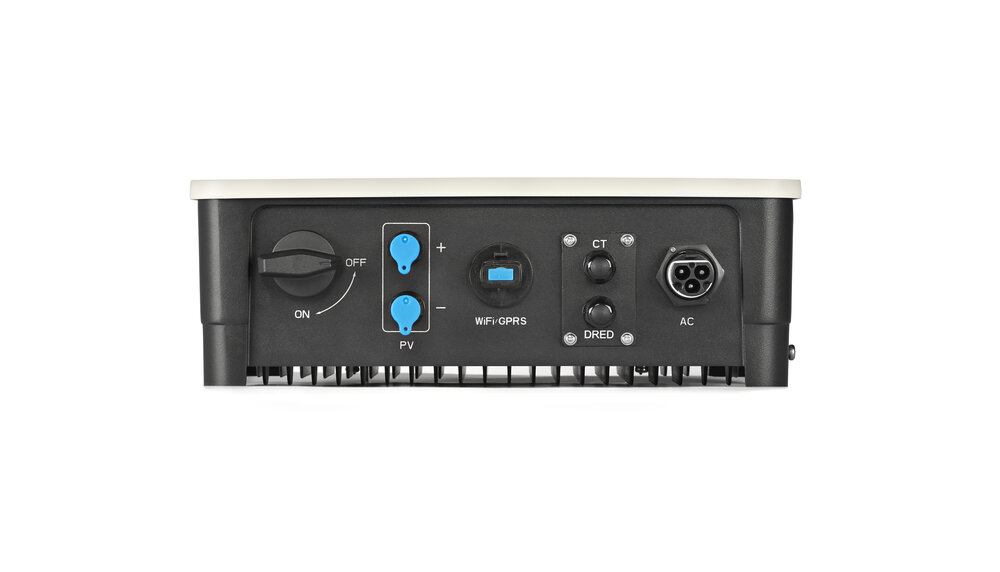

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | MC4 |
| Photovoltaic (PV) input | 2 |
| RS-485 ports | 1 |
