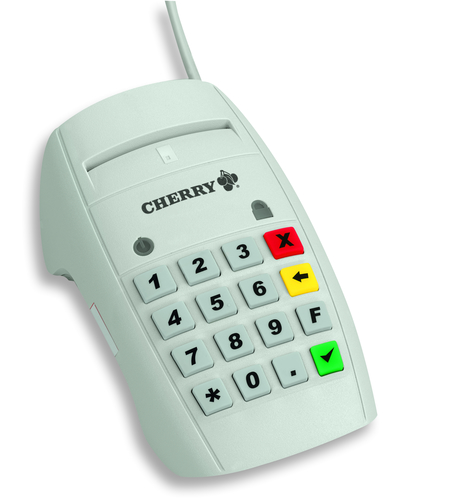

ST-2000U smart card reader Indoor USB 2.0 White
Model ST-2000UPart no. ST-2000UCZEAN 4025112055393
28 specifications
- ConnectivityUSB 2.0
- Weight252 g
- ColourWhite
- Secure PIN entryYes
- Placement supportedIndoor
- Standby current100 mA
Overview
- Connectivity
- USB 2.0
- Weight
- 252 g
- Colour
- White
- Secure PIN entry
- Yes
- Placement supported
- Indoor
- Standby current
- 100 mA
- Brand
- Cherry
- Category
- Smart Card Reader
- Model
- ST-2000U
- Part numbers
- ST-2000UCZ, ST-2000UCZ-R, ST-2000UC-R
- EAN / UPC
- 4025112055393, 4025112055409, 5054629058459, 5390397274463 +4 more
- Also known as
- CHERRY ST-2000U smart card reader Indoor USB 2.0 White
Specifications
28 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Secure PIN entry | Yes |
| Plug and Play | Yes |
| Mean cycles between failures (MCBF) | 100000 |
| Compatible products | PC/SC, EMV 2000 Level 1, CCID |
Design
| Specification | Value |
|---|---|
| Placement supported | Indoor |
| Product colour | White |
| Cable length | 1.75 m |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| Supported protocols | T=0, T=1, S=8, S=9, S=10 |
Power
| Specification | Value |
|---|---|
| Standby current | 100 mA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Height | 92 mm |
| Depth | 55 mm |
| Weight | 252 g |
Sustainability
| Specification | Value |
|---|---|
| Certification | FCC, GS, CE, UL, EMV 2000 l.1 |
Packaging data
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Package width | 195 mm |
| Package depth | 154 mm |
| Package height | 67 mm |
| Package weight | 600 g |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 24 pc(s) |
| Master (outer) cases per pallet | 12 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP/XP64/Vista/Vista64 Linux MAC OS |
