SN3101 serial switch box Wired
Model SN3101Part no. SN3101-AX-GEAN 672792411151
27 specifications
- ConnectivityWired
- Weight220 g
- ColourBlack
- Compatible operating systemsWindows 2000/XP/2003/Vista
- Power supply typeAC/DC
- Operating relative humidity (H-H)5 - 95%
Overview
- Connectivity
- Wired
- Weight
- 220 g
- Colour
- Black
- Compatible operating systems
- Windows 2000/XP/2003/Vista
- Power supply type
- AC/DC
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- ATEN
- Category
- Serial Switch Box
- Model
- SN3101
- Part numbers
- SN3101-AX-G, SN3101
- EAN / UPC
- 672792411151, 4710423775220, 6727924111516
- Also known as
- ATEN SN3101 serial switch box Wired
Specifications
27 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Data link protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, TCP, UDP, NTP, PPP, RADIUS, Telnet, SNMP, SNMP Trap, SMTP, SSH |
Technical details
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/XP/2003/Vista |
| Compliance certificates | RoHS, WEEE |
| Height | 24.4 mm |

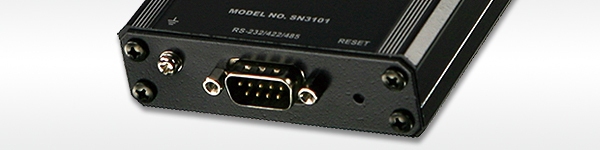

| Input connections | DB-9 |
| Length | 79 mm |
| Manual | Yes |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case net weight | 3.8 kg |
| Master (outer) case width | 250 mm |
| Material | Metal |
| Package height | 160 mm |
| Package length | 23.9 cm |
| Package weight | 480 g |
| Package width | 59 mm |
| Product colour | Black |
| Storage temperature (T-T) | -20 - 85 °C |
| Width | 106.9 mm |
Ports & interfaces
| Specification | Value |
|---|---|

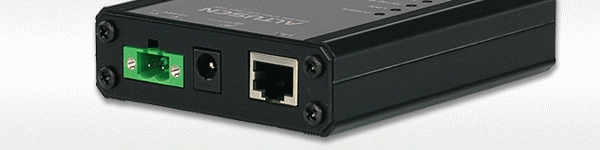

| I/O ports | 1 x RJ-45, 1 x 2-pin Terminal Block, 1 x DC |
Power
| Specification | Value |
|---|---|
| Power supply type | AC/DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1x Serial Device Server 1x 0AD6-1909-06EG Power Adapter 1x DC Terminal Connector 1x Mounting Kit 1x User Instructions |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 220 g |
