IR Control 10 XTRA - IR extender - max. 300 m
Model 25008140EAN 8718164531408
25 specifications
- ColourBlack
- Proper useUniversal
- Receiving range10 m
- Power source typeAC, DC
- Width95 mm
Overview
- Colour
- Black
- Proper use
- Universal
- Receiving range
- 10 m
- Power source type
- AC, DC
- Width
- 95 mm
- Brand
- Marmitek
- Category
- Remote Control Extender
- Model
- 25008140
- Part number
- 25008140
- EAN / UPC
- 8718164531408
- Also known as
- Marmitek IR Control 10 XTRA - IR extender - max. 300 m
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Proper use | Universal |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Receiving range | 10 m |
| Receiving angle | 90° |
| Infrared (IR) frequency range | 30 - 60 kHz |
| IR input ports quantity | 1 |
| IR output ports quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 46 mm |
| Height | 20 mm |
| Receiver dimensions (WxDxH) | 40 x 13 x 11 mm |
| Package width | 260 mm |
| Package depth | 65 mm |
| Package height | 190 mm |

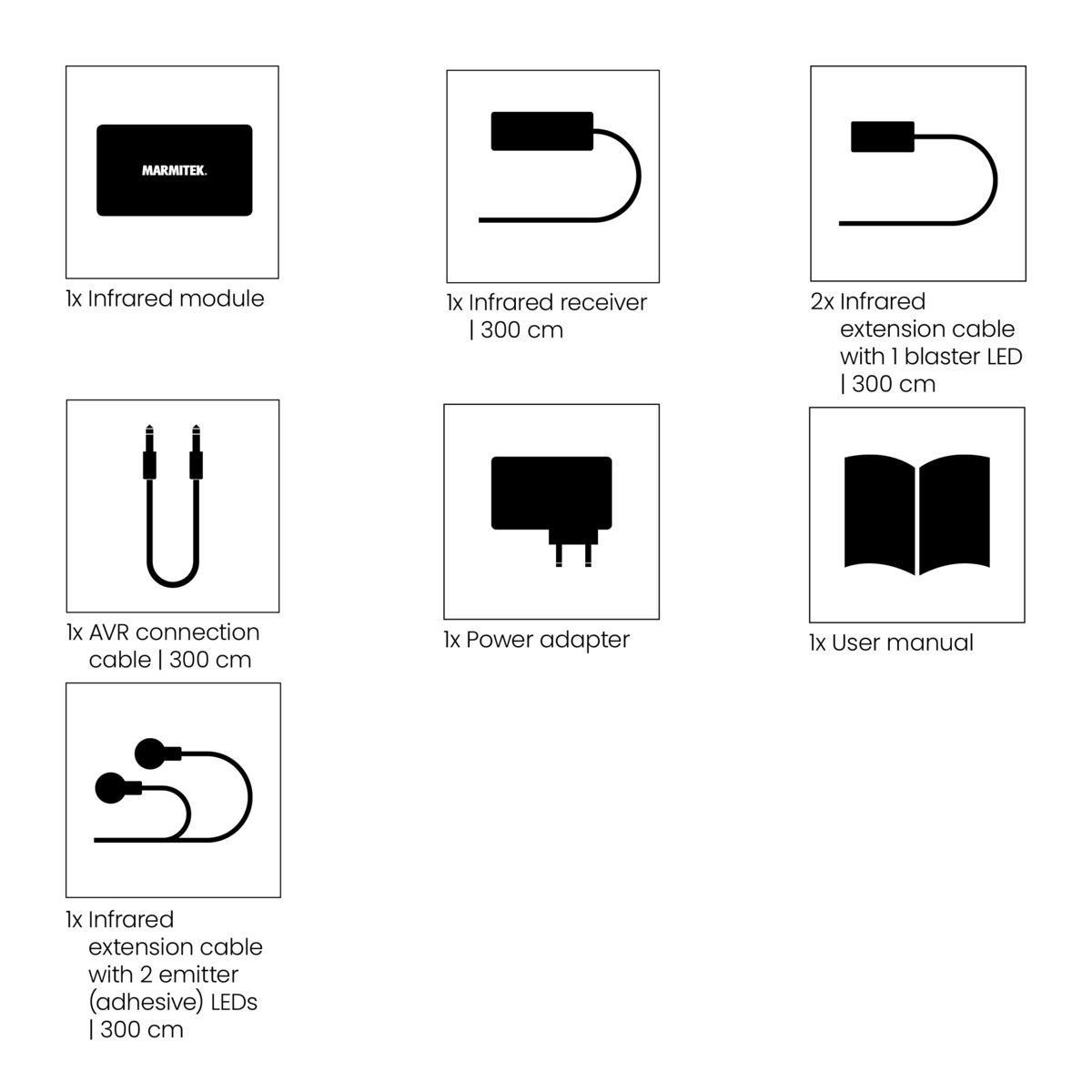

Packaging content
| Specification | Value |
|---|---|
| Number of receivers included | 1 |
| IR extender cable | Yes |
| IR extender cable length | 3 |
| Manual | Yes |
| Power cable length | 1.8 m |
| Power supply included | Yes |
