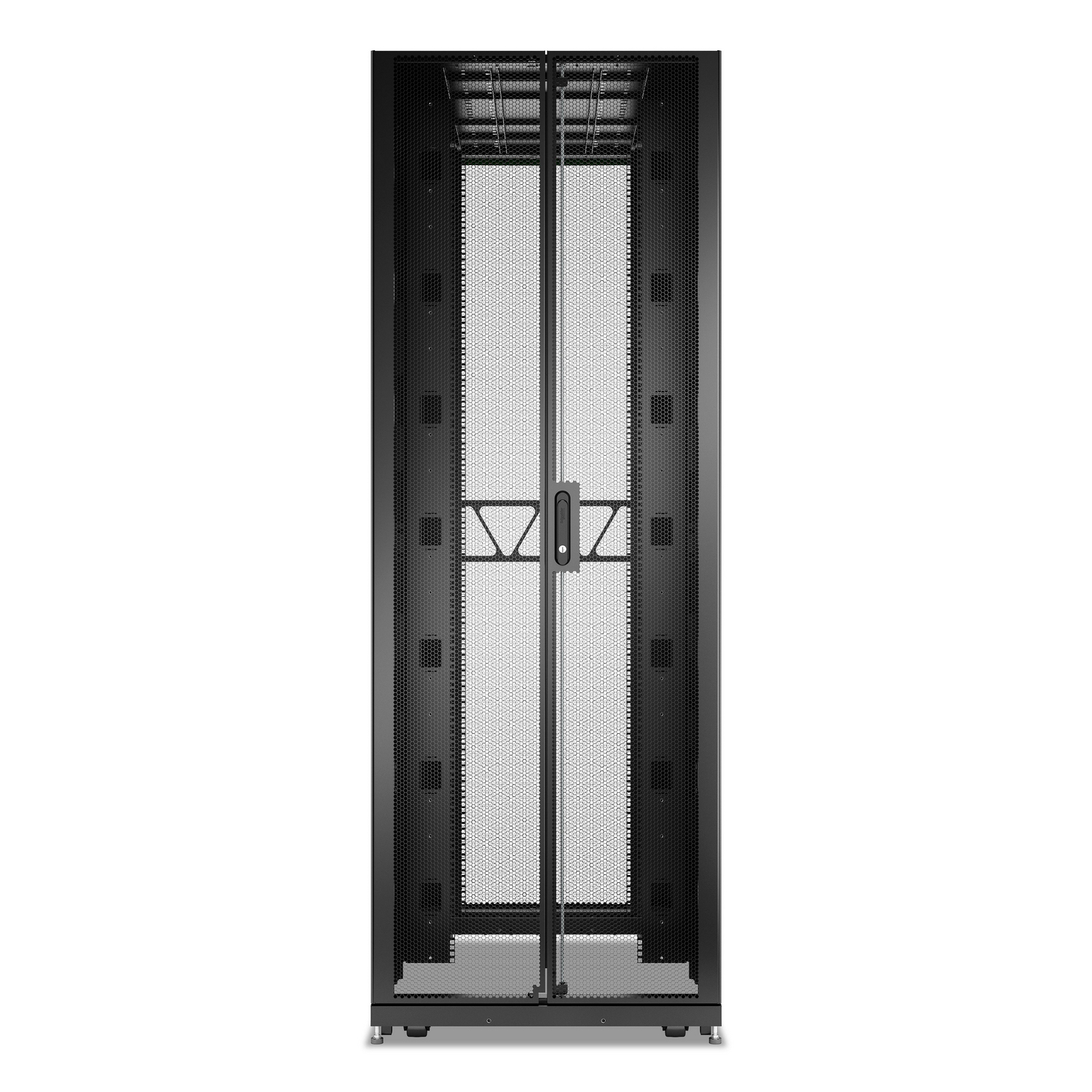

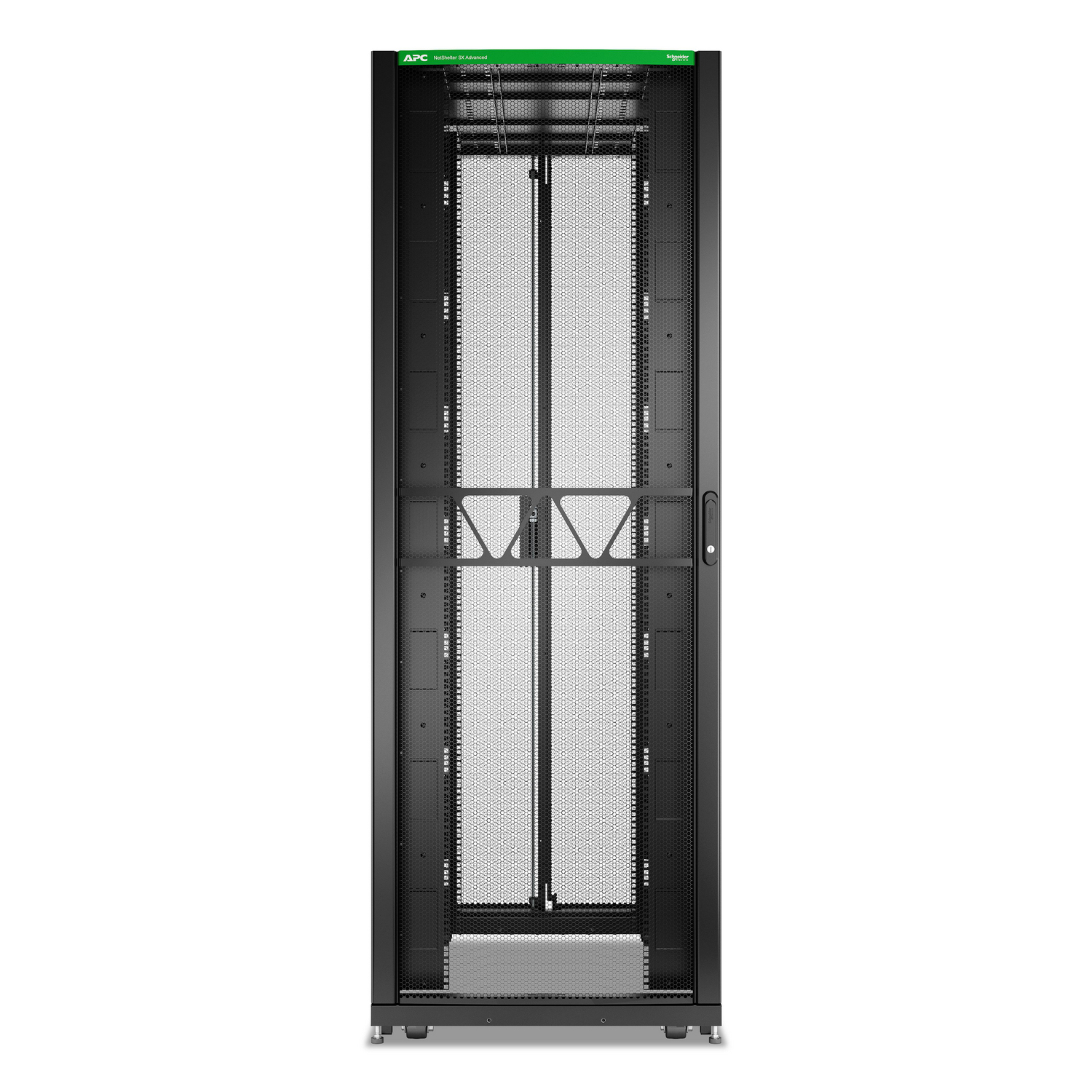

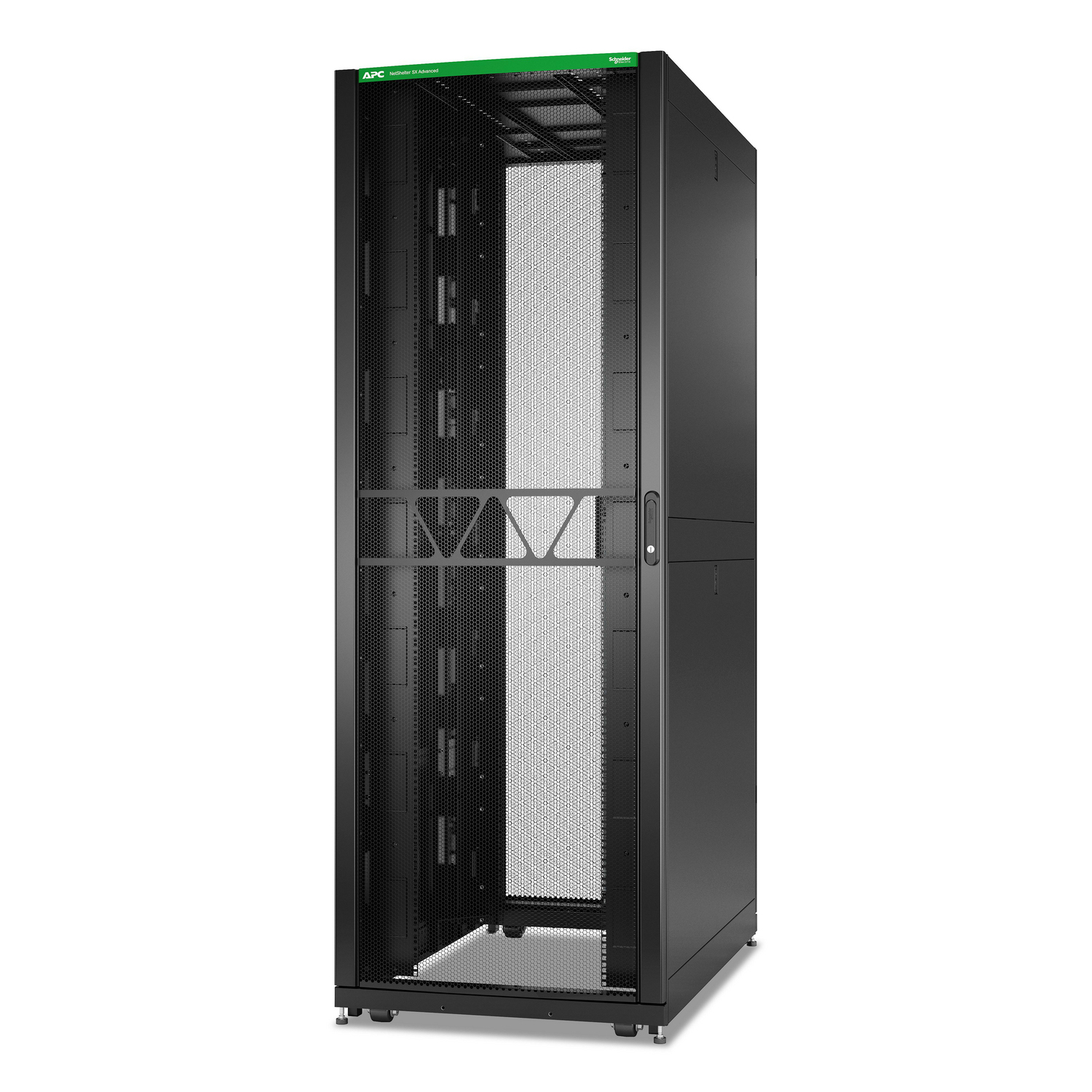

NetShelter SX Advanced Rack, 48U 800mm 1295mm, without shock package, Black
Model NetShelter SX Advanced Rack, 48U 800mm 1295mm, without shock package, BlackPart no. AR9587B2EAN 731304786009
23 specifications
- TypeFreestanding rack
- Weight298 kg
- ColourBlack
- Rack capacity48U
- Size (imperial)48.3 cm (19")
- Compliance certificatesRoHS, REACH
Overview
- Type
- Freestanding rack
- Weight
- 298 kg
- Colour
- Black
- Rack capacity
- 48U
- Size (imperial)
- 48.3 cm (19")
- Compliance certificates
- RoHS, REACH
- Brand
- APC
- Category
- Rack Cabinet
- Model
- NetShelter SX Advanced Rack, 48U 800mm 1295mm, without shock package, Black
- Part number
- AR9587B2
- EAN / UPC
- 731304786009
- Also known as
- APC NetShelter SX Advanced Rack, 48U 800mm 1295mm, without shock package, Black
Specifications
23 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 48U |
| Type | Freestanding rack |
| Maximum weight capacity | 1927.8 kg |
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 800 mm |
| Depth | 1295 mm |
| Height | 2256 mm |
| Weight | 298 kg |
| Mounting depth (min) | 29.2 cm |
| Mounting depth (max) | 114.3 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 946.1 mm |
| Package depth | 1415.8 mm |
| Package height | 2391.7 mm |
| Package weight | 310 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH |
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Total carbon footprint (kg of CO2e) | 1168.379 |
| Packaging without single use plastic | No |
| Sustainable packaging | No |
| Take-back system | No |
Other features
| Specification | Value |
|---|---|
| Product recycled plastic content | 1% |
