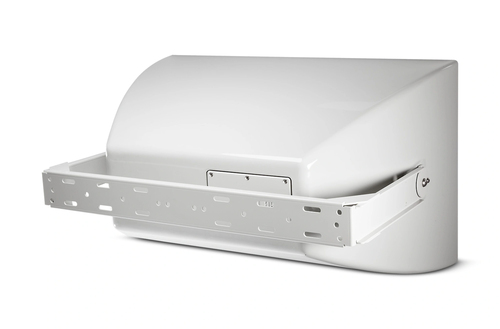

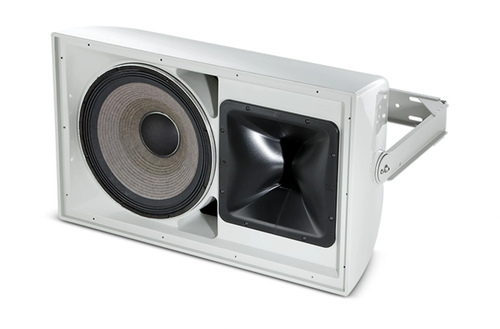

AW526 Public Address (PA) speaker 2-way
Model AW526EAN 691991014260
23 specifications
- Weight28.3 kg
- ColourGrey
- Speaker type2-way
- RMS rated power600 W
- Width810 mm
Overview
- Weight
- 28.3 kg
- Colour
- Grey
- Speaker type
- 2-way
- RMS rated power
- 600 W
- Width
- 810 mm
- Brand
- JBL
- Category
- Public Address (PA) Speakers
- Model
- AW526
- Part number
- AW526
- EAN / UPC
- 691991014260
- Also known as
- JBL AW526 Public Address (PA) speaker 2-way
Specifications
23 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Speaker type | 2-way |
| Speaker placement | In-wall/in-ceiling, Pole |
| Number of speakers | 1 |
| Number of drivers | 2 |
| Tweeter | Yes |
| Woofer | Yes |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 600 W |
| Impedance | 8 Ω |
| Sensitivity | 100 dB |
| Frequency range | 35 - 20000 Hz |
| Sound pressure level (max) | 134 dB |
| Crossover frequency | 1100 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Suitable for outdoor use | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 810 mm |
| Depth | 478 mm |
| Height | 485 mm |
| Weight | 28.3 kg |
| Tweeter diameter (imperial) | 3.81 cm (1.5") |
| Tweeter diameter | 3.8 cm |
| Woofer diameter (imperial) | 38.1 cm (15") |
| Woofer diameter | 38 cm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
