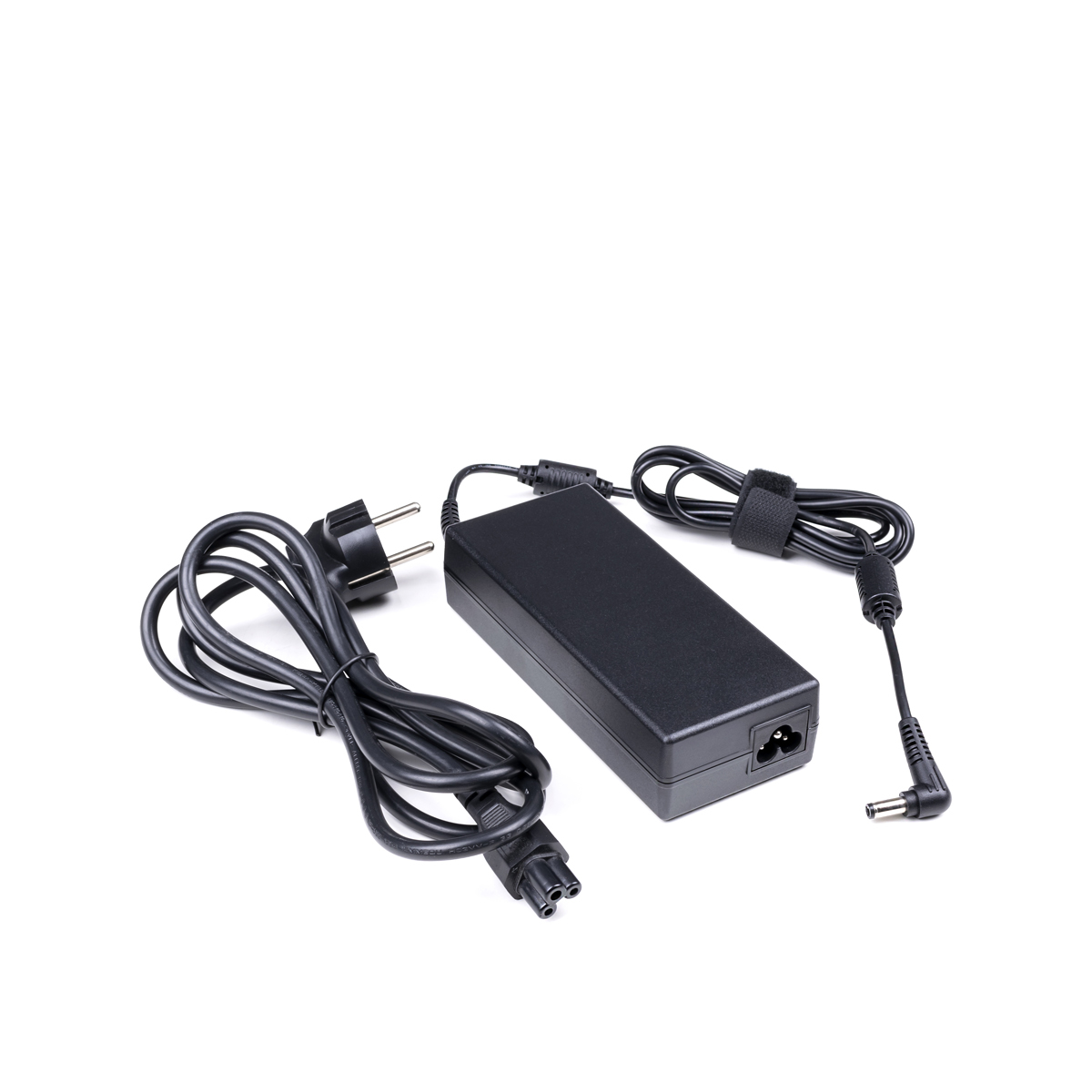

PE120 - power adapter, 120 Watt, output:
19V DC, max. 6.32 A Cooling: passive, fanless
Model PE120EAN 4046047103867
28 specifications
- Weight600 g
- ColourBlack
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- Cable length1.8 m
Overview
- Weight
- 600 g
- Colour
- Black
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Cable length
- 1.8 m
- Brand
- Shuttle
- Category
- Power Adapters & Inverters
- Model
- PE120
- Part number
- PE120
- EAN / UPC
- 4046047103867
- Also known as
- Shuttle PE120 - power adapter, 120 Watt, output: 19V DC, max. 6.32 A Cooling: passive, fanless
Specifications
28 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply type | Indoor |
| Power current type | AC-to-DC |
| Input voltage | 100 - 240 V |
| Maximum input voltage | 240 V |
| Input frequency | 50/60 Hz |
| Output power | 120 W |
| Output voltage | 19 V |
| Output current | 6.32 A |
| Efficiency | 89% |
| AC port type | C5 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CCC, CE, UKCA |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Cable length | 1.8 m |
| Width | 150 mm |
| Depth | 65 mm |
| Height | 36 mm |
| Weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick installation guide | Yes |
| Power adapter included | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044083 |
