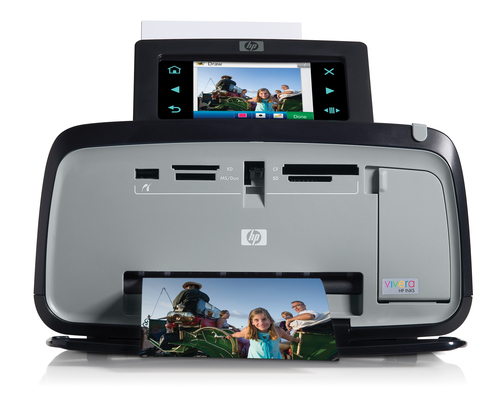

Photosmart A636 Compact Photo Printer
Model Photosmart A636 Compact Photo PrinterPart no. Q8637A#B1H-C3EAN 883585823765
103 specifications
- Memory64 MB
- Weight1.52 kg
- Print technologyInkjet
- Market positioningHome & office
- Total input capacity20 sheets
- Paper tray media typesPhoto paper, Card stock
Overview
- Memory
- 64 MB
- Weight
- 1.52 kg
- Print technology
- Inkjet
- Market positioning
- Home & office
- Total input capacity
- 20 sheets
- Paper tray media types
- Photo paper, Card stock
- Brand
- HP
- Category
- Photo Printer
- Model
- Photosmart A636 Compact Photo Printer
- Part numbers
- Q8637A#B1H-C3, Q8637A#B1H-D4, Q8637A, Q8637A#B1H1071, Q8637A#B1H1052, Q8637A#B1H1027 +2 more
- EAN / UPC
- 883585823765, 883585823789, 883585823796, 883585823802 +3 more
- Also known as
- HP Photosmart A636 Compact photo printer Inkjet 4800 x 1200 DPI
Specifications
103 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Borderless printing | Yes |
| Maximum resolution | 4800 x 1200 DPI |
| Print speed (black, draft quality, A4/US Letter) | 21 ppm |
| Print head nozzles | 600 |
Features
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Printing colours | Cyan, Magenta |
| Electromagnetic compatibility | CISPR 22:2005, EN 55022:2006, FCC CFR 47 Part 15, EN 61000-3-2:2006, IEC 61000-3-2:2005, EN 61000-3-3:1995 + A1:2001 + A2:2005, IEC 61000-3-3:1994 + A1:2001 + A2:2005, EN 55024:1998 + A1:2001 + A2:2003 |
| Safety | IEC 60950-1:2001/EN60950-1:2001, IEC 60825-1 Ed. 1.2:2001/EN60825-1+A1:2002+A2:2001 (LED) AS/NZS 60950.1:2003 NOM 019-SCFI-1993, CNS14336:2004, GB4943:2001 |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 20 sheets |
| Total output capacity | 20 sheets |
| Maximum input capacity | 20 sheets |
| Maximum output capacity | 20 sheets |
| Maximum input capacity for cards | Up to 20 cards |
| Maximum paper trays | 1 |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Photo paper, Card stock |
| Non-ISO print media sizes | Index card |
| Custom media sizes | Tray 1: 4 x 6, 4 x 8, 5 x 7, 4 x 12 in |
| Duplex print options | None (not supported) |
| Paper handling | 20-sheet 10 x 15 / 13 x 18 cm photo paper tray, 20-sheet output tray |
| Paper handling standard/input | 20-sheet input tray |
| Recommended media | Photo paper |
| Recommended media weight | 60 - 90; HP pho- papers: up - 280 |
| Standard media sizes | A6, Hagaki, L size, panorama, 13 x 18 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| PictBridge | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| SmartCard slot | Yes |
| I/O ports | 1 USB, 1 PictBridge, 4 Memory card slots |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 14 W |
| Acoustic power emissions | 5.5 B(A) |
System requirements
| Specification | Value |
|---|---|
| Minimum system requirements | Windows 7 ready. For more information go to http://http:///go/windows7. Some features may not be available; Windows Vista: 800 MHz 32-bit (x86) or 64-bit (x64) processor, 512 MB RAM, 10 MB HD, Internet Explorer, USB; Windows XP Home (SP1), Windows XP Professional (SP1), Windows XP Professional x64 ( |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating temperature (T-T) | 59 - 95 °F |
| Storage temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Recommended operating temperature range (T-T) | 15 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.52 kg |
| Maximum dimensions (W x D x H) | 251 x 221 x 175 mm |
Packaging data
| Specification | Value |
|---|---|
| Battery included | No |
| Bundled software | Software available for free download via the internet(not included) |
| Package weight | 2.37 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 705 kg |
| Master (outer) cases per pallet | 24 pc(s) |
| Layers per pallet | 12 pc(s) |
| Products per pallet | 288 pc(s) |
| Products per pallet (EU) | 209 pc(s) |
Other features
| Specification | Value |
|---|---|
| Processor frequency | 450 MHz |
| Dimensions (WxDxH) | 252 x 117 x 134 mm |
| Compatible operating systems | Microsoft Windows XP Home, XP Professional, Windows Vista, Mac OS X v10.4, v10.5 |
| Functions | |
| Mac compatibility | Yes |
| Media size (tray 1) | Tray 1: 4 x 6 in, 4 x 8-in photo card, 4 x 12-in panorama, 5 x 7 in |
| Network ready | No |
| Package dimensions (WxDxH) | 300 x 165 x 203 mm |
| Power requirements | 100 - 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz) |
| Power supply type | External power supply module, optional internal lithium ion battery (not included, sold separately) |
| Print head | 1 (cyan, magenta, yellow) |
| Print quality, vertical alignment accuracy | +/- 0.006 in |
| Print speed (black, normal quality, A4/US Letter) | 21 ppm |
| Product dimensions when open (LxWxD) | 25.2 cm (9.92") |
| Size (imperial) | 25.2 cm (9.92") |
| Standard input trays | 1 |
| Wireless technology | Bluetooth |
| Acoustic pressure emissions | 55 dB |
| Automatic paper sensor | No |
| Camera phone | Direct photo printing from camera phones with the optional Bluetooth Wireless Printer Adapter Yes |
| Compatible ink types, supplies | Dye-based |

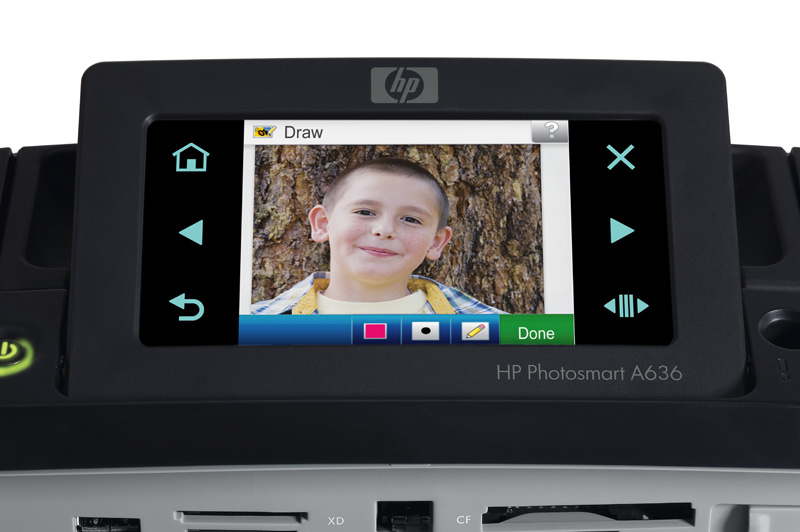

| Control panel | 4.8-inch display with touchscreen (3.5-in viewing area), one button (Power) |
| Exifprint supported | Yes, Version 2.2 |
| JetDirect Compatible Products | No |
| Maximum input capacity (photo paper) | 20 sheets |
| Maximum input capacity for 10 x 15 cm photographs | 20 sheets |
| Maximum output capacity (photo paper) | 20 sheets |
| Maximum print length | 305 m |
| Maximum print length (imperial) | 12 in |
| Media handling | Sheetfeed |
| Media sizes supported (imperial) | 4 x 6 in, 4 x 8-in photo card, 4 x 12-in panorama, 5 x 7 in |
| Media weights by paper path | 60 - 90 g/m2 |
| Package dimensions (W x D x H) | 299.7 x 165.1 x 202.9 mm (11.8 x 6.5 x 7.99") |
| Package weight (imperial) | 2.37 kg (5.23 lbs) |
| Page yield identifier | PS630 |
| Pallet dimensions (W x D x H) | 1219.2 x 1016 x 2563 mm |
| Pallet dimensions (W x D x H) (imperial) | 1219.2 x 1016 x 2562.9 mm (48 x 40 x 100.9") |
| Pallet size (EU) | 1200 x 800 x 2377 mm |
| Pallet weight (imperial) | 704 kg (1552 lbs) |
| Paper handling standard/output | 20-sheet output tray |
| Photo proofsheets supported | No |
| Print quality (black, best quality) | 1200 x 1200 DPI |
| Recommended media weight (imperial) | 16 to 24 lb; HP photo papers: up to 75 lb |
| Skew | +/- 0.006 in |
| Standard input capacity for cards | Up to 20 cards |
| Standard output capacity for cards | Up to 20 cards |
| SureSupply supported | Yes |
| Technical features | HP Auto Red-eye Removal, Photo brightness. |
| Video action printing supported | No |
| Vivera inks supported | Yes |
| Weight (imperial) | 3.35 lb |
| Wireless option type | Optional, with HP Bluetooth Wireless Printer Adapters |
