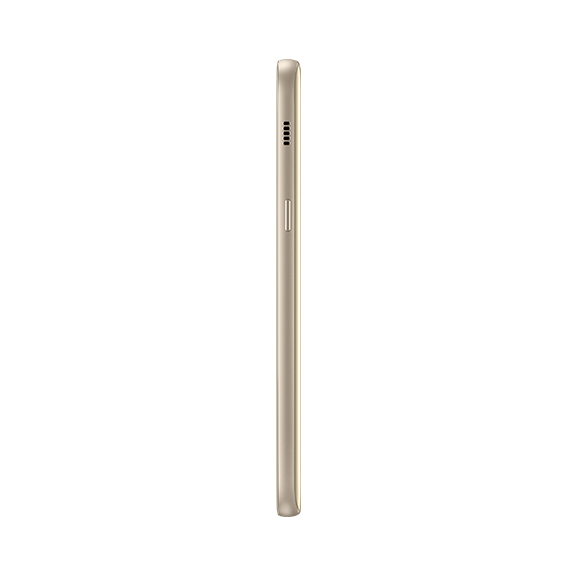

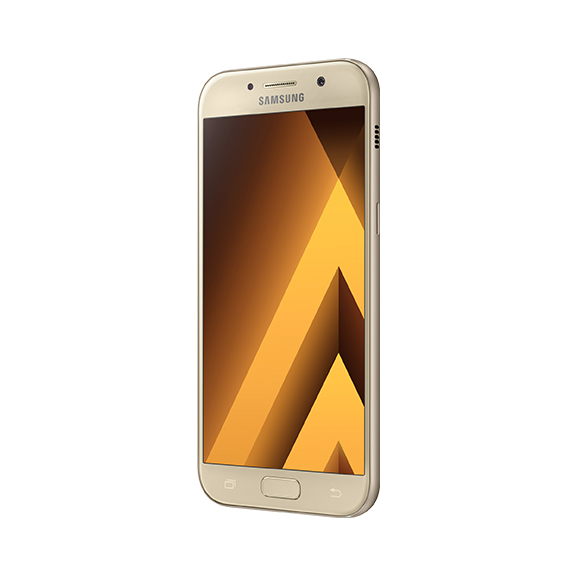

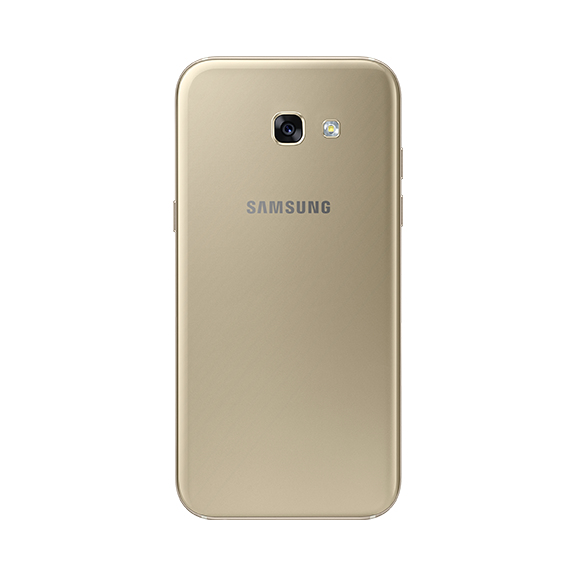

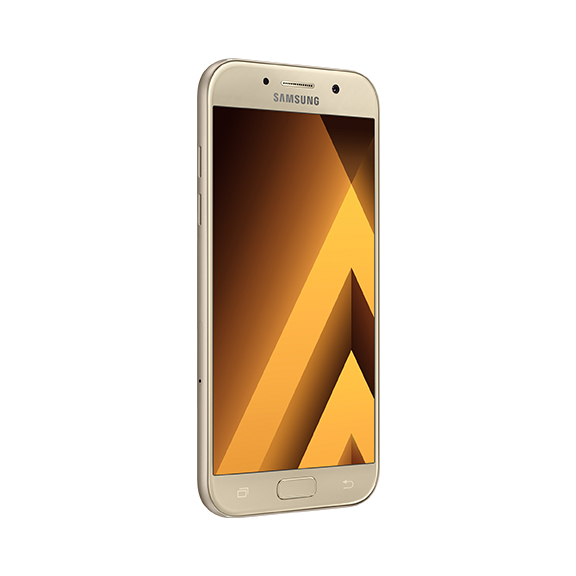

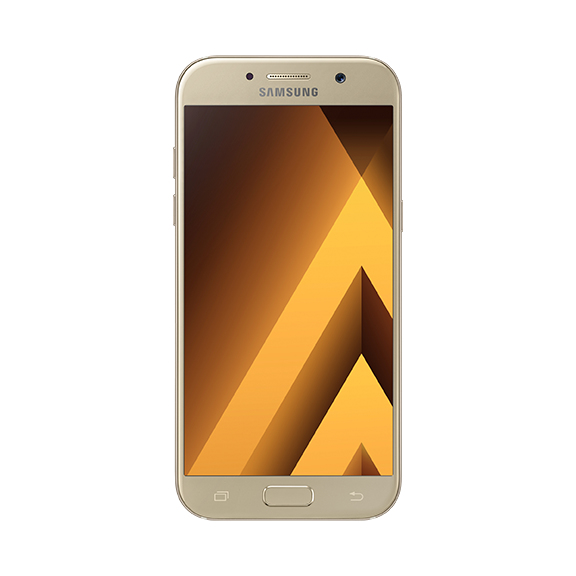

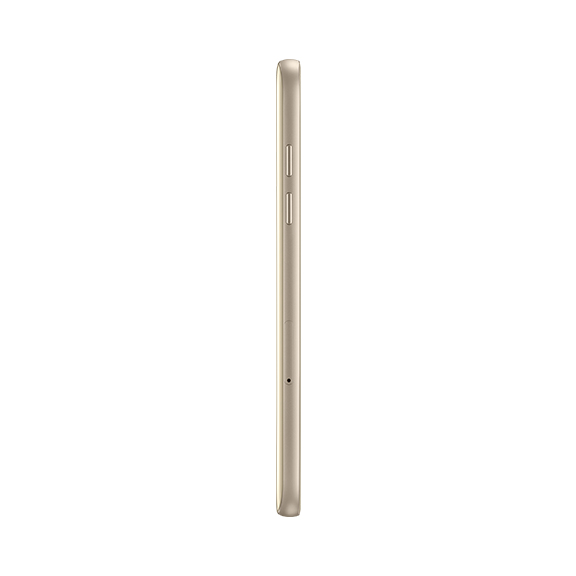

Samsung Galaxy A5 (2017) SM-A520F

Galaxy A5 (2017) SM-A520F

13.2 cm (5.2") Android 6.0.16 4G USB Type-C 3 GB 32 GB 3000 mAh Gold

Model SM-A520FPart no. SM-A520FZDAEAN 8806088624853

112 specifications Checked today

Display13.2 cm (5.2")
Resolution1920 x 1080 pixels
Memory3 GB
Storage32 GB
Camera16 MP
Battery3000 mAh

See all specifications

Overview

Display: 13.2 cm (5.2")
Resolution: 1920 x 1080 pixels
Memory: 3 GB
Storage: 32 GB
Camera: 16 MP
Battery: 3000 mAh

Brand: Samsung
Category: Phone
Model: SM-A520F
Part numbers: SM-A520FZDA, SM-A520FZDAATO, SM-A520FZDANEE, SM-A520FZIANEE, SM-A520FZKANEE, SM-A520FZKALUX?KIT +34 more
EAN / UPC: 8806088624853, 8806088602011, 8806088602028, 8806088601083 +56 more
Also known as: Samsung Galaxy A5 (2017) SM-A520F 13.2 cm (5.2") Android 6.0.16 4G USB Type-C 3 GB 32 GB 3000 mAh Gold

Specifications

112 specifications in 20 groups

Display

Specification	Value
Display diagonal	13.2 cm (5.2")
Display resolution	1920 x 1080 pixels
Screen shape	Flat
Display technology marketing name	Super AMOLED
Panel type	OLED
Display number of colours	16.78 million colours
Touch technology	Multi-touch
Touchscreen type	Capacitive
Second display	No

Processor

Specification	Value
Processor cores	8
Processor frequency	1.9 GHz

Storage

Specification	Value
RAM capacity	3 GB
Internal storage capacity	32 GB
User memory	23.1 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
USB mass storage	Yes

Camera

Specification	Value
Rear camera type	Single camera
Rear camera resolution (numeric)	16 MP
Front camera type	Single camera
Front camera resolution (numeric)	16 MP
Rear camera flash	Yes
Flash type	LED
Maximum frame rate	30 fps
Resolution at capture speed	1920x1080@30fps
Video recording modes	1080p
Auto focus	Yes
Zoom capability	Yes
Video recording	Yes
Geotagging	Yes
Night mode	Yes
Self-timer	Yes

Network

Specification	Value
Mobile network generation	4G
SIM card type	NanoSIM
2G standards	GSM
3G standards	WCDMA
4G standard	LTE
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.2
Bluetooth profiles	A2DP, AVRCP, HFP, HID, HOGP, HSP, MAP, OPP, PAN, PBAP
2G bands (primary SIM)	850,900,1800,1900 MHz
3G bands supported	850,900,1900,2100 MHz
4G bands supported	700,800,850,900,1800,1900,2100,2600 MHz
Tethering (modem-mode)	Yes
Wi-Fi Direct	Yes
Near Field Communication (NFC)	Yes

Subscription

Specification	Value
Subscription type	No subscription

Ports & interfaces

Specification	Value
USB port	Yes
USB connector type	USB Type-C
HDMI ports quantity	0
Headphone connectivity	3.5 mm

Messaging

Specification	Value
Short Message Service (SMS)	Yes
Multimedia Messaging Service (MMS)	Yes
Instant messaging (IM)	Yes
Chat	Yes
E-mail	Yes

Design

Specification	Value
Form factor	Bar
Product colour	Gold
Colour name	Gold Sand

Performance

Specification	Value
Video call	Yes
Flight mode	Yes
Microphone mute	Yes
Personal info management (PIM)	Alarm clock, Calculator, Calendar, To-do list
Personalization	Icons, Menu, Shortcuts
Speakerphone	Yes
Support for contact groups	Yes
Themes	Wallpapers
Vibrating alert	Yes

Multimedia

Specification	Value
Audio formats supported	AAC, AAC+, AMR-NB, AMR-WB, FLAC, MP3, OPUS, Vorbis, WMA
Video formats supported	H.263, H.264, H.265, MP43, MPEG4, VC-1, VP8, VP9, WMV7, WMV8
Video compression formats	H.263, H.264, H.265
Voice codecs	AMR-NB, AMR-WB

Call management

Specification	Value
Call divert	Yes
Call hold	Yes
Call timer	Yes
Call waiting	Yes
Caller ID	Yes
Conference call	Yes
Speed dialling	Yes

Software

Specification	Value
Platform	Android
Operating system installed	Android 6.0.16
App distribution platform	Google Play

Battery

Specification	Value
Battery capacity	3000 mAh
Talk time (3G) (max)	16 h
Browsing time (Wi-Fi) (max)	18 h
Browsing time (3G) (max)	13 h
Browsing time (4G) (max)	16 h
Continuous audio playback time	53 h
Continuous audio playback time (display off)	78 h
Continuous video playback time (max)	19 h

Endurance

Specification	Value
International Protection (IP) code	IP68

Sensors

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Proximity sensor	Yes
Barometer	Yes
Orientation sensor	Yes

Weight & dimensions

Specification	Value
Weight	159 g
Width	71.4 mm
Depth	7.9 mm
Height	146.1 mm

Specific absorption rate (SAR)

Specification	Value
Head SAR (EU)	0.522 W/kg
Body SAR (EU)	1.39 W/kg
Extremities SAR (EU)	2.08 W/kg

Other features

Specification	Value
Touchscreen	Yes
