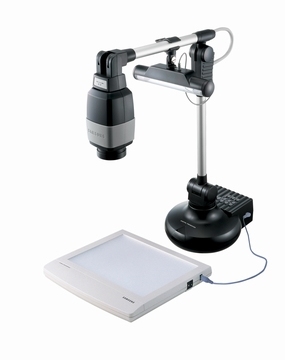

SDP-850ST overhead projector XGA (1024x768)
Model SDP-850STPart no. SA-SDP-850STP-K
25 specifications
- Weight5.7 kg
- Projector resolutionXGA (1024x768)
- Digital zoom3x
- Optical sensor size25.4 / 3 mm (1 / 3")
- Frame rate20 fps
- I/O portsVGA RS-232C
Overview
- Weight
- 5.7 kg
- Projector resolution
- XGA (1024x768)
- Digital zoom
- 3x
- Optical sensor size
- 25.4 / 3 mm (1 / 3")
- Frame rate
- 20 fps
- I/O ports
- VGA RS-232C
- Brand
- Samsung
- Category
- Overhead Projector
- Model
- SDP-850ST
- Part number
- SA-SDP-850STP-K
- Also known as
- Samsung SDP-850ST overhead projector XGA (1024x768)
Specifications
25 specifications in 9 groups
Projector
| Specification | Value |
|---|---|
| Projector resolution | XGA (1024x768) |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 3x |
| Focal length range | 4.8 - 67.2 mm |
| Focus | Auto / Manual |
| Lens focal range | F1.5 - F2.1 |
| Maximum shooting area | 29.8 cm |
| Minimum shooting area | 2.17 cm |
| Optical zoom | 14x |
Image sensor
| Specification | Value |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CCD |
| Optical sensor resolution | 850000 pixels |
Video
| Specification | Value |
|---|---|
| Frame rate | 20 fps |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | VGA RS-232C |
Technical details
| Specification | Value |
|---|---|
| Bundled software | No |
| Image freeze | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 30 - 90% |
| Operating temperature (T-T) | 5 - 35 °C |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 20 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 430 mm |
| Height | 492 mm |
| Weight | 5.7 kg |
| Width | 182 mm |
