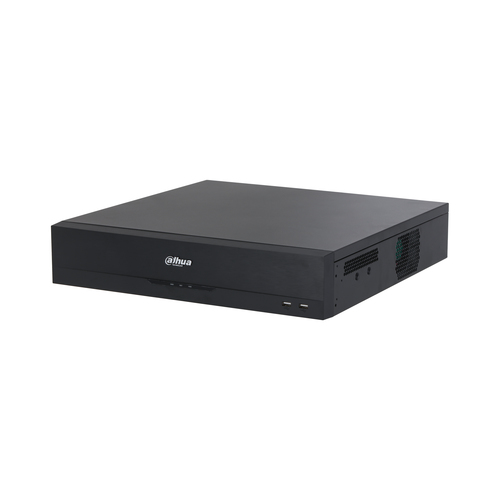

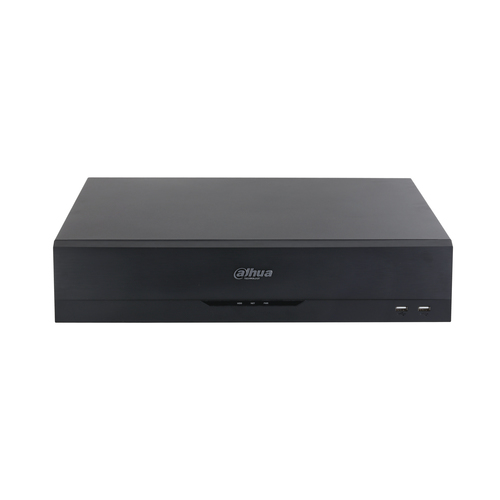

Dahua Technology WizSense DHI-NVR5832-16P-AI/ANZ network video recorder
Dahua Technology

WizSense DHI-NVR5832-16P-AI/ANZ network video recorder

Model DHI-NVR5832-16P-AI/ANZ

53 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight6.9 kg
  • Video input channels32 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
6.9 kg
Video input channels
32 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
DHI-NVR5832-16P-AI/ANZ
Part number
DHI-NVR5832-16P-AI/ANZ
Also known as
Dahua Technology WizSense DHI-NVR5832-16P-AI/ANZ network video recorder

Specifications

53 specifications in 10 groups

Performance

Video input channels32 channels
Alarm input channels16
Alarm output channels8
Multi-screenYes
Operating system installedEmbedded LINUX
DHCP clientYes
Input bandwidth256 Mbit/s
SyslogYes
Recording modesEvent, Manual
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported8
Maximum storage capacity16 TB
HDD interfaceSATA

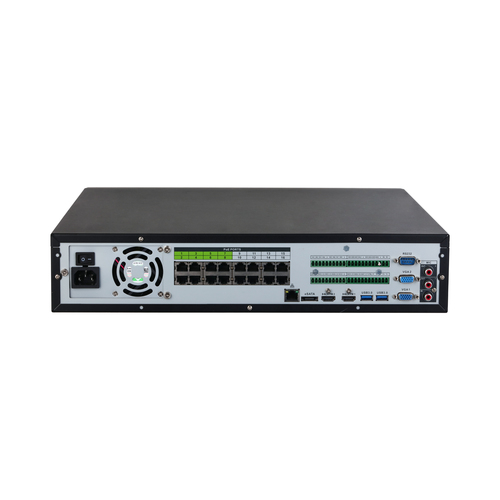

Ports & interfaces

Ethernet LAN (RJ-45) ports16
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
Ethernet WANYes
HDMI ports quantity2
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs2
RS-232 interfaceYes
RS-485 ports2
eSATAYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration

Features

Rack mountingYes
On/off switchYes

Display

Built-in displayNo

Power

Power consumption (typical)10 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget130 W

System requirements

Mobile operating systems supportedYes
Browser supportedChrome, IE 9, later Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width440 mm
Depth457.9 mm
Height89.1 mm
Weight6.9 kg
Package width570 mm
Package depth570 mm
Package height226 mm
Package weight9.79 kg
