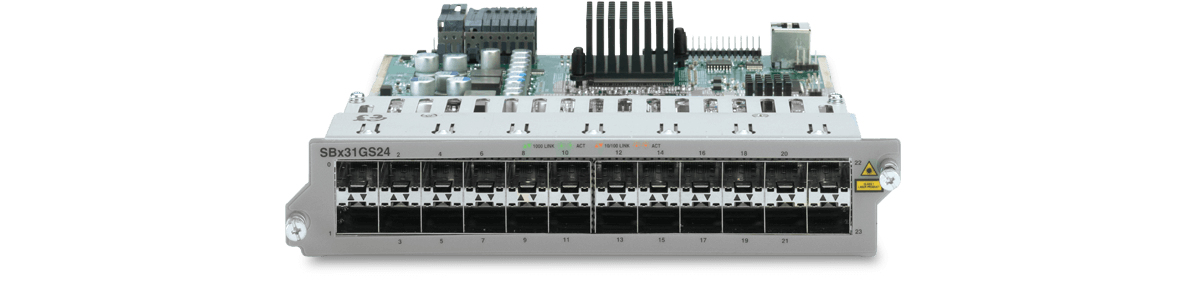

AT-SBX31GS24 network switch module
Model AT-SBX31GS24EAN 767035192598
27 specifications
- Weight1.06 kg
- Ethernet LAN data rates10,100,1000 Mbit/s
- Fiber optic connectorSFP
- MAC address table32000 entries
- SFP module slots quantity24
- Quality of Service (QoS) supportYes
Overview
- Weight
- 1.06 kg
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Fiber optic connector
- SFP
- MAC address table
- 32000 entries
- SFP module slots quantity
- 24
- Quality of Service (QoS) support
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch Module
- Model
- AT-SBX31GS24
- Part number
- AT-SBX31GS24
- EAN / UPC
- 767035192598, 7670351925982
- Also known as
- Allied Telesis AT-SBX31GS24 network switch module
Specifications
27 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDIX IEEE | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Number of VLANs | 4000 |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP module slots quantity | 24 |
Performance
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, SSH-2 |
| Compatibility | Allied Telesis SwitchBlade x3112 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 34.4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
Certificates
| Specification | Value |
|---|---|
| Safety | EN60950-1 (TUV), UL60950-1 (CULUS), EN60825 |
| Certification | FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 206.7 x 313.2 x 40.6 mm |
| Weight | 1.06 kg |
