Ricoh MP C5504ASP
Model MP C5504ASP
78 specifications
- Display25.6 cm (10.1")
- Storage320 GB
- Weight103.4 kg
- ColourBlack, White
- Print technologyLaser
- CopyingColour copying
Overview
- Display
- 25.6 cm (10.1")
- Storage
- 320 GB
- Weight
- 103.4 kg
- Colour
- Black, White
- Print technology
- Laser
- Copying
- Colour copying
- Brand
- Ricoh
- Category
- Multifunction Printer
- Model
- MP C5504ASP
- Part number
- MP C5504ASP
- Also known as
- Ricoh MP C5504ASP multifunction printer Laser A3 1200 x 1200 DPI 55 ppm
Specifications
78 specifications in 17 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Laser |
| Printing | Colour printing |
| Duplex printing | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 55 ppm |
| Warm-up time | 24 s |
| Time to first page (black, normal) | 3.1 s |
| Time to first page (colour, normal) | 4.5 s |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
| Maximum copy resolution | 600 x 600 DPI |
| Copy speed (black, normal quality, A4) | 55 cpm |
| Maximum number of copies | 999 copies |
| Copier resize | 25 - 400% |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 1200 x 1200 DPI |
| Maximum scan area | 297 x 432 mm |
| Scan to | E-mail, FTP, File, Memory card, SMB, TWAIN, USB |
| Image formats supported | JPG |
| Document formats supported | |
| Scan drivers | TWAIN |
Fax
| Specification | Value |
|---|---|
| Faxing | Colour faxing |
| Fax resolution (black) | 400 x 400 DPI |
| Fax transmission speed | 2 sec/page |
| Modem speed | 33.6 Kbit/s |
| Fax coding methods | JBIG, MH, MMR, MR |
Features
| Specification | Value |
|---|---|
| Recommended duty cycle | 0 - 20000 pages per month |
| Number of print cartridges | 4 |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Page description languages | PCL 5c, PCL 6 |
| Number of printer fonts | 58 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 2 |
| Total input capacity | 1200 sheets |
| Total output capacity | 500 sheets |
| Paper input type | Paper tray |
| Maximum number of input trays | 4 |
| Maximum input capacity | 4700 sheets |
| Maximum output capacity | 3625 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Paper tray media weight | 52 - 300 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 2.0 |
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | 802.1x RADIUS, SNMPv3 |
| Supported network protocols (IPv4) | TCP/IP |
| Supported network protocols (IPv6) | TCP/IP |
Performance
| Specification | Value |
|---|---|
| Maximum internal memory | 4096 MB |
| Internal storage capacity | 320 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Built-in processor | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Market positioning | Business |
| Built-in display | Yes |

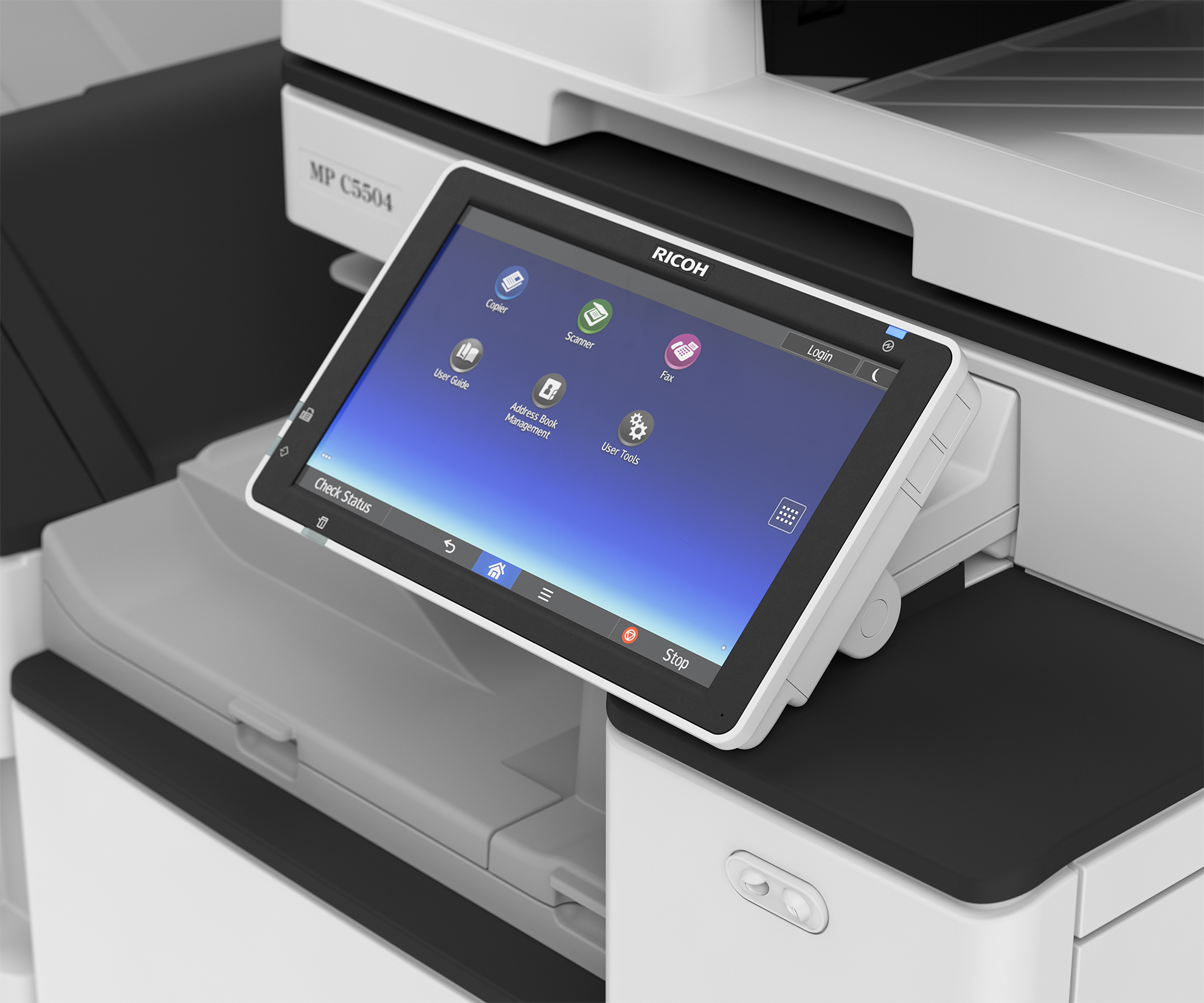

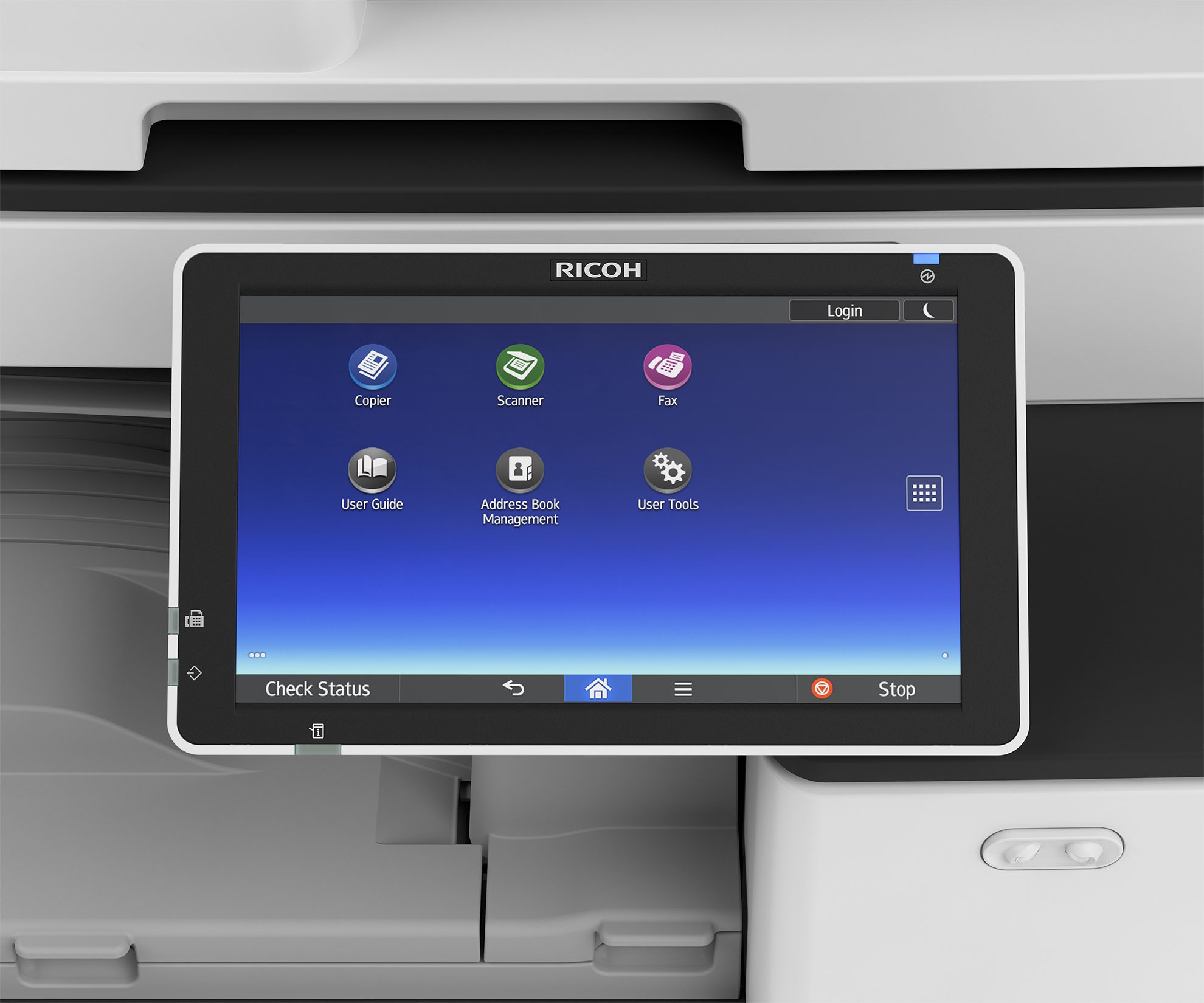

| Display diagonal | 25.6 cm (10.1") |
| Touchscreen | Yes |
| Control type | Touch |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1850 W |
| Power consumption (ready) | 55.1 W |
| Power consumption (sleep) | 0.89 W |
| Energy Star Typical Electricity Consumption (TEC) | 2.5 kWh/week |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Other operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 587 mm |
| Depth | 685 mm |
| Height | 963 mm |
| Weight | 103.4 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Finishing option | Yes |
