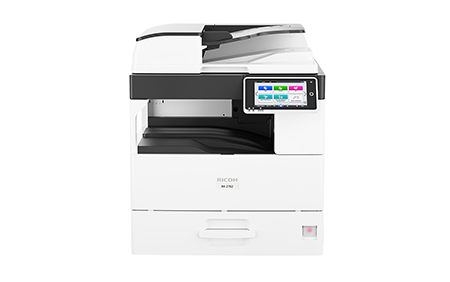

IM 2702
Model IM 2702Part no. 418146EAN 4961311939280
76 specifications
- Display17.8 cm (7")
- ProcessorARM Cortex
- Memory2048 MB
- Weight46.5 kg
- ColourBlack, White
- Print technologyLaser
Overview
- Display
- 17.8 cm (7")
- Processor
- ARM Cortex
- Memory
- 2048 MB
- Weight
- 46.5 kg
- Colour
- Black, White
- Print technology
- Laser
- Brand
- Ricoh
- Category
- Multifunction Printer
- Model
- IM 2702
- Part number
- 418146
- EAN / UPC
- 4961311939280
- Also known as
- Ricoh IM 2702 Laser A3 600 x 600 DPI Wi-Fi
Specifications
76 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Laser |
| Printing | Mono printing |
| Maximum resolution | 600 x 600 DPI |
| Print speed (black, normal quality, A3) | 27 ppm |
| Warm-up time | 27 s |
| Time to first page (black, normal) | 6.5 s |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
| Maximum copy resolution | 600 x 600 DPI |
| Maximum number of copies | 999 copies |
| Copier resize | 25 - 400% |
Scanning
| Specification | Value |
|---|---|
| Scanning | Mono scanning |
| Optical scanning resolution | 600 x 600 DPI |
| Scanner type | Flatbed & ADF scanner |
| Scan to | E-mail, File, TWAIN, USB |
| Scan speed (black) | 50 inch/min |
| Scan speed (colour) | 50 inch/min |
| Image formats supported | JPEG, MMR, TIFF |
| Document formats supported | |
| Scan drivers | TWAIN |
Fax
| Specification | Value |
|---|---|
| Faxing | Mono faxing |
| Fax resolution (black) | 200 x 200 DPI |
| Fax transmission speed | 3 sec/page |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 9.7 MB |
| Fax coding methods | MH, MMR, MR |
Features
| Specification | Value |
|---|---|
| Number of print cartridges | 1 |
| Printing colours | Black |
| Page description languages | PCL 5e, PCL 6, PostScript 3 |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 500 sheets |
| Total output capacity | 250 sheets |
| Paper input type | Paper tray |
| Auto document feeder (ADF) output capacity | 100 sheets |
| Maximum input capacity | 1600 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Paper tray media types | Bond paper, Card stock, Labels, Letterhead, Plain paper, Pre-printed, Recycled paper, Thick paper, Thin paper |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Paper tray media weight | 52 - 105 g/m² |
| Multi-Purpose Tray media weight | 60 - 216 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Mopria Print Service |
| Security features | Locked Print, SSL communication encryption, Transport Layer Security (TLS), SMTP over SSL/TLS, Wireless LAN encryption, Network Protocol, IP filtering |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2048 MB |
| Card reader integrated | No |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor frequency | 800 MHz |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Market positioning | Home & office |
| Built-in display | Yes |
| Display diagonal | 17.8 cm (7") |
| Touchscreen | Yes |
| Control type | Touch |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1550 W |
| Power consumption (ready) | 94 W |
| Power consumption (sleep) | 0.97 W |
| Energy Star Typical Electricity Consumption (TEC) | 1.3 kWh/week |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 587 mm |
| Depth | 581 mm |
| Height | 677 mm |
| Weight | 46.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
