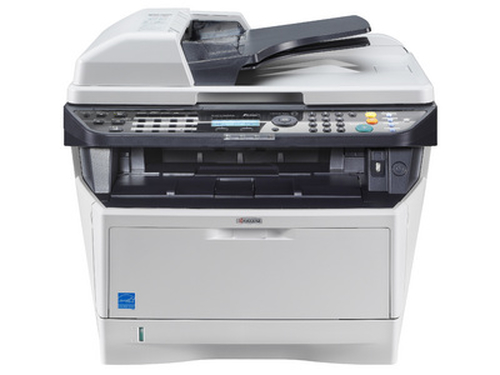

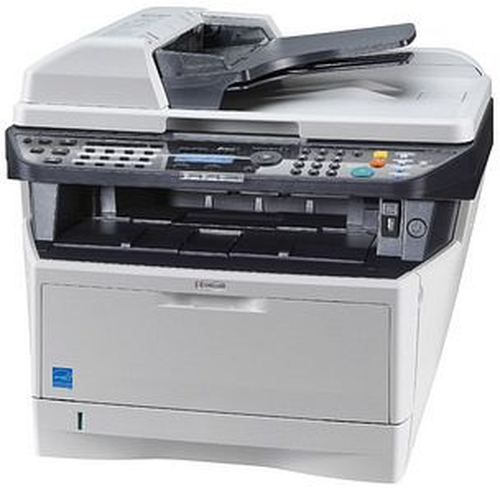

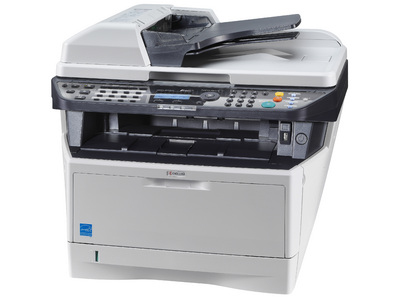

Kyocera ECOSYS M2530dn/KL3 Laser A4

1800 x 600 DPI 30 ppm

Model M2530dn/KL3Part no. 870B61102PL3NL0EAN 632983933268

100 specifications

ProcessorPowerPC
Memory512 MB
Weight18 kg
ColourBlack, White
Print technologyLaser
CopyingMono copying

See all specifications

Overview

Processor: PowerPC
Memory: 512 MB
Weight: 18 kg
Colour: Black, White
Print technology: Laser
Copying: Mono copying

Brand: Kyocera
Category: Multifunction Printer
Model: M2530dn/KL3
Part number: 870B61102PL3NL0
EAN / UPC: 632983933268, 6329839332682
Also known as: KYOCERA ECOSYS M2530dn/KL3 Laser A4 1800 x 600 DPI 30 ppm

Specifications

100 specifications in 17 groups

Printing

Specification	Value
Print technology	Laser
Printing	Mono printing
Duplex printing	Yes
Duplex printing mode	Auto
Maximum resolution	1800 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	30 ppm
Warm-up time	20 s
Time to first page (black, normal)	7 s
Secure printing	Yes

Copying

Specification	Value
Copying	Mono copying
Duplex copying	Yes
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	6.9 s
Maximum number of copies	999 copies
Copier resize	25 - 400%
N-in-1 copy function (N=)	2, 4
PC free copying	Yes

Scanning

Specification	Value
Scanning	Colour scanning
Duplex scanning	Yes
Optical scanning resolution	600 x 600 DPI
Maximum scan area	Legal (216 x 356)
Scanner type	ADF scanner
Scan to	E-mail, FTP, SMB, USB
Scan speed (black)	35 ppm
Scan speed (colour)	14 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Greyscale levels	256
Scan drivers	TWAIN, WIA

Fax

Specification	Value
Faxing	Mono faxing
Duplex faxing	Yes
Fax transmission speed	3 sec/page
Modem speed	33.6 Kbit/s
Fax memory	256 pages
Fax coding methods	JBIG, MH, MMR, MR

Features

Specification	Value
Maximum duty cycle	20000 pages per month
Number of print cartridges	1
Printing colours	Black
Page description languages	Epson LQ, IBM ProPrinter, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
All-In-One-multitasking	Yes

Input & output capacity

Specification	Value
Total number of input trays	2
Total input capacity	300 sheets
Multi-Purpose tray	Yes
Multi-Purpose tray input capacity	50 sheets
Paper input type	Cassette, Paper tray
Auto document feeder (ADF)	Yes
Auto document feeder (ADF) input capacity	50 sheets
Maximum number of input trays	4
Maximum input capacity	800 sheets
Maximum output capacity	150 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Maximum print size	216 x 356 mm
Paper tray media types	Envelopes, Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	Folio
Custom media length	148 - 356 mm
Custom media width	70 - 216 mm
Paper tray media weight	60 - 120 g/m²
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Duplex media weight	60 - 105 g/m²

Ports & interfaces

Specification	Value
Standard interfaces	Ethernet, USB 2.0
Direct printing	Yes
USB port	Yes
Optional connectivity	Wireless LAN

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s

Performance

Specification	Value
Internal memory	512 MB
Maximum internal memory	1536 MB
Built-in processor	Yes
Processor family	PowerPC
Processor model	465S
Processor frequency	667 MHz
Sound pressure level (printing)	50.4 dB
Sound pressure level (copying)	50.4 dB
Sound pressure level (quiet mode)	49 dB
Sound power level (standby)	27.5 dB

Design

Specification	Value
Product colour	Black, White
Market positioning	Business
Built-in display	Yes
Display	LCD
Display number of lines	5 lines

Power

Specification	Value
Power consumption (average operating)	431 W
Power consumption (PowerSave)	3.7 W
Power consumption (standby)	62 W
Power consumption (off)	0.3 W
AC input frequency	50 - 60 Hz
AC input voltage	220 - 240 V

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Certificates

Specification	Value
Certification	TÜV/GS, CE

Sustainability

Specification	Value
Sustainability certificates	Blue Angel, ENERGY STAR

Weight & dimensions

Specification	Value
Width	494 mm
Depth	430 mm
Height	448 mm
Weight	18 kg

Packaging content

Specification	Value
Drivers included	Yes
