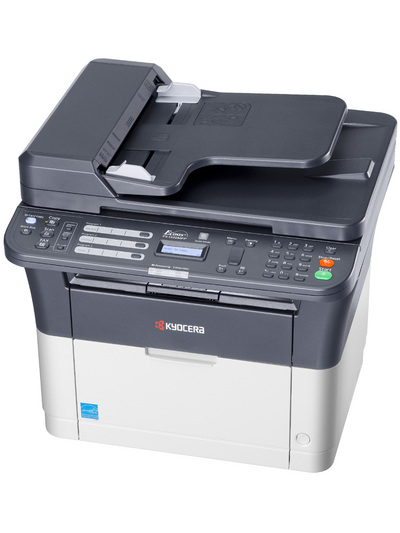

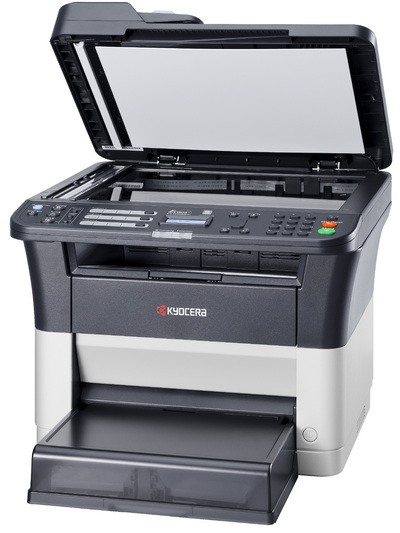

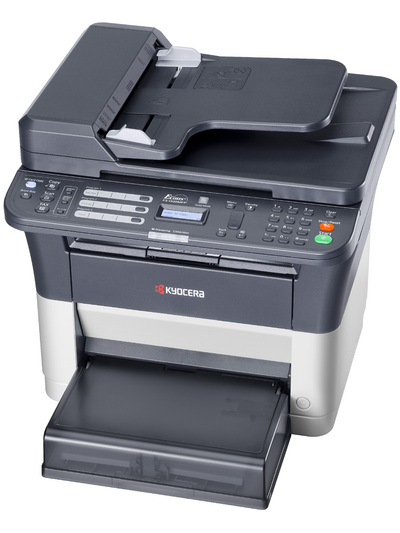

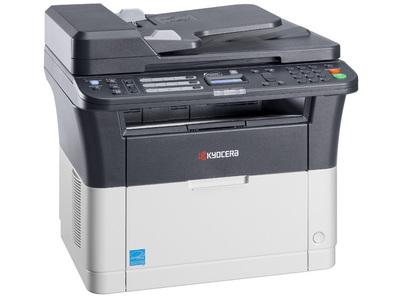

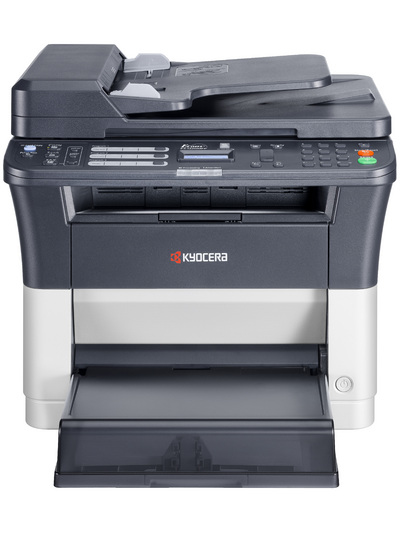

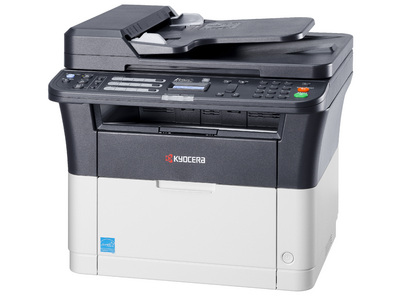

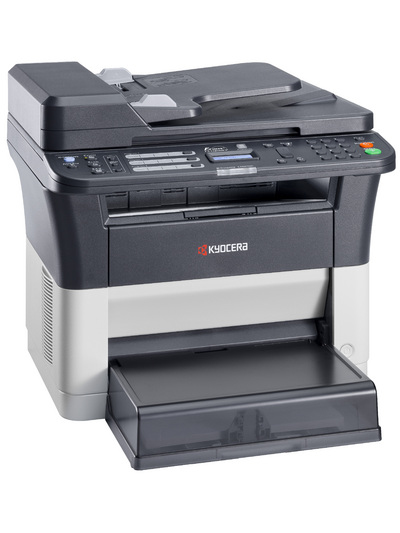

Kyocera FS -1320MFP Laser A4

1800 x 600 DPI 20 ppm

Model FS-1320MFPPart no. 1102M53NL2EAN 632983053249

87 specifications

ProcessorARM
Memory64 MB
Weight10.1 kg
ColourBlack, White
Print technologyLaser
CopyingMono copying

See all specifications

Overview

Processor: ARM
Memory: 64 MB
Weight: 10.1 kg
Colour: Black, White
Print technology: Laser
Copying: Mono copying

Brand: Kyocera
Category: Multifunction Printer
Model: FS-1320MFP
Part numbers: 1102M53NL2, 1102M53NLV
EAN / UPC: 632983053249, 632983025468, 632983027721, 632983029596 +5 more
Also known as: KYOCERA FS -1320MFP Laser A4 1800 x 600 DPI 20 ppm

Specifications

87 specifications in 16 groups

Printing

Specification	Value
Print technology	Laser
Printing	Mono printing
Duplex printing	No
Maximum resolution	1800 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	20 ppm
Warm-up time	28 s
Time to first page (black, normal)	8.5 s

Copying

Specification	Value
Copying	Mono copying
Duplex copying	No
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	14 s
Maximum number of copies	99 copies
Copier resize	25 - 400%
N-in-1 copy function	Yes
N-in-1 copy function (N=)	2, 4

Scanning

Specification	Value
Scanning	Colour scanning
Duplex scanning	No
Optical scanning resolution	600 x 600 DPI
Maximum scan area	Legal (216 x 356)
Scan to	File, Image, USB
Scan speed (black)	18 ppm
Scan speed (colour)	6 ppm
Image formats supported	BMP, JPG, PNG, TIF
Document formats supported	PDF
Greyscale levels	256
Scan drivers	TWAIN, WIA

Fax

Specification	Value
Faxing	Mono faxing
Duplex faxing	No
Fax transmission speed	4 sec/page
Modem speed	33.6 Kbit/s
Fax memory	150 pages
Fax memory	2.2 MB
Fax coding methods	MH, MMR, MR

Features

Specification	Value
Maximum duty cycle	10000 pages per month
Number of print cartridges	1
Printing colours	Black
All-In-One-multitasking	Yes

Input & output capacity

Specification	Value
Total number of input trays	2
Total input capacity	250 sheets
Paper input type	Cassette
Auto document feeder (ADF)	Yes
Auto document feeder (ADF) input capacity	40 sheets
Maximum number of input trays	2
Maximum input capacity	250 sheets
Maximum output capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	Legal
Custom media length	148 - 356 mm
Custom media width	70 - 216 mm
Paper tray media weight	60 - 220 g/m²
Media thickness (min)	0.11 mm

Ports & interfaces

Specification	Value
Standard interfaces	USB 2.0
Direct printing	No
USB port	Yes

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	No
Mobile printing technologies	Not supported

Performance

Specification	Value
Internal memory	64 MB
Card reader integrated	No
Processor family	ARM
Processor frequency	390 MHz
Sound pressure level (printing)	50 dB
Sound pressure level (copying)	50 dB
Sound pressure level (quiet mode)	49 dB
Sound power level (standby)	28 dB

Design

Specification	Value
Product colour	Black, White
Market positioning	Home & office
Built-in display	Yes
Display number of lines	2 lines

Power

Specification	Value
Power consumption (average operating)	303 W
Power consumption (PowerSave)	3 W
Power consumption (standby)	7 W
AC input frequency	50 - 60 Hz
AC input voltage	220 - 240 V

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64

Certificates

Specification	Value
Certification	TÜV-GS, CE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	390 mm
Depth	361 mm
Height	362 mm
Weight	10.1 kg
