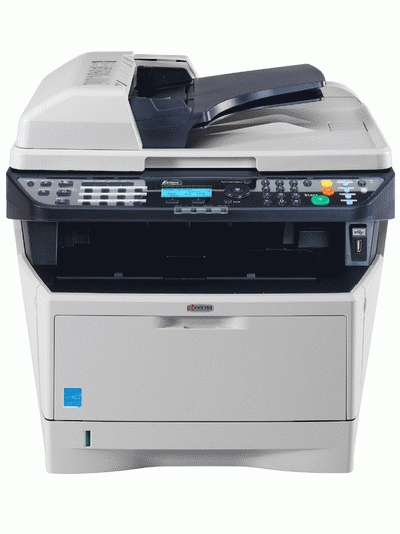

Kyocera FS -1128MFP Laser A4

1200 x 1200 DPI 28 ppm

Model FS-1128MFPPart no. 1102JN3EU0EAN 632983012352

74 specifications

ProcessorPowerPC
Memory256 MB
Weight15 kg
Print technologyLaser
CopyingMono copying
ScanningColour scanning

See all specifications

Overview

Processor: PowerPC
Memory: 256 MB
Weight: 15 kg
Print technology: Laser
Copying: Mono copying
Scanning: Colour scanning

Brand: Kyocera
Category: Multifunction Printer
Model: FS-1128MFP
Part numbers: 1102JN3EU0, 012JN3EU
EAN / UPC: 632983012352, 6329830123524
Also known as: KYOCERA FS -1128MFP Laser A4 1200 x 1200 DPI 28 ppm

Specifications

74 specifications in 17 groups

Printing

Specification	Value
Print technology	Laser
Printing	No
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	28 ppm
Warm-up time	15 s
Time to first page (black, normal)	6 s

Copying

Specification	Value
Copying	Mono copying
Duplex copying	Yes
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	6.9 s
Maximum number of copies	999 copies
Copier resize	25 - 400%

Scanning

Specification	Value
Scanning	Colour scanning
Duplex scanning	Yes
Scan to	FTP
Image formats supported	JPG, TIF
Greyscale levels	256

Fax

Specification	Value
Faxing	Mono faxing
Duplex faxing	Yes
Fax transmission speed	3 sec/page
Modem speed	33.6 Kbit/s
Fax memory	100 pages
Fax coding methods	JBIG, MMR, MR

Features

Specification	Value
Maximum duty cycle	20000 pages per month
Digital sender	No
Printing colours	Black
Page description languages	PCL 5e, PCL 6, PCL XL

Input & output capacity

Specification	Value
Total output capacity	150 sheets
Maximum input capacity	800 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Maximum print size	216 x 356 mm
Paper tray media types	Envelopes
Multi-purpose tray media types	Envelopes
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	Folio
Paper tray media weight	60 - 120 g/m²
Multi-Purpose Tray media weight	60 - 220 g/m²
Duplex media weight	60 - 105 g/m²

Ports & interfaces

Specification	Value
Standard interfaces	USB 2.0
Direct printing	Yes
USB port	Yes
USB 2.0 ports quantity	1

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	Yes
Supported network protocols (IPv6)	SNMPv3, SSL, IPsec

Performance

Specification	Value
Internal memory	256 MB
Maximum internal memory	768 MB
Card reader integrated	No
Built-in processor	Yes
Processor family	PowerPC
Processor model	440
Processor frequency	667 MHz
Sound pressure level (copying)	52 dB
Sound power level (standby)	30 dB
Mac compatibility	Yes

Design

Specification	Value
Market positioning	Business

Power

Specification	Value
Power consumption (average operating)	494 W
Power consumption (PowerSave)	10.2 W
Power consumption (standby)	91 W

Certificates

Specification	Value
Certification	TÜV/GS, CE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	15 kg

Logistics data

Specification	Value
Harmonized System (HS) code	84433100

Other features

Specification	Value
Dimensions (WxDxH)	494 x 410 x 366 mm
All-in-one functions	Copy, Fax, Scan
Colour all-in-one functions	Scan, No
Compatible operating systems	Windows 2000/XP/Server 2000/Server 2003/ Vista/Server 2008, MAC OS 9.X, MAC OS X, Linux
Emulations	PCL 6, PCL 5e, Postscript 3 (KPDL3), Lineprinter, IBM Proprinter X24, EPSON LQ 850, DIABLO630, PRESCRIBE, PDF, XPS
Maximum internal memory	0.768 GB
Network ready	Yes
Power requirements	AC 220 - 240 V, 50/60Hz
Custom media sizes	105 x 148mm/216 x 356mm
