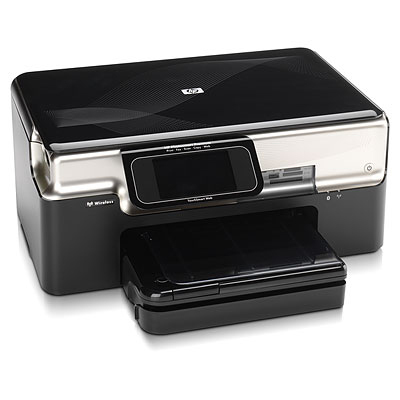

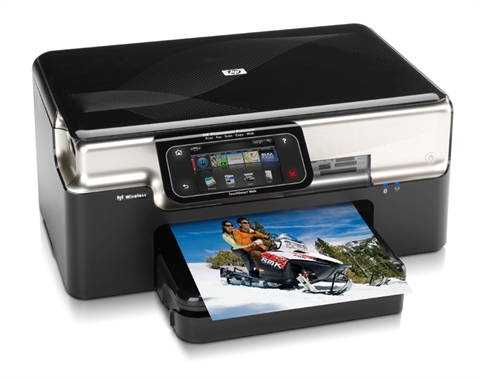

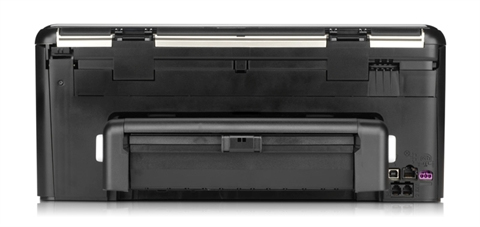

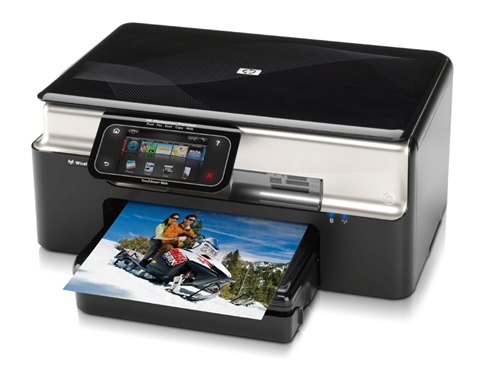

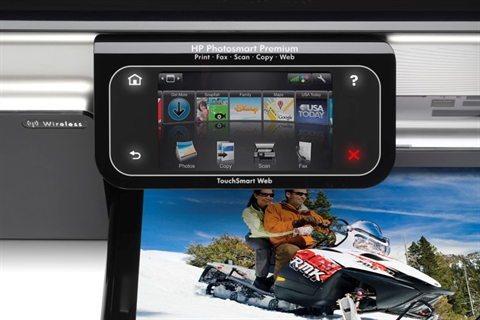

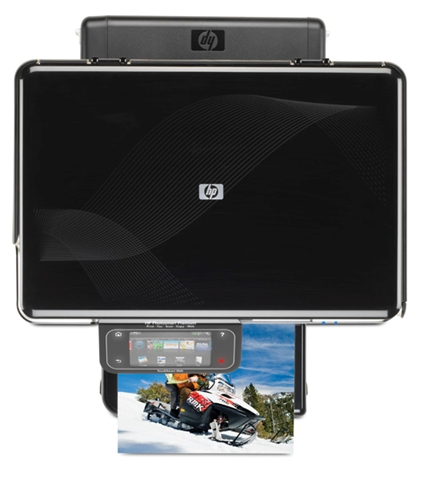

HP Premium TouchSmart Web All-in-One Printer - C309n

Model Premium TouchSmart Web All-in-One Printer - C309nPart no. CD734B#ABH

185 specifications

Display11 cm (4.33")
Memory256 MB
Weight9.01 kg
Print technologyInkjet
CopyingColour copying
ScanningColour scanning

See all specifications

Overview

Display: 11 cm (4.33")
Memory: 256 MB
Weight: 9.01 kg
Print technology: Inkjet
Copying: Colour copying
Scanning: Colour scanning

Brand: HP
Category: Multifunction Printer
Model: Premium TouchSmart Web All-in-One Printer - C309n
Part number: CD734B#ABH
Also known as: HP Photosmart Premium TouchSmart Web All-in-One Printer - C309n Inkjet A4 12 ppm Wi-Fi

Specifications

185 specifications in 18 groups

Printing

Specification	Value
Print technology	Inkjet
Printing	Colour printing
Duplex printing	Yes
Print resolution colour	9600 x 2400 DPI
Print speed (black, normal quality, A4/US Letter)	12 ppm
Print speed (colour, normal quality, A4/US Letter)	9.5 ppm
Print speed (black, draft quality, A4/US Letter)	33 ppm
Print speed (colour, draft quality, A4/US Letter)	32 ppm
Print speed (black, best quality, A4)	2.5 ppm
Print speed (black, best quality, letter)	< 2.5
Print speed (colour, best quality, A4)	2.5 ppm
Print speed (colour, best quality, letter)	< 2.5
Print speed (colour, draft quality, letter)	< 32

Copying

Specification	Value
Copying	Colour copying
Maximum copy resolution	1200 x 600 DPI
Copy speed (black, normal quality, A4)	33 cpm
Copy speed (colour, normal quality, A4)	32 cpm
Copy speed (colour, normal, US Letter)	12 cpm
Maximum number of copies	50 copies
Copier resize	25 - 400%
Copier settings	Stand-alone copying; Actual size; Fit to page; Custom %; Manual 2 on 2; Lighten/Darken; Quality; Photo Enhanced; Text Enhanced; Preview
Copy resolution (black graphics)	Up to 1200 optimized dpi from 600 input dpi
Copy speed (black, best, letter)	Up to 1.5 cpm
Maximum copy speed (black, A4)	33 cpm
Maximum copy speed (colour, A4)	32 cpm

Scanning

Specification	Value
Scanning	Colour scanning
Maximum scan resolution	4800 x 4800 DPI
Maximum scan area	216 x 297 mm
Scanner type	Flatbed scanner
Scan technology	CIS
Input colour depth	48 bit
Greyscale levels	256
TWAIN version	1.9
Scan input modes	Front-panel scan; HP Photosmart software
Scanner features	Software: Restore faded color; Apply adaptive lighting; Remove dust and scratches; Sharpening; Scan multiple photos to individual files

Fax

Specification	Value
Faxing	Colour faxing
Modem speed	33.6 Kbit/s
Auto-redialing	Yes
Fax forwarding	No
Distinctive ring	Yes
Fax broadcasting	No
Fax delayed sending	No
Fax speed (A4)	3 sec/page

Features

Specification	Value
Maximum duty cycle	2500 pages per month
Digital sender	No
Number of print cartridges	5
Printing colours	Cyan
Page description languages	PJL, PML
All-In-One-multitasking	Yes

Input & output capacity

Specification	Value
Total input capacity	100 sheets
Total output capacity	50 sheets
Maximum input capacity	100 sheets
Maximum output capacity	50 sheets
Standard input capacity for cards	Up to 40 cards
Standard input capacity for transparencies	Up to 40 sheets
Input capacity for envelopes (primary tray)	15 sheets
Maximum input capacity for 10 x 15 cm photographs	60 sheets
Maximum input capacity for envelopes	Up to 15
Maximum input capacity for labels	Up to 40 sheets
Maximum input capacity for transparencies	40 sheets
Standard output capacity for cards	Up to 25 cards

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Paper tray media types	Card stock, Envelopes, Labels, Photo paper, Plain paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Non-ISO print media sizes	Executive
JIS B-series sizes (B0...B9)	B5, B6
Envelope feeder	Yes, 15
Maximum input capacity for cards	Up to 60 cards
Maximum paper trays	1 plus automated 5 x 7-in photo tray
Media handling	Sheetfed
Paper handling standard/input	100-sheet input tray; 20-sheet photo tray
Paper handling standard/output	50-sheet output tray
Recommended media weight	60 - 280 g/m²

Ports & interfaces

Specification	Value
Standard interfaces	Bluetooth, Ethernet, USB 2.0
Direct printing	Yes
USB port	Yes
USB 2.0 ports quantity	1

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Bluetooth	Yes

Performance

Specification	Value
Internal memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MMC, MS Duo, MS Pro, MS Pro Duo, SD, xD
Mac compatibility	Yes
Minimum system requirements	Microsoft Windows 7 ready. Some features may not be available. For more information go to http:///go/windows7; Windows Vista: 800 MHz 32-bit (x86) or 64-bit (64) processor; 512 MB RAM; 920 MB hard disk space; CD-ROM/DVD drive or Internet connection; Internet Explorer; USB port; Windows XP* (SP1) or

Design

Specification	Value
Market positioning	Home & office
Built-in display	Yes
Display diagonal	11 cm (4.33")
Touchscreen	Yes
Control type	Touch
Colour display	Yes

Power

Specification	Value
Power consumption (average operating)	42 W
Power consumption (PowerSave)	5.9 W
Power consumption (standby)	8.1 W
Power consumption (off)	0.36 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	15 - 85%
Operating temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	59 - 95 °F
Storage relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 140 °C
Recommended operating temperature range (T-T)	15 - 35 °C

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	9.01 kg

Packaging data

Specification	Value
Package weight	9.49 kg

Logistics data

Specification	Value
Pallet gross weight	401 kg
Master (outer) cases per pallet	10 pc(s)
Layers per pallet	4 pc(s)
Products per pallet	40 pc(s)

Other features

Specification	Value
Standard input trays	1 plus automated 5 x 7-in photo tray
Networking features	Ethernet
Dimensions (WxDxH)	457 x 491 x 197 mm
All-in-one functions	Copy, Fax, Scan
Colour all-in-one functions	Copy, Fax, Print, Scan
Compatible operating systems	Windows Vista (32 & 64-bit); Windows XP (SP1 + [32-bit]); Windows7Mac OS X v 10.4; Mac OS X v 10.5; Mac OS X v 10.6; Linux
Functions	Print, copy, scan, fax, Web
Handset	No
Media types supported	Paper (plain, inkjet, photo); transparencies; envelopes; labels; cards (index, greeting)
Minimum system requirements for Macintosh	Mac OS X v 10.4, v 10.5 or v 10.6; Power PC G3, G4, G5 or Intel Core processor; 256 MB RAM; 500 MB available hard disk space; CD-ROM/DVD drive or Internet connection; USB port
Modem type	Faxes up to 33.6 kbps
Network ready	Yes
PictBridge	Yes
Power requirements	Input voltage 100 to 240 V (+/- 10%), 50 to 60 Hz (+/- 3 Hz), 1.3 A
Power supply type	External 50 watt AC adaptor
Print head	5 (1 each black, photo black, cyan, magenta, yellow)
Print quality, vertical alignment accuracy	+/- 0.1524 mm +/- 0.006 in
Product dimensions when open (LxWxD)	45.7 cm (18")
Safety	EU (IEC 60950-1:2001/EN 60950-1:2001, LVD 2006/95/EC)
Size (imperial)	45.7 cm (18")
Wireless technology	IEEE 802.11n
Media size (tray 1)	A4; A5; A6; B5; B6; B7; C5; C6; 76 x 127 to 216 x 356 mm
Package dimensions (WxDxH)	506.6 x 241 x 548.5 mm
Electromagnetic compatibility	EU (EMC Directive 2004/108/EC)
I/O ports	1 USB 2.0; 1 Ethernet; 1 PictBridge; 1 WiFi 802.11n; 1 Bluetooth; 1 RJ-11 fax
Acoustic power emissions	6.7 B(A) (printing at 17.6 ppm)
Acoustic power emissions (active, print, copy or scan)	60 dB
Auto fax reduction supported	Yes
Automatic paper sensor	Yes
Camera phone	Direct photo printing from camera phones included Bluetooth; iPhone optional printing via iPrint App Yes
Compatible ink types, supplies	Dye-based; pigment-based
Custom media sizes	Photo Tray: 102 x 152 mm to 127 x 178 mm; main tray: 76 x 127 mm to 216 x 356 mm Photo tray: 4 x 6 in to 5 x 7 in; main tray: 3 x 5 in to 8.5 x 14 in
Dimension note (imperial)	Dimensions vary as per configuration
Dimension note (metric)	Dimensions vary as per configuration
Duplex print options	Automatic (standard)
Duplex supported media size	A4
Export file formats	JPEG (EXIF); TIF
Image scaling/enlargement range	25 to 400%
Junk barrier supported	No
Maximum dimensions (W x D x H)	457 x 601 x 480 mm
Maximum input capacity (photo paper)	60 sheets
Maximum output capacity (photo paper)	25 sheets
Maximum output capacity for labels	25 sheets
Maximum output capacity for transparencies	25 sheets
Maximum print length (imperial)	14 in
Maximum scan area (imperial)	21.6 cm (8.5")
Media sizes supported (imperial)	Main tray: letter, legal, executive, 3 x 5 in, 4 x 6 in, 5 x 7 in, 8 x 10 in, No. 10 envelopes; photo tray: 3.5 x 5 in, 4 x 6 in, 5 x 7 in
Media weights by paper path	Main tray: 60 to 280 g/m²; photo tray: 200 to 280 g/m²
Package dimensions (W x D x H)	506.5 x 241 x 548.4 mm (19.9 x 9.49 x 21.6")
Package weight (imperial)	9.49 kg (20.9 lbs)
Page yield identifier	PSC309n
Pallet dimensions (W x D x H)	1219 x 1016 x 2321 mm
Pallet dimensions (W x D x H) (imperial)	1219.2 x 1016 x 2321.1 mm (48 x 40 x 91.4")
Pallet weight (imperial)	400.1 kg (882 lbs)
Photo proofsheets supported	Yes, thumbnails only
Print head nozzles	Dye (CMYK): 672; pigment (black): 720
Print quality (black, best quality)	600 x 600 DPI
Print quality (black, normal quality)	600 DPI
Print speed (colour, full-page colour, best quality, A4)	1 ppm
Print speed (colour, full-page colour, draft quality, A4)	12 ppm
Print speed (colour, full-page colour, normal quality, A4)	3.5 ppm
Printer smart software features	Manual/automatic duplex printing; Booklet printing; N-up printing; Paper saving shortcuts; Watermarks; Supports a variety of paper sizes and types; Quick forms
Recommended media weight (imperial)	16 to 24 lb
Skew	+/- 0.003 in
Standard input capacity for legal	35 sheets
Standard media sizes	Main tray: A4, A5, A6, B5, B6, B7, C5, C6, JIS B5, JIS B6, JIS B7; photo tray: 100 x 148 mm, A6, B6, B7, C6, JIS B7
Standard output capacity for labels	25 sheets
Standard output capacity for legal	10 sheets
Standard output capacity for transparencies	25 sheets
SureSupply connection type	Direct and Network
SureSupply supported	Yes
Technical features	Auto Photo Fix; HP Auto Red-eye Removal; HP Adaptive Lighting; Image Restoration; HP Photo Brightening
Upgrade type	None
Video action printing supported	No
Weight (imperial)	Weight varies as per configuration 19.4 lb
Wireless option type	Yes, embedded
