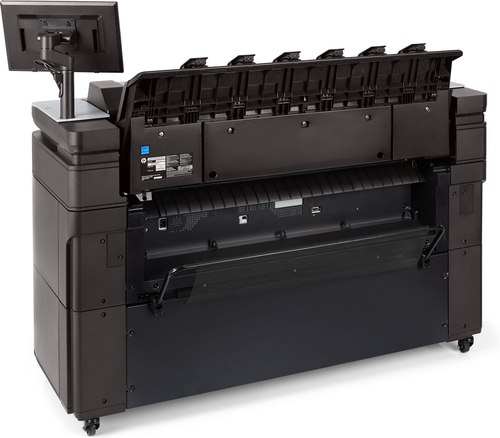

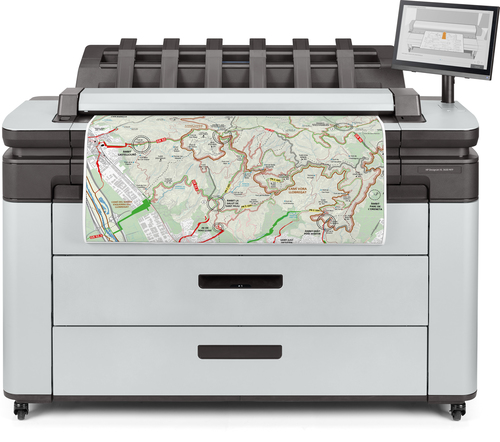

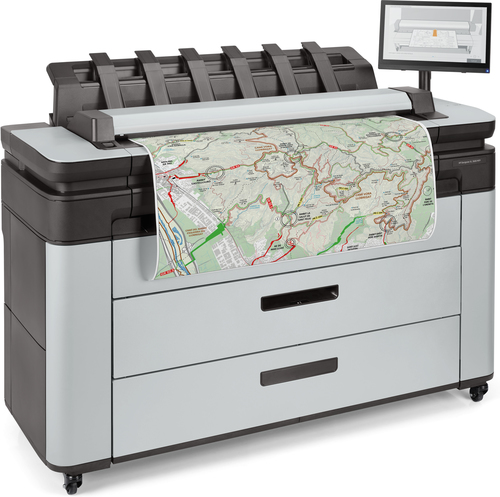

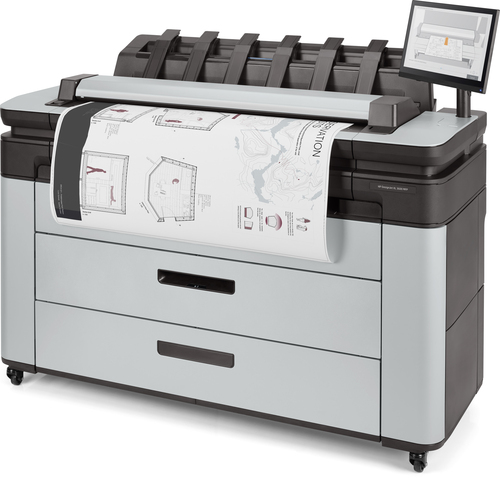

HP DesignJet XL 3600 36-in Multifunction Printer
HP

DesignJet XL 3600 36-in Multifunction Printer

Model DesignJet XL 3600 36-in Multifunction PrinterPart no. 6KD23A#B19EAN 193808566080

77 specifications
  • Storage500 GB
  • Weight154 kg
  • ColourBlack, Grey
  • Print technologyThermal inkjet
  • CopyingColour copying
  • ScanningColour scanning
See all specifications

Overview

Storage
500 GB
Weight
154 kg
Colour
Black, Grey
Print technology
Thermal inkjet
Copying
Colour copying
Scanning
Colour scanning
Brand
HP
Model
DesignJet XL 3600 36-in Multifunction Printer
Part numbers
6KD23A#B19, 6KD23H#B19
EAN / UPC
193808566080, 193905101351
Also known as
HP DesignJet XL 3600 36-in Multifunction Printer

Specifications

77 specifications in 20 groups

Printing

Print technologyThermal inkjet
PrintingColour printing
Maximum resolution2400 x 1200 DPI
Print resolution colour2400 x 1200 DPI

Copying

CopyingColour copying
Copier resize25 - 400%
Auto fit functionYes

Scanning

ScanningColour scanning
Optical scanning resolution600 x 600 DPI
Maximum scan resolution600 x 600 DPI
Scan technologyCIS
Scan toE-mail, Network folder, USB
Image formats supportedJPEG, TIFF
Document formats supportedPDF

Fax

FaxingNo

Features

Number of print cartridges6
Printing coloursCyan, Grey, Magenta, Matte black, Photo black, Yellow
Page description languagesHP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
All-In-One-multitaskingYes
Country of originChina
HP segmentBusiness

Paper handling

Maximum ISO A-series paper sizeA0
Maximum print size914 x 1219 mm
Paper tray media typesCoated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Banner, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)A0, A1, A2, A3, A4
Custom media length279 - 1219 mm
Custom media width210 - 914 mm

Ports & interfaces

Direct printingYes
USB portNo
USB 2.0 ports quantity0

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-Fi DirectYes
Mobile printing technologiesHP ePrint

Performance

Internal storage capacity500 GB
Storage mediaHDD
Sound pressure level (printing)42 dB
Sound power level (printing)5.9 dB

Design

Product colourBlack, Grey
Market positioningBusiness
Built-in displayYes

Power

Power consumption (printing)120 W
Power consumption (scanning)120 W
Power consumption (ready)40 W
Power consumption (sleep)14 W
Power consumption (off)0.3 W
AC input frequency50/60 Hz
AC input voltage100 - 240 V

Brand-specific features

HP ePrintYes
HP Web JetadminYes
HP Dynamic securityYes

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-25 - 55 °C

Certificates

CertificationCompliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)

Sustainability

Sustainability certificatesENERGY STAR
Sustainability complianceYes

Weight & dimensions

Width1500 mm
Depth660 mm
Height1310 mm
Weight154 kg

Packaging data

Package width1625 mm
Package depth770 mm
Package height1260 mm
Package weight203 kg

Packaging content

Cables includedAC
Bundled softwareHP Click App , HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartStream (optional), HP SmartTracker(optional), HP Click Driver for Windows 11

Technical details

Box contentsHP DesignJet XL 3600 Multifunction Printer, printhead, introductory ink cartridges, scanner calibration sheet, 2-in hub right adapter kit, quick reference guide, setup poster, power cord

Other features

Maximum roll length200 m
Media thickness0.8 mm
Number of print heads1
Print head1
SafetyUSA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); India (BIS)
Electromagnetic compatibilityCompliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Custom media sizes210 x 279 to 914 x 1219 mm
UNSPSC-code43212107
