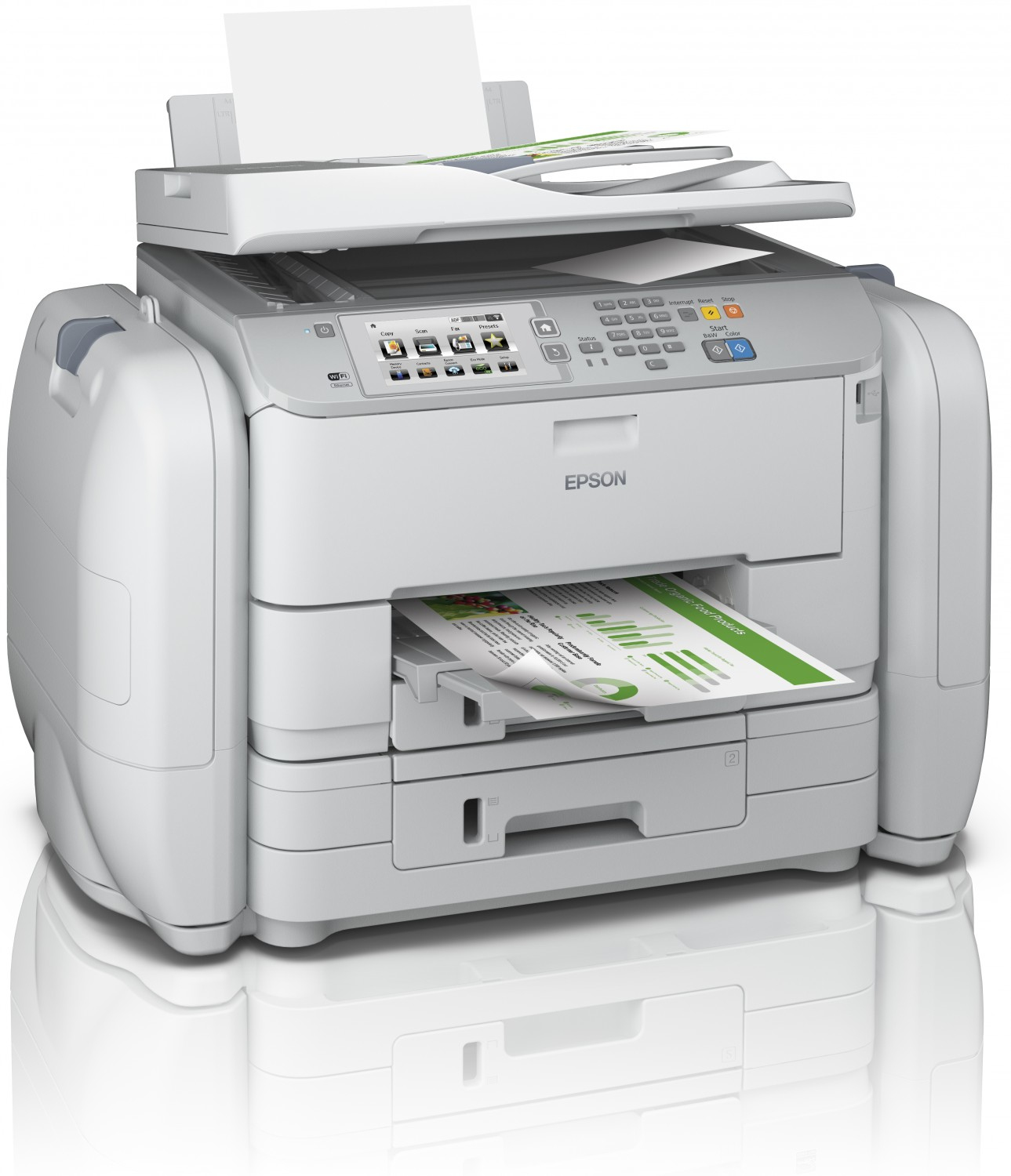

Epson WorkForce Pro WF-R5690DTWFL

Epson WorkForce Pro WF-R5690DTWFL

Model WF-R5690DTWFLPart no. C11CE27401L1EAN 8715946605609

124 specifications
  • Display10.9 cm (4.29")
  • Noise52 dB
  • Weight27.1 kg
  • Print technologyInkjet
  • CopyingColour copying
  • ScanningColour scanning
See all specifications

Overview

Display
10.9 cm (4.29")
Noise
52 dB
Weight
27.1 kg
Print technology
Inkjet
Copying
Colour copying
Scanning
Colour scanning
Brand
Epson
Model
WF-R5690DTWFL
Part number
C11CE27401L1
EAN / UPC
8715946605609
Also known as
Epson WorkForce Pro WF-R5690DTWFL

Specifications

124 specifications in 19 groups

Printing

Print technologyInkjet
PrintingColour printing
Duplex printingYes
Duplex printing modeAuto
Maximum resolution4800 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)30 ppm
Print speed (colour, normal quality, A4/US Letter)30 ppm
Print speed (ISO/IEC 24734) black20 ppm
Print speed (ISO/IEC 24734) colour20 ppm
Duplex print speed (colour, normal quality, A4/US Letter)11 ppm
Duplex print speed (ISO/IEC 24734, A4) black11 ppm
Duplex print speed (ISO/IEC 24734, A4) colour11 ppm
Time to first page (black, normal)7 s
Time to first page (colour, normal)7 s

Copying

CopyingColour copying
Maximum copy resolution600 x 1200 DPI
Maximum number of copies99 copies
Copier resize25 - 400%
Copy speedUp to19 ipm Black, Up to19 ipm Colour; *Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)

Scanning

ScanningColour scanning
Optical scanning resolution1200 x 2400 DPI
Maximum scan resolution1200 x 2400 DPI
Scanner typeFlatbed & ADF scanner
Scan technologyCIS
Scan toE-mail, Network folder, FTP, PC
Scan speed (black)6.3 inch/min
Scan speed (colour)4.5 inch/min
Image formats supportedJPEG, TIFF
Document formats supportedPDF
Scan speed (black, normal quality)300 dpi (with ADF); , 6.3 ipm with ADF scan 200 dpi (flatbed) 5 sec. with flatbed scan
Scan speed (colour, normal quality)300 dpi (with ADF); , 4.5 ipm with ADF scan 200 dpi (flatbed) 14 sec. with flatbed scan

Fax

FaxingColour faxing
Fax transmission speed3 sec/page
Modem speed33.6 Kbit/s
Fax memory550 pages
Fax memory6 MB
Auto-redialingYes
Speed diallingYes
Fax speed dialing (max numbers)200
Fax forwarding toE-mail, PC
Error Correction Mode (ECM)Yes

Features

Maximum duty cycle45000 pages per month
Printing coloursYellow, Magenta, Cyan, Black
Page description languagesESC/P-R, PCL 5c, PCL 5e, PCL 6, PDF 1.7, PostScript 3
Country of originIndonesia

Input & output capacity

Total input capacity580 sheets
Total output capacity150 sheets
Multi-Purpose trayYes
Multi-Purpose tray input capacity80 sheets
Paper input typePaper tray

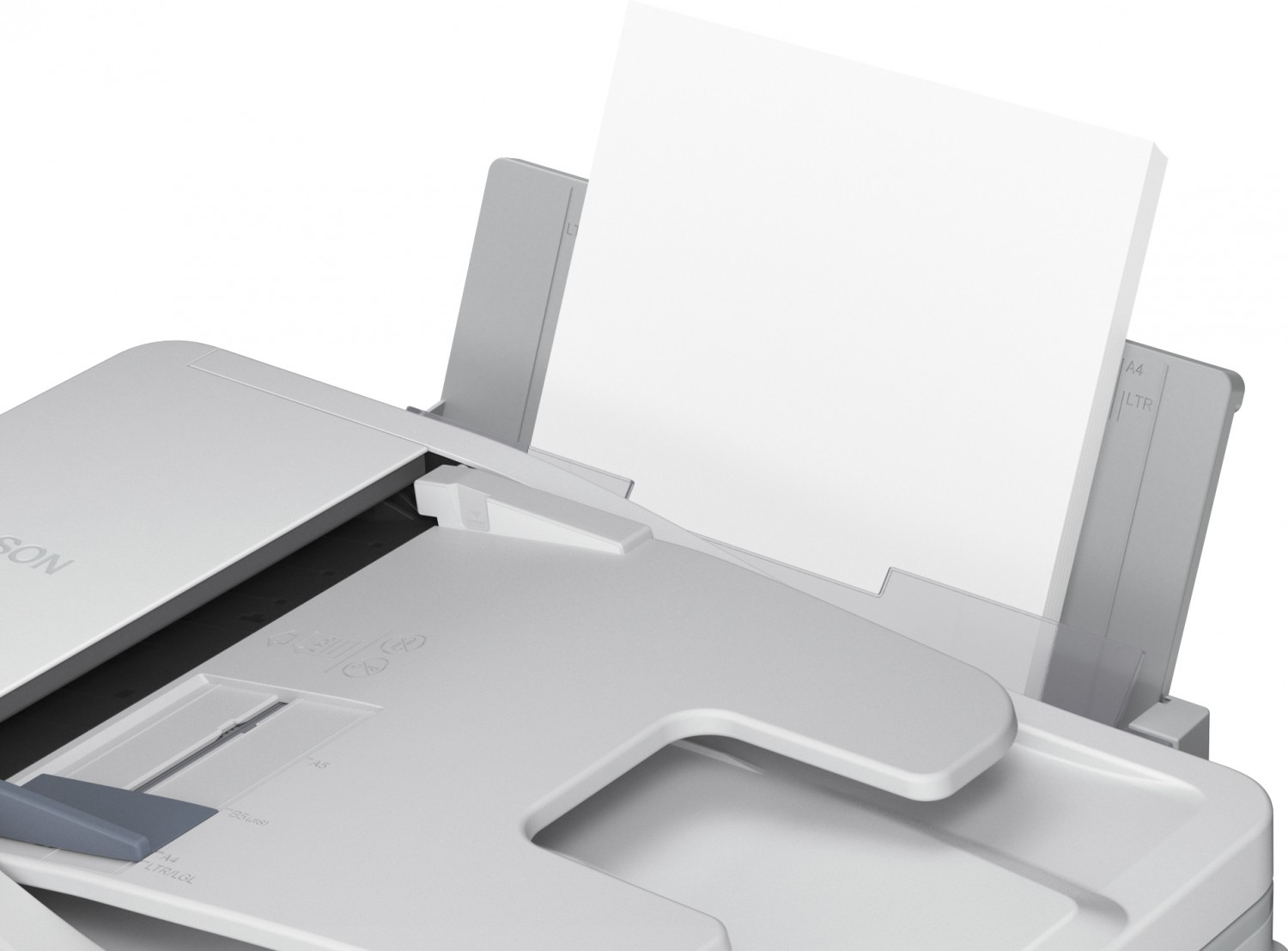

Auto document feeder (ADF)Yes
Auto document feeder (ADF) input capacity35 sheets
Maximum input capacity580 sheets

Paper handling

Maximum ISO A-series paper sizeA4
Paper tray media typesEnvelopes
Multi-purpose tray media typesPlain paper
ISO A-series sizes (A0...A9)A4, A5, A6
ISO B-series sizes (B0...B9)B5
ISO C-series sizes (C0...C9)C4, C6
Non-ISO print media sizesLetter, Legal
Envelopes sizes10, C6, C4
Photo paper sizes10x15,13x18,20x25
Photo paper sizes (imperial)10x15"
Paper tray media weight64 - 256 g/m²

Ports & interfaces

Standard interfacesEthernet, USB, Wireless LAN
Direct printingYes
USB portYes

Network

Wi-FiYes
Ethernet LANYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-Enterprise
Management protocolsSNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping, IEEE 802.1X
Mobile printing technologiesApple AirPrint, Google Cloud Print
Network printing methodsLPR, FTP, IPP, LDP, Port 9100, WSD, Net BIOS over TCP/IP, TCP/IPv4, TCP/IPv6, IPSec
Security featuresLimit access function with Epson Web Config, Secure confidential printing with PIN code release, LDAP Address Book, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode

Performance

Sound pressure level (printing)52 dB

Design

Market positioningHome & office

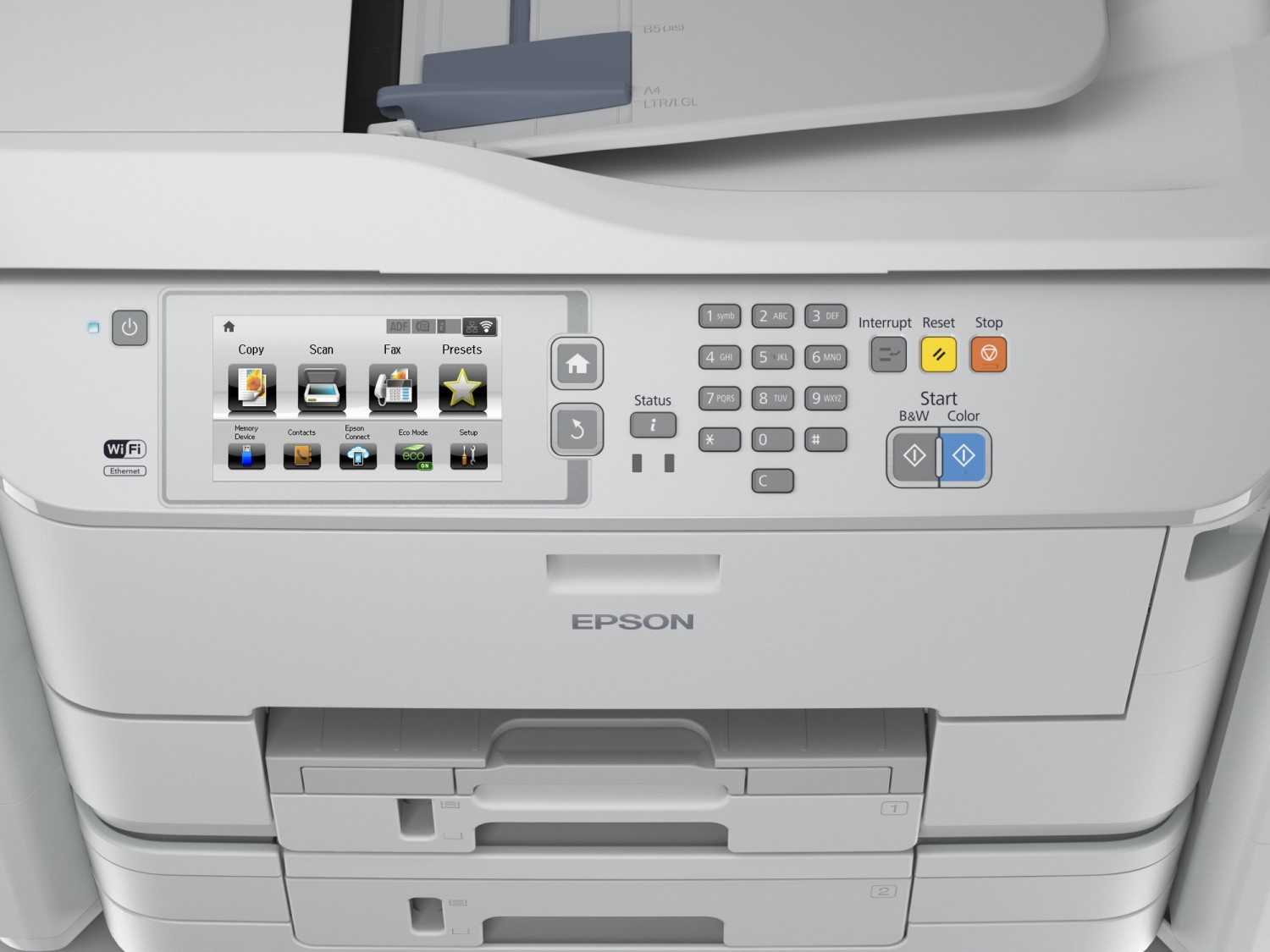

Built-in displayYes
DisplayLCD
Display diagonal10.9 cm (4.29")
TouchscreenYes
Control typeTouch
Colour displayYes

Power

Power consumption (copying)22 W
Power consumption (ready)8.9 W
Power consumption (sleep)2.6 W
Power consumption (off)0.3 W
AC input voltage220 V

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 x64

Weight & dimensions

Width664 mm
Depth435 mm
Height472 mm
Weight27.1 kg

Packaging data

Package width595 mm
Package depth870 mm
Package height735 mm
Package weight35.1 kg
Quantity per pack1 pc(s)

Packaging content

Cartridge(s) includedYes

Logistics data

Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height160 cm
Products per pallet layer1 pc(s)
Products per pallet2 pc(s)
Pallet width (UK)100 cm
Pallet length (UK)120 cm
Pallet height (UK)160 cm
Products per pallet layer (UK)2 pc(s)
Products per pallet (UK)4 pc(s)

Technical details

Box contentsDriver and utilities, Individual Ink Supply Units, Main unit, Power cable, Quick Setup Guide, Warranty Documents

Other features

Printing methodEpson PrecisionCore
All-in-one functionsScan, Copy, Fax, Print
Compatible operating systemsMac OS 10.5.8 or later, Mac OS 10.6+, Mac OS 10.7.x, Mac OS 10.8.x, Microsoft Windows XP (Home Edition / Prof / Prof X64 / Vista), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit)
DuplexYes
EmulationsESC/P-R, PCL5e, PCL5c, PCL6, Adobe® Postscript 3®, PDF 1.7
InterfaceWi-Fi Direct, Wireless LAN IEEE 802.11b/g/n, USB host, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Hi-Speed USB - compatible with USB 2.0 specification, Ethernet interface (100 Base-TX / 10 Base-T), Ethernet 1000
Noise level52 dB

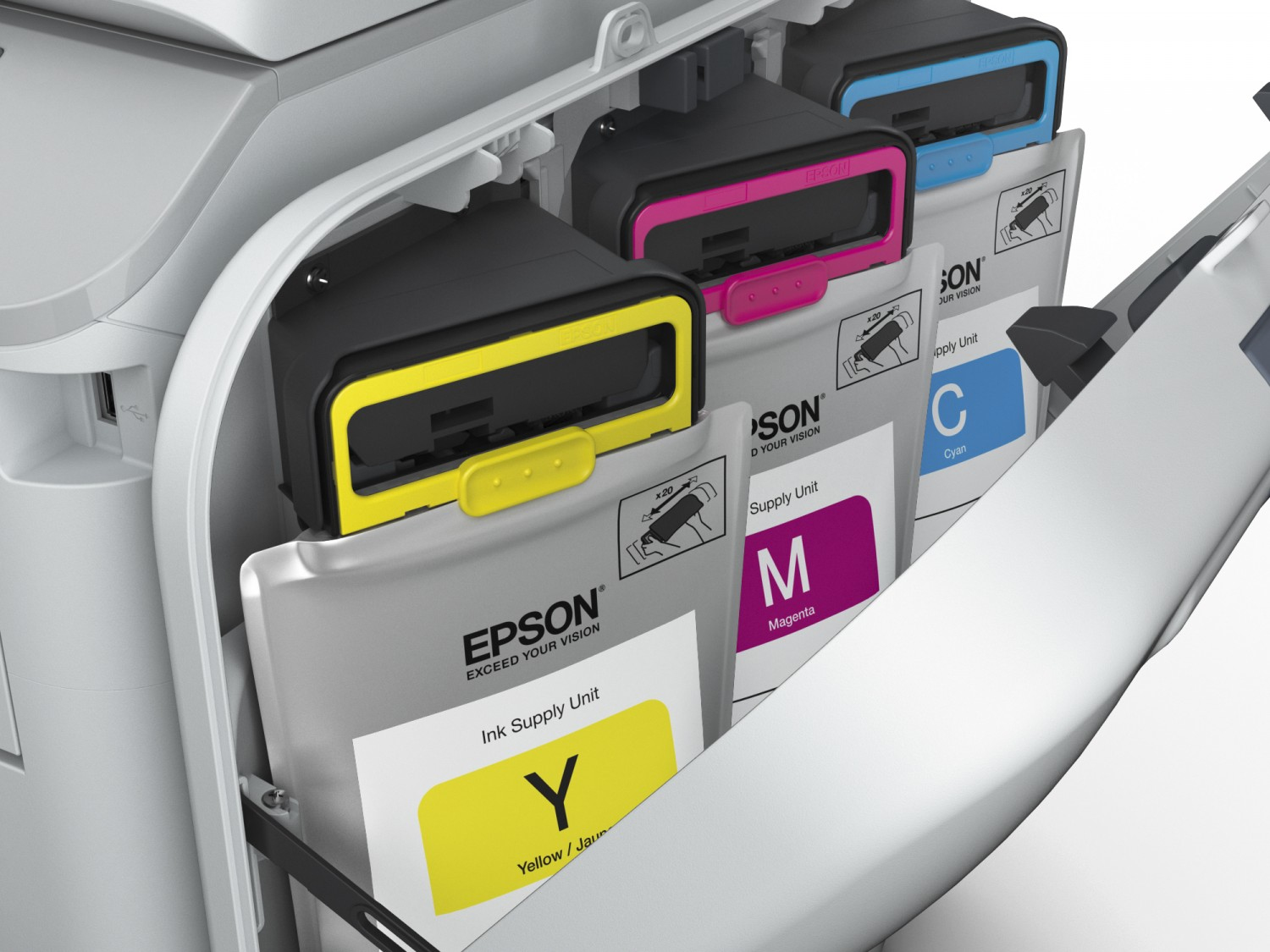

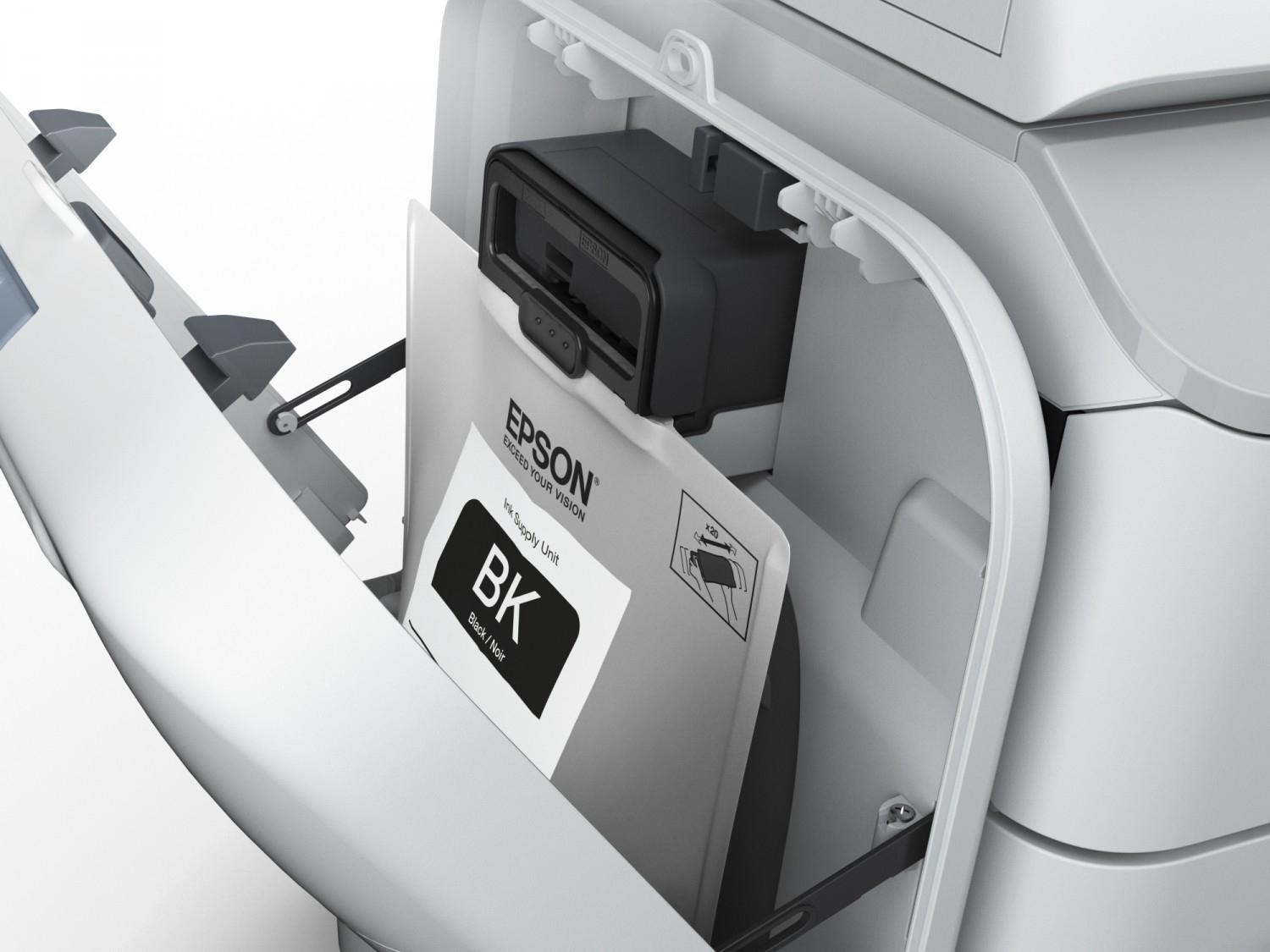

Colour printing technologyReplaceable Ink Pack System (RIPS)
Ink drop2.8 pl, With Variable-Sized Droplet Technology
Print head nozzles800 Nozzles Black, 800 Nozzles per Color
Print speed30 pages/min Colour (plain paper 75 g/m²), 34 pages/min Monochrome (plain paper 75 g/m²)
Printer featuresDirect scan-to-print without PC, Direct print from USB
