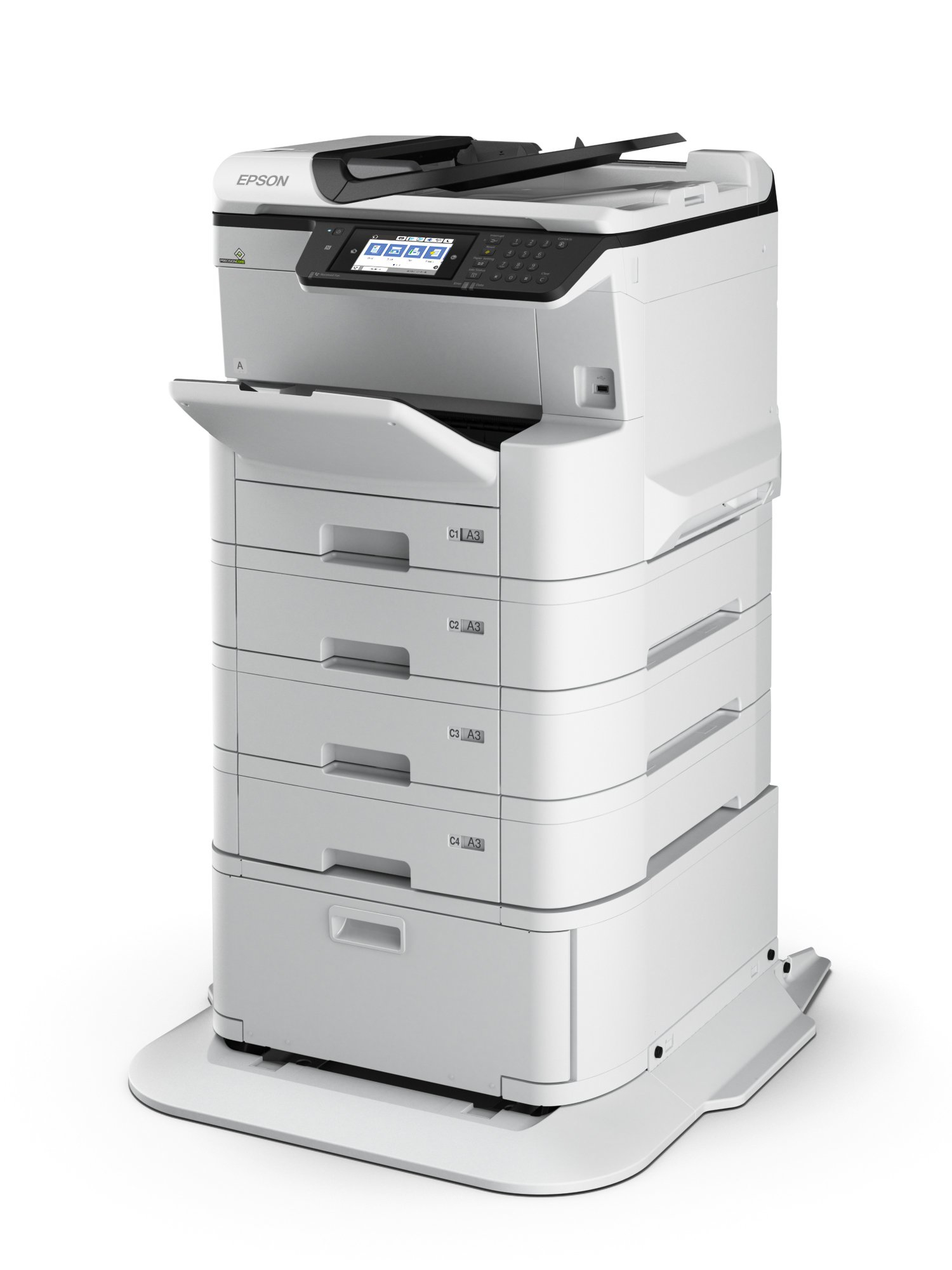

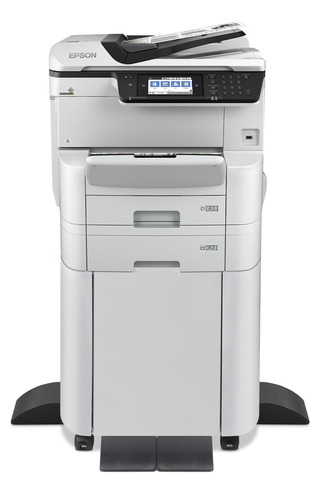

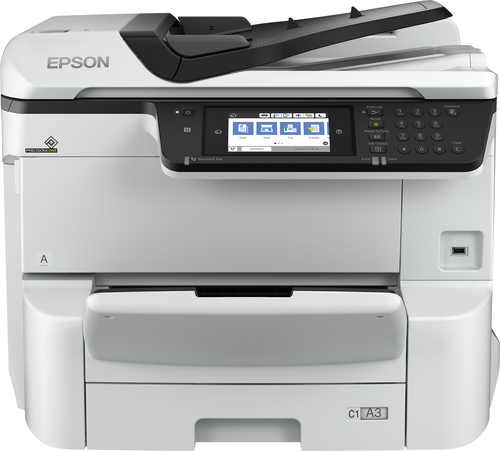

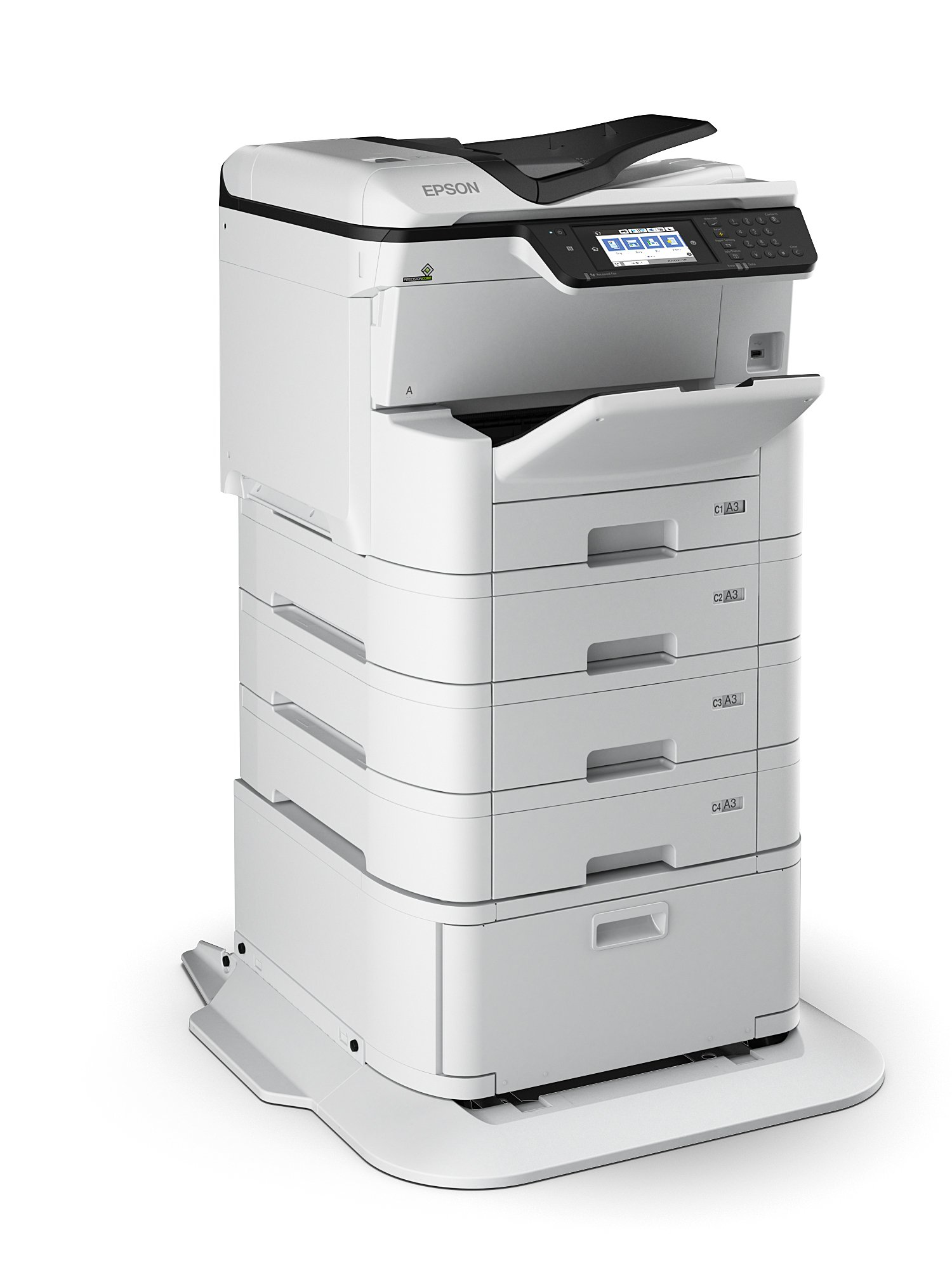

Epson WorkForce Pro WF-C8690D3TWFC Inkjet A3

Epson WorkForce Pro WF-C8690D3TWFC Inkjet A3

4800 x 1200 DPI Wi-Fi

Model WF-C8690D3TWFCPart no. C11CG68401PXEAN 8715946673103

159 specifications
  • Display12.7 cm (5")
  • Noise51 dB
  • Weight104.8 kg
  • ColourWhite
  • Print technologyInkjet
  • CopyingColour copying
See all specifications

Overview

Display
12.7 cm (5")
Noise
51 dB
Weight
104.8 kg
Colour
White
Print technology
Inkjet
Copying
Colour copying
Brand
Epson
Model
WF-C8690D3TWFC
Part numbers
C11CG68401PX, C11CG68401BP, C11CG68401BZ, C11CG68401PY
EAN / UPC
8715946673103, 8715946654287, 8715946654294, 8715946672595
Also known as
Epson WorkForce Pro WF-C8690D3TWFC Inkjet A3 4800 x 1200 DPI Wi-Fi

Specifications

159 specifications in 19 groups

Printing

Print technologyInkjet
PrintingColour printing
Duplex printingYes
Duplex printing modeAuto
Maximum resolution4800 x 1200 DPI
Print speed (black, normal quality, A3)13 ppm
Print speed (colour, normal quality, A3)13 ppm
Print speed (ISO/IEC 24734) mono24 ipm
Print speed (ISO/IEC 24734) colour24 ipm
Print speed (ISO/IEC 24734) black24 ppm
Print speed (ISO/IEC 24734) colour24 ppm
Duplex print speed (black, normal quality, A4/US Letter)16 ppm
Duplex print speed (colour, normal quality, A4/US Letter)16 ppm
Duplex print speed (ISO/IEC 24734) mono45 ipm
Duplex print speed (ISO/IEC 24734) colour45 ipm
Duplex print speed (ISO/IEC 24734, A4) black16 ppm
Duplex print speed (ISO/IEC 24734, A4) colour16 ppm
Duplex print speed (ISO/IEC 24734, A3) black11 ppm
Duplex print speed (ISO/IEC 24734, A3) colour11 ppm
Time to first page (black, normal)5.5 s
Time to first page (colour, normal)5.5 s

Copying

CopyingColour copying
Duplex copyingYes
Maximum copy resolution600 x 1200 DPI
Maximum copy sizeA3
Copy speed (black, normal quality, A4)22 cpm
Copy speed (colour, normal quality, A4)21 cpm
Maximum number of copies999 copies
Copier resize25 - 400%

Scanning

ScanningColour scanning
Duplex scanningYes
Optical scanning resolution1200 x 2400 DPI
Optical scanning resolution (ADF)600 x 600 DPI
Scan technologyCIS
Scan toCloud
Scan speed (black)25 ppm
Scan speed (colour)25 ppm
Duplex scan speed (colour)45 ppm
Duplex scan speed (black)45 ppm
Scan speed (black)25 inch/min
Scan speed (colour)25 inch/min
Image formats supportedJPEG, TIFF
Document formats supportedPDF

Fax

FaxingColour faxing
Duplex faxingYes
Fax transmission speed3 sec/page
Modem speed33.6 Kbit/s
Fax memory550 pages
Fax memory6 MB
Auto-redialingYes
Speed diallingYes
Fax speed dialing (max numbers)2000
Fax forwardingYes
Fax forwarding toPC
Error Correction Mode (ECM)Yes
Fax delayed sendingYes

Features

Maximum duty cycle75000 pages per month
Recommended duty cycle500 - 5000 pages per month

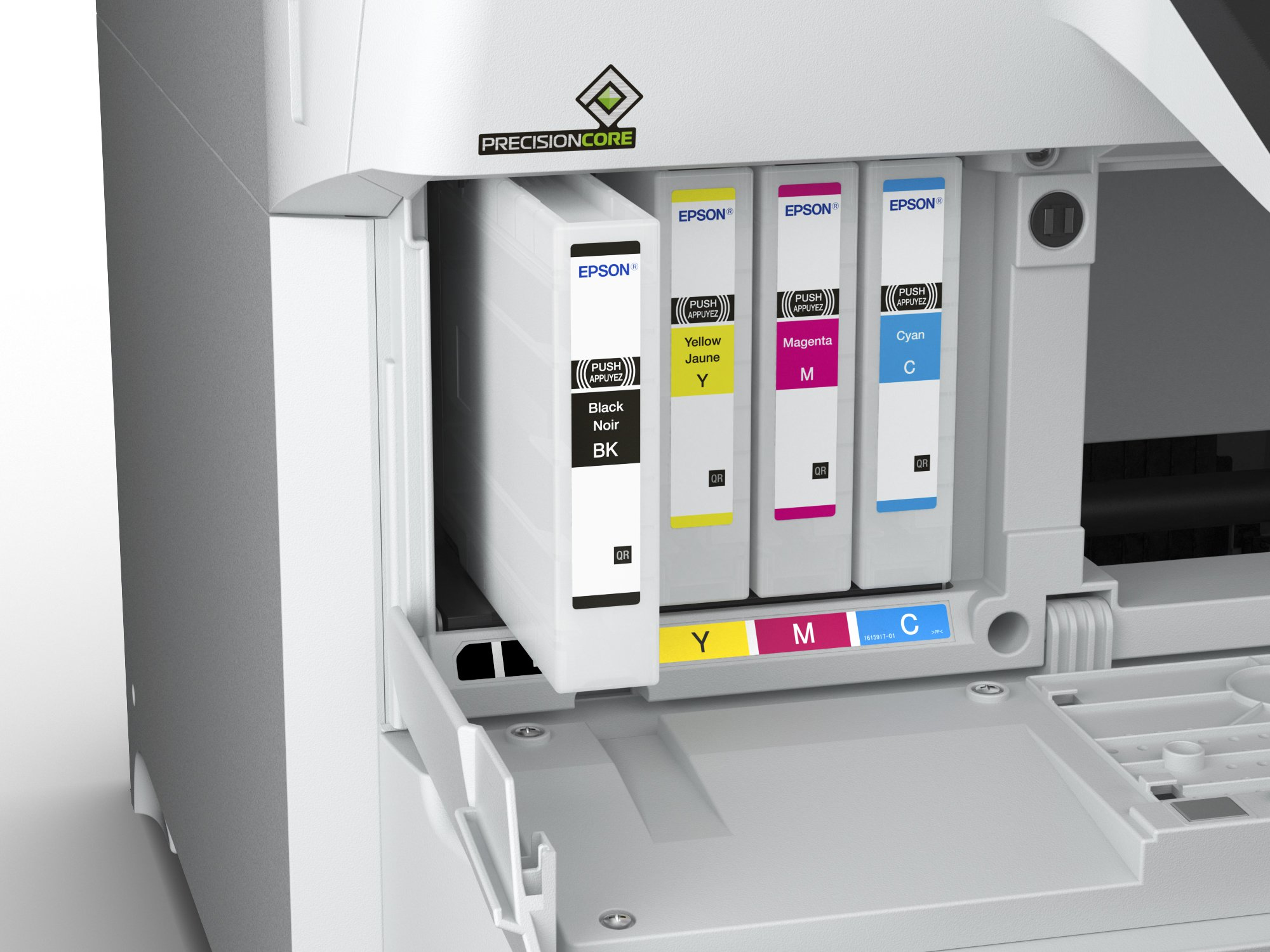

Printing coloursBlack, Cyan, Yellow, Magenta
Page description languagesPCL 5c, PCL 6, ESC/P-R, PostScript 3, PDF 1.7
Country of originIndonesia

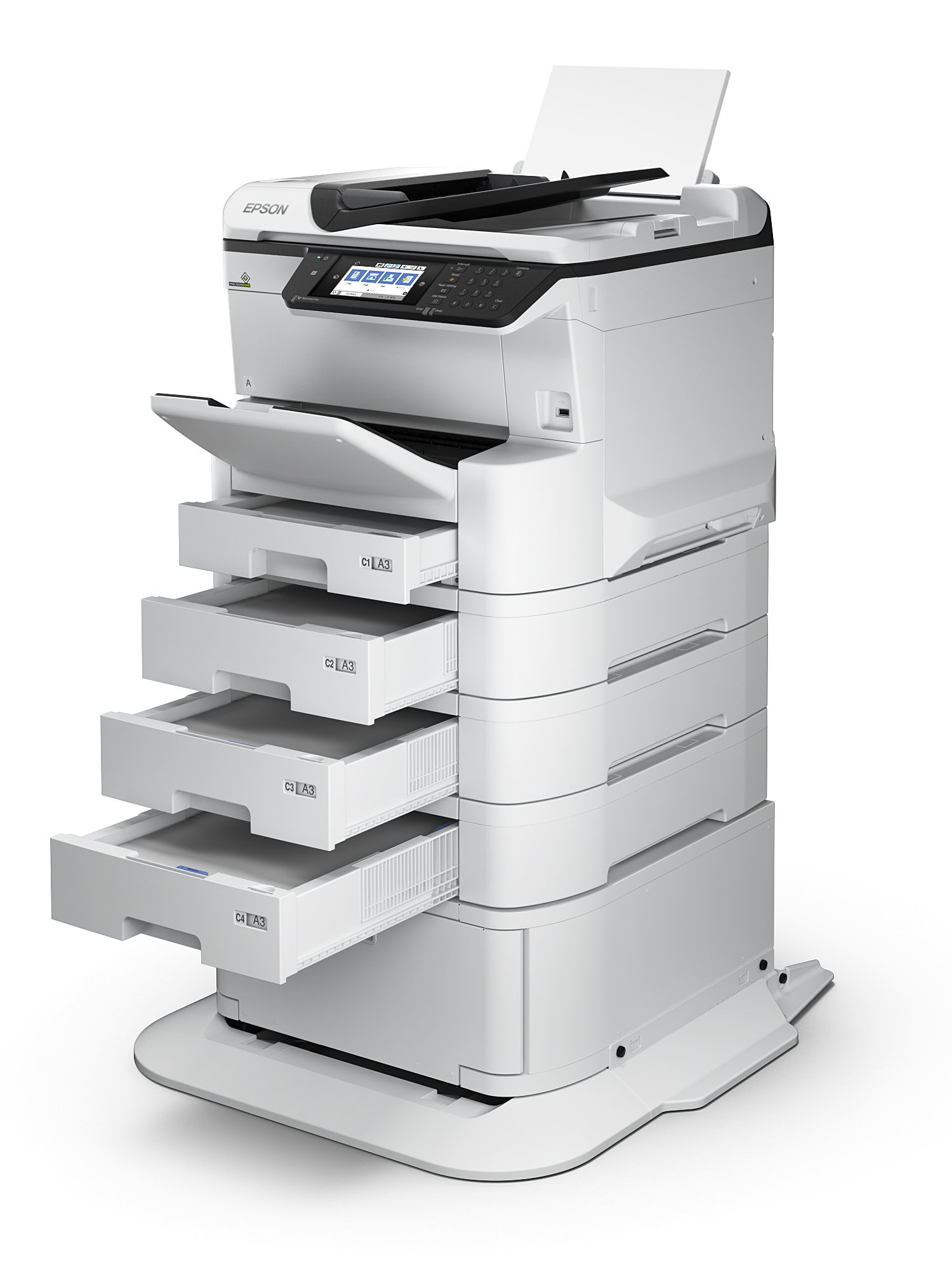

Input & output capacity

Total number of input trays3
Total input capacity1750 sheets
Total output capacity250 sheets
Multi-Purpose trayYes
Multi-Purpose tray input capacity85 sheets
Paper input typePaper tray

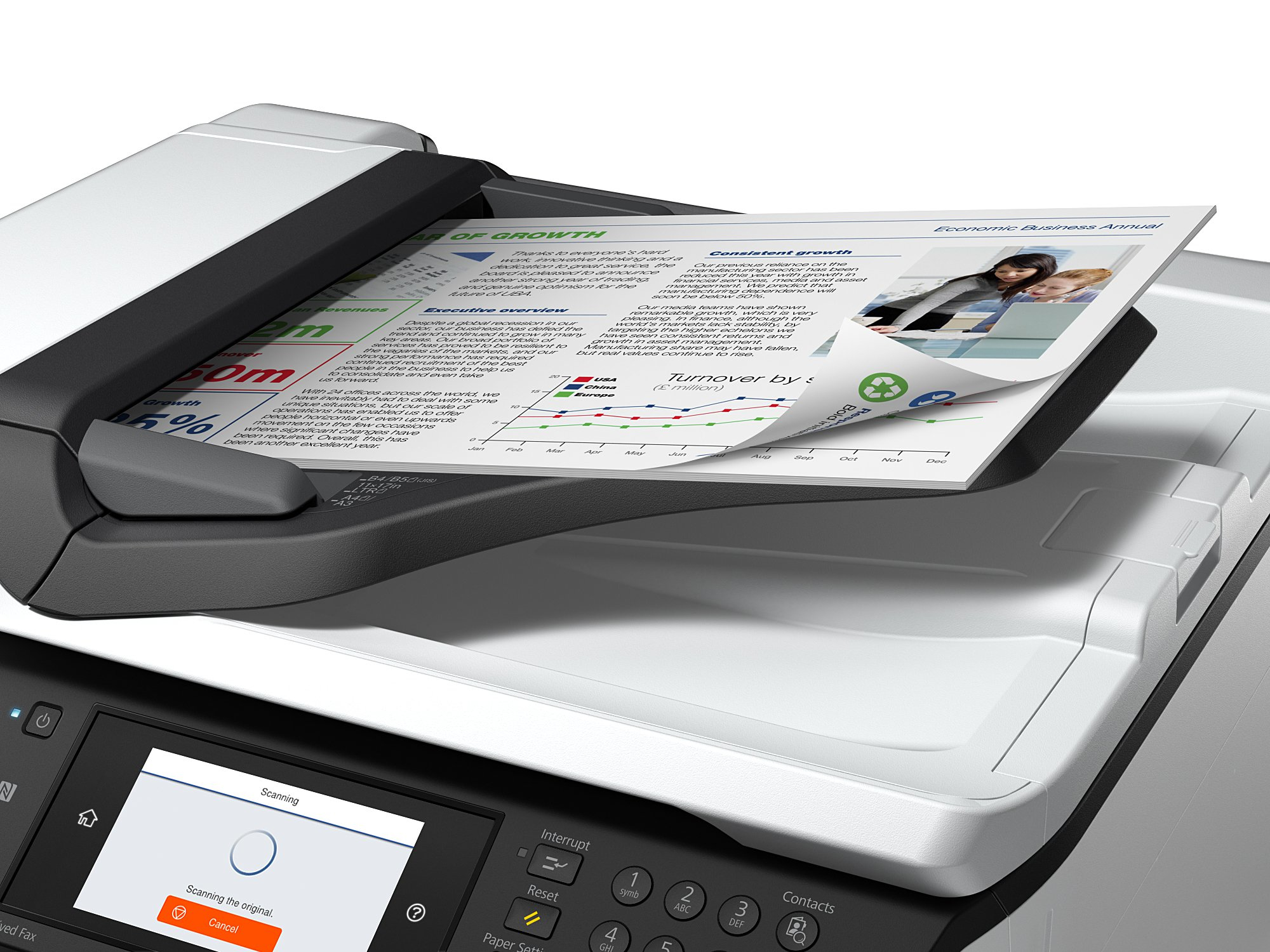

Auto document feeder (ADF)Yes
Auto document feeder (ADF) input capacity50 sheets
Maximum input capacity1835 sheets

Paper handling

Maximum ISO A-series paper sizeA3
Paper tray media typesPlain paper, Recycled paper, Art paper, Letterhead
ISO A-series sizes (A0...A9)A3, A3+, A4, A5, A6
ISO B-series sizes (B0...B9)B4, B5, B6
ISO C-series sizes (C0...C9)C4, C6
Non-ISO print media sizesExecutive, Legal, Letter, Tabloid (media size)
Envelopes sizes10, C4, C5, C6
Photo paper sizes10x15,13x18,20x25
Borderless printing media sizes10x15, 13x18, 20x25
Custom media length330 - 1200 mm
Custom media width55 - 127 mm
Paper tray media weight64 - 300 g/m²
Multi-Purpose Tray media weight64 - 300 g/m²
Duplex media weight64 - 150 g/m²

Ports & interfaces

Standard interfacesEthernet, NFC, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN
Direct printingYes
USB portYes
USB connectorUSB Type-A / USB Type-B
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity1

Network

Wi-FiYes
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Near Field Communication (NFC)Yes
Security algorithms64-bit WEP, 128-bit WEP, WPA2-Enterprise, WPA2-PSK, WPA2-AES
Supported network protocols (IPv4)TCP/IP
Supported network protocols (IPv6)TCP/IP
Management protocolsSNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping

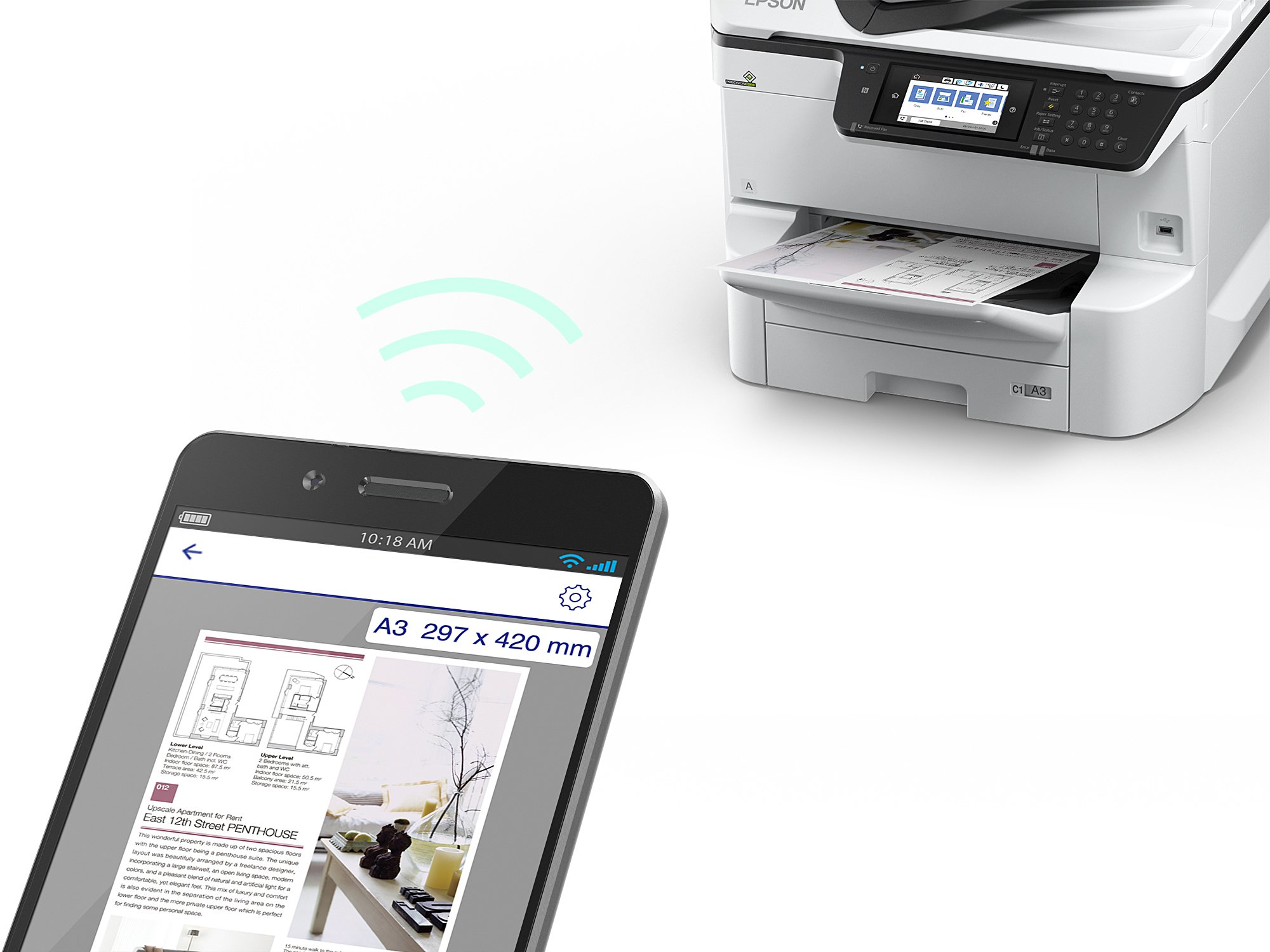

Mobile printing technologiesEpson Connect, Epson iPrint, Epson Email Print, Epson Remote Print, Apple AirPrint, Google Cloud Print
Network printing methodsIPP, LPD, Port 9100, WSD

Performance

Card reader integratedNo
Sound pressure level (printing)51 dB
Sound power level (printing)6.8 dB

Design

Product colourWhite
Market positioningBusiness

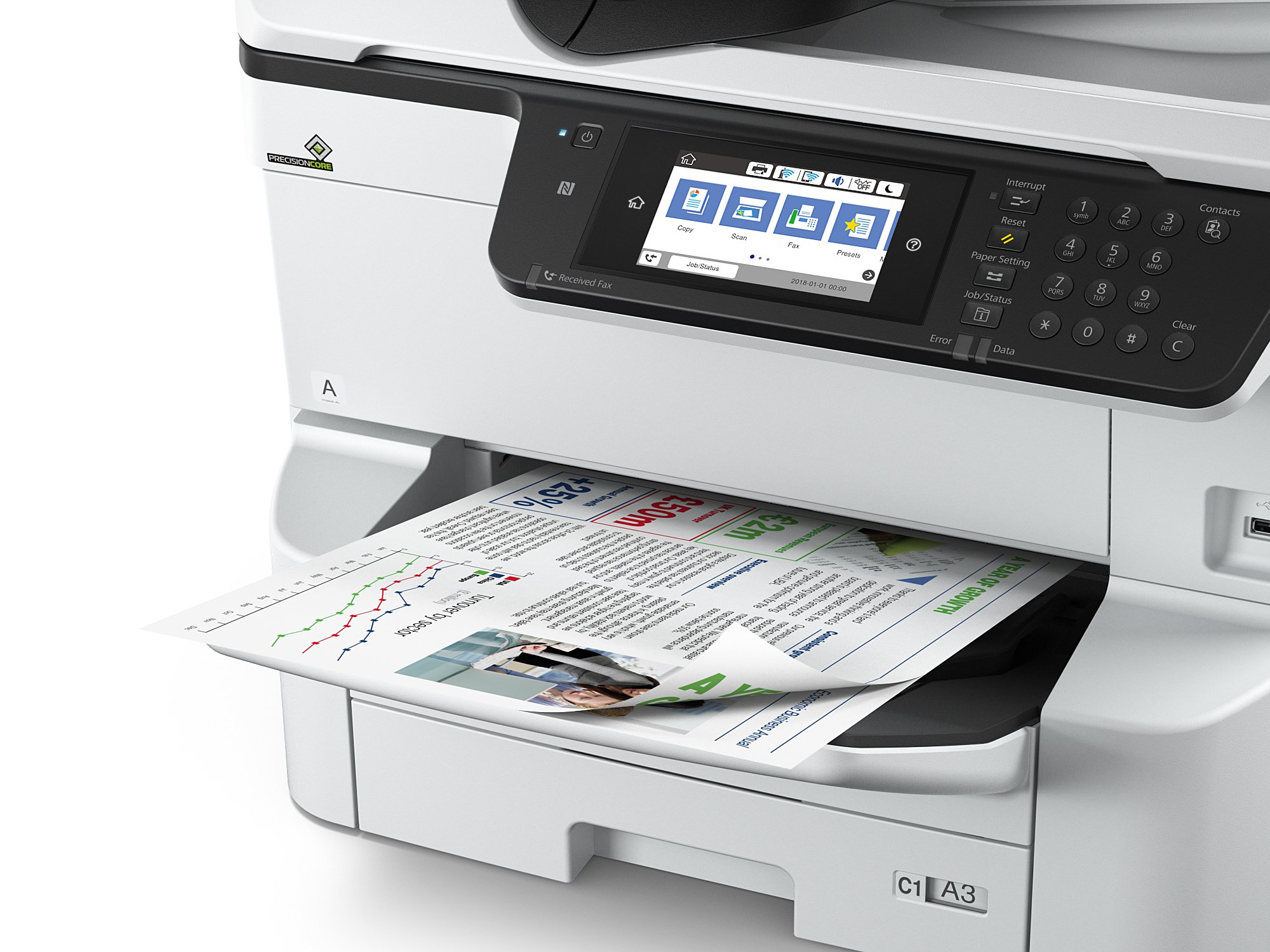

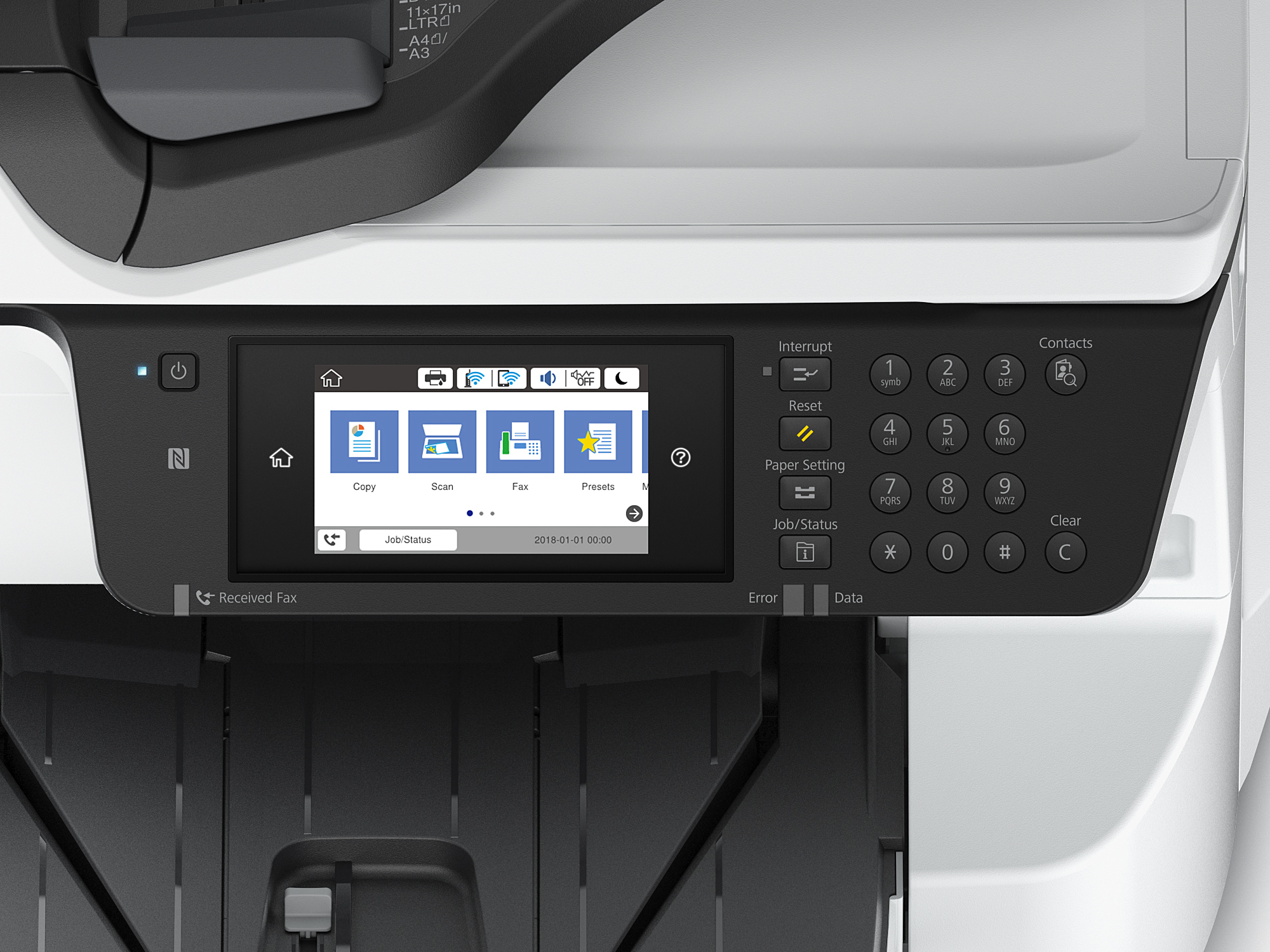

Built-in displayYes
DisplayLCD
Display diagonal12.7 cm (5")
TouchscreenYes
Control typeTouch
Colour displayYes

Power

Power consumption (copying)39 W
Power consumption (ready)18 W
Power consumption (sleep)1.3 W
Power consumption (off)0.2 W
Energy Star Typical Electricity Consumption (TEC)0.2 kWh/week
AC input voltage220 - 240 V

System requirements

Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.6 Snow Leopard
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016
Mobile operating systems supportedAndroid 4.0

Sustainability

Sustainability certificatesENERGY STAR

Weight & dimensions

Width772 mm
Depth873 mm
Height1162 mm
Weight104.8 kg

Packaging data

Package width700 mm
Package depth800 mm
Package height2200 mm
Package weight138.5 kg
Quantity per pack1 pc(s)

Packaging content

Cables includedAC
ManualYes
Power cord includedYes
Quick installation guideYes
Warranty cardYes

Logistics data

Harmonized System (HS) code84433100
Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height100 cm
Pallet gross weight0 g
Products per pallet layer1 pc(s)
Products per pallet1 pc(s)
Pallet width (UK)100 cm
Pallet length (UK)120 cm
Pallet height (UK)100 cm
Pallet weight (UK)0 g
Products per pallet layer (UK)1 pc(s)
Products per pallet (UK)1 pc(s)

Other features

Printing methodEpson PrecisionCore
Compatible operating systemsAndroid 4.0+, Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8 (32/64 Bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003, Windows Server 2003 (32/64 Bit), Windows Server 2003 R2 x64, Windows Server 2008 (32/64 Bit), Windows Server 2008 R2, Win
Documentation CDYes
Noise level51 dB
Supported network protocolsTCP/IPv4, TCP/IPv6
Ink drop4.6
Print head nozzles800 nozzles black, 800 nozzles per colour
