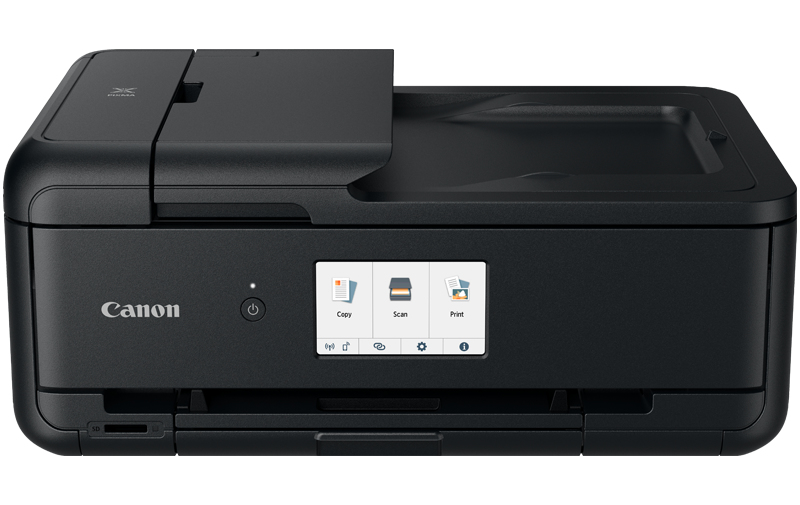

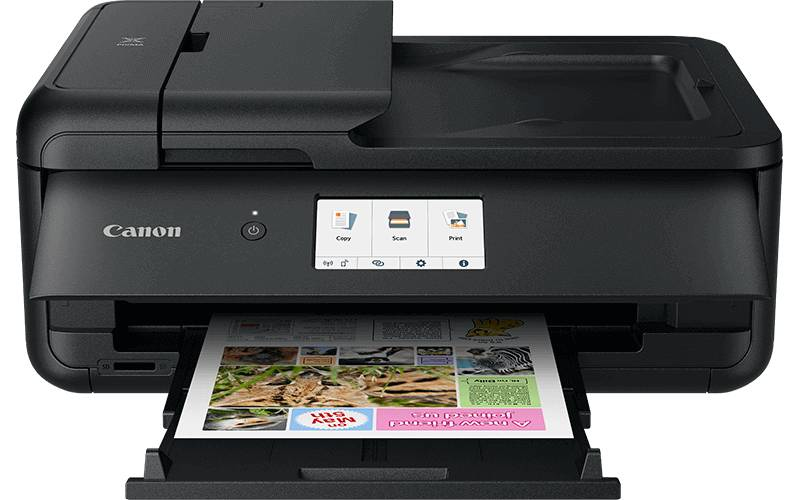

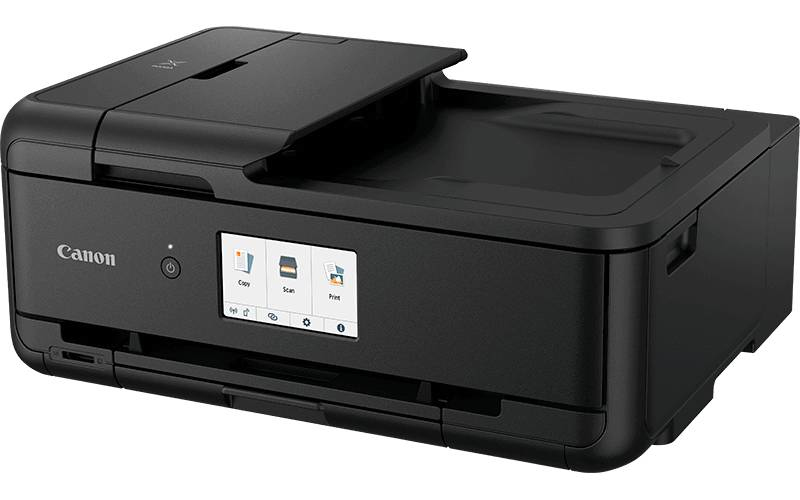

PIXMA TS9540 Inkjet A3
4800 x 1200 DPI Wi-Fi
Model TS9540Part no. 2988C007
89 specifications
- Display10.9 cm (4.3")
- Weight9.7 kg
- ColourBlack
- Print technologyInkjet
- CopyingColour copying
- ScanningColour scanning
Overview
- Display
- 10.9 cm (4.3")
- Weight
- 9.7 kg
- Colour
- Black
- Print technology
- Inkjet
- Copying
- Colour copying
- Scanning
- Colour scanning
- Brand
- Canon
- Category
- Multifunction Printer
- Model
- TS9540
- Part number
- 2988C007
- Also known as
- Canon PIXMA TS9540 Inkjet A3 4800 x 1200 DPI Wi-Fi
Specifications
89 specifications in 17 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Printing | Colour printing |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 4800 x 1200 DPI |
| Print speed (ISO/IEC 24734) mono | 15 ipm |
| Print speed (ISO/IEC 24734) colour | 10 ipm |
| Borderless printing | Yes |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
| Time to first copy (colour, normal) | 19 s |
| Maximum number of copies | 99 copies |
| Copier resize | 25 - 400% |
| N-in-1 copy function | Yes |
| N-in-1 copy function (N=) | 2, 4 |
| ID-card copy function | Yes |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 4800 x 1200 DPI |
| Maximum scan resolution | 1200 x 2400 DPI |
| Maximum scan area | 216 x 297 mm |
| Scanner type | Flatbed & ADF scanner |
| Scan technology | CIS |
| Scan to | PC |
| Input colour depth | 16 bit |
| Output colour depth | 8 bit |
Fax
| Specification | Value |
|---|---|
| Faxing | No |
Features
| Specification | Value |
|---|---|
| Ink tank system | Yes |
| Number of print cartridges | 5 |
| Printing colours | Black, Cyan, Magenta, Pigment black, Yellow |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 100 sheets |
| Paper input type | Cassette, Paper tray |
| Auto document feeder (ADF) | Yes |
| Auto document feeder (ADF) input capacity | 20 sheets |
| Maximum number of input trays | 2 |
| Maximum input capacity | 200 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Paper tray media types | Envelopes, Glossy paper, High resolution paper, Matte paper, Photo paper, Plain paper, Semi-glossy paper |
| ISO A-series sizes (A0...A9) | A3, A4, A5 |
| ISO B-series sizes (B0...B9) | B4, B5 |
| Non-ISO print media sizes | Legal, Letter |
| Envelopes sizes | 10, DL |
| Borderless printing media sizes | 8.9x8.9, 10x15, 13x18, 13x13, 17.5x25, 20x25, 25x30, 30x30, A3, A4, Letter |
| Custom media length | 89 - 676 mm |
| Custom media width | 55 - 215.9 mm |
| Paper tray media weight | 64 - 105 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
| USB connector | USB Type-B |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, PIXMA Cloud Link |
Performance
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Sound pressure level (printing) | 49.5 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Market positioning | Home & office |
| Built-in display | Yes |
| Display | TFT |
| Display diagonal | 10.9 cm (4.3") |
| Touchscreen | Yes |
| Control type | Touch |
| Colour display | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (copying) | 14 W |
| Power consumption (standby) | 2 W |
| Power consumption (off) | 0.3 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra |
| Mobile operating systems supported | Android, Windows 10 Mobile, iOS |
| Minimum RAM | 3100 MB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 15 - 30 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 468 mm |
| Depth | 366 mm |
| Height | 193 mm |
| Weight | 9.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Manual | Yes |
| Power cord included | Yes |
| Bundled software | MP Driver including Scanning Utility |
Other features
| Specification | Value |
|---|---|
| Downloadable software | Easy-WebPrint EX |
| PictBridge | Yes |
| Software CD | Yes |
