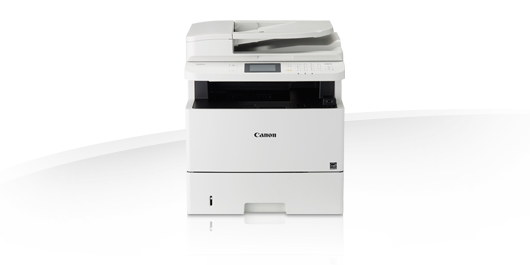

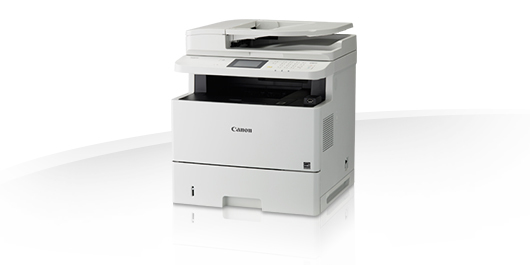

Canon i-SENSYS MF515x Laser A4

1200 x 1200 DPI 40 ppm Wi-Fi

Model MF515xPart no. 0292C019EAN 8714574635712

114 specifications

Display8.89 cm (3.5")
Memory1024 MB
Noise54 dB
Weight24.3 kg
ColourGrey
Print technologyLaser

See all specifications

Overview

Display: 8.89 cm (3.5")
Memory: 1024 MB
Noise: 54 dB
Weight: 24.3 kg
Colour: Grey
Print technology: Laser

Brand: Canon
Category: Multifunction Printer
Model: MF515x
Part numbers: 0292C019, 0292C001, 0292C016, 0292C018, 0292C015, 0292C017 +3 more
EAN / UPC: 8714574635712, 4549292032314, 8714574635682, 8714574635705 +6 more
Also known as: Canon i-SENSYS MF515x Laser A4 1200 x 1200 DPI 40 ppm Wi-Fi

Specifications

114 specifications in 17 groups

Printing

Specification	Value
Print technology	Laser
Printing	Mono printing
Duplex printing	Yes
Duplex printing mode	Auto
Maximum resolution	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (ISO/IEC 24734) mono	20 ipm
Time to first page (black, normal)	7.6 s
Print margins (top, bottom, right, left)	5 mm
Secure printing	Yes

Copying

Specification	Value
Copying	Mono copying
Duplex copying	Yes
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	40 cpm
Time to first copy (black, normal)	9.7 s
Maximum number of copies	999 copies
Copier resize	25 - 400%
N-in-1 copy function (N=)	2, 4

Scanning

Specification	Value
Scanning	Colour scanning
Duplex scanning	Yes
Optical scanning resolution	600 x 600 DPI
Maximum scan resolution	9600 x 9600 DPI
Scanner type	Flatbed & ADF scanner
Scan speed (black)	33 ppm
Scan speed (colour)	11 ppm
Duplex scan speed (colour)	7 ppm
Duplex scan speed (black)	13 ppm
Image formats supported	JPG, PNG, TIF
Document formats supported	PDF
Input colour depth	24 bit
Output colour depth	24 bit
Greyscale levels	256
Scan drivers	TWAIN, WIA

Fax

Specification	Value
Faxing	Mono faxing
Duplex faxing	Yes
Fax transmission speed	3 sec/page
Modem speed	33.6 Kbit/s
Fax memory	512 pages
Auto-redialing	Yes
Fax speed dialing (max numbers)	281
Fax forwarding	Yes
Error Correction Mode (ECM)	Yes
Fax broadcasting	310 locations
Fax dual access	Yes

Features

Specification	Value
Maximum duty cycle	100000 pages per month
Recommended duty cycle	1000 - 5000 pages per month
Page description languages	PCL 5e, PCL 6, UFRII-LT
Printer fonts	PCL, PostScript
Number of printer fonts	229
Number of PCL fonts	93
Number of PostScript fonts	136

Input & output capacity

Specification	Value
Total number of input trays	1
Total input capacity	500 sheets
Total output capacity	250 sheets
Multi-Purpose tray	Yes
Multi-Purpose tray input capacity	100 sheets
Paper input type	Cassette
Auto document feeder (ADF)	Yes
Auto document feeder (ADF) input capacity	50 sheets
Maximum number of input trays	2

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Paper tray media types	Envelopes, Heavy paper, Labels, Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5, B6
Envelopes sizes	C5, DL, Monarch
Custom media length	139.7 - 355.6 mm
Custom media width	128 - 215.9 mm
Paper tray media weight	60 - 120 g/m²
Multi-Purpose Tray media weight	60 - 199 g/m²
Auto Document Feeder (ADF) media weight	50 - 105 g/m²

Ports & interfaces

Specification	Value
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
Direct printing	Yes
USB port	Yes
USB 2.0 ports quantity	1

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, AES, HTTPS, IPSEC, SNMP, TKIP, WPA-PSK, WPA2-PSK
Supported network protocols (IPv4)	LPD, RAW, WSD, SMB, mDNS, HTTP, HTTPS, DHCP, ARP+PING, WINS
Supported network protocols (IPv6)	LPD, RAW, WSD, SMB, mDNS, HTTP, HTTPS
Mobile printing technologies	Apple AirPrint, Canon PRINT Business, Google Cloud Print, Mopria Print Service

Performance

Specification	Value
Internal memory	1024 MB
Card reader integrated	No

Design

Specification	Value
Product colour	Grey
Market positioning	Business
Built-in display	Yes
Display	LCD
Display diagonal	8.89 cm (3.5")
Touchscreen	Yes
Control type	Touch
Colour display	Yes

Power

Specification	Value
Power consumption (max)	1470 W
Power consumption (standby)	12.4 W
Power consumption (sleep)	0.8 W
Power consumption (off)	0.1 W
Energy Star Typical Electricity Consumption (TEC)	1.7 kWh/week
AC input frequency	50 - 60 Hz
AC input voltage	220 - 240 V

System requirements

Specification	Value
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	10 - 30 °C

Weight & dimensions

Specification	Value
Width	453 mm
Depth	477 mm
Height	503 mm
Weight	24.3 kg

Packaging content

Specification	Value
Cartridge(s) included	Yes

Other features

Specification	Value
Fonts included	Yes
Cartridge type	724, 724H
Noise level	54 dB
