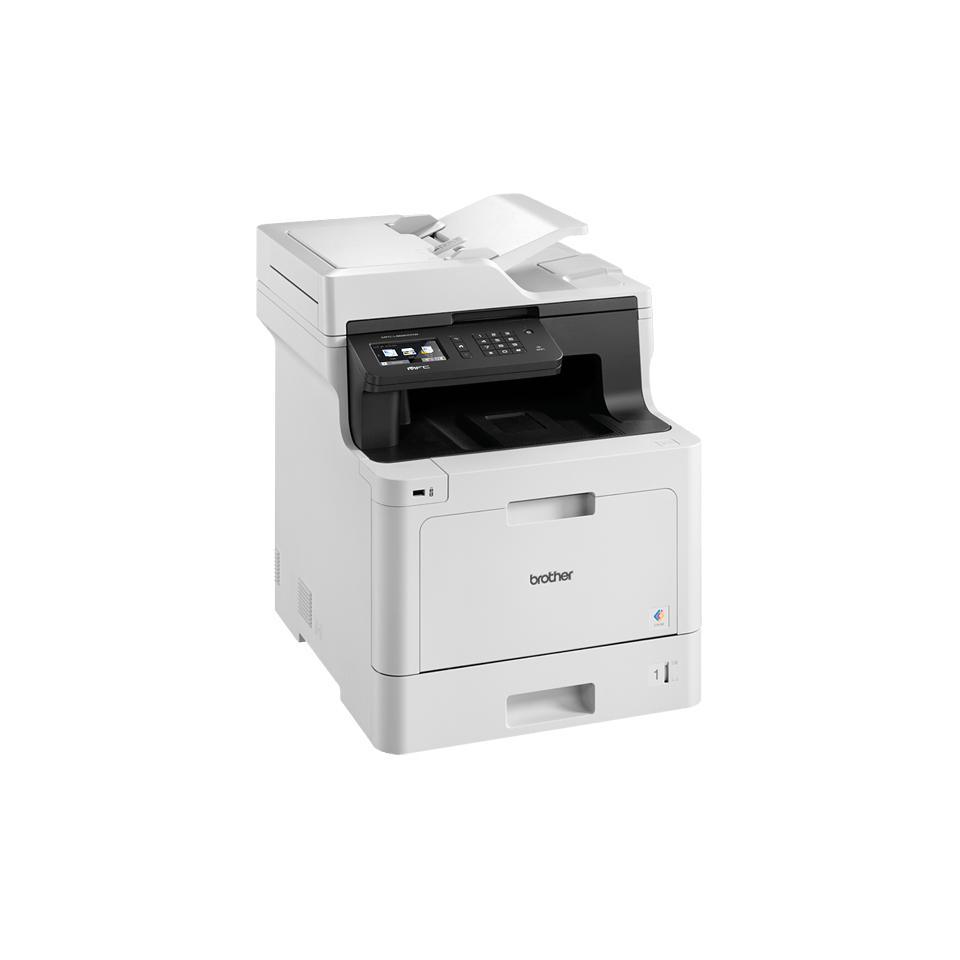

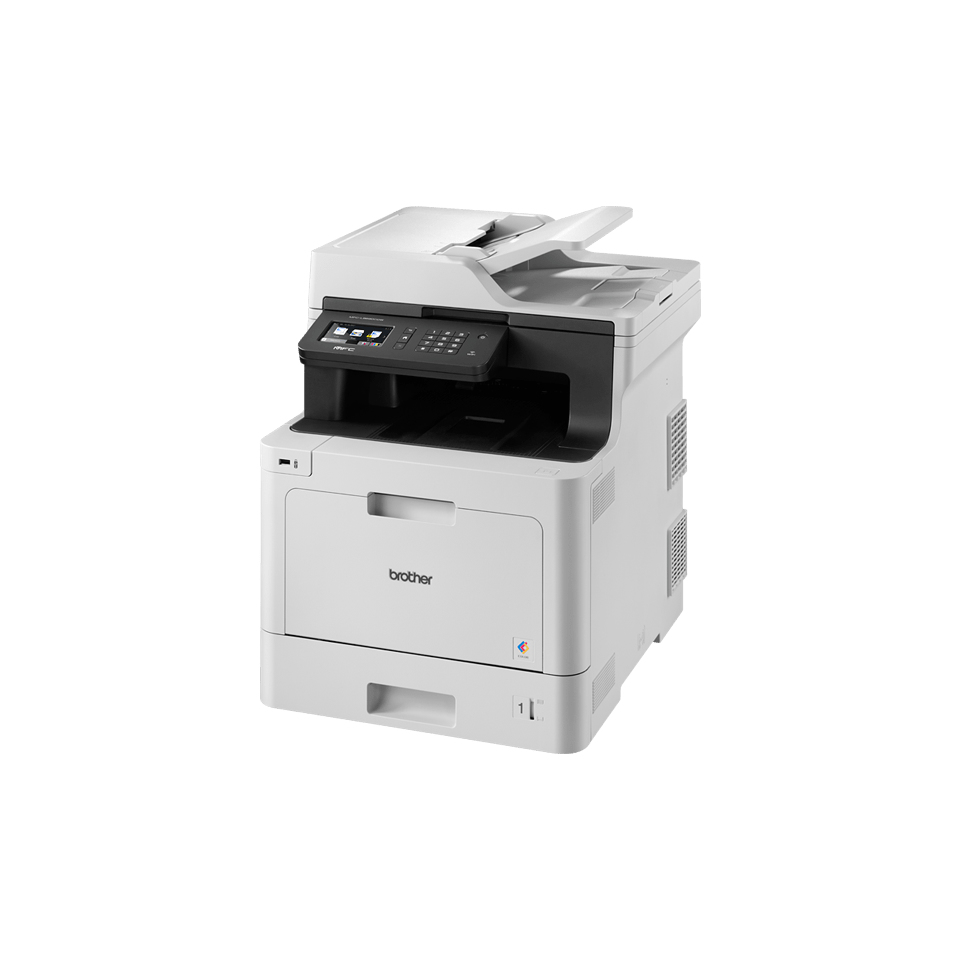

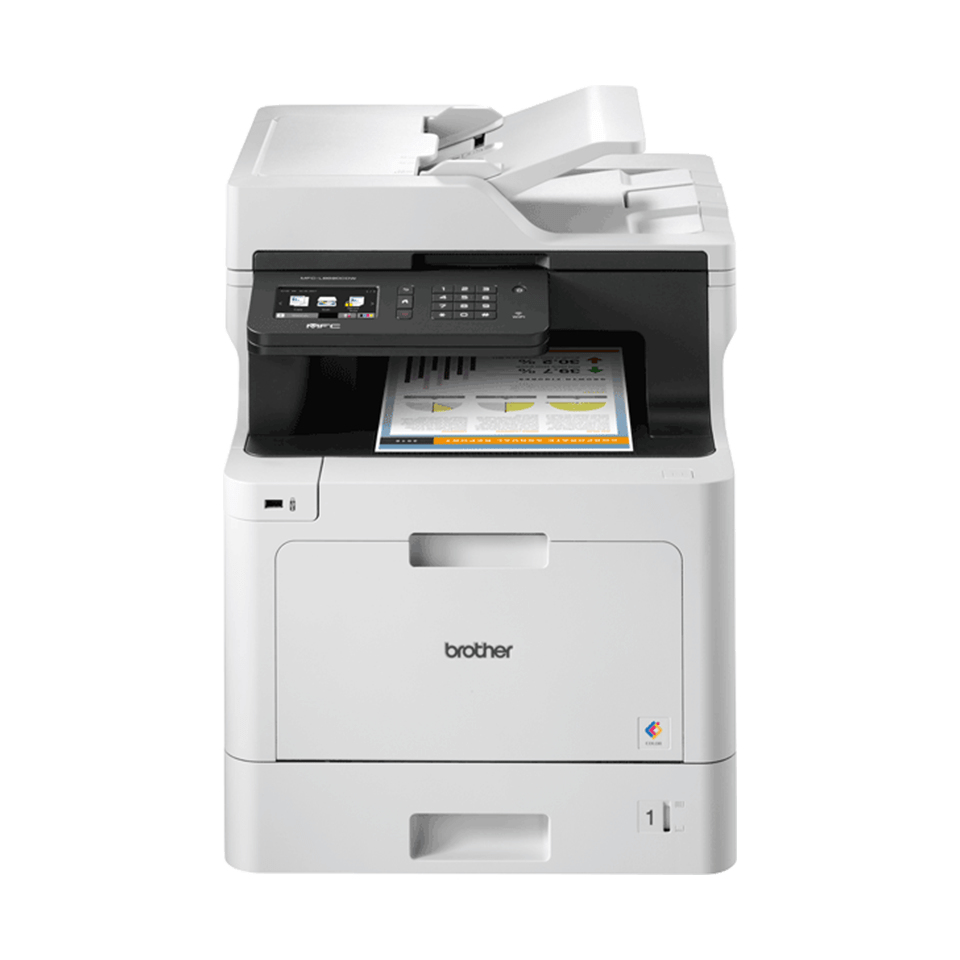

MFC-L8690CDWZU1 multifunction printer Laser A4
2400 x 600 DPI 31 ppm Wi-Fi
Model MFC-L8690CDWZU1EAN 3234428690056
76 specifications
- Memory512 MB
- Weight27.9 kg
- ColourWhite
- Print technologyLaser
- CopyingColour copying
- ScanningColour scanning
Overview
- Memory
- 512 MB
- Weight
- 27.9 kg
- Colour
- White
- Print technology
- Laser
- Copying
- Colour copying
- Scanning
- Colour scanning
- Brand
- Brother
- Category
- Multifunction Printer
- Model
- MFC-L8690CDWZU1
- Part numbers
- MFC-L8690CDWZU1, MFC-L8690CDWF5
- EAN / UPC
- 3234428690056
- Also known as
- Brother MFC-L8690CDWZU1 multifunction printer Laser A4 2400 x 600 DPI 31 ppm Wi-Fi
Specifications
76 specifications in 18 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Laser |
| Printing | Colour printing |
| Duplex printing | Yes |
| Maximum resolution | 2400 x 600 DPI |
| Print resolution black | 2400 x 600 DPI |
| Print speed (black, normal quality, A4/US Letter) | 31 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 31 ppm |
| Time to first page (black, normal) | 15 s |
| Secure printing | Yes |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
| Duplex copying | Yes |
| Maximum copy resolution | 1200 x 600 DPI |
| Copy speed (black, normal quality, A4) | 31 cpm |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Duplex scanning | Yes |
| Optical scanning resolution | 1200 x 2400 DPI |
| Optical scanning resolution (ADF) | 1200 x 600 DPI |
| Scanner type | Flatbed & ADF scanner |
| Scan speed (black) | 56 ppm |
| Scan speed (colour) | 28 ppm |
Fax
| Specification | Value |
|---|---|
| Faxing | Mono faxing |
| Modem speed | 33600 Kbit/s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 3000 pages per month |
| Duplex functions | Copy, Fax, Print |
| Printing colours | Black, Cyan, Magenta, Yellow |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 3 |
| Total input capacity | 350 sheets |
| Total output capacity | 150 sheets |
| Paper tray 1 input capacity | 250 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 50 sheets |
| Auto document feeder (ADF) | Yes |
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Non-ISO print media sizes | Letter |
| Paper tray media weight | 60 - 105 g/m² |
| Multi-Purpose Tray media weight | 60 - 163 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | EAP-FAST, EAP-PEAP, EAP-TLS, HTTPS, PEAP, WPA2-Enterprise-PEAP |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Sound pressure level (printing) | 49 dB |
| Sound pressure level (quiet mode) | 44 dB |
| Sound power level (printing) | 6.56 dB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Market positioning | Business |
| Built-in display | Yes |
| Display | LCD |
| Control type | Touch |
| Colour display | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 580 W |
| Power consumption (ready) | 70 W |
| Power consumption (standby) | 1.4 W |
| Power consumption (sleep) | 10 W |
| Power consumption (off) | 0.03 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.637 kWh/week |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Nordic Swan Ecolabel |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 526 mm |
| Height | 539 mm |
| Weight | 27.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 663 mm |
| Package depth | 542 mm |
| Package height | 654 mm |
| Package weight | 33.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
