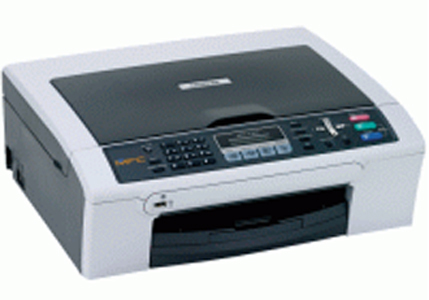

Brother MFC-230C multifunction printer Inkjet A4

6000 x 1200 DPI 25 ppm

Model MFC-230C

91 specifications

Memory16 MB
Weight7.2 kg
Print technologyInkjet
CopyingColour copying
ScanningColour scanning
FaxingColour faxing

See all specifications

Overview

Memory: 16 MB
Weight: 7.2 kg
Print technology: Inkjet
Copying: Colour copying
Scanning: Colour scanning
Faxing: Colour faxing

Brand: Brother
Category: Multifunction Printer
Model: MFC-230C
Part number: MFC-230C
Also known as: Brother MFC-230C multifunction printer Inkjet A4 6000 x 1200 DPI 25 ppm

Specifications

91 specifications in 17 groups

Printing

Specification	Value
Print technology	Inkjet
Printing	Colour printing
Duplex printing	No
Maximum resolution	6000 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	25 ppm
Print speed (colour, normal quality, A4/US Letter)	20 ppm

Copying

Specification	Value
Copying	Colour copying
Duplex copying	No
Maximum copy resolution	1200 x 600 DPI
Copy speed (black, normal quality, A4)	18 cpm
Copy speed (colour, normal quality, A4)	16 cpm
Copier resize	25 - 400%
N-in-1 copy function (N=)	2, 4
PC free copying	Yes

Scanning

Specification	Value
Scanning	Colour scanning
Duplex scanning	No
Optical scanning resolution	600 x 2400 DPI
Maximum scan resolution	19200 x 19200 DPI

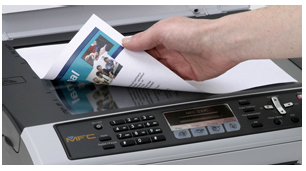

Scanner type	Flatbed scanner
Scan to	E-mail, File, Image, OCR
Image formats supported	BMP, JPG, PCX, PNG, TIF
Input colour depth	36 bit
Greyscale levels	256

Fax

Specification	Value
Faxing	Colour faxing
Duplex faxing	No
Fax transmission speed	6 sec/page
Modem speed	14.4 Kbit/s
Fax memory	200 pages
Auto-redialing	Yes
Fax speed dialing (max numbers)	40
Fax forwarding	No
Auto reduction	Yes
Fax broadcasting	90 locations
Fax coding methods	JPEG, MH, MMR, MR
Fax delayed sending	Yes
Fax dual access	Yes

Features

Specification	Value
Maximum duty cycle	2500 pages per month
Digital sender	No

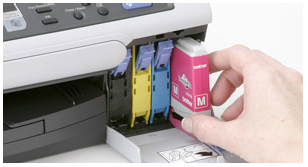

Number of print cartridges	4
Printing colours	Black, Cyan, Magenta, Yellow
Page description languages	GDI

Input & output capacity

Specification	Value
Total number of input trays	1
Total input capacity	100 sheets
Total output capacity	50 sheets
Paper input type	Paper tray
Maximum input capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
Non-ISO print media sizes	Executive
Photo paper sizes (imperial)	4x6,5x7,5x8,3.5x5
Custom media length	127 - 356 mm
Custom media width	89 - 216 mm
Media weight (tray 1)	17 - 58 lbs

Ports & interfaces

Specification	Value
Standard interfaces	USB 2.0
Direct printing	No
USB port	Yes
USB 2.0 ports quantity	1

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	No

Performance

Specification	Value
Internal memory	16 MB
Maximum internal memory	16 MB
Card reader integrated	No
Sound pressure level (copying)	50 dB
Mac compatibility	Yes

Design

Specification	Value
Market positioning	Home & office

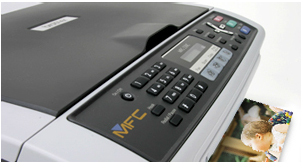

Built-in display	Yes
Display	LCD

Power

Specification	Value
Power consumption (average operating)	29 W
Power consumption (PowerSave)	6 W
Power consumption (standby)	4 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	10 - 35 °C
Operating temperature (T-T)	50 - 95 °F

Weight & dimensions

Specification	Value
Weight	7.2 kg

Packaging data

Specification	Value
Package weight	9 kg

Other features

Specification	Value
Dimensions (WxDxH)	398 x 360 x 150 mm
All-in-one functions	Copy, Fax, Print, Scan
Colour all-in-one functions	Copy, Fax, Print, Scan
Compatible operating systems	Windows 2000 Windows XP Windows Vista Mac OS X 10.2.4+
Network ready	No

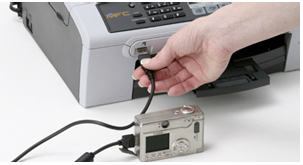

PictBridge	Yes
Scan file formats	BMP, HTM, JPG, PDF, PNG, TIFF
Package dimensions (WxDxH)	470 x 216 x 452.1 mm
Scan speed	4.7 sec/page
Package dimensions (W x D x H)	398.8 x 370.8 x 180.3 mm (15.7 x 14.6 x 7.1")
