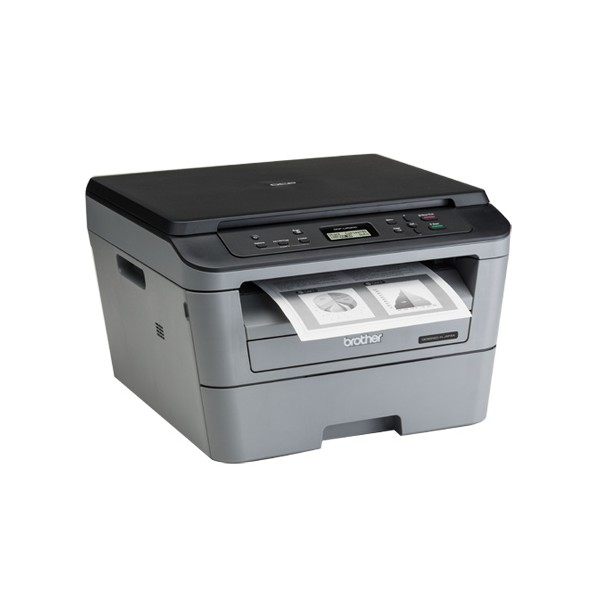

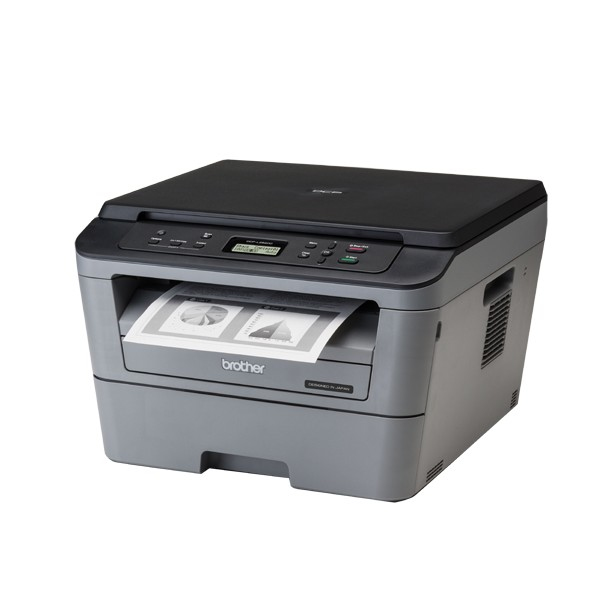

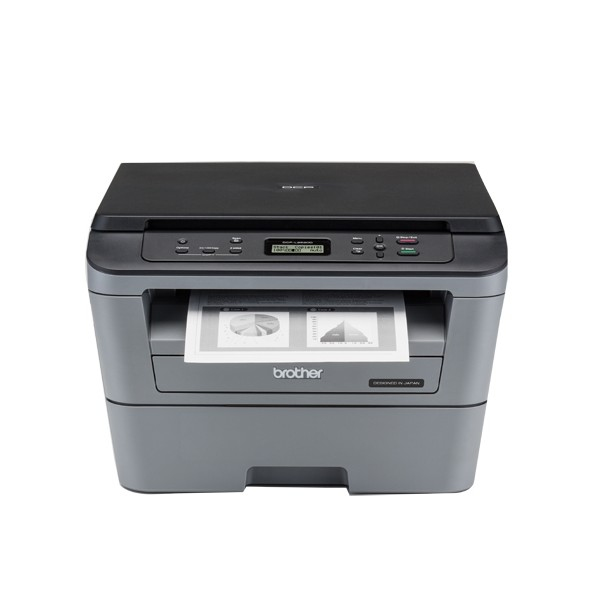

Brother DCP-L2520D multifunction printer Laser A4

2400 x 600 DPI 30 ppm

Model DCP-L2520D

79 specifications

Memory32 MB
Weight9.7 kg
ColourBlack, Grey
Print technologyLaser
CopyingMono copying
ScanningColour scanning

See all specifications

Overview

Memory: 32 MB
Weight: 9.7 kg
Colour: Black, Grey
Print technology: Laser
Copying: Mono copying
Scanning: Colour scanning

Brand: Brother
Category: Multifunction Printer
Model: DCP-L2520D
Part number: DCP-L2520D
Also known as: Brother DCP-L2520D multifunction printer Laser A4 2400 x 600 DPI 30 ppm

Specifications

79 specifications in 17 groups

Printing

Specification	Value
Print technology	Laser
Printing	Mono printing
Duplex printing	Yes
Duplex printing mode	Auto
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	30 ppm
Time to first page (black, normal)	8.5 s

Copying

Specification	Value
Copying	Mono copying
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	30 cpm
Time to first copy (black, normal)	10 s
Maximum number of copies	99 copies
Copier resize	25 - 400%
N-in-1 copy function (N=)	2, 4

Scanning

Specification	Value
Scanning	Colour scanning
Optical scanning resolution	600 x 2400 DPI
Maximum scan resolution	19200 x 19200 DPI
Maximum scan area	A4 (210 x 297)
Scan to	E-mail, File, Image, OCR
Input colour depth	30 bit
Output colour depth	24 bit
Scan drivers	ICA, TWAIN, WIA

Fax

Specification	Value
Faxing	No

Features

Specification	Value
Digital sender	No
Number of print cartridges	1
Printing colours	Black
Page description languages	GDI

Input & output capacity

Specification	Value
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray	Yes
Multi-Purpose tray input capacity	1 sheets
Paper input type	Paper tray
Manual feeder	Yes
Maximum input capacity	250 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Paper tray media types	Envelopes, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
ISO A-series sizes (A0...A9)	A4, A5, A6
Non-ISO print media sizes	Executive, Folio, Legal
Custom media length	127 - 355.6 mm
Custom media width	76.2 - 215.9 mm
Paper tray media weight	60 - 105 g/m²
Multi-Purpose Tray media weight	60 - 163 g/m²

Ports & interfaces

Specification	Value
Standard interfaces	USB 1.1, USB 2.0
USB port	Yes
USB 2.0 ports quantity	1
USB 1.1 ports quantity	1

Network

Specification	Value
Ethernet LAN	No

Performance

Specification	Value
Internal memory	32 MB
Card reader integrated	No
Sound pressure level (printing)	50 dB
Sound pressure level (quiet mode)	45 dB
Sound power level (standby)	33 dB

Design

Specification	Value
Product colour	Black, Grey
Market positioning	Home & office
Built-in display	Yes
Display	LCD
Display number of lines	2 lines
Display number of characters	16

Power

Specification	Value
Power consumption (max)	1104 W
Power consumption (average operating)	510 W
Power consumption (PowerSave)	1.1 W
Power consumption (standby)	60 W
Power consumption (off)	0.08 W
AC input frequency	50 - 60 Hz
AC input voltage	220 - 240 V

System requirements

Specification	Value
Windows operating systems supported	Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Wi
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Minimum storage drive space	50 MB

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	0 - 40 °C

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	405 mm
Depth	398.5 mm
Height	267 mm
Weight	9.7 kg

Other features

Specification	Value
Energy saving mode	Yes
