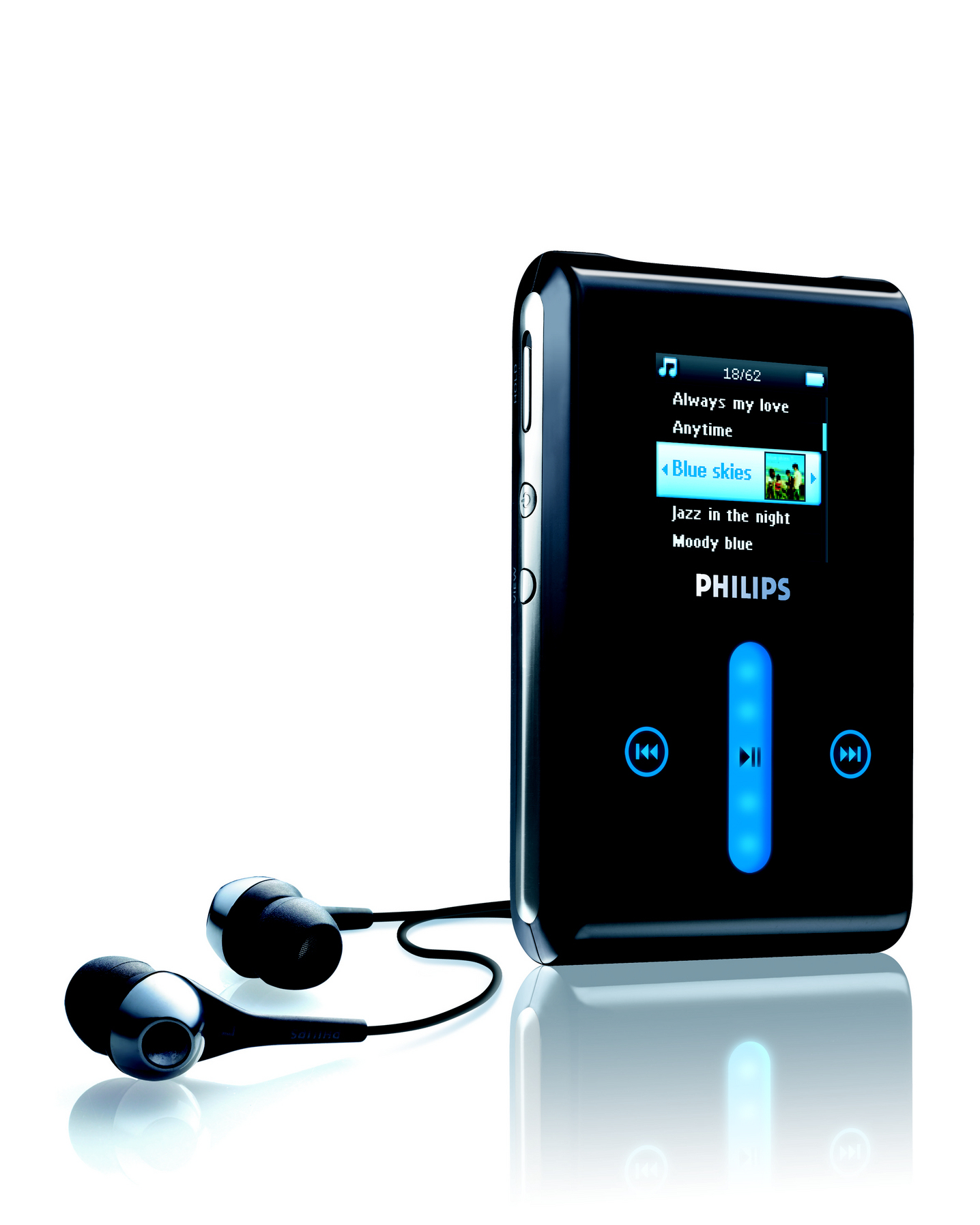

GoGear HDD1830
8GB* Micro jukebox
Model HDD1830/17
87 specifications
- Display3.81 cm (1.5")
- Resolution128 x 128 pixels
- ProcessorIntel Pentium II
- Storage8 GB
- Battery610 mAh
- ConnectivityUSB 2.0
Overview
- Display
- 3.81 cm (1.5")
- Resolution
- 128 x 128 pixels
- Processor
- Intel Pentium II
- Storage
- 8 GB
- Battery
- 610 mAh
- Connectivity
- USB 2.0
- Brand
- Philips
- Category
- MP3/MP4 Players
- Model
- HDD1830/17
- Part number
- HDD1830/17
- Also known as
- Philips GoGear HDD1830 8GB* Micro jukebox
Specifications
87 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | MP3 player |
| Languages support | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Swedish |
| Processor model | Intel Pentium II |
| Processor cores | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Battery charge indicator | Yes |
| Battery full indication | Yes |
| Battery low indication | Yes |
| LED indicators | Yes |
Storage
| Specification | Value |
|---|---|
| Player media type | Hard disk drive |
| Total storage capacity | 8 GB |
| Music memory capacity (songs) | 4000 |
Display
| Specification | Value |
|---|---|
| Display | CSTN |
| Display diagonal | 3.81 cm (1.5") |
| Display resolution | 128 x 128 pixels |
| Display number of colours | 65536 colours |
| Backlight colour | White |
| Display number of lines | 7 lines |
| ID3 Tag display | Yes |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | MP3, WAV, WMA |
| Image formats supported | JPG |
Headphones
| Specification | Value |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone sensitivity | 100 dB |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 82 dB |
| Impedance | 16 Ω |
| Total Harmonic Distortion (THD) | 0.1% |
| MP3 bit rates | 8 - 320 Kbit/s |
| WMA bit rates | 32 - 192 Kbit/s |
| Equalizer customizable | Yes |
| Frequency range | 20 - 16 Hz |
| WMA sample rates | 8 - 48 kHz |
| Equalizer | Yes |
| Equalizer bands quantity | 5 |
| Equalizer modes | Classic, Hip hop, Jazz, Pop, Rock |
Radio
| Specification | Value |
|---|---|
| FM radio | Yes |
| Supported radio bands | FM |
| FM band range | 87.5 - 108 MHz |
| FM recording | Yes |
| Preset stations quantity | 20 |
Record modes
| Specification | Value |
|---|---|
| Voice recording | Yes |
| Built-in microphone | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| DC-in jack | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
| Second camera | No |
Power
| Specification | Value |
|---|---|
| Rechargeable | Yes |
| Continuous audio playback time | 17 h |
| Battery recharge time | 4 h |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 610 mAh |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 64 MB |
| Windows operating systems supported | Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Optical drive required | Yes |
| USB required | Yes |
| Video card required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 87 g |
| Depth | 86 mm |
| Height | 16 mm |
| Width | 54 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 153 mm |
| Package depth | 153 mm |
| Package height | 95 mm |
| Package type | Clamshell |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Headphones included | Yes |
| Pouch | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 305 mm |
| Master (outer) case width | 165 mm |
| Case or master carton quantity | 3 pc(s) |
| Master carton depth | 16.5 cm |
Other features
| Specification | Value |
|---|---|
| Minimum storage drive space | 100 MB |
| Audio recording formats | PCM |
| Channels quantity | 20 channels |
| Internal memory type | HDD |
| Keypad lock | Yes |
| Language version | English, Swedish |
| Lead-free soldered product | Yes |
| Package dimensions (WxDxH) | 153 x 153 x 95 mm |
| Slideshow | Yes |
| USB connectivity | Yes |
| User Guide on CD-ROM | Yes |
| Audio card required | Yes |
| CD-ROM | Yes |
| Superscroll | Yes |
| Transmission frequency range | 87.5 MHz |
| Windows Media Player 10 | Yes |
