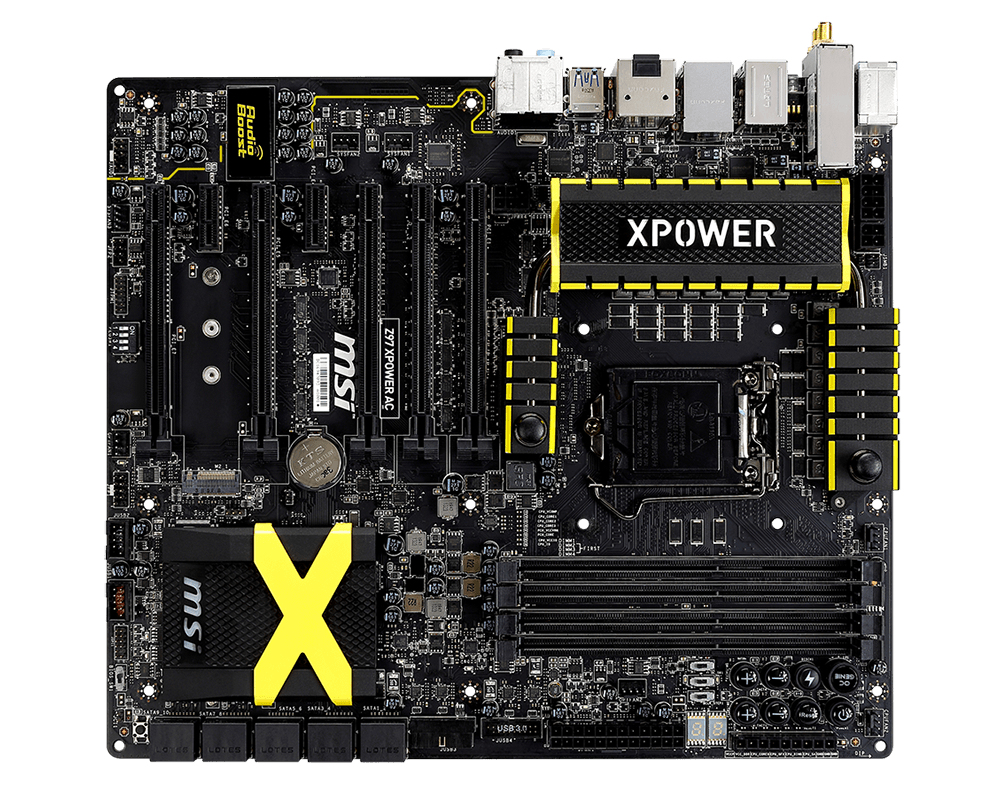

MSI Z97 XPOWER AC

MSI Z97 XPOWER AC

Model Z97 XPOWER ACPart no. 911-7914-002EAN 4719072343149

46 specifications
  • Memory32 GB
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Parallel processing technology support4-Way CrossFireX, 4-Way SLI
  • USB 2.0 connectors2
See all specifications

Overview

Memory
32 GB
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Parallel processing technology support
4-Way CrossFireX, 4-Way SLI
USB 2.0 connectors
2
Brand
MSI
Category
Motherboard
Model
Z97 XPOWER AC
Part numbers
911-7914-002, 7914-001R
EAN / UPC
4719072343149, 824142023020, 4053162668010, 8241420230208
Also known as
MSI Z97 XPOWER AC Intel® Z97 LGA 1150 (Socket H3) Extended ATX

Specifications

46 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Internal memory32 GB
Supported memory clock speeds1066,1333,1600,1866,2000,2133,2200,2400,2600,2666,2800,3000 MHz

Storage controllers

Supported storage drive interfacesSATA

Graphics

Parallel processing technology support4-Way CrossFireX, 4-Way SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA connectors10
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.0

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z97
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots5

BIOS

BIOS typeAMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth264 mm
