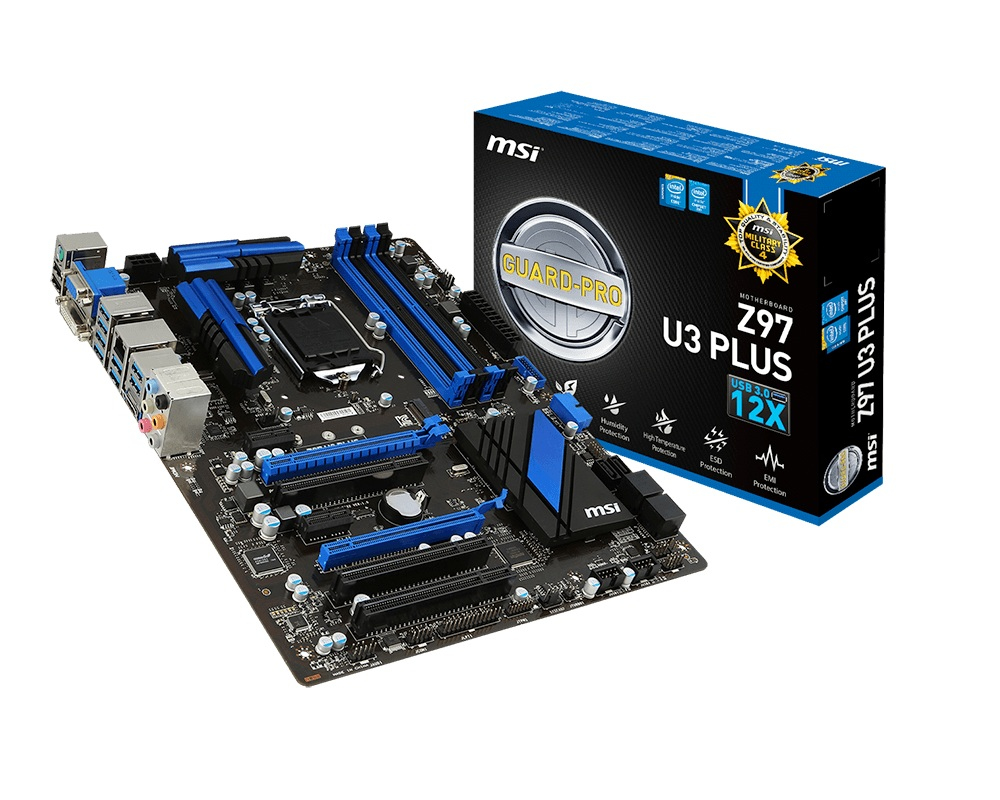

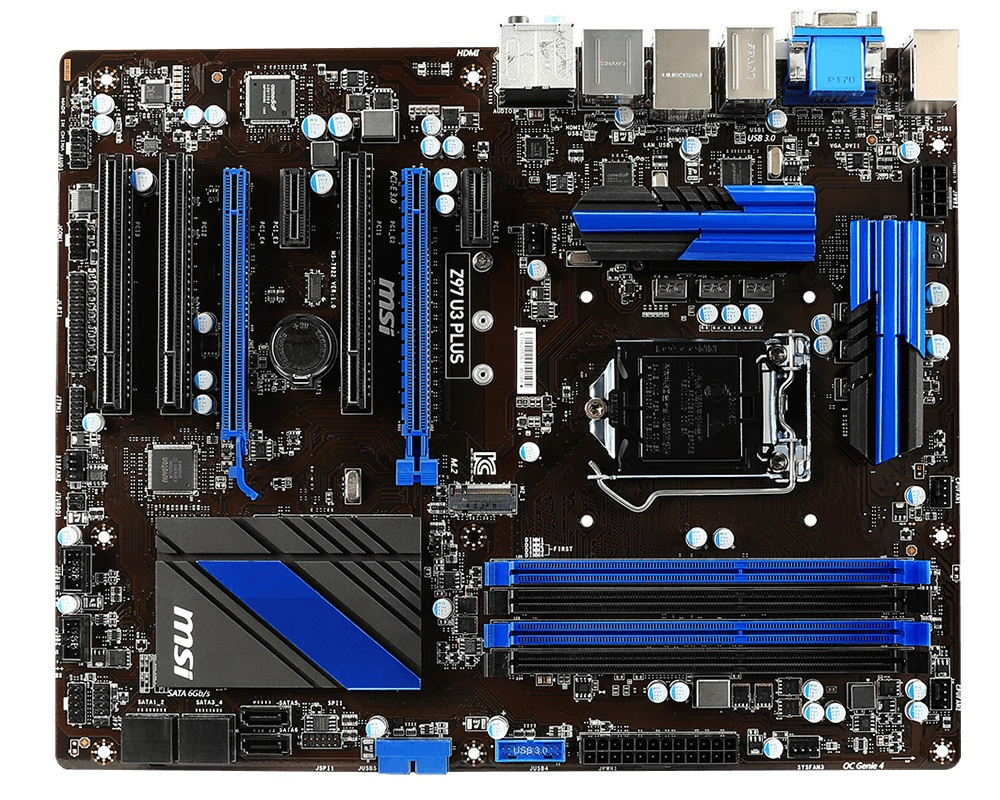

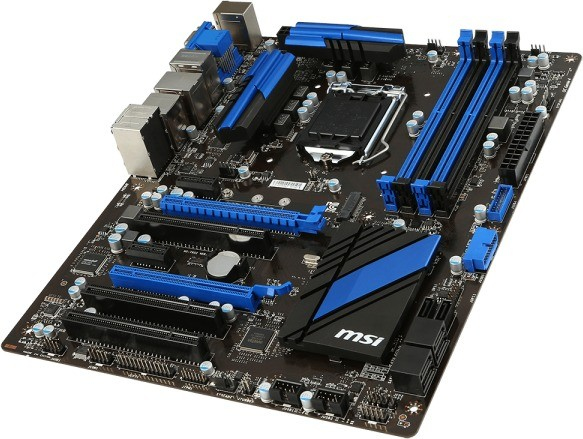

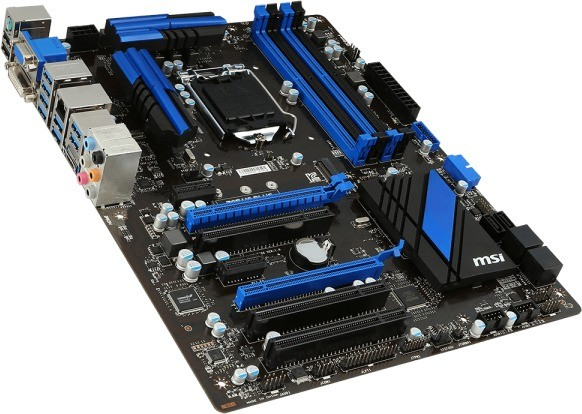

MSI Z97 U3 PLUS

MSI Z97 U3 PLUS

Model Z97 U3 PLUSEAN 5054230929926

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
Z97 U3 PLUS
Part numbers
Z97 U3 PLUS, 7922-002R
EAN / UPC
5054230929926, 4719072343736
Also known as
MSI Z97 U3 PLUS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX

Specifications

61 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-4xxx, i5-4xxx, i7-4xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2000,2133,2400,2600,2666,2800,3000,3100,3200 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX
On-board graphics cardYes
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Parallel connectorYes
Serial port headers1
TPM connectorYes

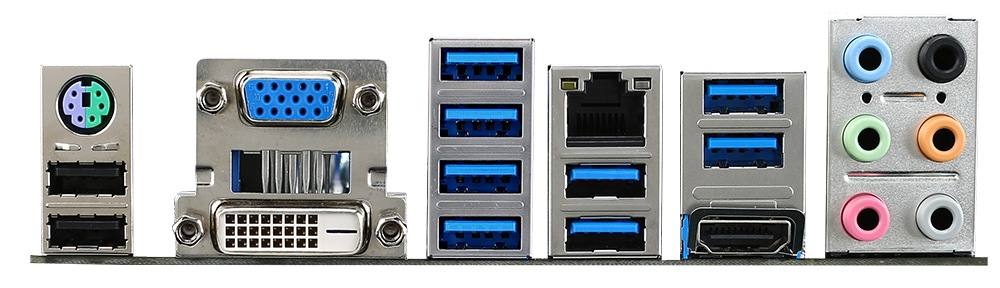

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111G

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z97
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots3

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm
