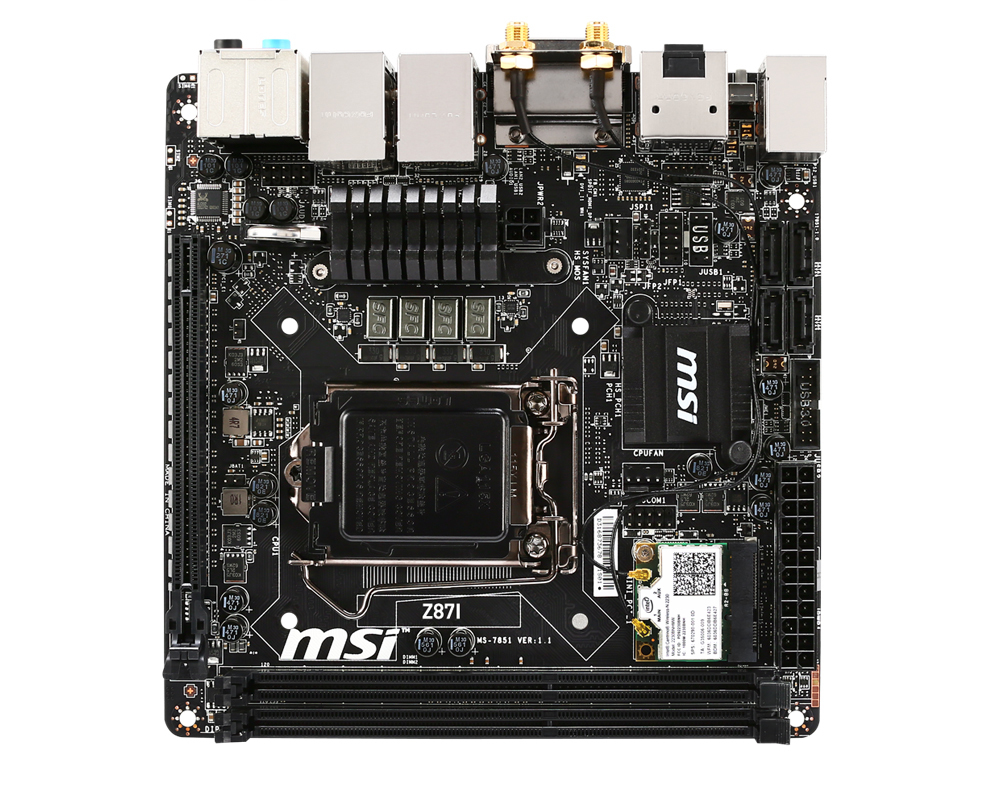

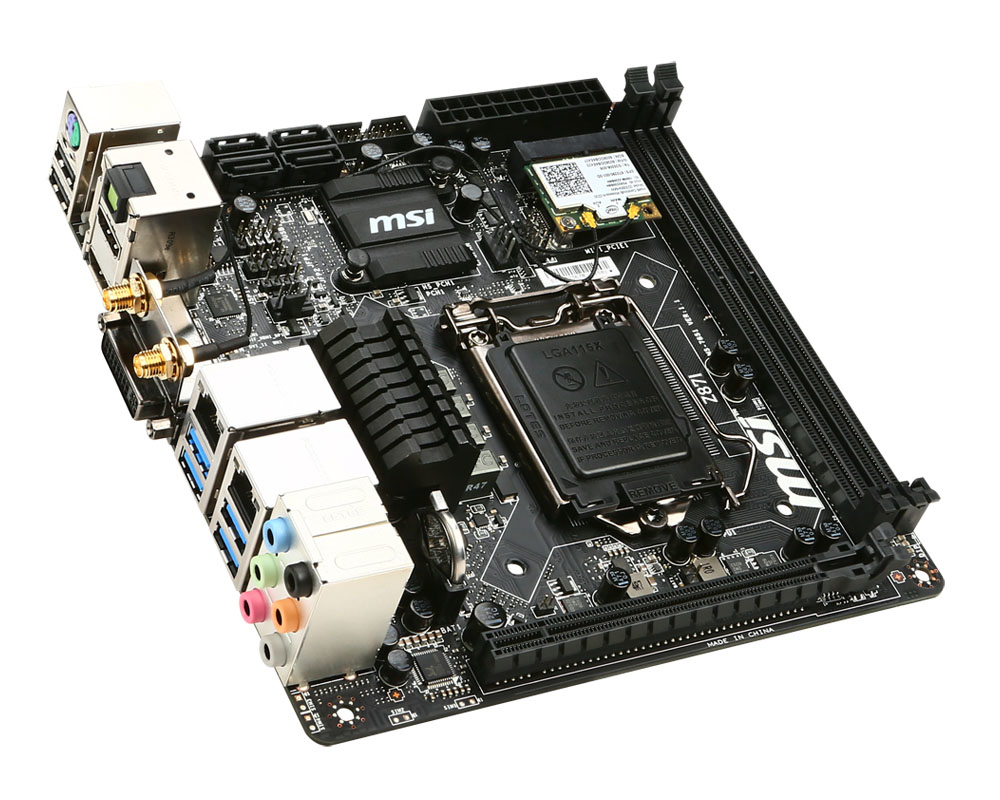

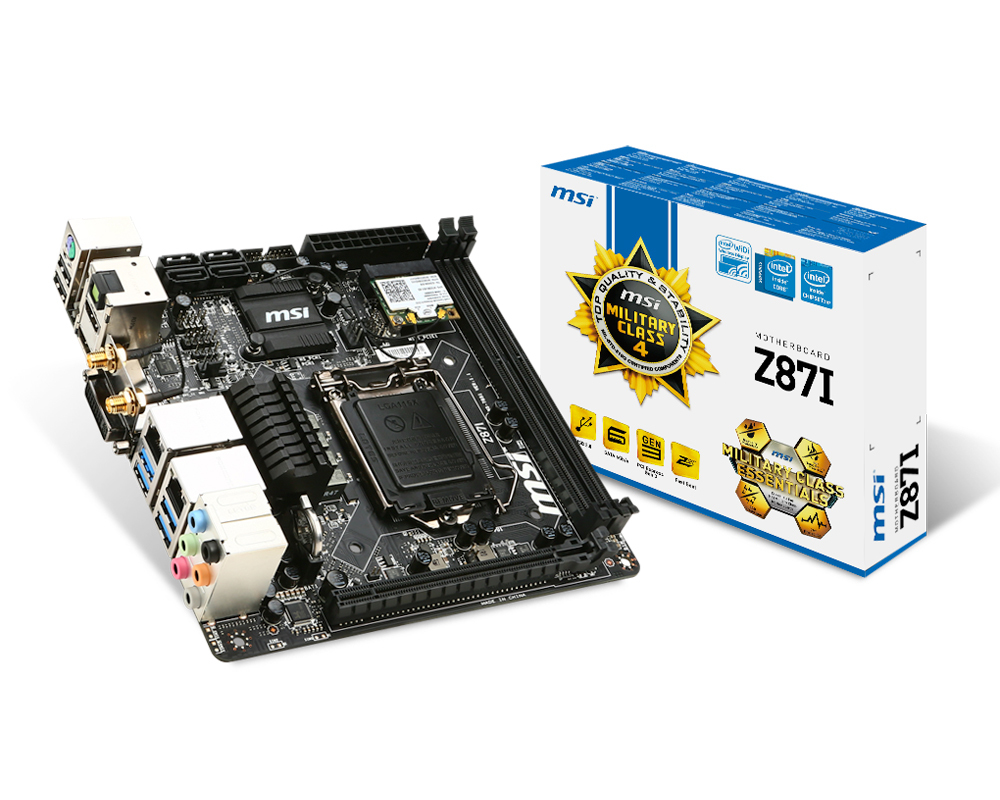

MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX
Model Z87IPart no. 7851-010REAN 816909108699
81 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- Z87I
- Part number
- 7851-010R
- EAN / UPC
- 816909108699, 4719072301637
- Also known as
- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX
Specifications
81 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1200,1300,1333,1500,1600,1666,1800,1866,1900,2000,2100,2133,2200,2250,2400,2450,2600,2666,2800,3000 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |

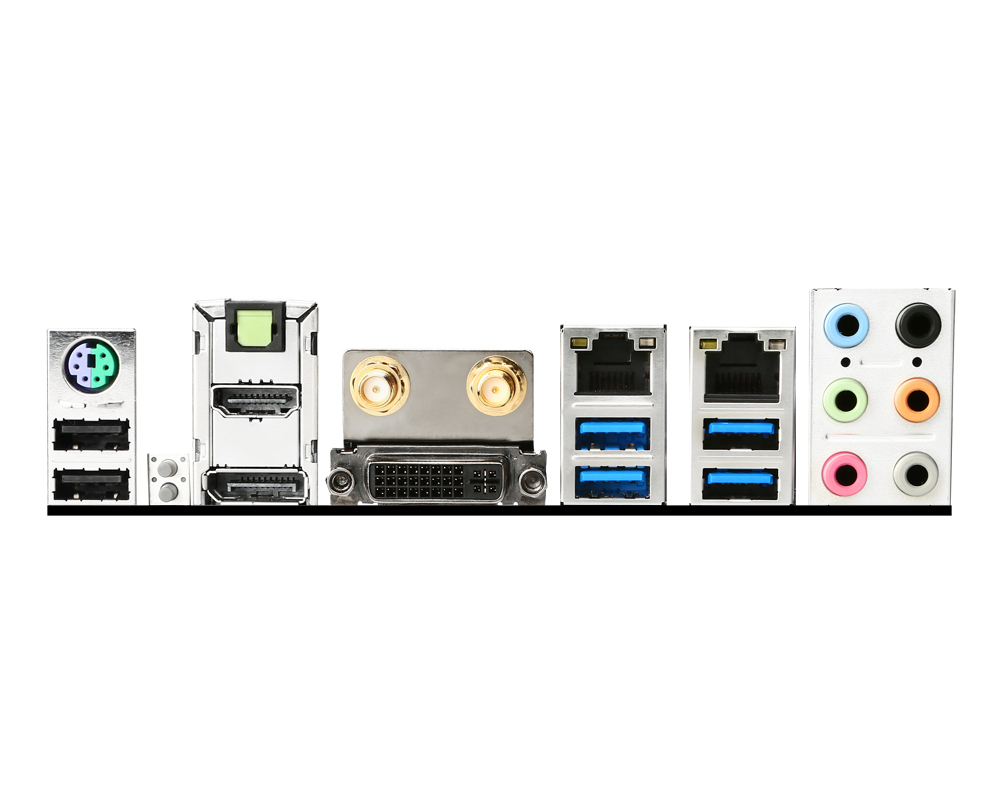

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z87 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| Mini PCI Express slots | 1 |
| PCI Express configurations | 1x16 |
| PCI Express slots version | 3.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Processor with Intel Graphics Technology required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
| Quick installation guide | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX
No reviews yet
Be the first to tell others how MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX
All motherboard comparisons- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsMSI 760GMA-P34 (FX)Compare specs
- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsMSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATXCompare specs
- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsMSI H87I Intel® H87 LGA 1150 (Socket H3) mini ITXCompare specs

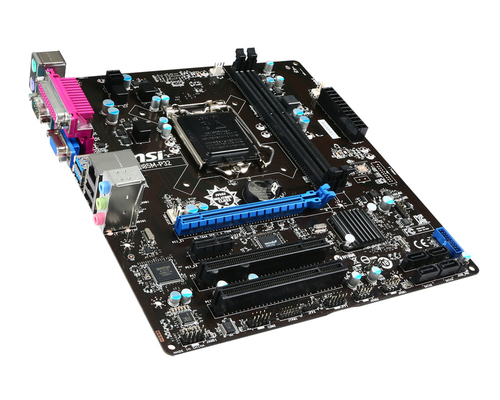

- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsMSI B85M-P32 Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

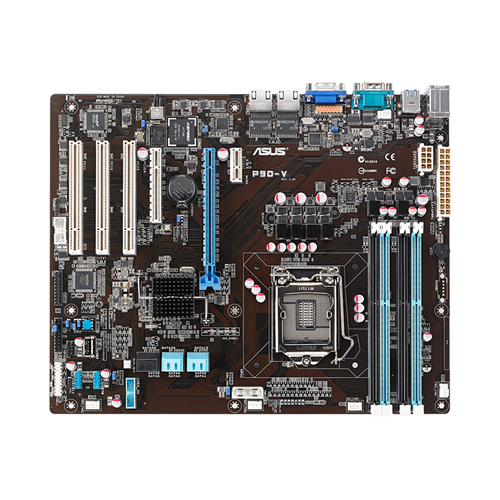

- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsASUS P9D-V motherboard Intel® C224 ATXCompare specs

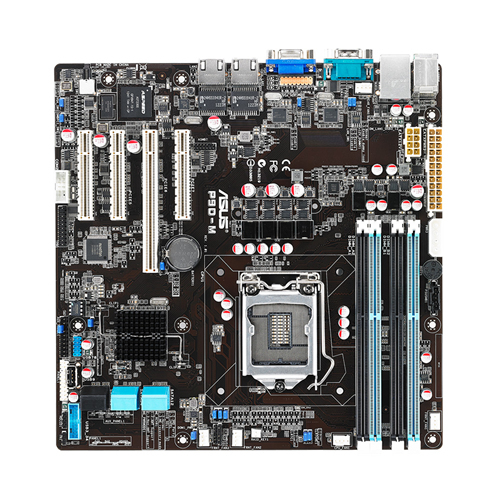

- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsASUS P9D-M micro ATXCompare specs

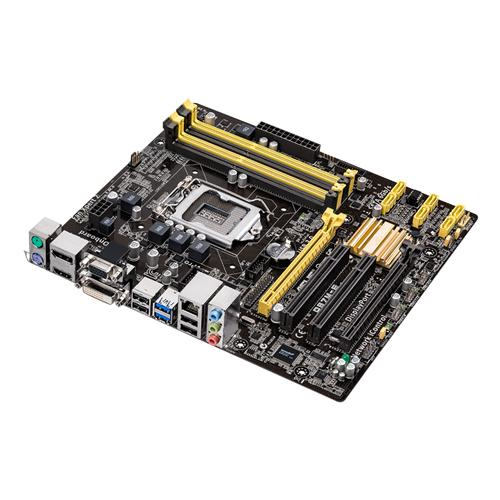

- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsASUS Q87M-E LGA 1150 (Socket H3) micro ATXCompare specs

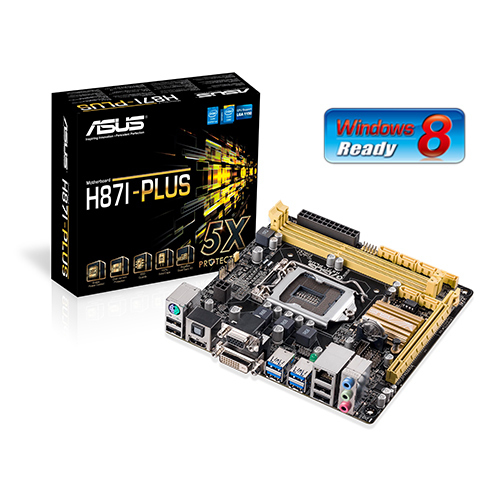

- MSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITX vsASUS H87I-PLUS Intel® H87 LGA 1150 (Socket H3) mini ITXCompare specs
