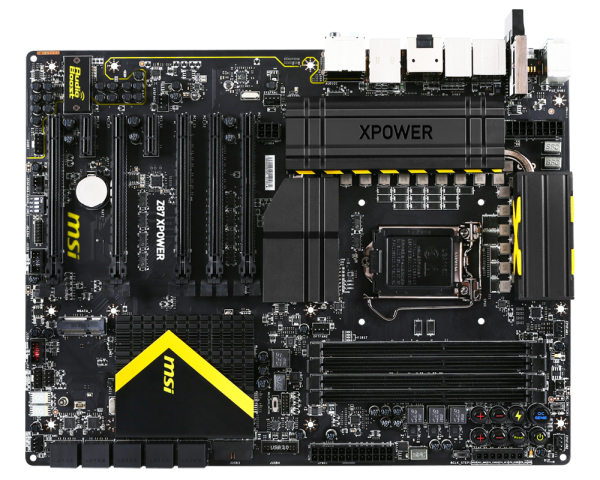

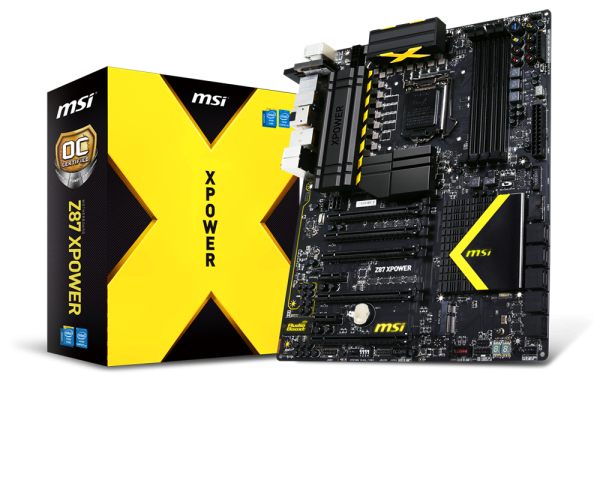

MSI Z87 XPOWER
Model Z87 XPOWERPart no. 7811-010REAN 4719072300913
82 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II, SATA III
- On-board graphics cardYes
- USB 2.0 connectors2
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II, SATA III
- On-board graphics card
- Yes
- USB 2.0 connectors
- 2
- Component for
- PC
- Brand
- MSI
- Category
- Motherboard
- Model
- Z87 XPOWER
- Part numbers
- 7811-010R, Z87 XPOWER, 007811-010R
- EAN / UPC
- 4719072300913, 816909108460, 4054842414262, 4053162807648
- Also known as
- MSI Z87 XPOWER motherboard Intel® Z87 LGA 1150 (Socket H3) XL-ATX
Specifications
82 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1200,1300,1333,1500,1600,1666,1800,1866,1900,2000,2100,2133,2200,2250,2400,2450,2600,2666,2800,3000 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, LucidLogix Virtu, Quad-GPU CrossFireX, Quad-GPU SLI |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 10 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |

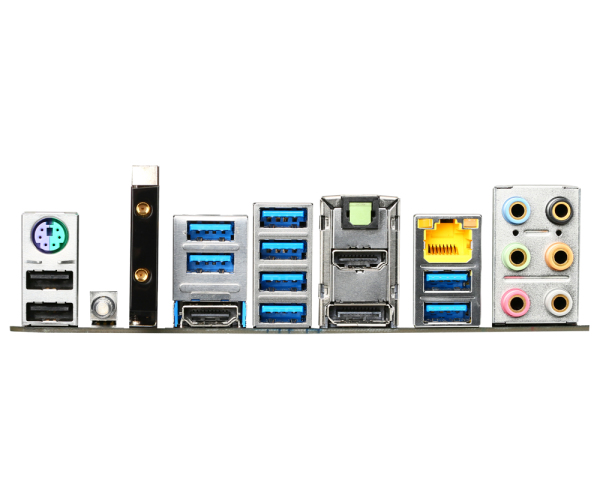

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Bigfoot Killer E2205 |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | XL-ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z87 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 5 |
| PCI Express configurations | 2x16, 4x8 |
| PCI Express slots version | 2.0, 3.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Processor with Intel Graphics Technology required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 345 mm |
| Depth | 264 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| PCI Express power connectors (6-pin) | 1 |
| BIOS switch button | Yes |
| Quick installation guide | Yes |
What people say
Reviews & ratings
MSI Z87 XPOWER
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Z87 XPOWER
All motherboard comparisons- MSI Z87 XPOWER vsMSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATXCompare specs
- MSI Z87 XPOWER vsMSI H87M-E33 motherboard Intel® H87 LGA 1150 (Socket H3) micro ATXCompare specs
- MSI Z87 XPOWER vsMSI Z87 MPOWERCompare specs
- MSI Z87 XPOWER vsMSI Z87-GD65 GAMINGCompare specs

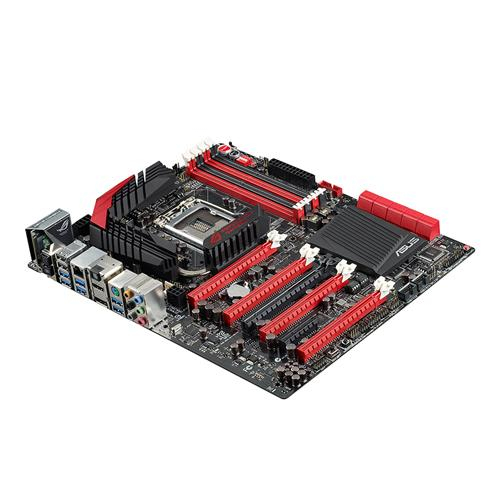

- MSI Z87 XPOWER vsASUS MAXIMUS VI EXTREMECompare specs

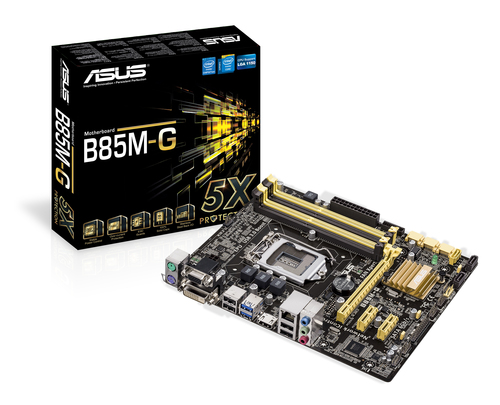

- MSI Z87 XPOWER vsASUS B85M-G Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

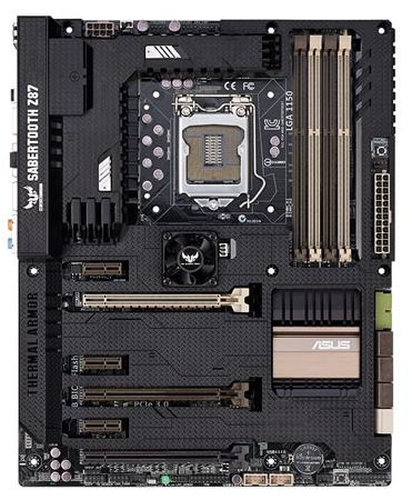

- MSI Z87 XPOWER vsASUS Sabertooth Z87Compare specs

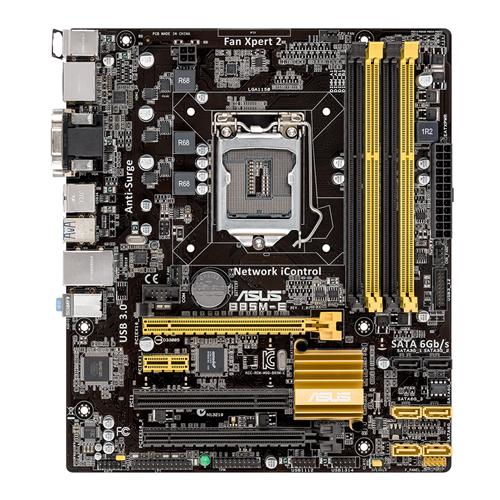

- MSI Z87 XPOWER vsASUS B85M-E/CSM motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs
