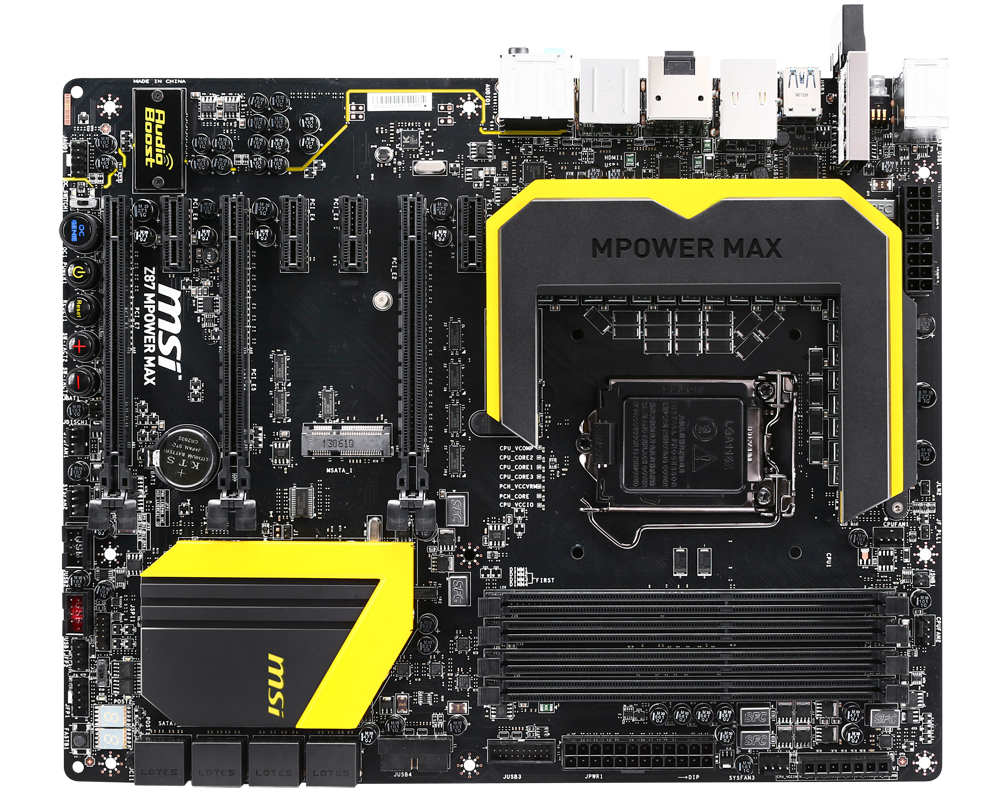

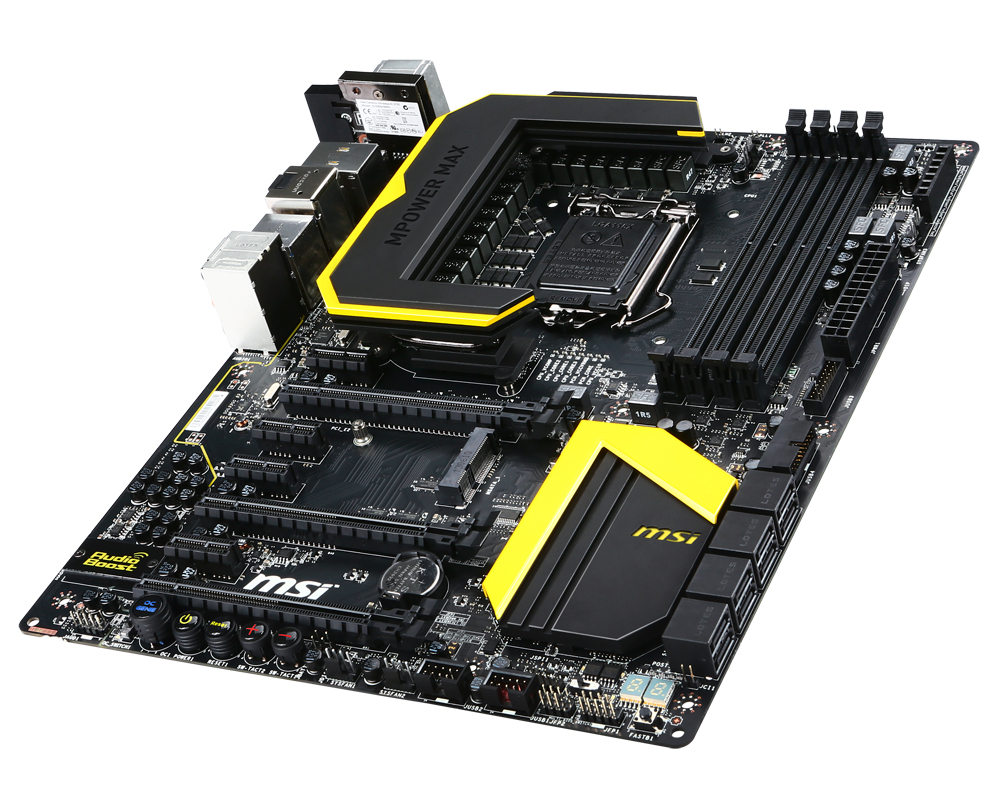

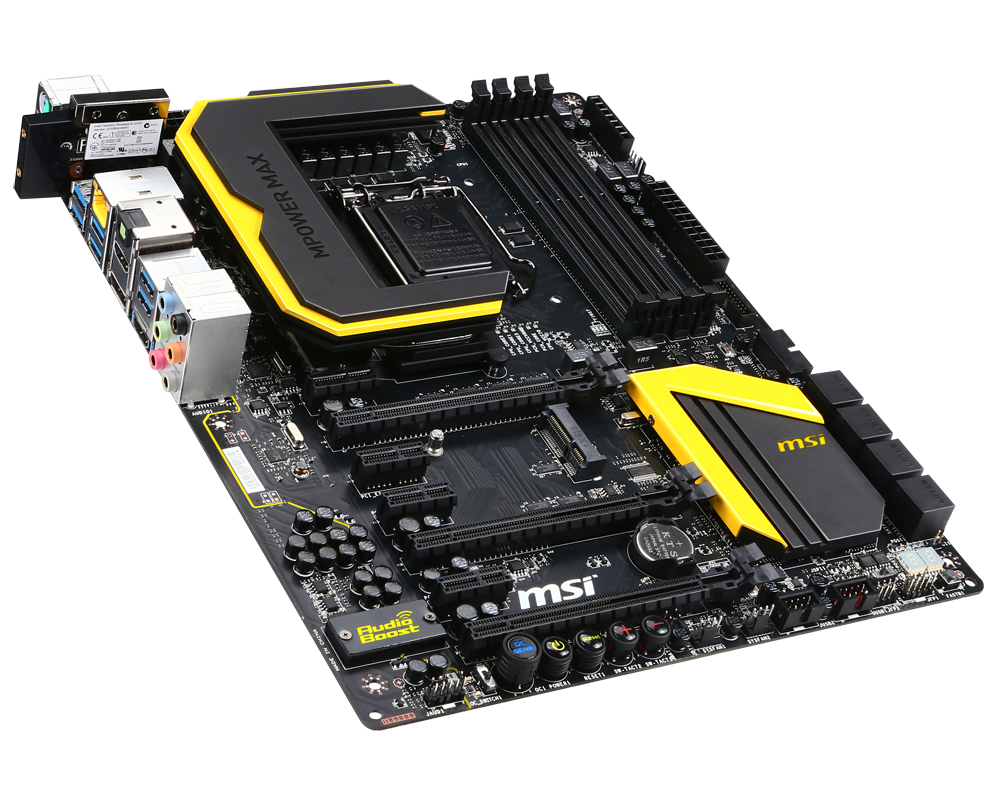

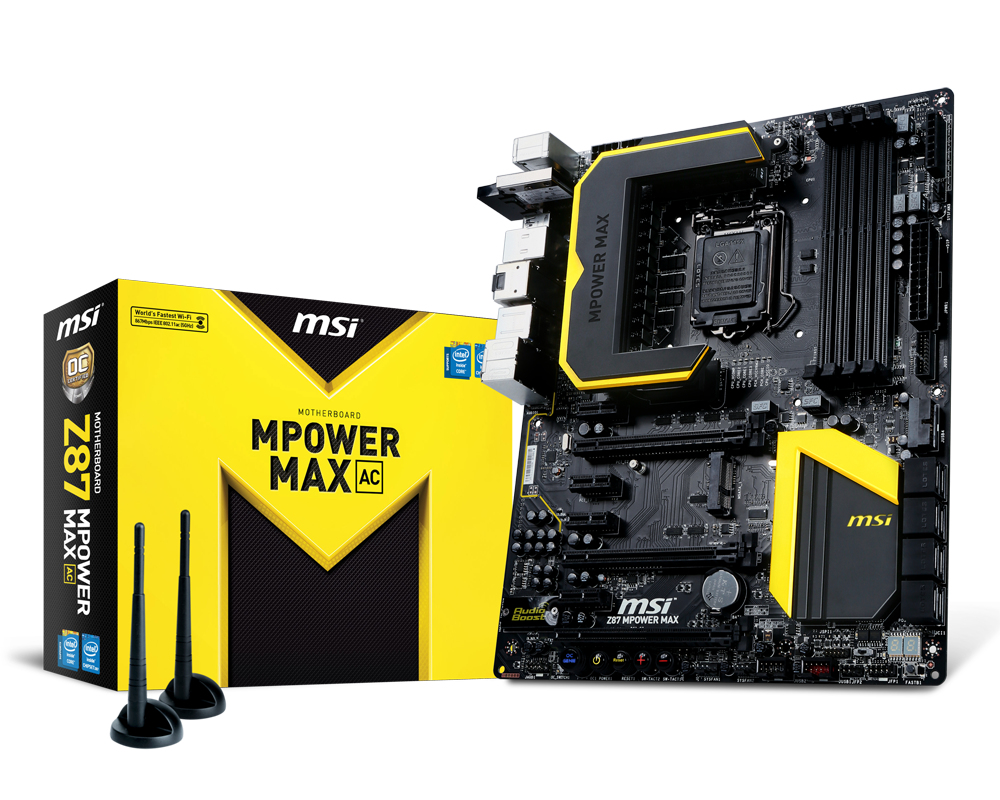

MSI Z87 MPOWER MAX AC

MSI Z87 MPOWER MAX AC

Model Z87 MPOWER MAX ACEAN 8241420176094

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory1760 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
1760 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
Z87 MPOWER MAX AC
Part numbers
Z87 MPOWER MAX AC, 7815-015R
EAN / UPC
8241420176094, 4053162667617, 4719072319748, 132018268179 +1 more
Also known as
MSI Z87 MPOWER MAX AC Intel® Z87 LGA 1150 (Socket H3) ATX

Specifications

64 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2000,2133,2200,2400,2600,2666,2800,3000 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1760 MB
Parallel processing technology support2-Way SLI, 3-Way CrossFireX
Maximum resolution4096 x 2160 pixels
DirectX version11
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes

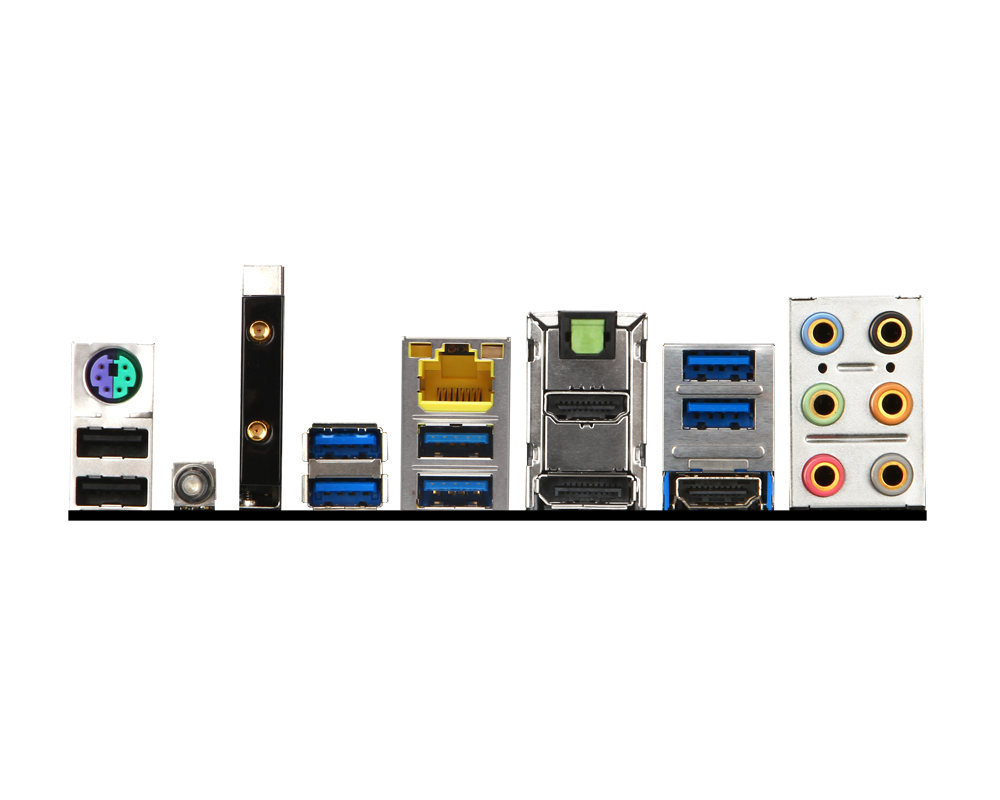

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity2
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerBigfoot Killer E2205
Wi-FiYes
Wi-Fi standardsWi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.0

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z87
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots4
PCI Express x16 (Gen 3.x) slots3

BIOS

BIOS typeUEFI
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width304 mm
Depth244 mm

Other features

BIOS switch buttonYes
