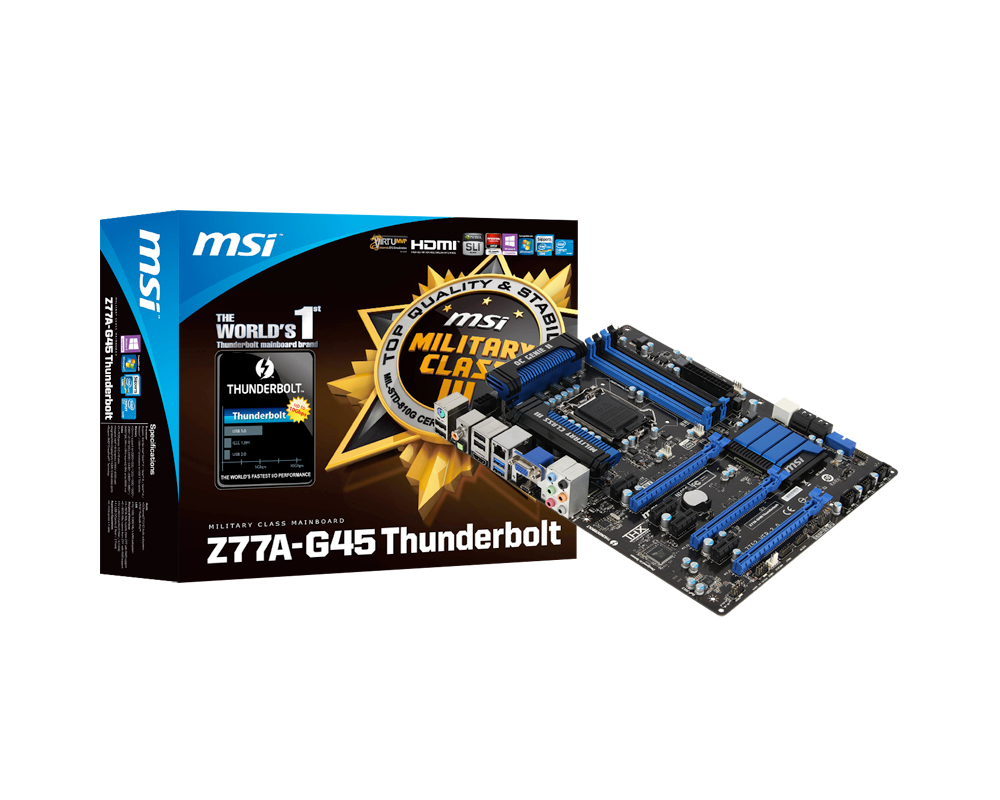

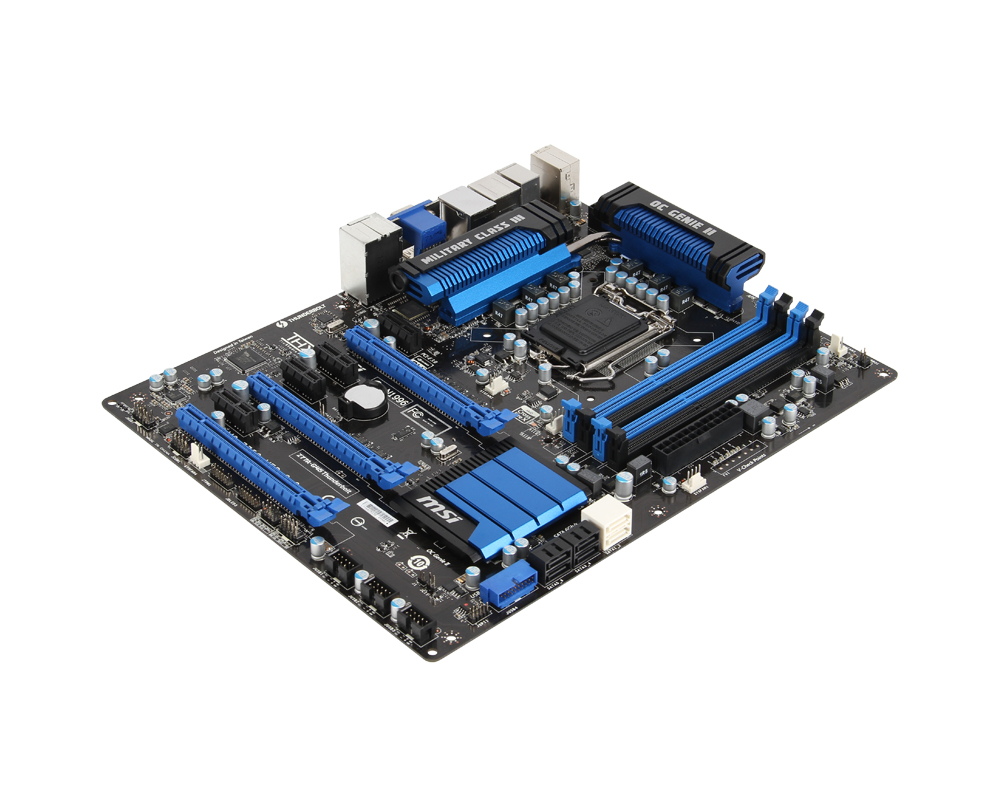

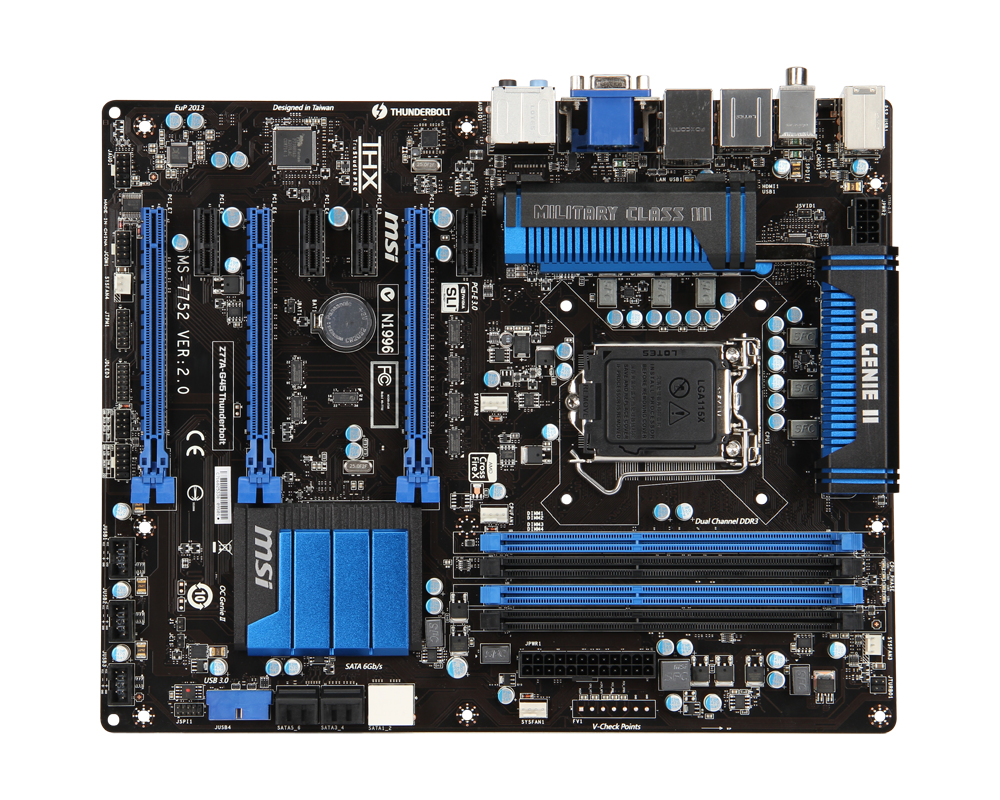

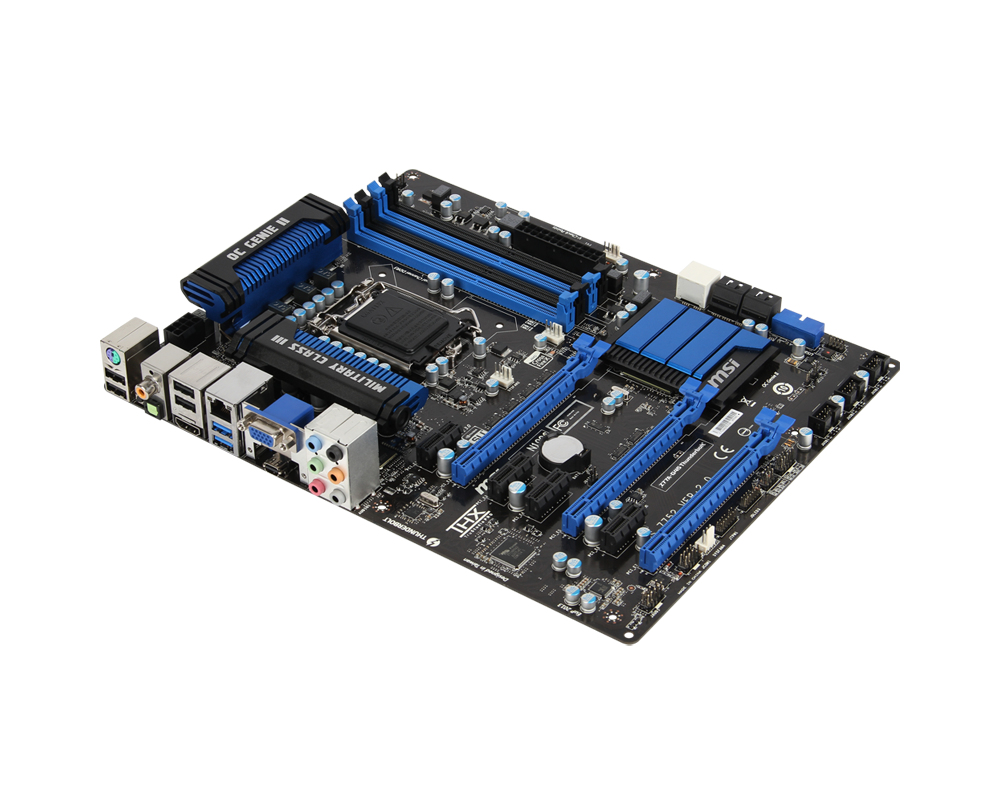

MSI Z77A-G45 Thunderbolt

MSI Z77A-G45 Thunderbolt

Model Z77A-G45 ThunderboltPart no. 911-7752-018EAN 4719072276126

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1760 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1760 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
Z77A-G45 Thunderbolt
Part numbers
911-7752-018, Z77A-G45 THUNDERBOLT, 7752-020R
EAN / UPC
4719072276126, 816909101362, 890552734177, 8169091013626
Also known as
MSI Z77A-G45 Thunderbolt Intel Z77 LGA 1155 (Socket H2) ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron® G, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600,1866,2000,2133,2200,2400,2600,2666,2800 MHz

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1760 MB
Parallel processing technology support2-Way CrossFireX, 2-Way SLI
DirectX version11

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
Chassis intrusion connectorYes
TPM connectorYes

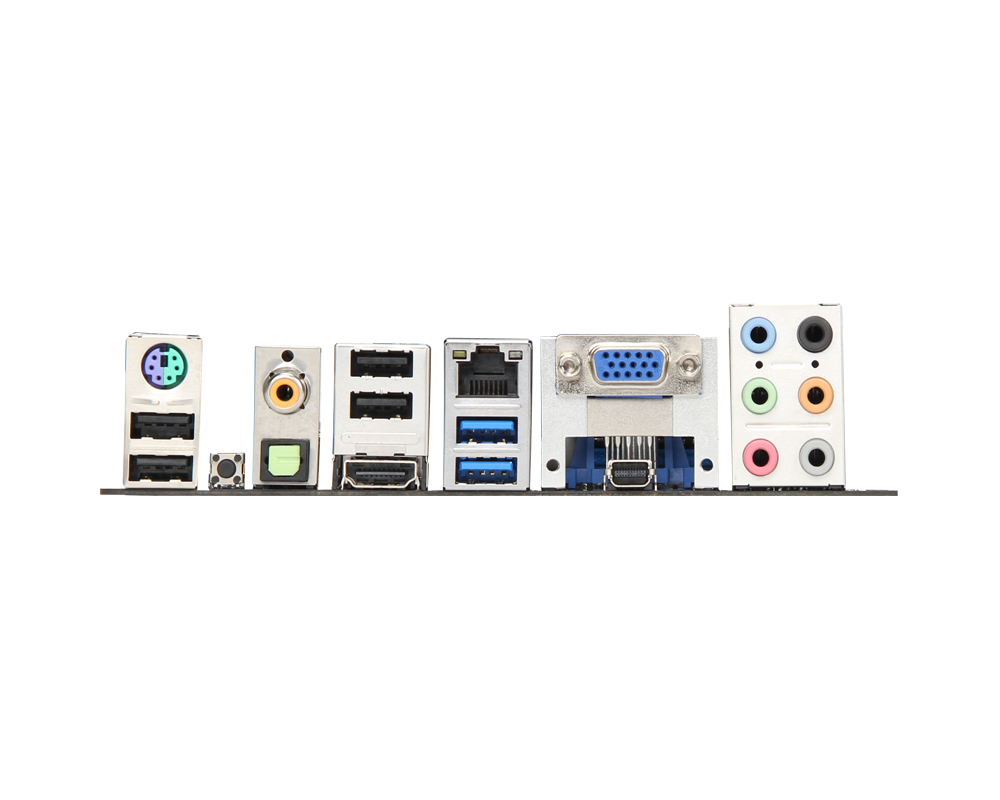

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1
Thunderbolt ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots4
PCI Express x16 slots3
PCI Express slots version2.0, 3.0

BIOS

BIOS typeUEFI
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth245 mm

Other features

Serial port via internal headerYes
