MSI Z77A-G45 GAMING

MSI Z77A-G45 GAMING

Model Z77A-G45 GAMINGPart no. 7752-030REAN 4719072293642

77 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
Z77A-G45 GAMING
Part number
7752-030R
EAN / UPC
4719072293642
Also known as
MSI Z77A-G45 GAMING Intel Z77 LGA 1155 (Socket H2) ATX

Specifications

77 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
System bus rate5 GT/s
Intel Core i3/i5/i7/i9 seriesi3-3xxx, i5-3xxx, i7-3xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1866,2133,2400,2666,3000 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, LucidLogix Virtu
Graphics card familyIntel
Graphics cardHD Graphics 4000
Maximum resolution2048 x 1536 pixels
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors4
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors11
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
Number of IEEE1394 connectors0
TPM connectorYes

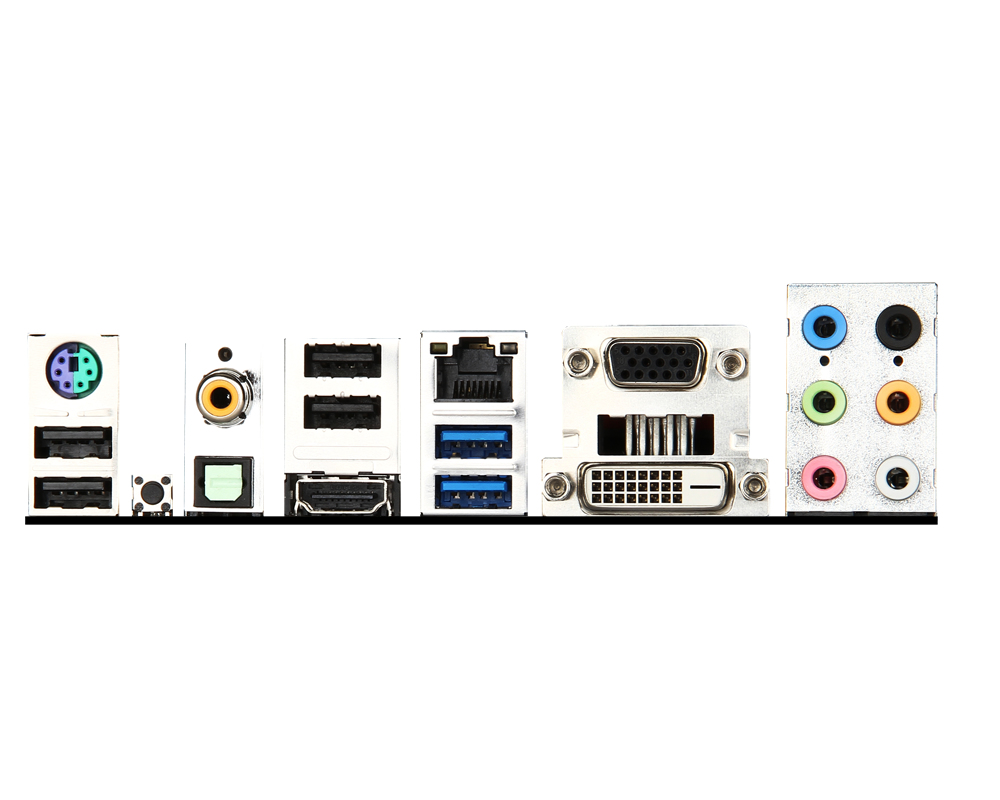

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity1
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerBigfoot Killer E2205
Wi-FiNo
BluetoothNo

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio chipRealtek ALC898
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Windows operating systems supportedYes
Overclocking featuresOC Genie II

Expansion slots

PCI Express x1 slots4
PCI Express x16 slots3
PCI Express configurations1x4, 2x16
PCI Express slots version2.0, 3.0

BIOS

BIOS typeUEFI
Clear CMOS buttonYes

Weight & dimensions

Width243.8 mm
Depth304.8 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller interface typeIntel Z77
Audio output6
PCI Express slots quantity7
Quick installation guideYes
