MSI Z77 Mpower

MSI Z77 Mpower

Model Z77 MpowerPart no. Z77 MPOWEREAN 816909100198

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1760 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1760 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
Z77 Mpower
Part number
Z77 MPOWER
EAN / UPC
816909100198, 4719072271053
Also known as
MSI Z77 Mpower Intel Z77 LGA 1155 (Socket H2) ATX

Specifications

64 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron® G, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds3000,1066,1333,1600,1866,2000,2133,2200,2400,2600,2666,2800 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1760 MB
Parallel processing technology support2-Way CrossFireX, 2-Way SLI
On-board graphics cardNo
Maximum resolution2560 x 1600 pixels
DirectX version11

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
TPM connectorYes

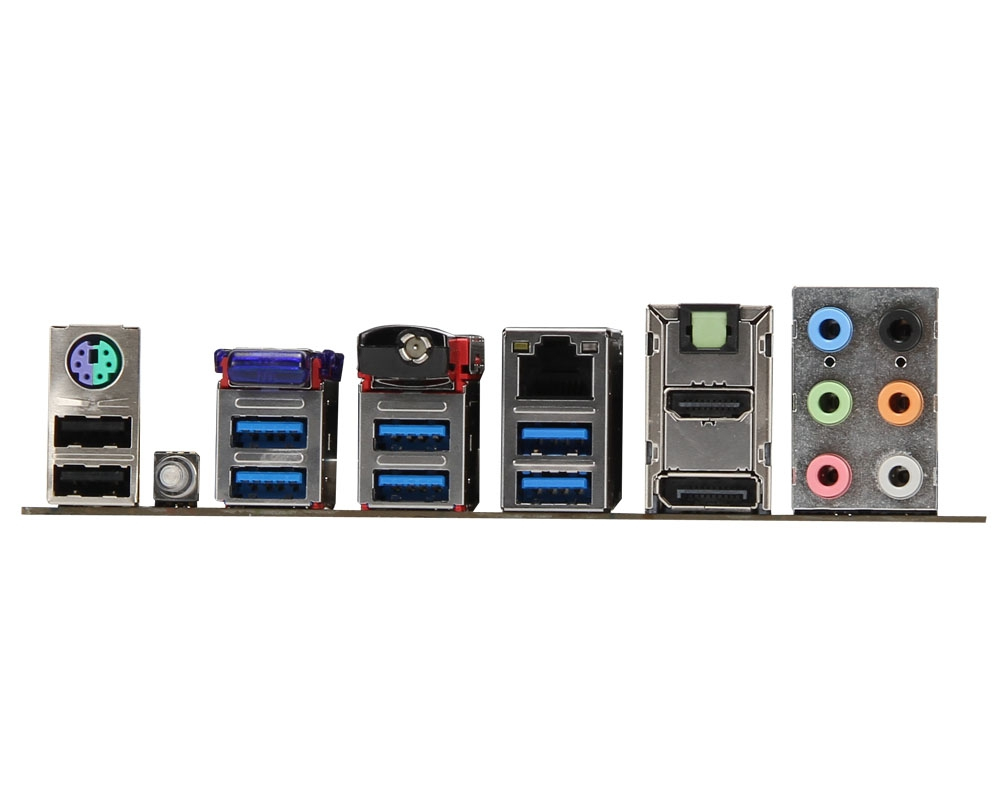

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version3.0+HS

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio chipRealtek ALC898
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots4
PCI Express x16 slots3
PCI Express slots version2.0, 3.0

BIOS

BIOS typeUEFI
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth245 mm

Other features

BIOS switch buttonYes
