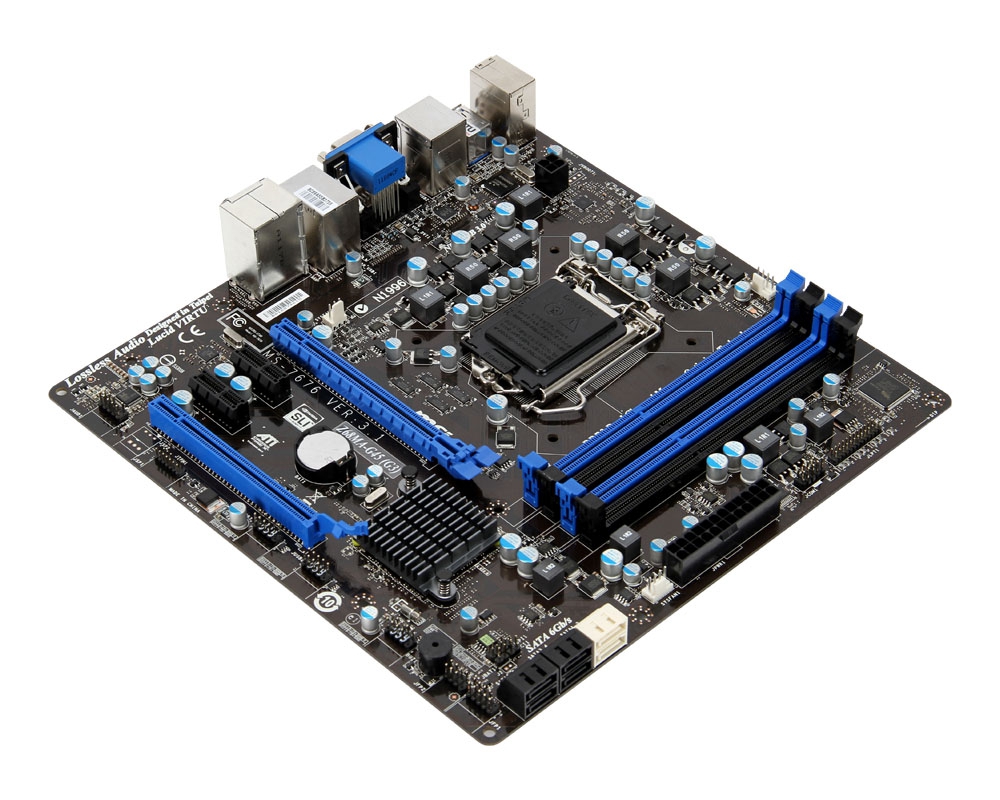

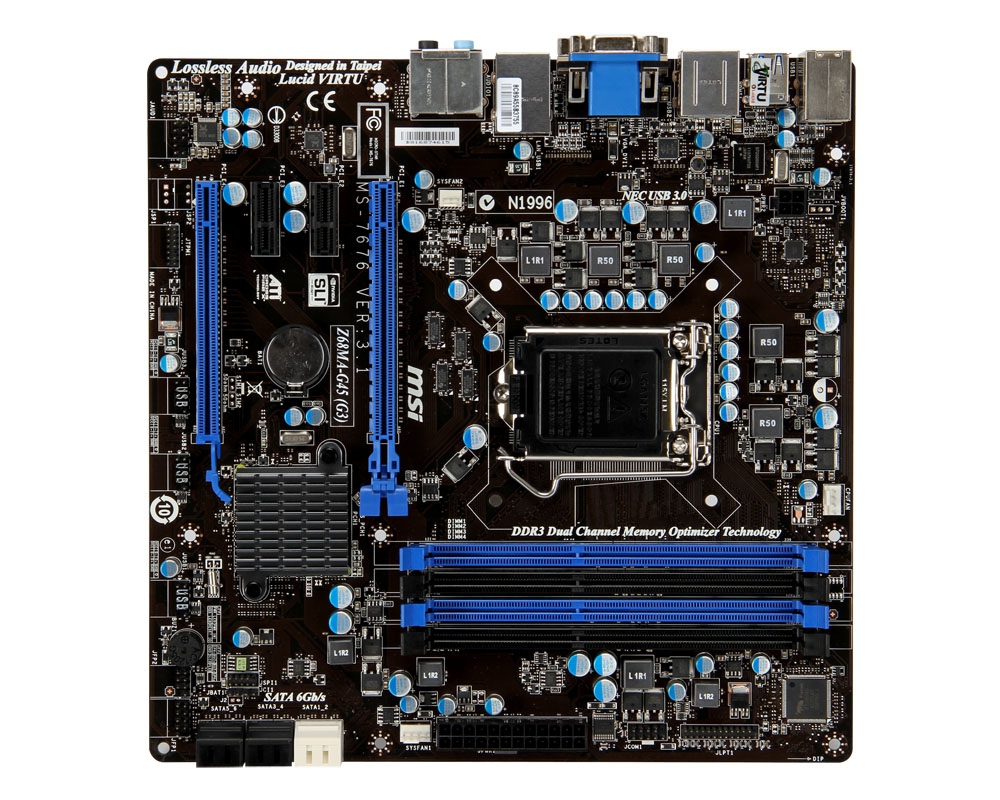

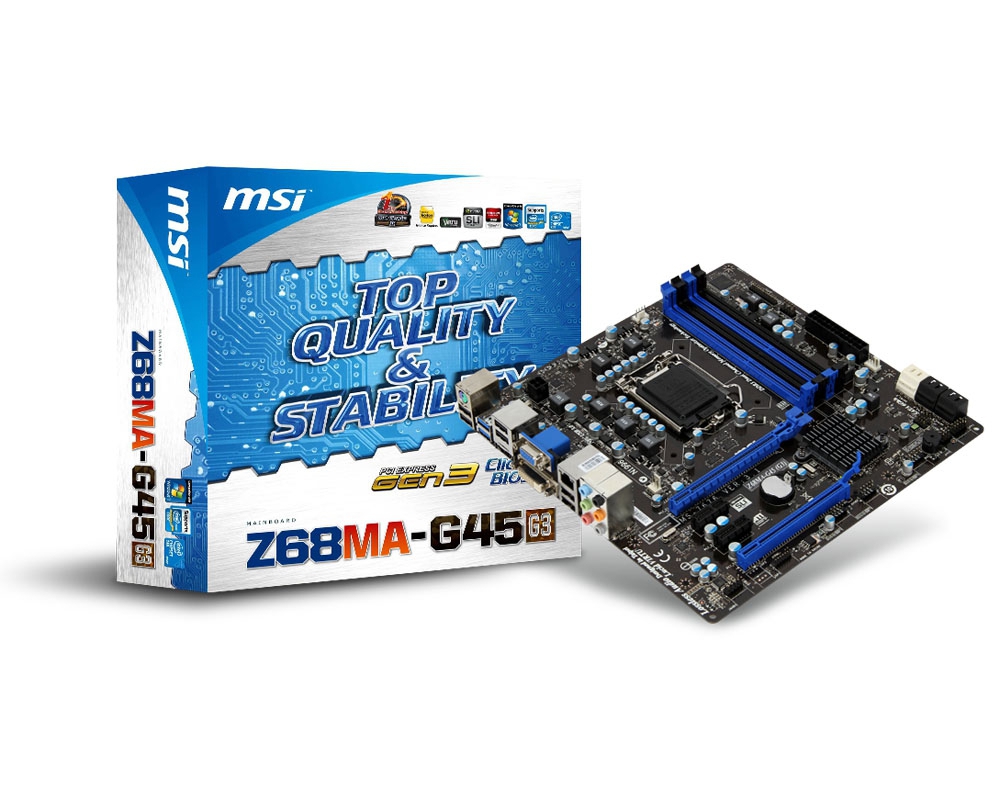

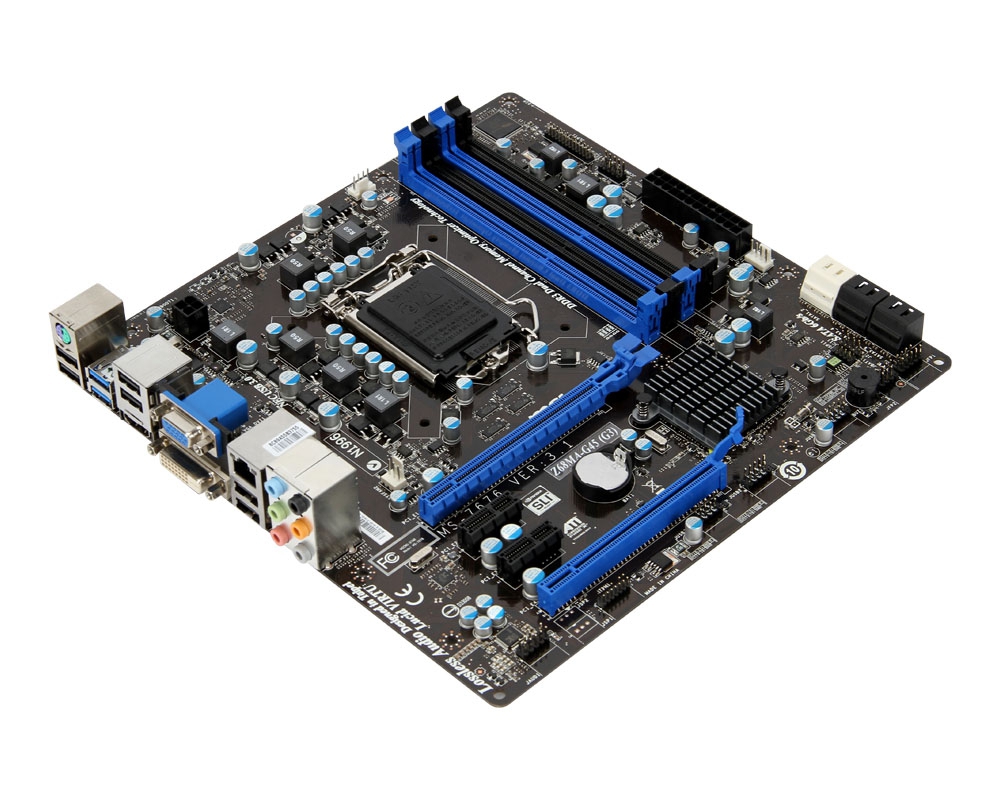

MSI Z68MA-G45 (G3)

MSI Z68MA-G45 (G3)

Model Z68MA-G45 (G3)EAN 816909091052

56 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology support2-Way SLI
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
2-Way SLI
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
Z68MA-G45 (G3)
Part number
Z68MA-G45 (G3)
EAN / UPC
816909091052
Also known as
MSI Z68MA-G45 (G3) motherboard Intel Z68 LGA 1155 (Socket H2) micro ATX

Specifications

56 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866,2133 MHz
Maximum internal memory32 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB
Controller typeIntel Z68 (B3)

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
CD/AUX audio inNo
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Parallel connectorYes
TPM connectorYes

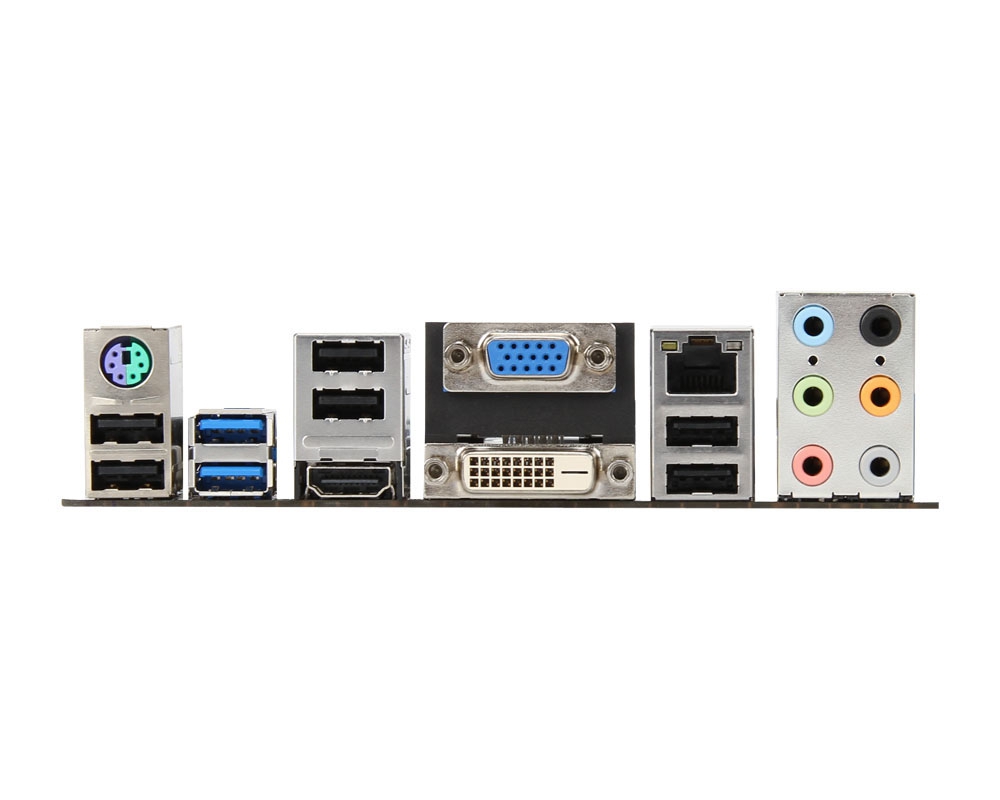

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
Digital audio optical out0

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z68
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2

BIOS

BIOS typeUEFI
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth244 mm

Other features

Controller interface typeRealtek ALC892
