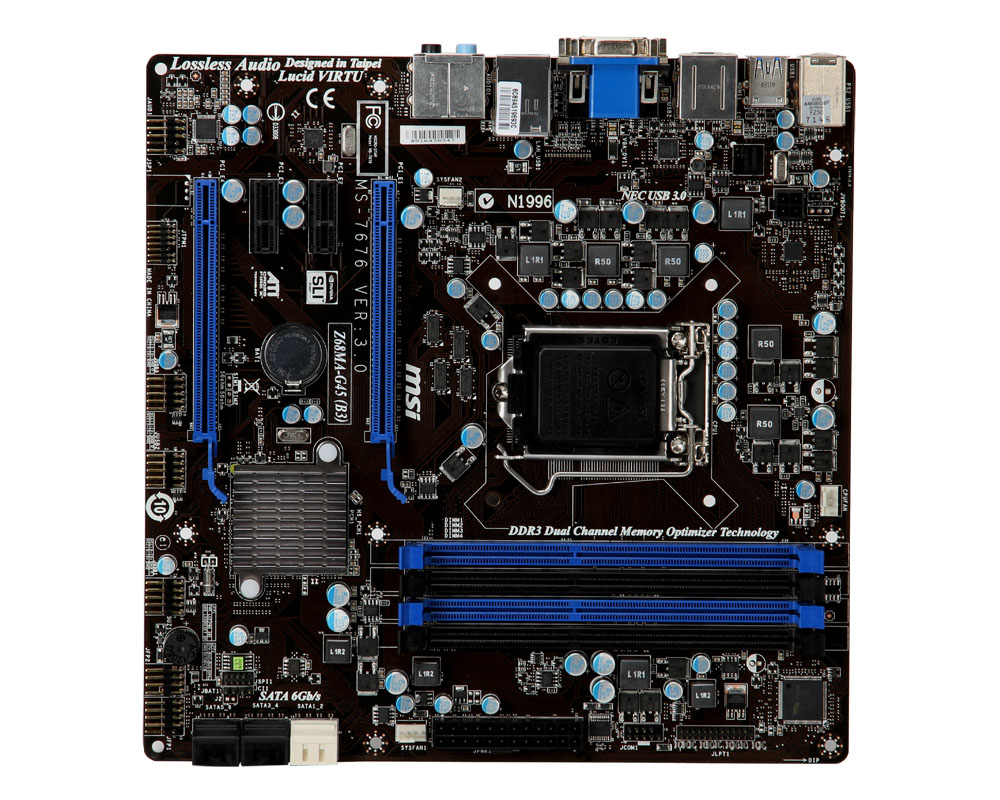

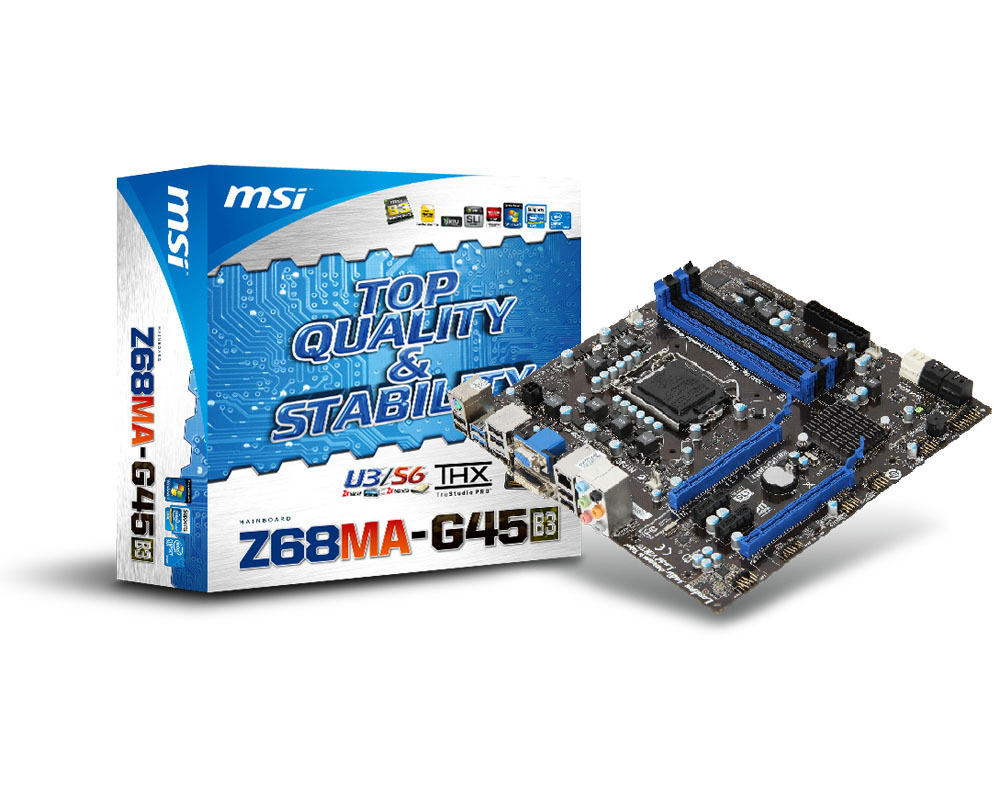

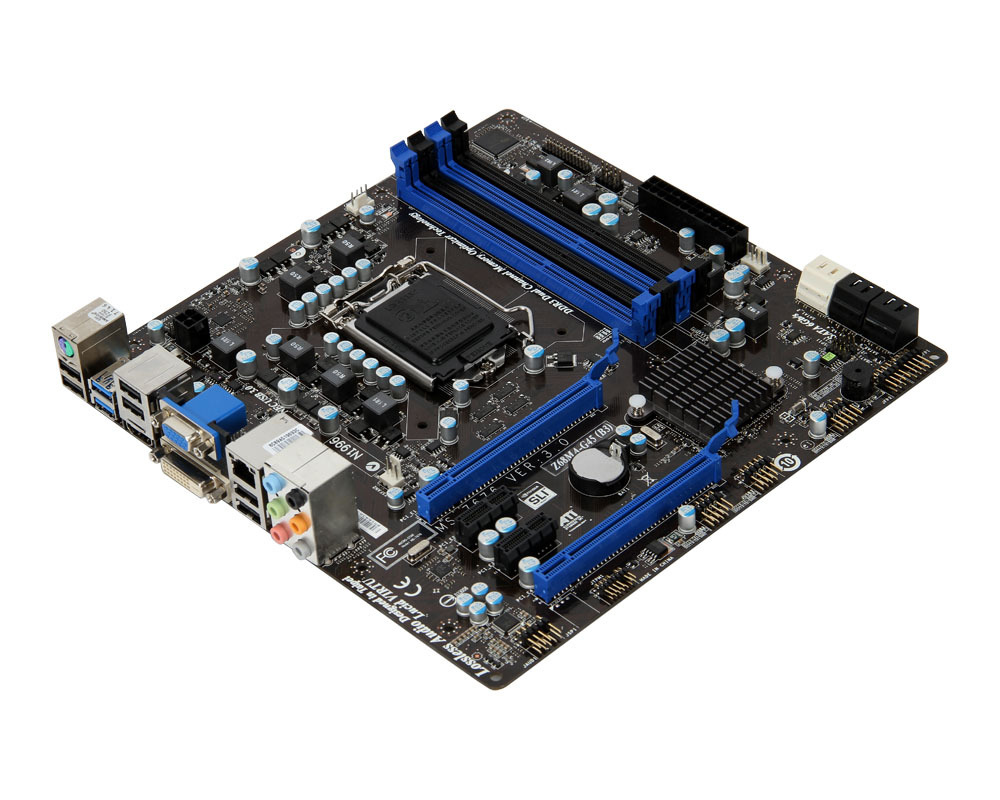

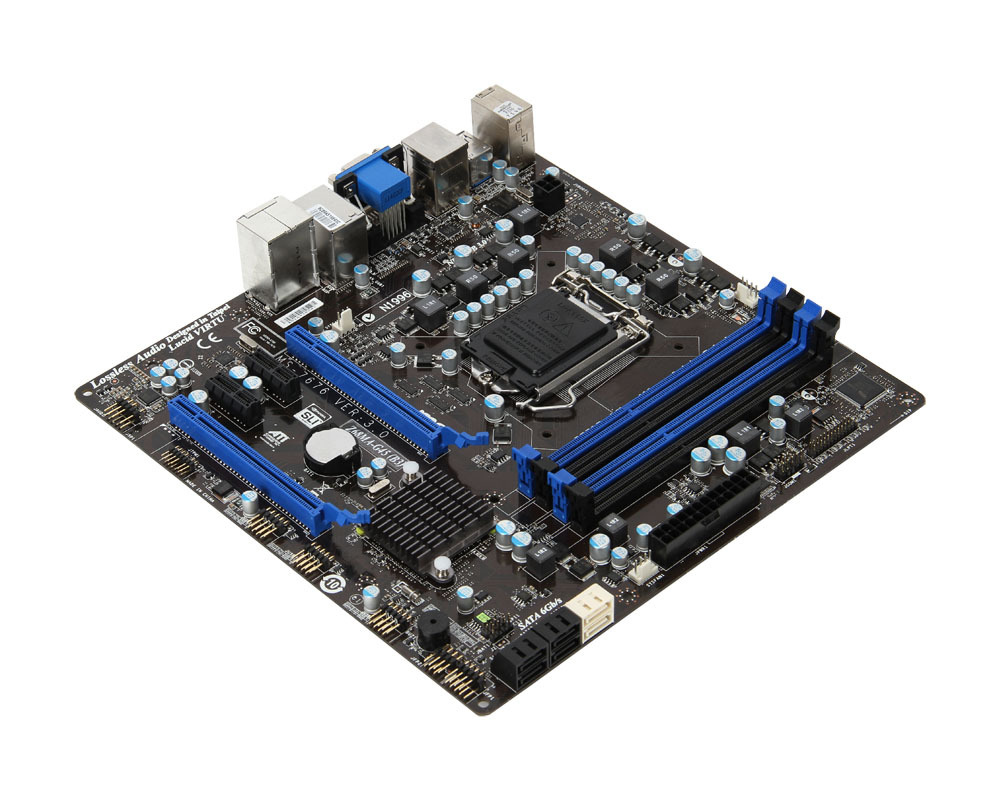

MSI Z68MA-G45 (B3)

MSI Z68MA-G45 (B3)

Model Z68MA-G45 (B3)Part no. 7676-030REAN 4719072229498

51 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
Z68MA-G45 (B3)
Part numbers
7676-030R, Z68MA-G45 (B3), Z68MA-G45-B3
EAN / UPC
4719072229498, 816909087925
Also known as
MSI Z68MA-G45 (B3) Intel Z68 LGA 1155 (Socket H2) micro ATX

Specifications

51 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1024 MB
On-board graphics cardYes

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

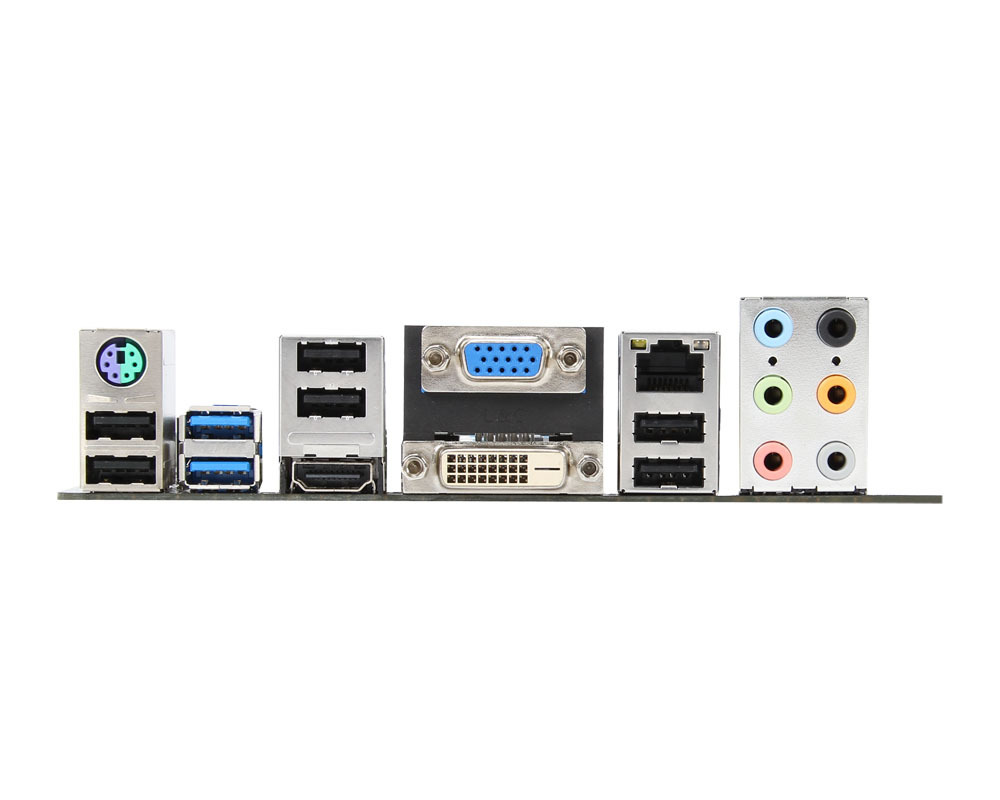

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z68
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows XP, Vista, 7

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes
