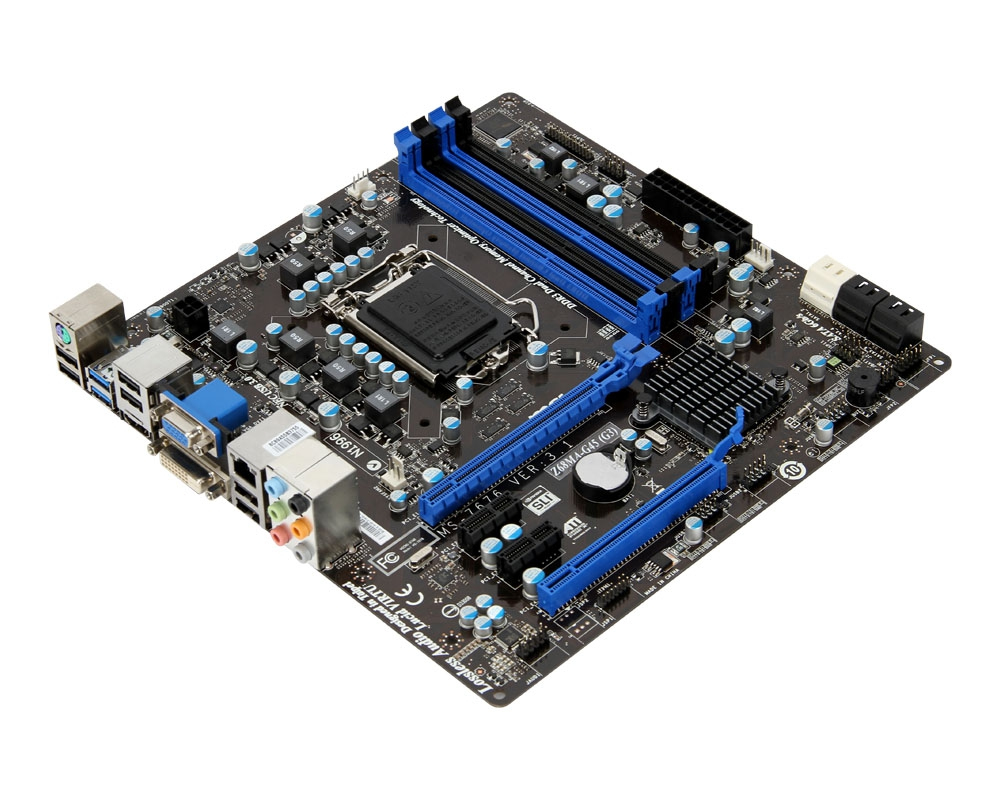

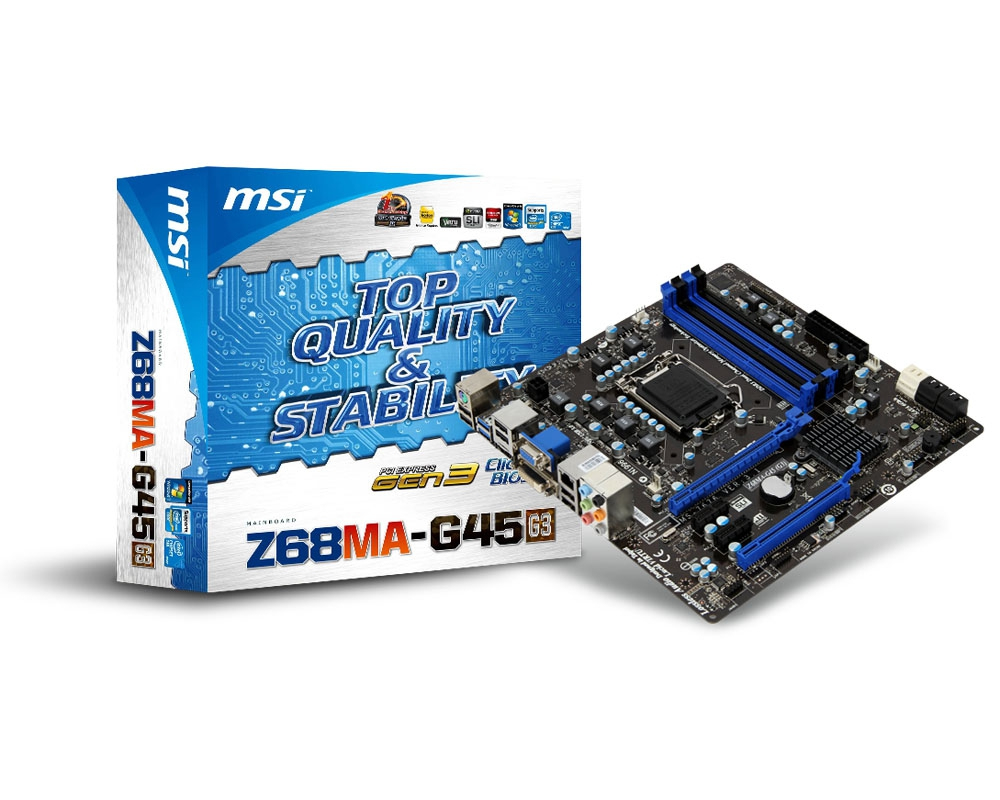

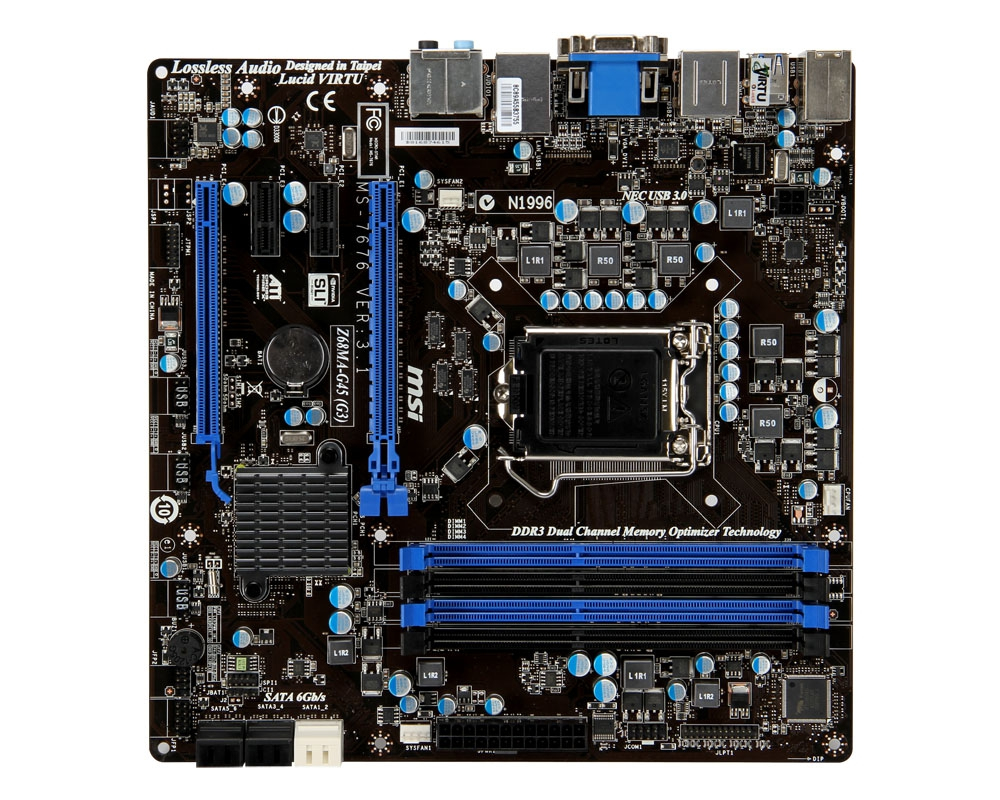

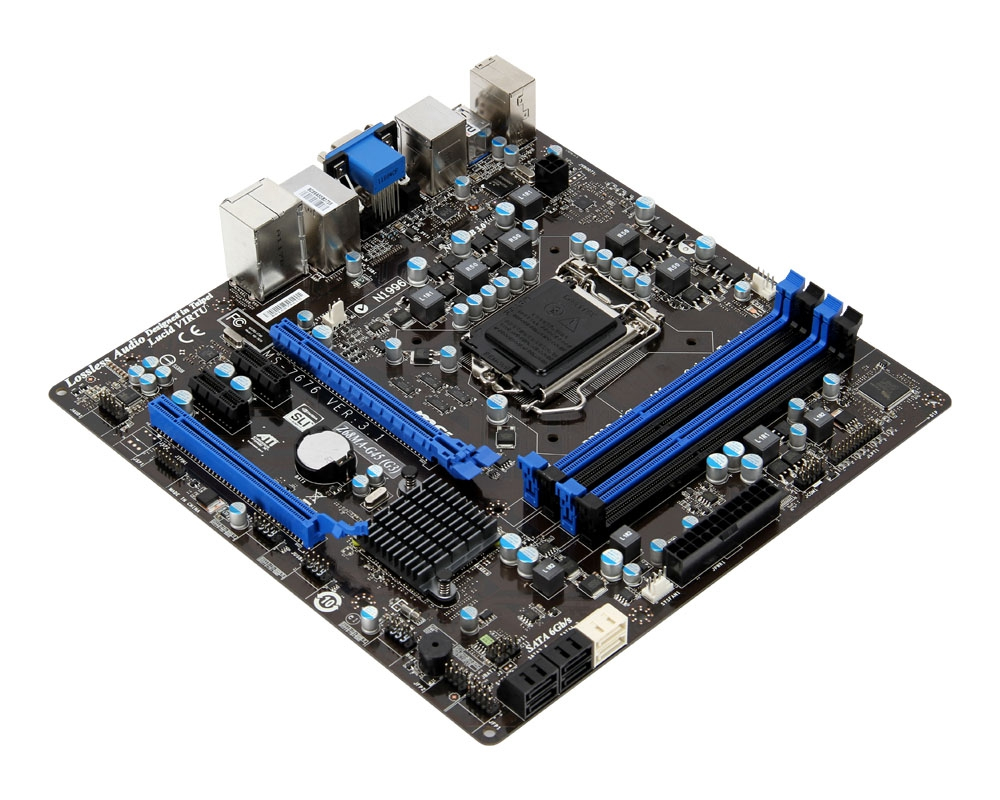

MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX
Model Z68MA-G45Part no. 7676-031REAN 4719072240158
51 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology support2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors4
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- 2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- Z68MA-G45
- Part number
- 7676-031R
- EAN / UPC
- 4719072240158, 4719072244064
- Also known as
- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX
Specifications
51 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1066,1333,1600,1866,2133 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |

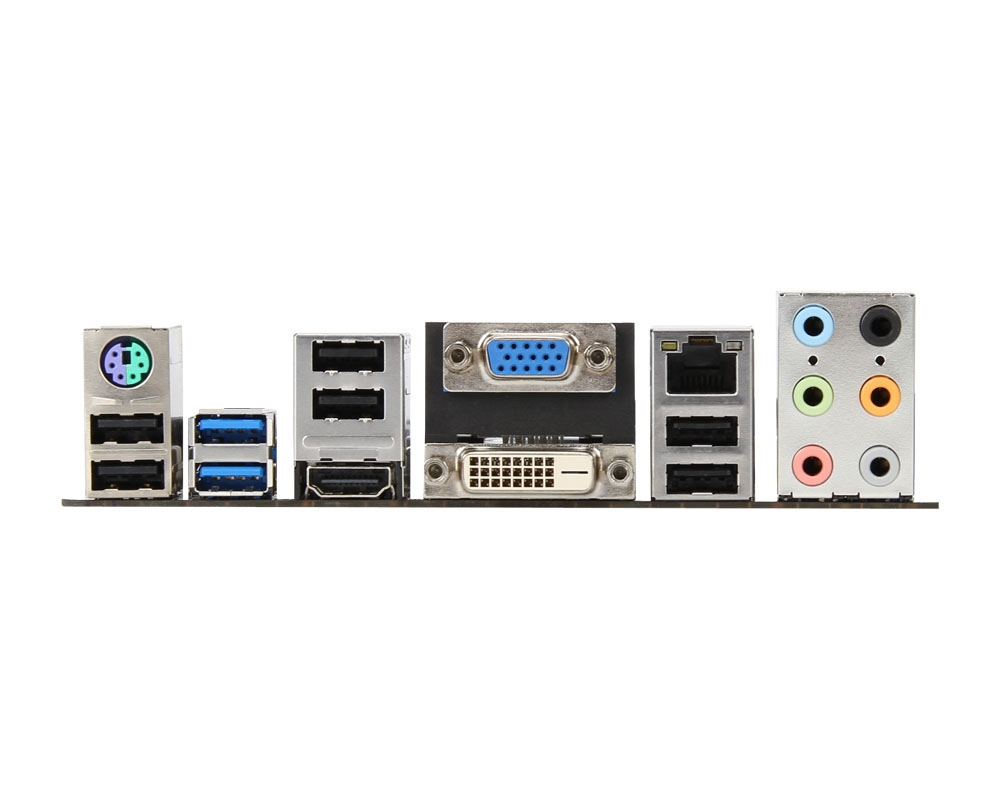

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z68 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsMSI PH61-P33 (B3)Compare specs

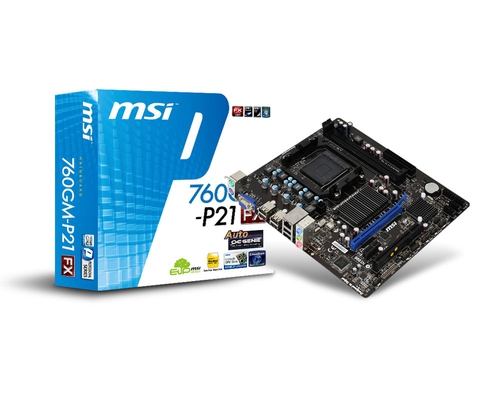

- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsMSI 760GM-P21 (FX)Compare specs
- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsMSI X79A-GD65 (8D)Compare specs
- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsMSI X79A-GD45 motherboard LGA 2011 (Socket R) ATXCompare specs

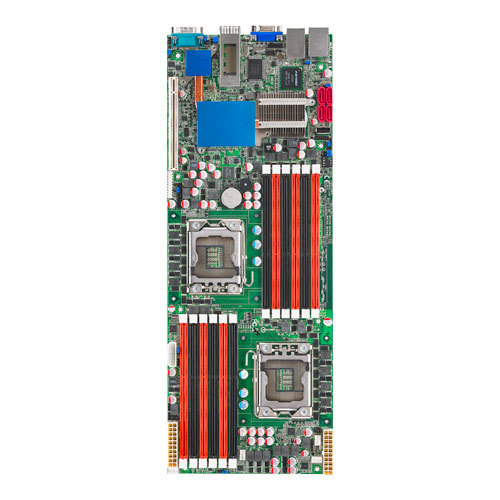

- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsASUS Z8PH-D12 SE/QDRCompare specs

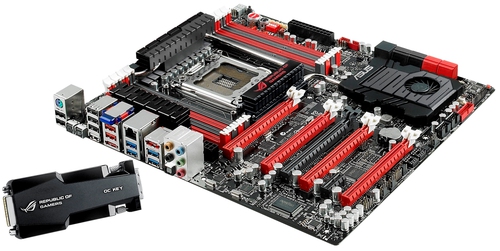

- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsASUS Rampage IV ExtremeCompare specs

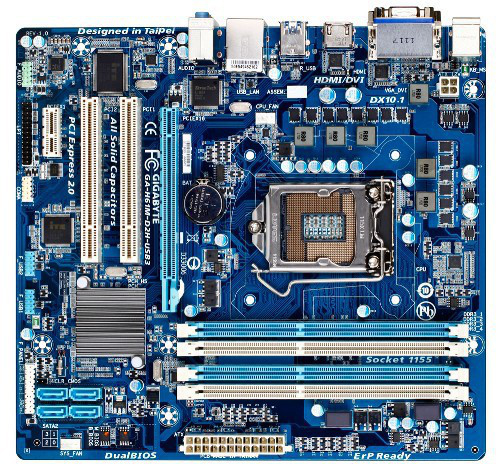

- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-H61M-D2H-USB3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

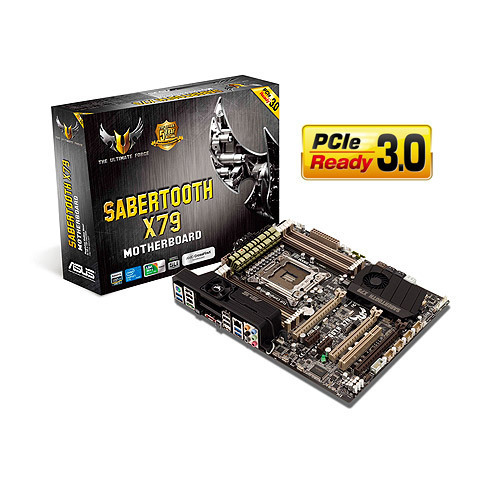

- MSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATX vsASUS SABERTOOTH X79Compare specs
