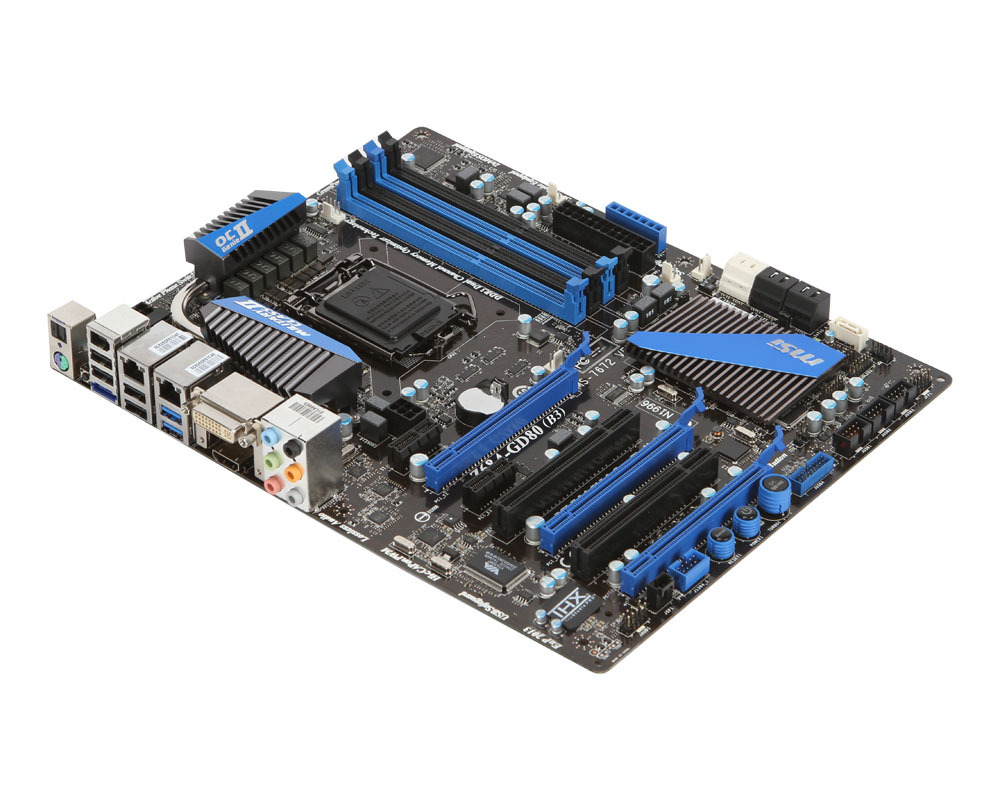

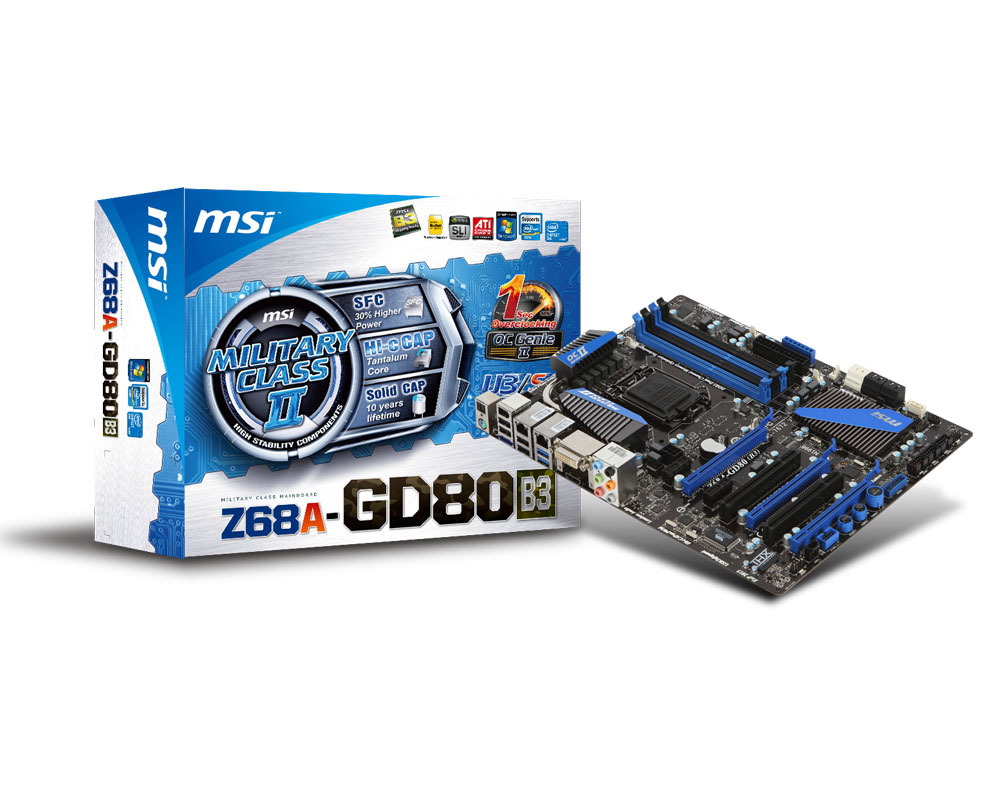

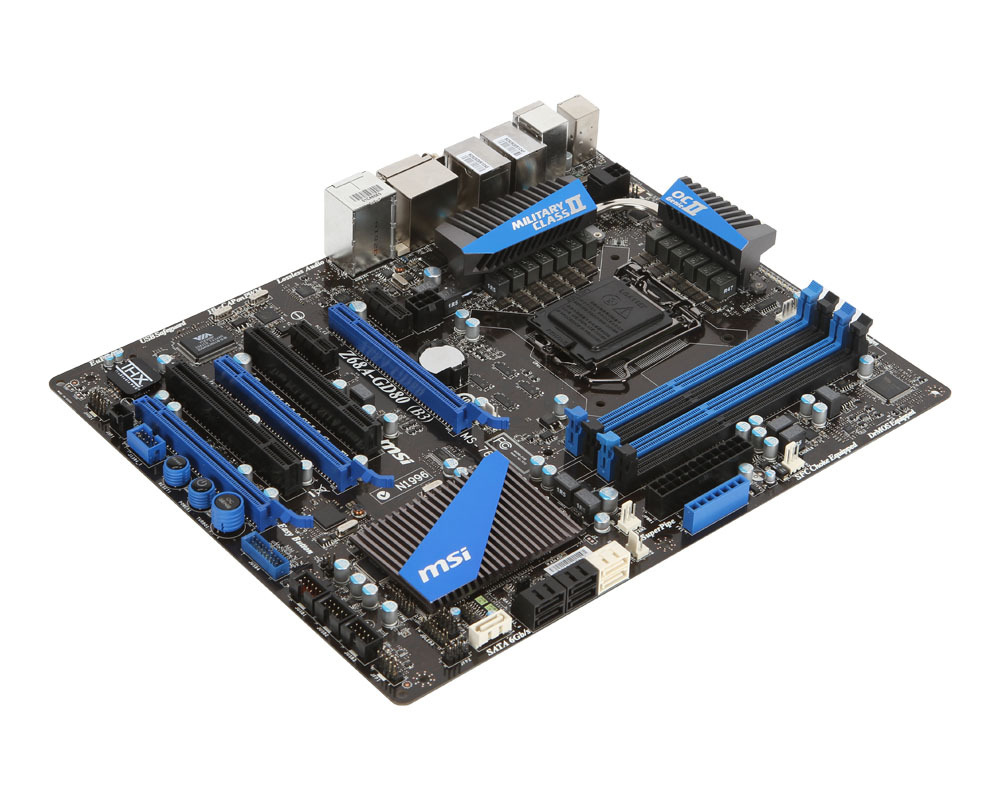

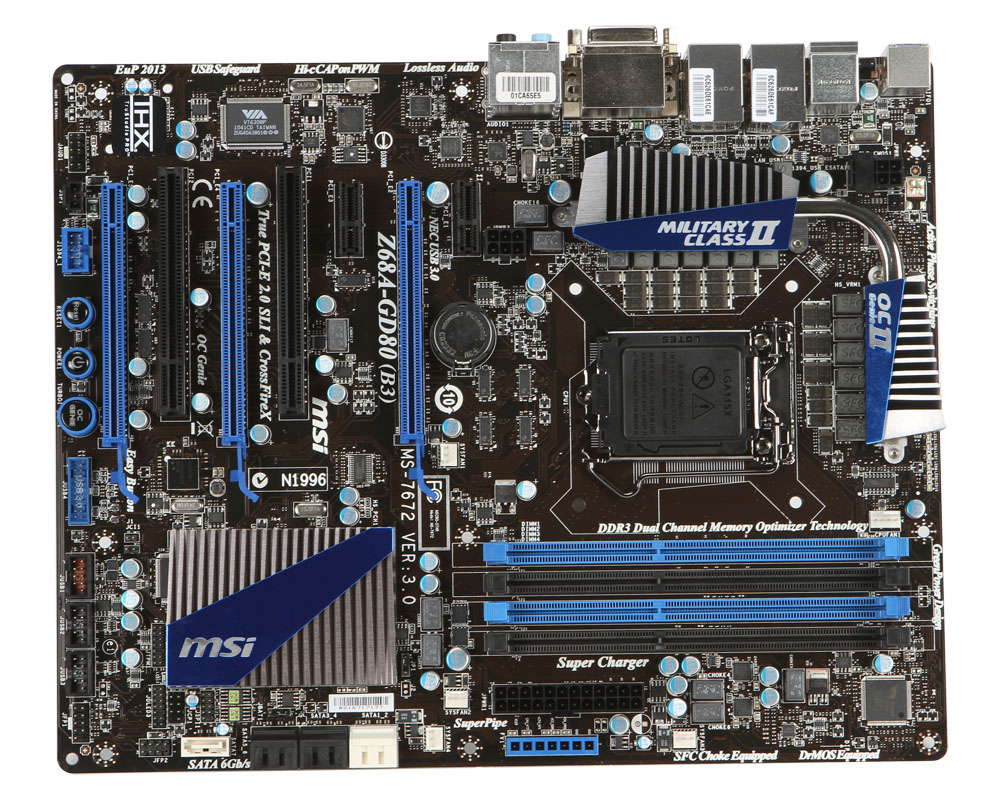

MSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATX
Model Z68A-GD80
60 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- On-board graphics cardNo
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- On-board graphics card
- No
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- Z68A-GD80
- Part number
- Z68A-GD80
- Also known as
- MSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATX
Specifications
60 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1066,1333,1600,2133 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| HDCP | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

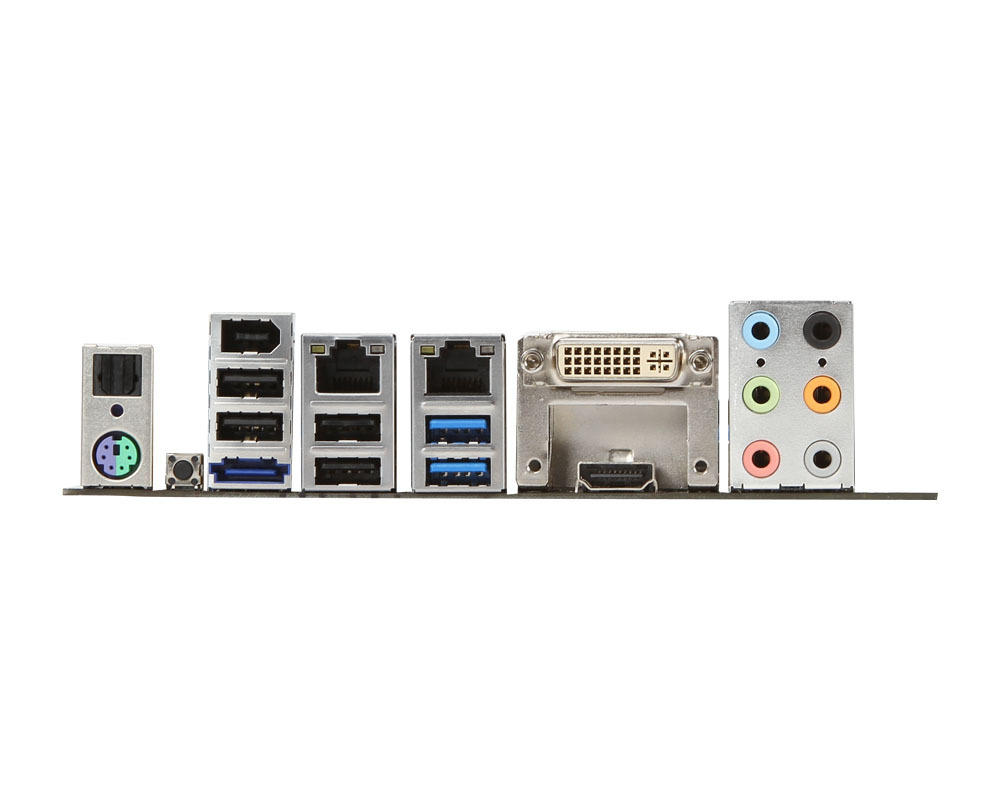

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z68 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 3 |
| PCI Express slots version | 2.0 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS button | Yes |
Other features
| Specification | Value |
|---|---|
| PCI Express power connectors (6-pin) | 1 |
| Supported UDIMM module capacity | 1GB, 2GB, 4GB, 8GB |
| Processor front side bus | 100 MHz |
What people say
Reviews & ratings
MSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATX
No reviews yet
Be the first to tell others how MSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

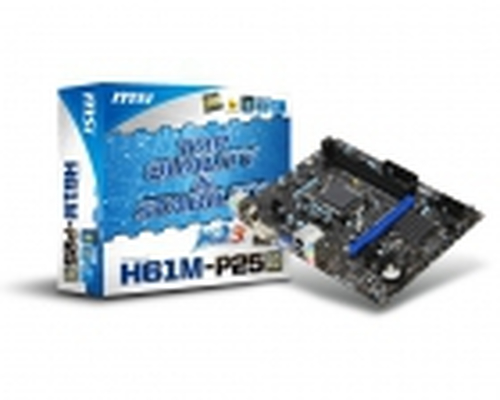

All motherboard comparisons- MSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsMSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

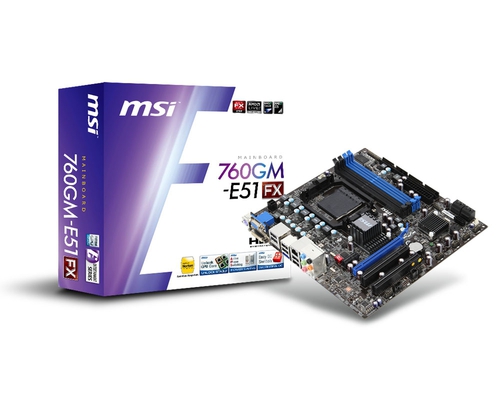

- MSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsMSI 760GM-E51 (FX)Compare specs
