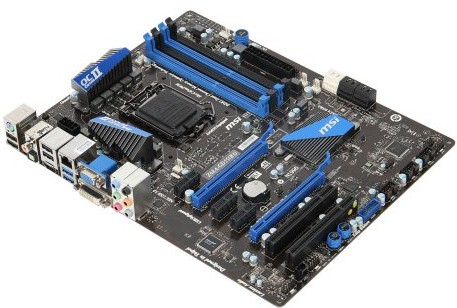

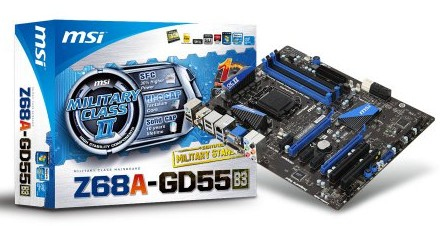

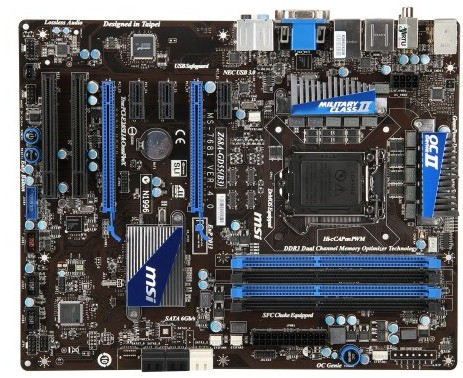

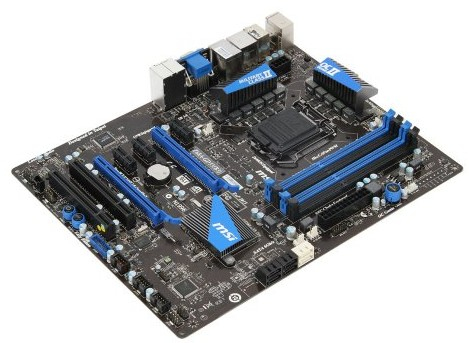

MSI Z68A-GD55 Intel Z68 LGA 1155 (Socket H2) ATX

MSI Z68A-GD55 Intel Z68 LGA 1155 (Socket H2) ATX

Model Z68A-GD55Part no. 7681-061REAN 4719072232658

56 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • Ethernet interface typeFast Ethernet, Gigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Brand
MSI
Category
Motherboard
Model
Z68A-GD55
Part number
7681-061R
EAN / UPC
4719072232658
Also known as
MSI Z68A-GD55 Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

56 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,2133 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes

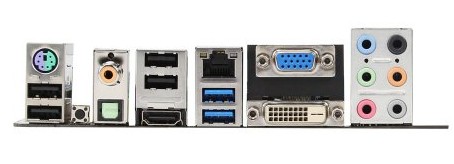

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z68
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI Express slots version2.0

BIOS

Clear CMOS buttonYes

Weight & dimensions

Width245 mm
Depth305 mm

Packaging content

Drivers includedYes

Other features

S/PDIF in portYes
Audio outputS/PDIF
Quick installation guideYes
