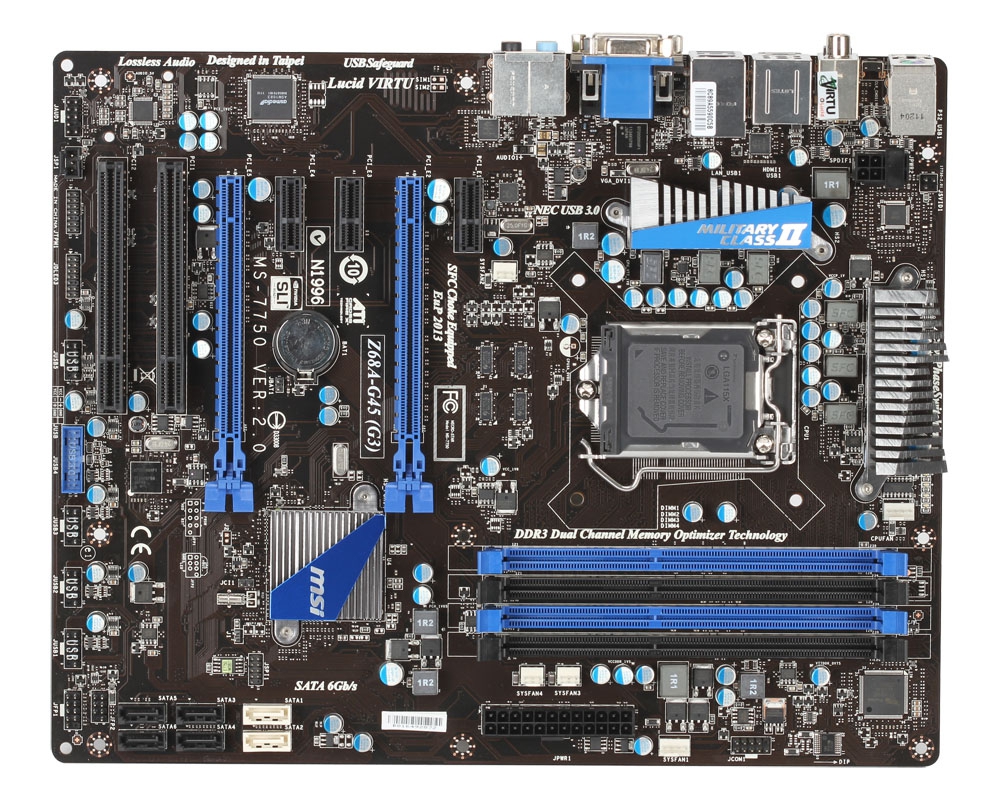

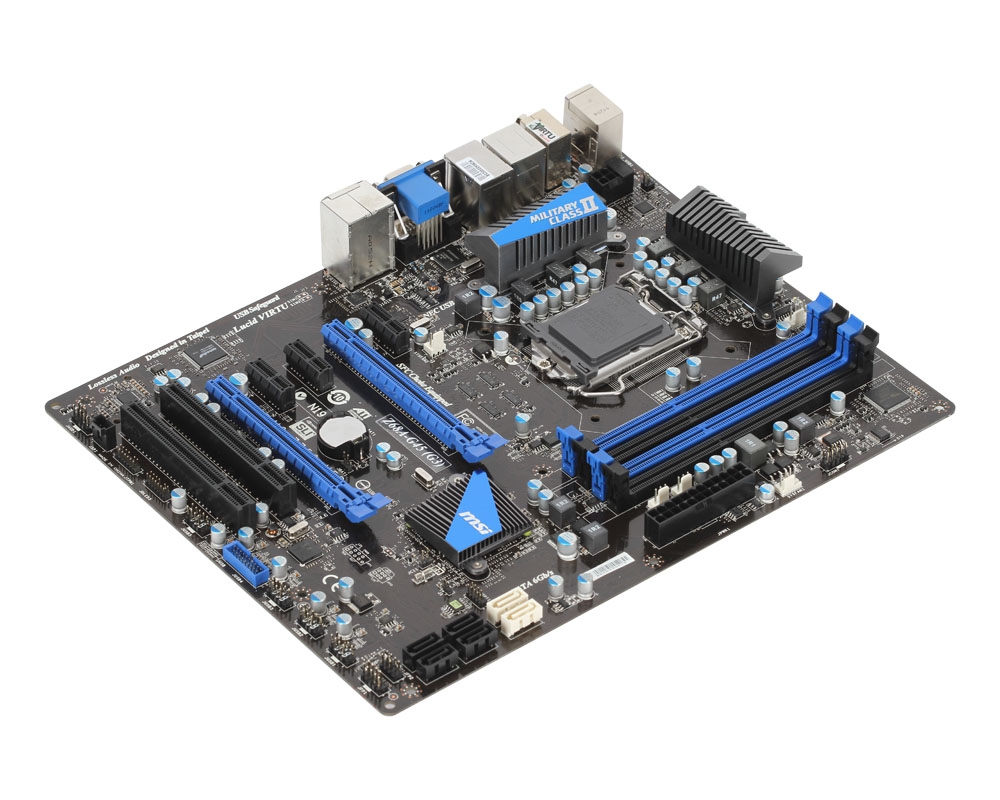

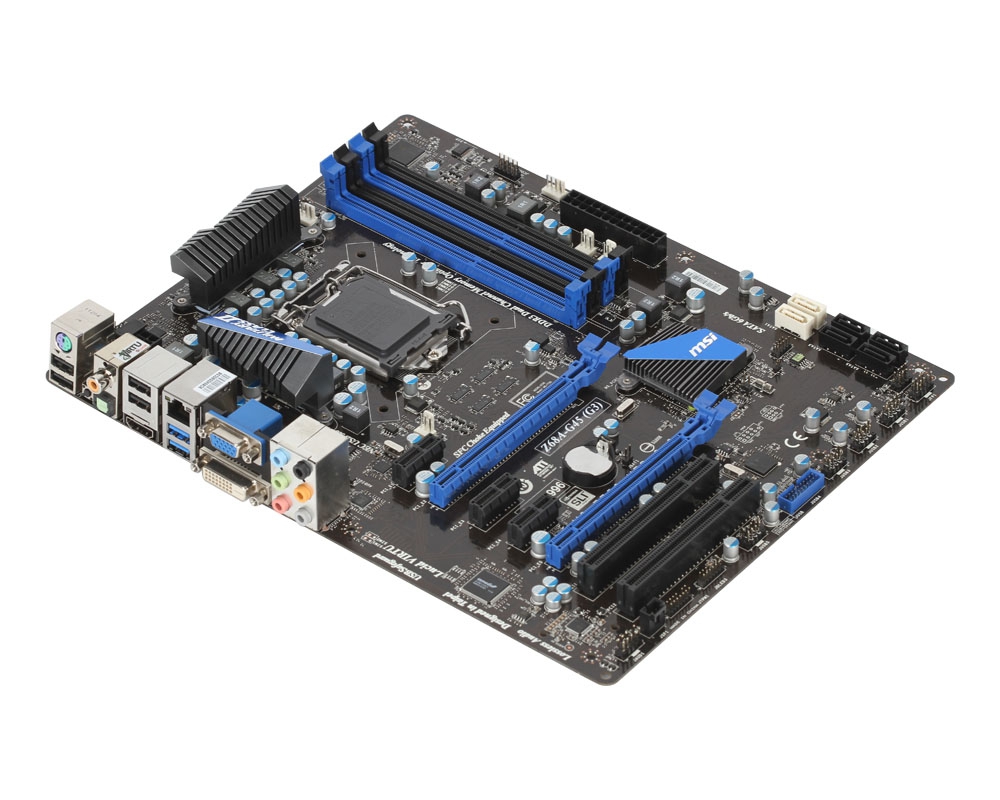

MSI Z68A-G45 (G3)

MSI Z68A-G45 (G3)

Model Z68A-G45 (G3)EAN 4719072238056

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology support2-Way SLI
  • USB 2.0 connectors4
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
2-Way SLI
USB 2.0 connectors
4
Ethernet interface type
Gigabit Ethernet
Brand
MSI
Category
Motherboard
Model
Z68A-G45 (G3)
Part numbers
Z68A-G45 (G3), 7750-021R
EAN / UPC
4719072238056
Also known as
MSI Z68A-G45 (G3) motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

62 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

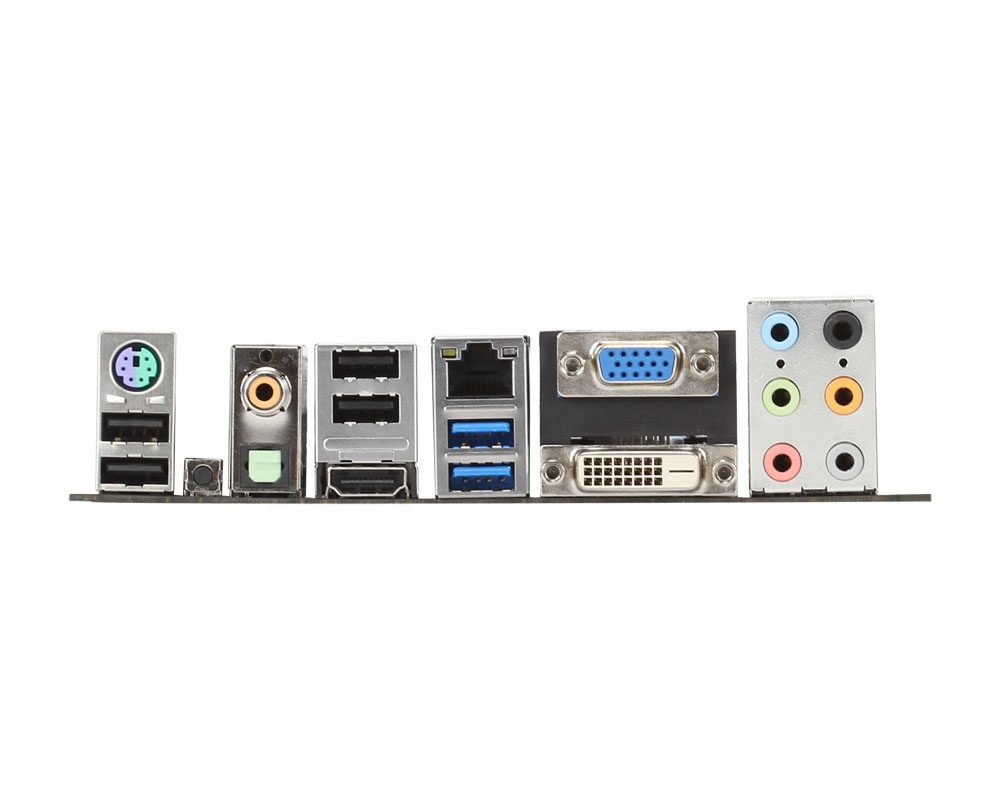

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z68
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systems98SE/ME/2000/XP/Vista/7 32Bit

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeUEFI
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth305 mm

Other features

S/PDIF in portYes
Supported UDIMM clock speeds1066,1333,1600 MHz
Supported UDIMM module capacity1GB, 2GB, 4GB, 8GB
Maximum UDIMM memory32 GB
Controller interface typeIntel Z68
