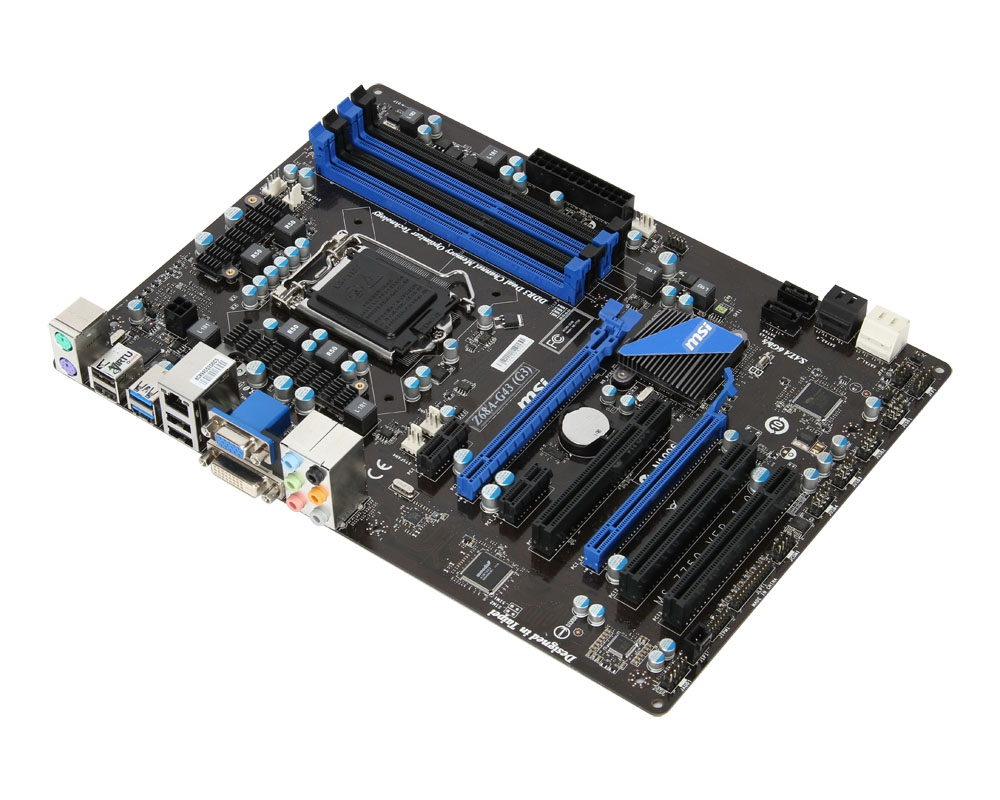

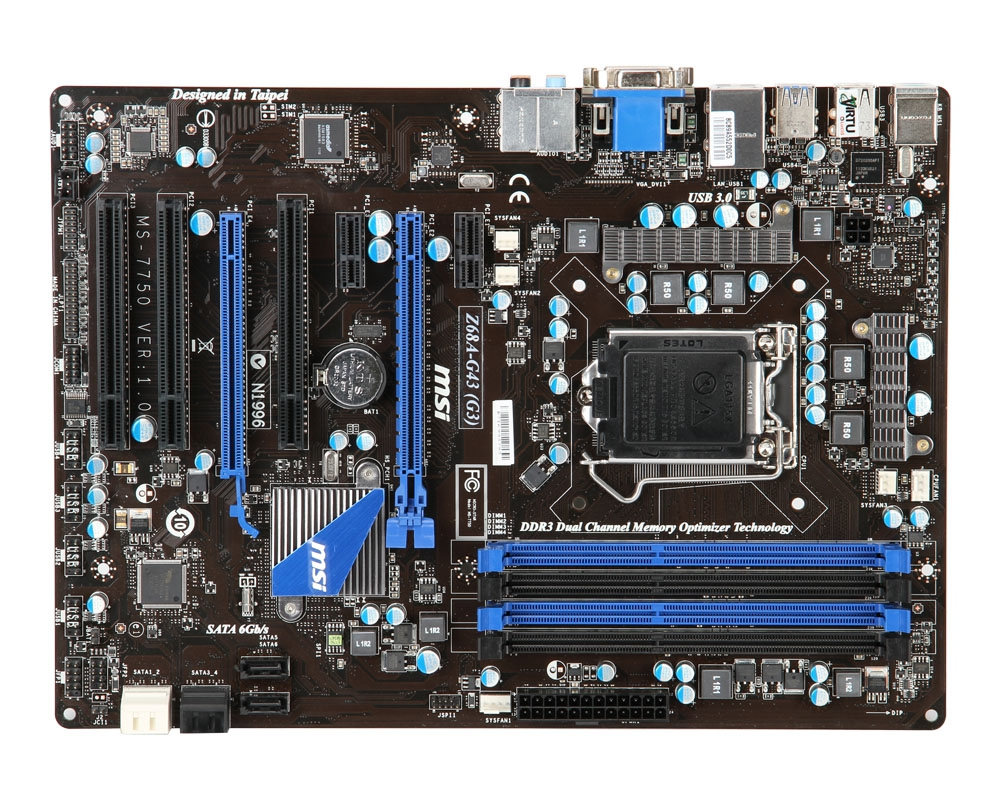

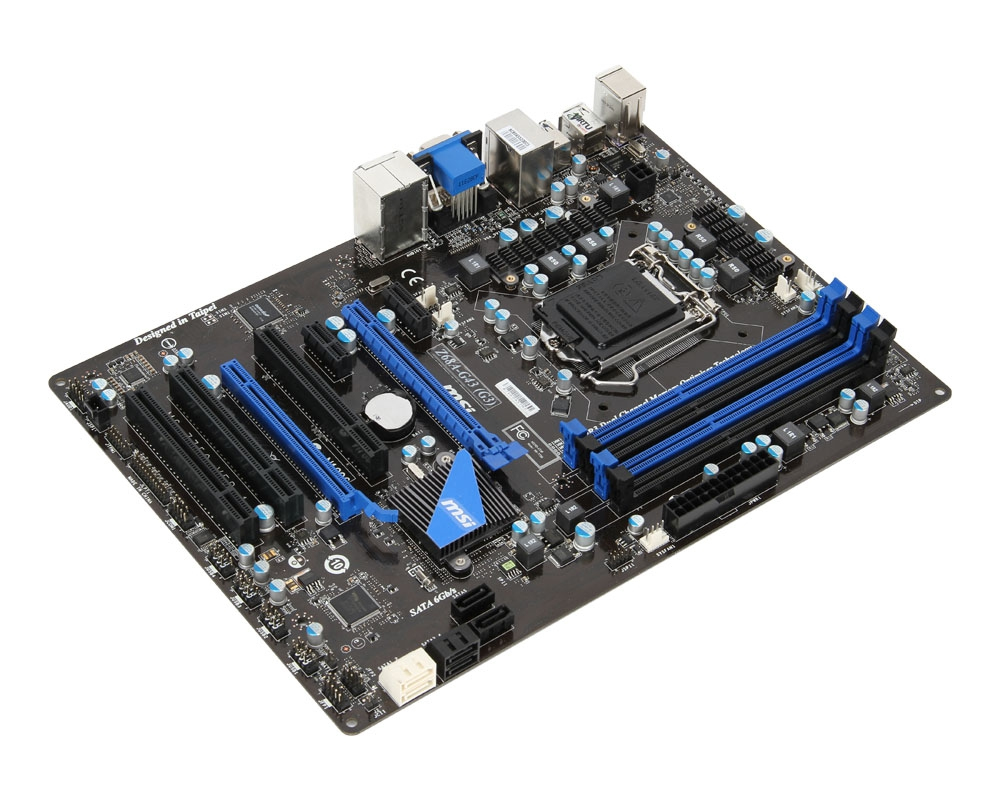

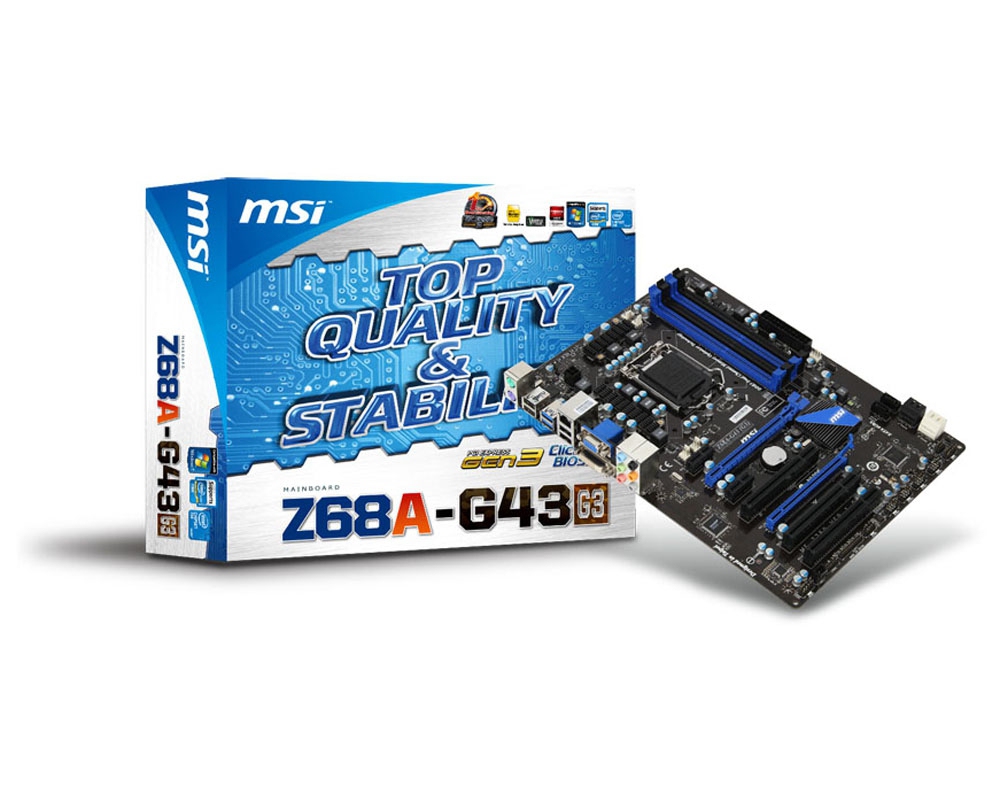

MSI Z68A-G43 (G3)
Model Z68A-G43 (G3)Part no. Z68A-G43(G3)EAN 8169090903140
44 specifications
- Memory1 GB
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- Number of SATA III connectors2
- USB 2.0 ports quantity4
Overview
- Memory
- 1 GB
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- Number of SATA III connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- Z68A-G43 (G3)
- Part numbers
- Z68A-G43(G3), 7750-011R, 911-7750-018, 601-7750-050, Z68A-G43 (G3)
- EAN / UPC
- 8169090903140, 816909090314
- Also known as
- MSI Z68A-G43 (G3) motherboard Intel Z68 LGA 1155 (Socket H2) ATX
Specifications
44 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Processor system buses supported | 1066,1333,1600 MHz |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Internal memory | 1 GB |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| TPM connector | Yes |

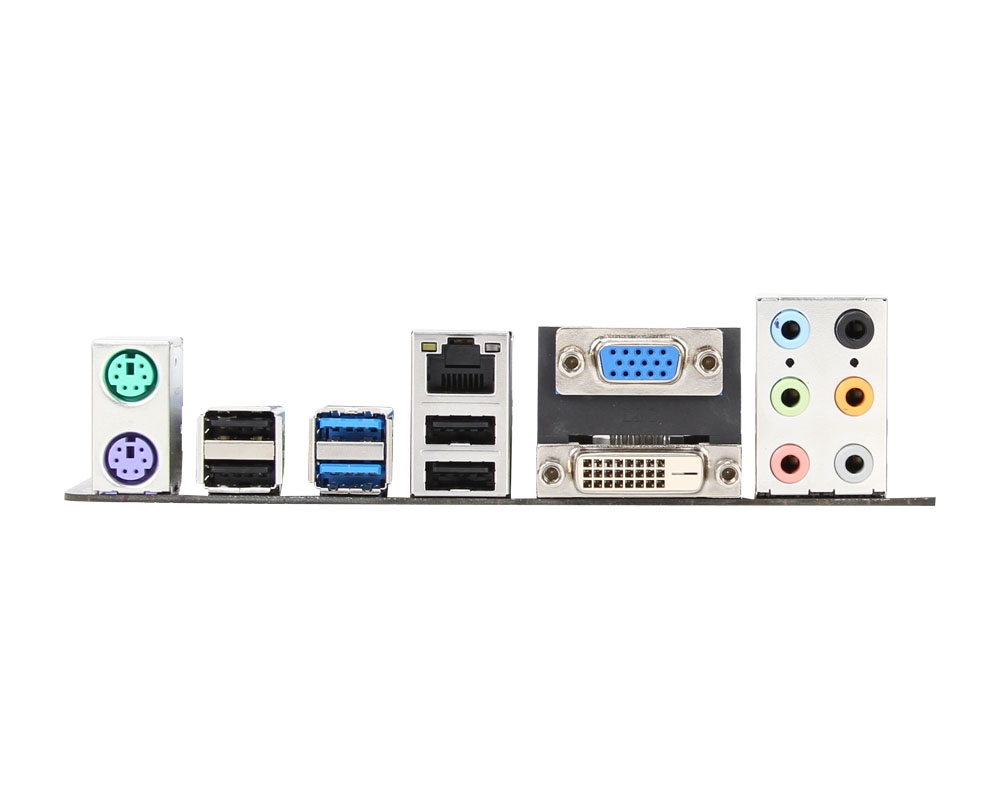

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z68 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 2200 mm |
| Depth | 3050 mm |
What people say
Reviews & ratings
MSI Z68A-G43 (G3)
No reviews yet
Be the first to tell others how MSI Z68A-G43 (G3) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Z68A-G43 (G3)
All motherboard comparisons- MSI Z68A-G43 (G3) vsMSI Z68A-G45 (G3)Compare specs

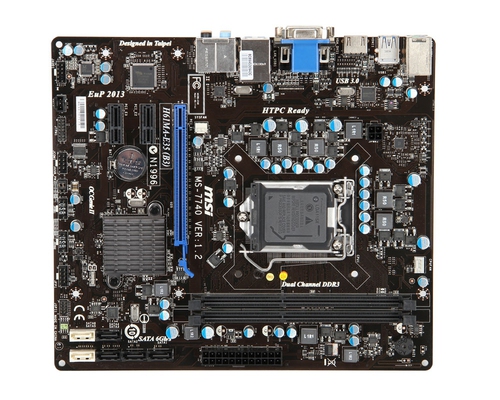

- MSI Z68A-G43 (G3) vsMSI H61MA-E35 (B3)Compare specs
- MSI Z68A-G43 (G3) vsMSI H61M-P22 (B3)Compare specs
- MSI Z68A-G43 (G3) vsMSI A55-G35 motherboard AMD A55 Socket FM1 ATXCompare specs

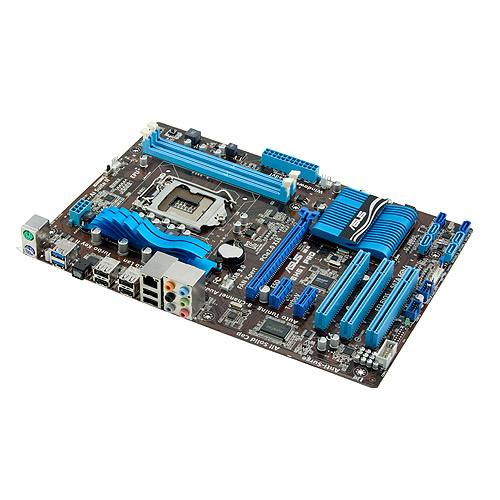

- MSI Z68A-G43 (G3) vsASUS MB P8H61 PRO/INTEL LGA 1155/ATX Rev.3.0Compare specs

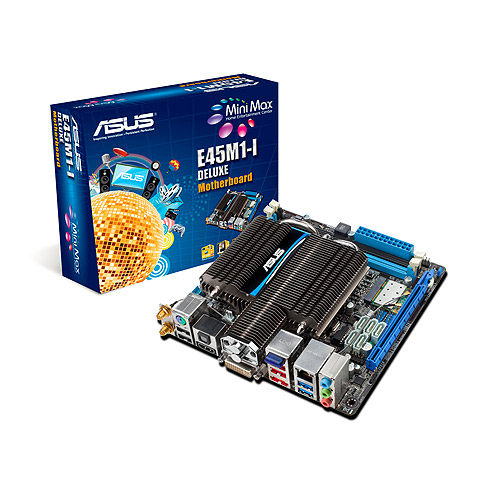

- MSI Z68A-G43 (G3) vsASUS E45M1-I DELUXECompare specs

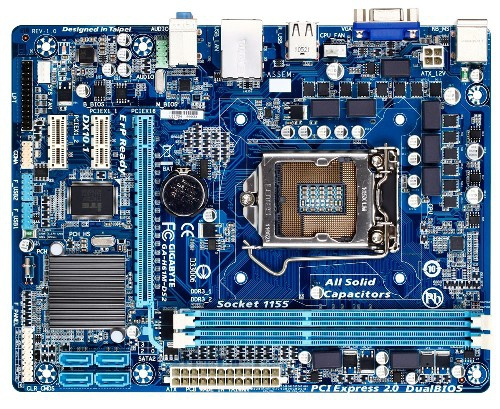

- MSI Z68A-G43 (G3) vsGIGABYTE GA-H61M-DS2 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
